01-005-3D | Push-to-open hinge, 3D 01-005-3D

01-005-3D Push-to-open hinge, 3D

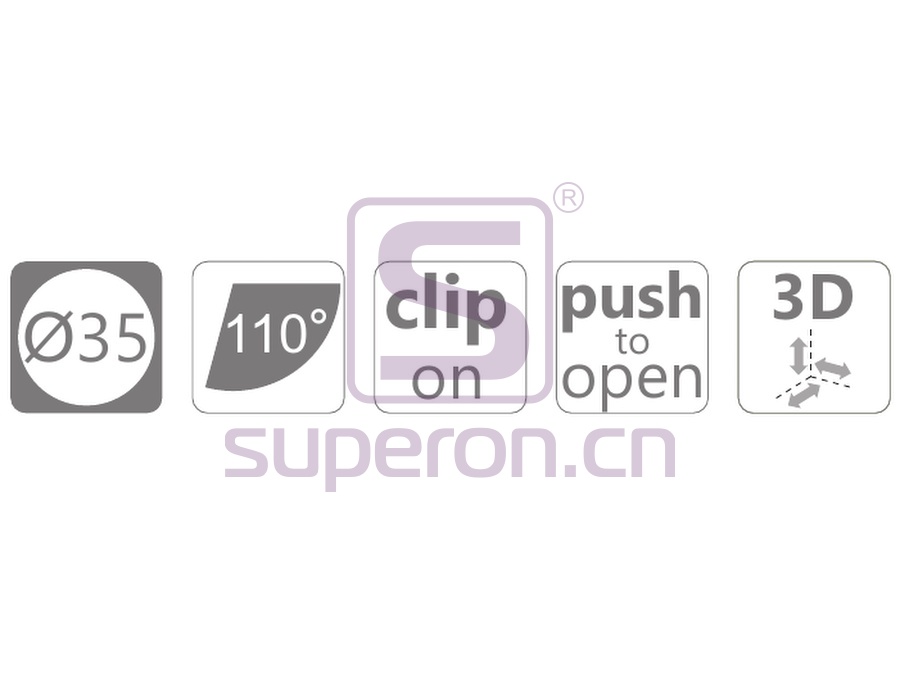

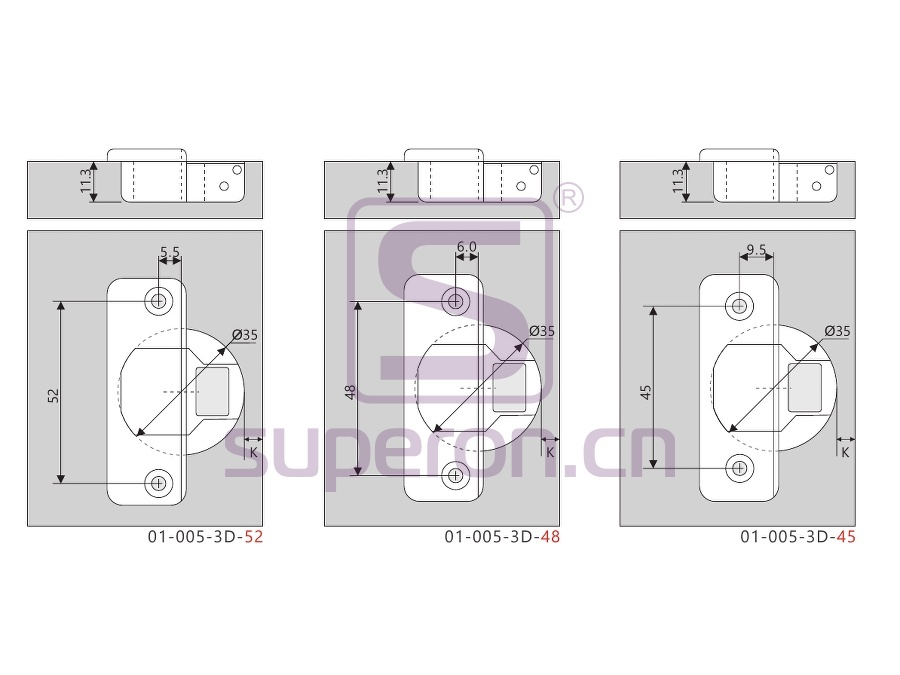

Cup diameter: 35mm
Opening angle: 110°
Cap depth: 11.3mm
Openning type: pushing
Installation: clip-on, adjustment in 3 dimensions
Door thickness: 14-23mm
Overlay adjustment: ±2.5mm
Depth adjustment: ±2.5mm
Height adjustment: ±2.0mm

SKU: 01-005-3D Categories: ,
Variations

01-005-3D-48A0

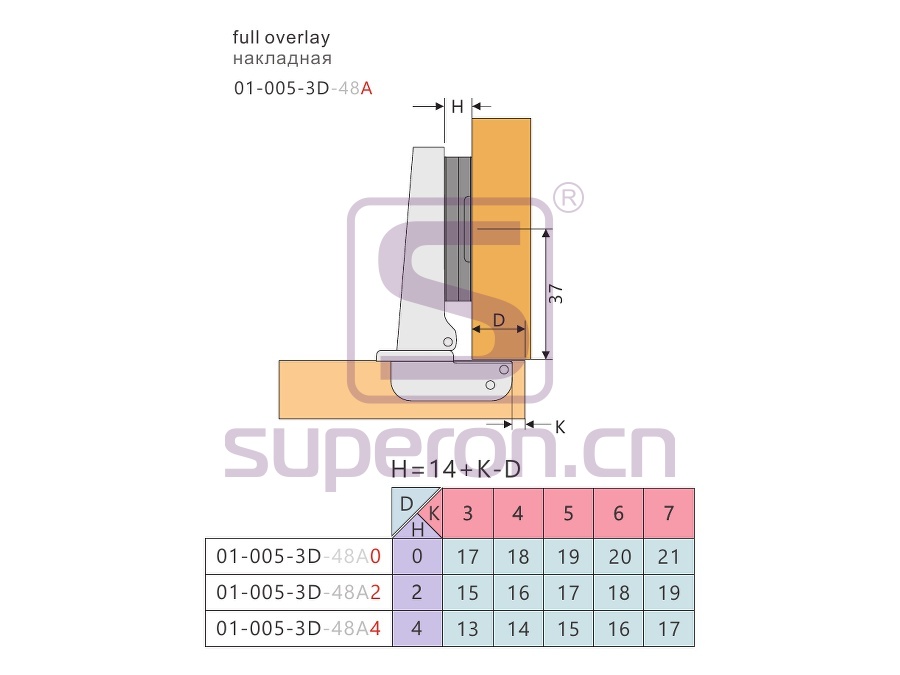

full overlay/48/H0, 3D

01-005-3D-48A0-sbc

full overlay/48/H0, 3D,screws, body+cup covers
