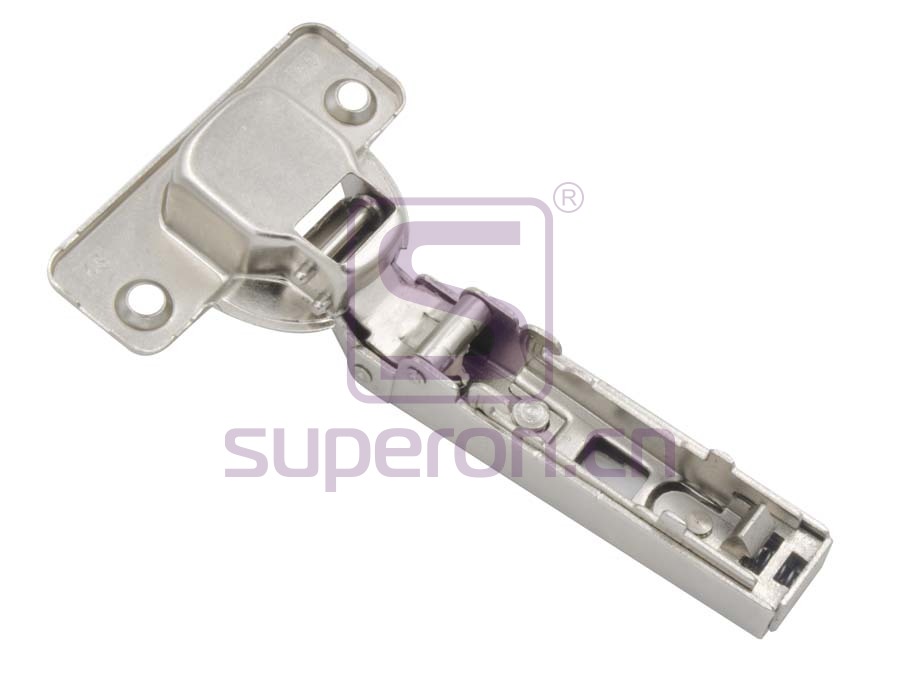

01-008-2D Concealed hinge, 2D adjuastable

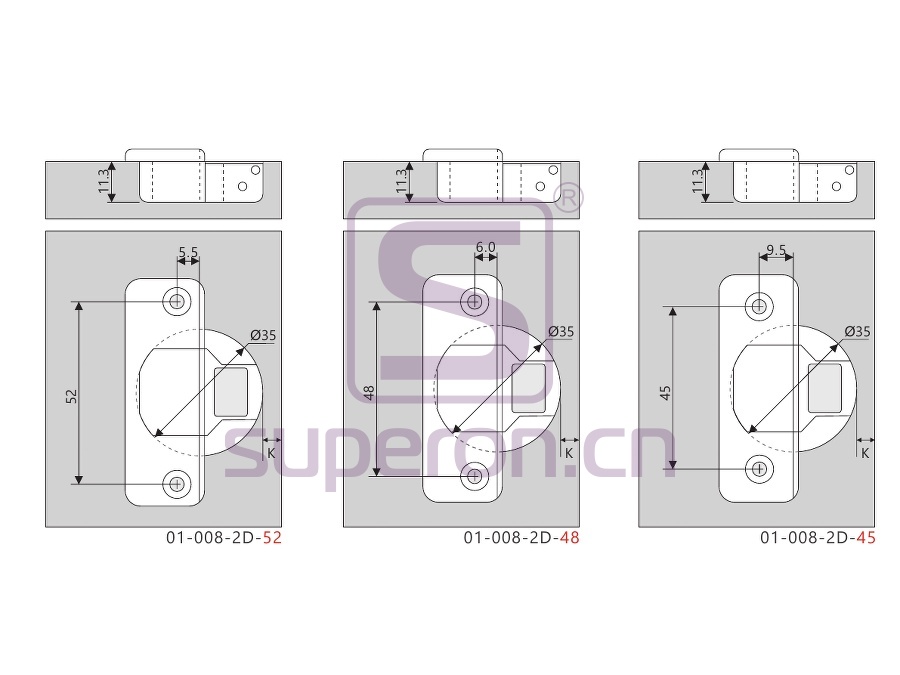

Cup diameter: 35mm
Opening angle: 110°
Cap depth: 11.3mm
Openning type: two ways
Installation: clip-on, adjustment in 2 dimensions
Door thickness: 14-23mm

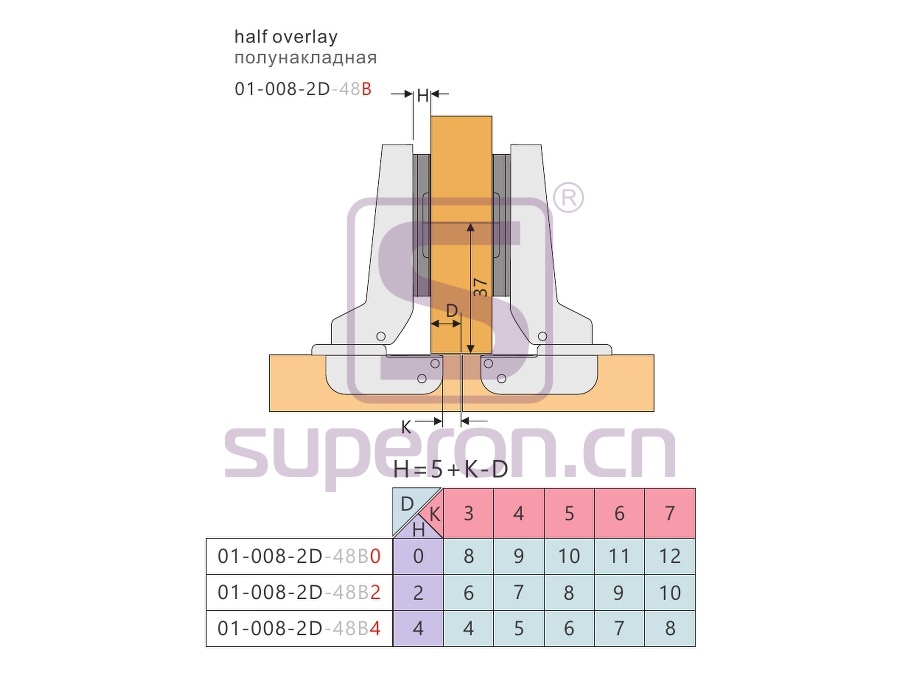

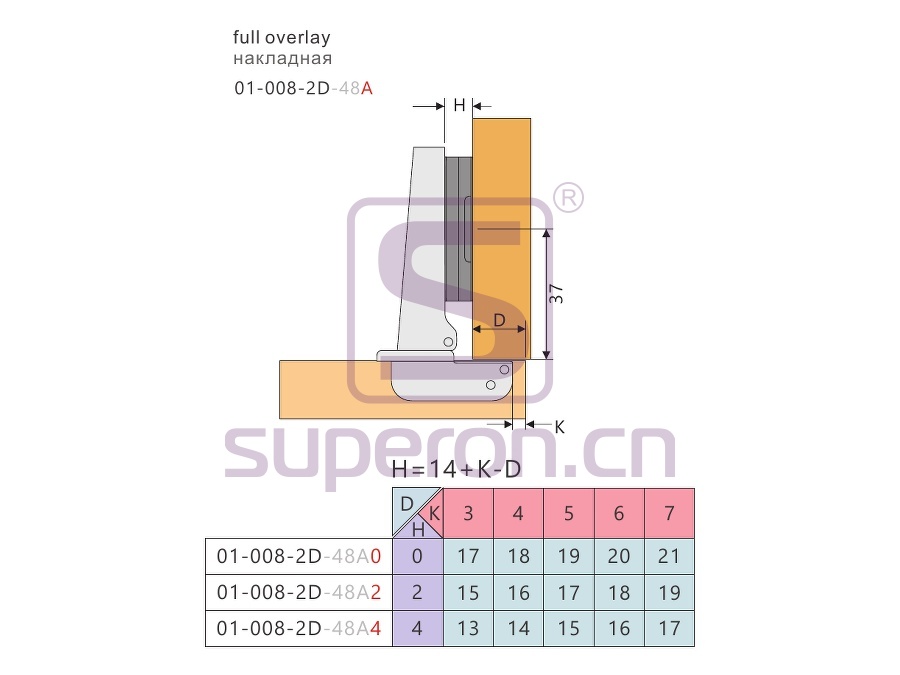

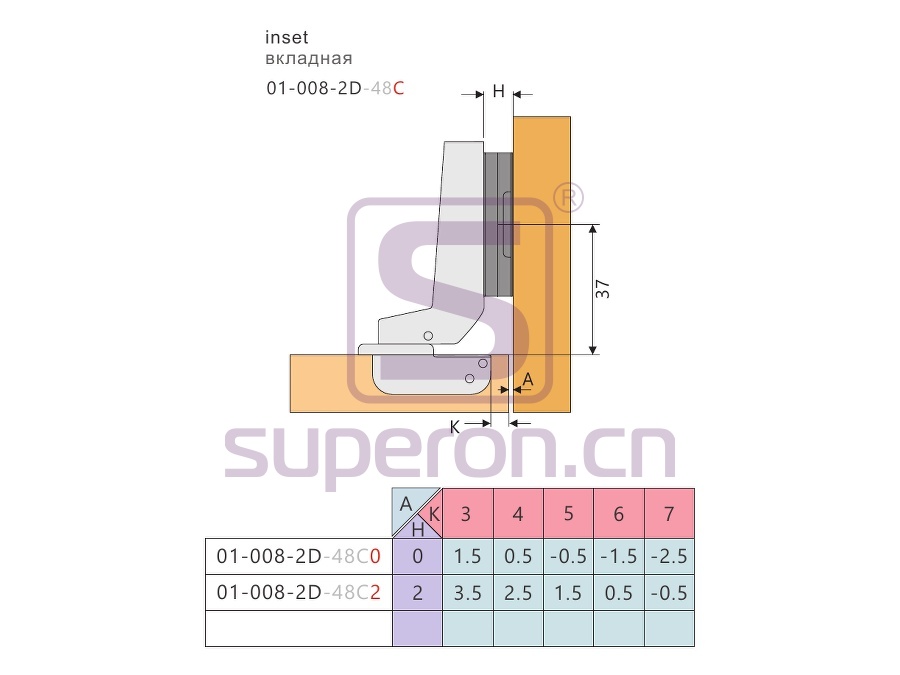

Overlay adjustment: ±2.5mm
Depth adjustment: ±2.5mm
Height adjustment: ±2.0mm
