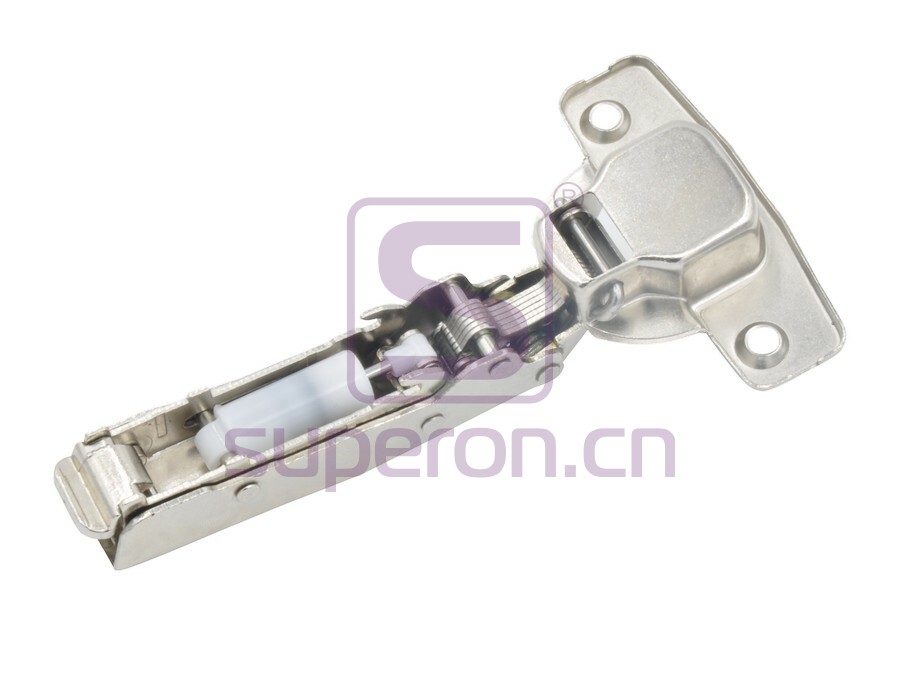

01-075-3D Push-to-open hinge, clip-on，3D

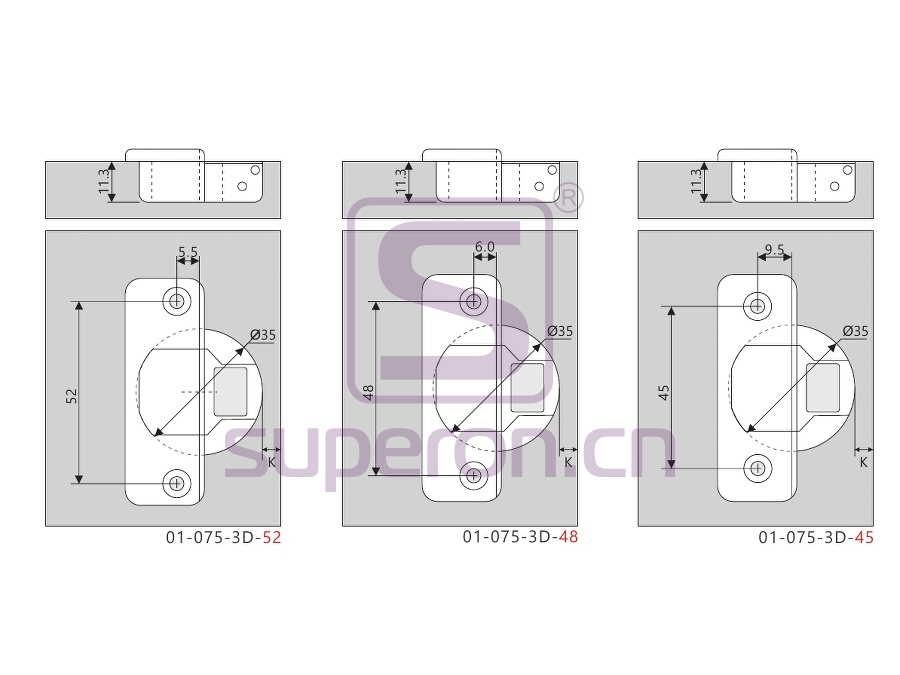

Cup diameter: 35mm
Opening angle: 100°
Cap depth: 11.3mm
Closing type: pushing, soft closing
Installation: clip-on, adjustment in 3 dimensions
Door thickness: 16-20mm
Overlay adjustment: ±2.5mm
Depth adjustment: ±2.5mm
Height adjustment: ±2.0mm

SKU: 01-075-3D Categories: ,
Variations

01-075-3D-45A0

full / 45

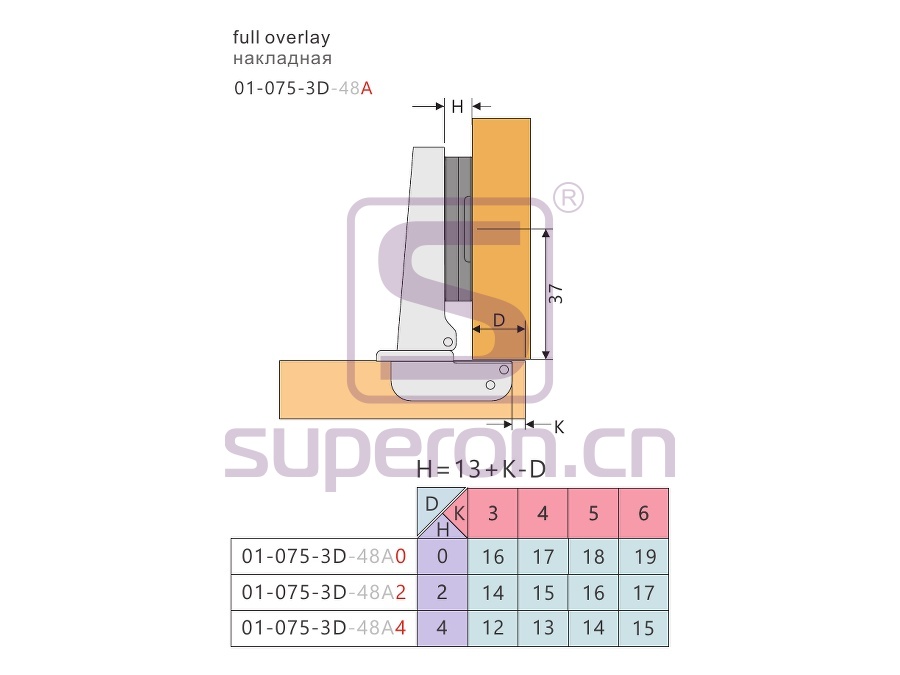

01-075-3D-48A0

full / 48

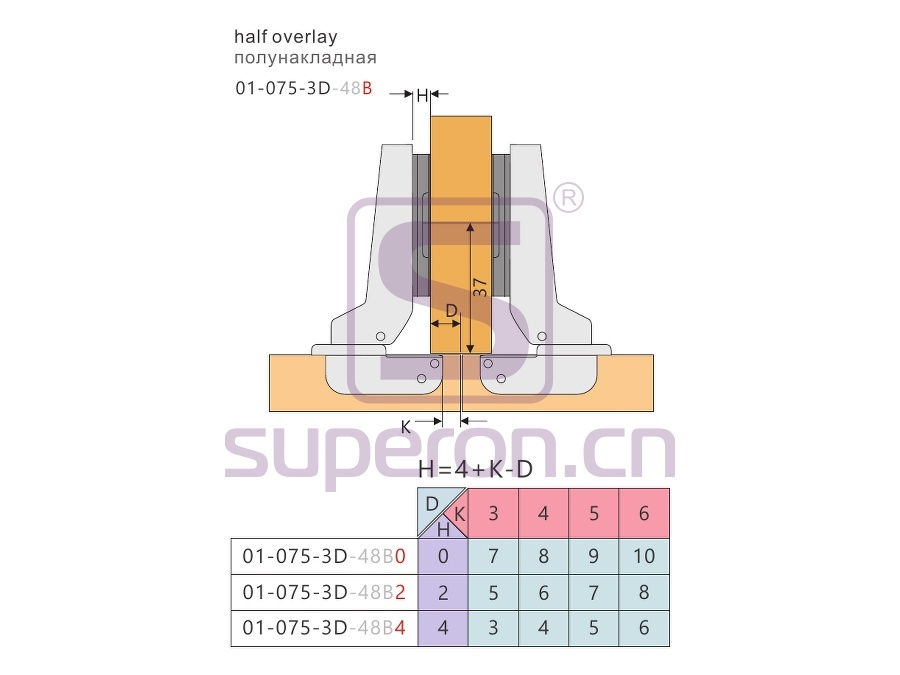

01-075-3D-48B0

half overlay / 48

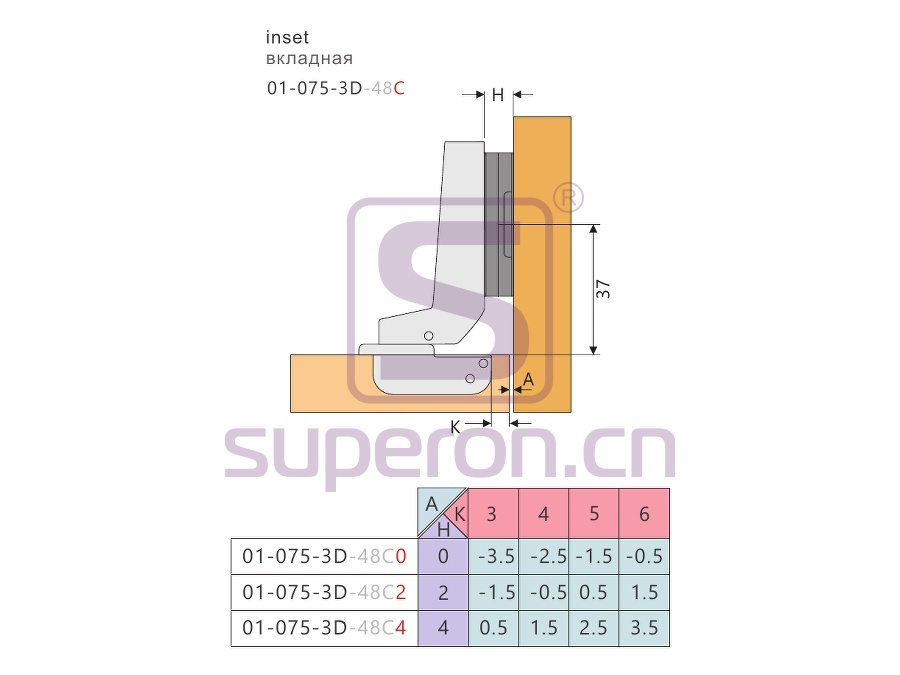

01-075-3D-48C0

insert / 48
