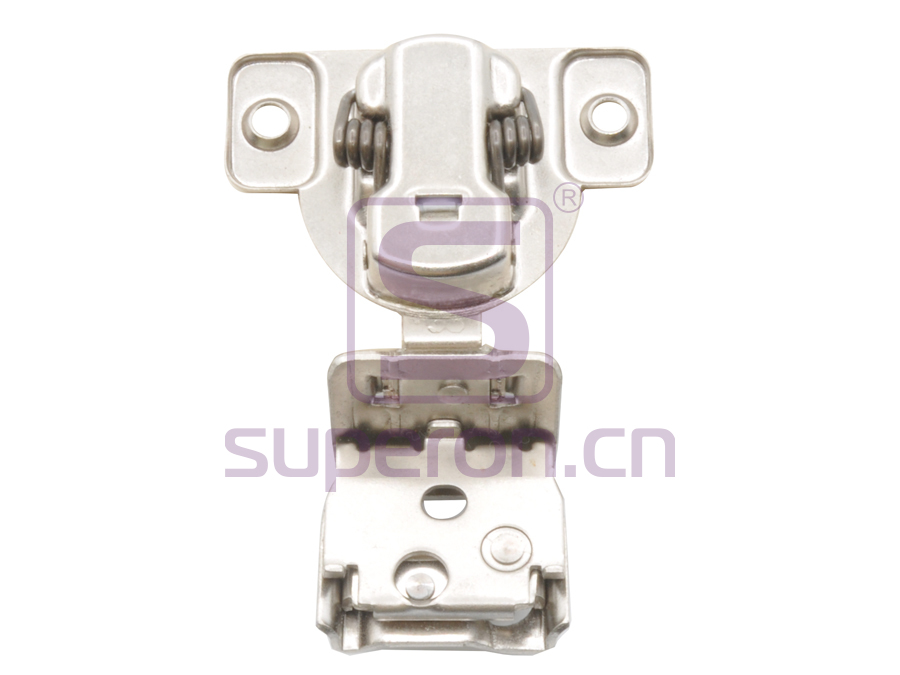

01-512-3DA Short soft-closing hinge, 3D

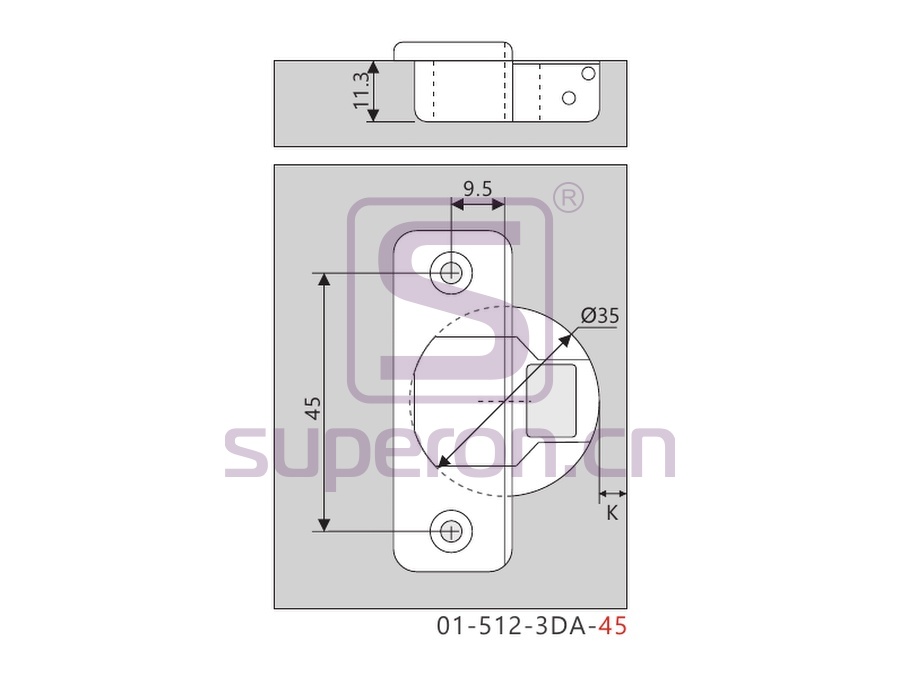

Cup diameter: 35mm
Opening angle: 105°
Cap depth: 11.3mm

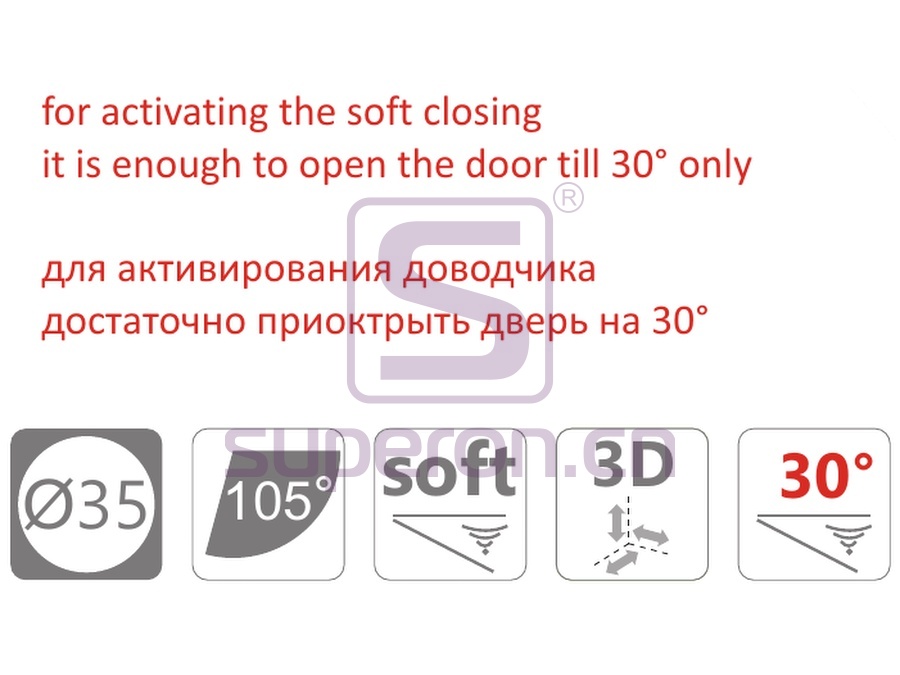

Closing type: soft closing
Installation: adjustment in 3 dimensions
Door thickness: 12-23mm
Overlay adjustment: ±2.0mm
Depth adjustment: ±2.0mm
Height adjustment: ±1.5mm

SKU: 01-512-3DA Categories: ,
Variations

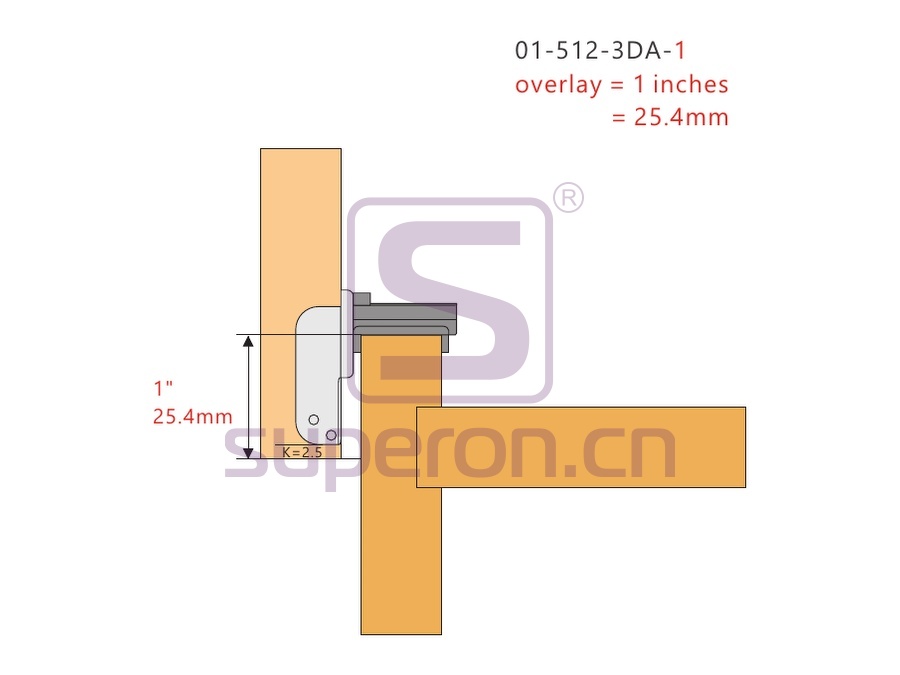

01-512-3DA-1

45, 1“

01-512-3DA-1-1/2

45, 1 1/2“

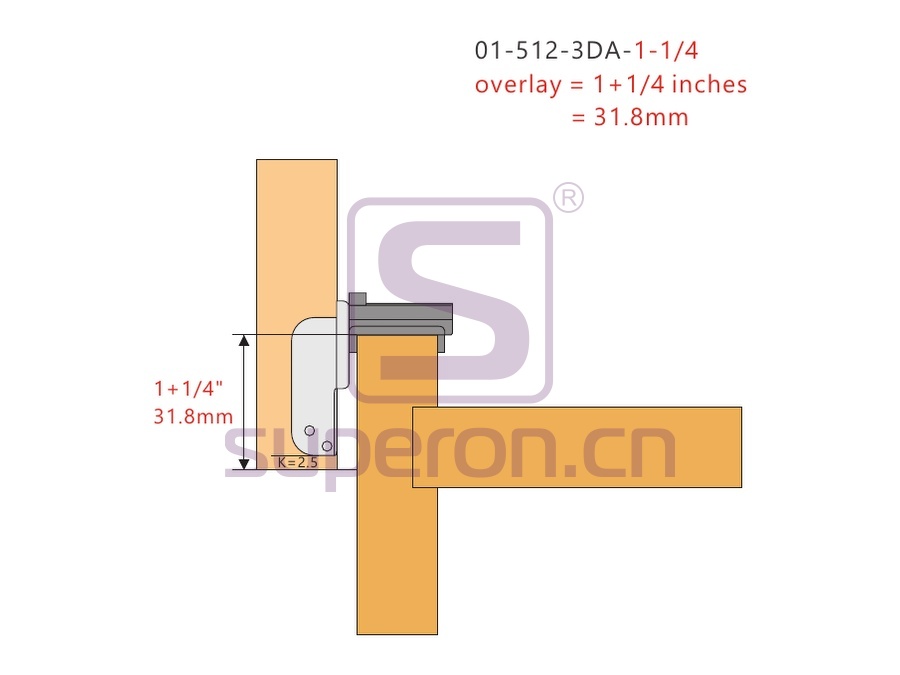

01-512-3DA-1-1/4

45, 1 1/4”

01-512-3DA-1-3/8

45, 1 3/8”

01-512-3DA-1-5/16

45, 1 5/16“
