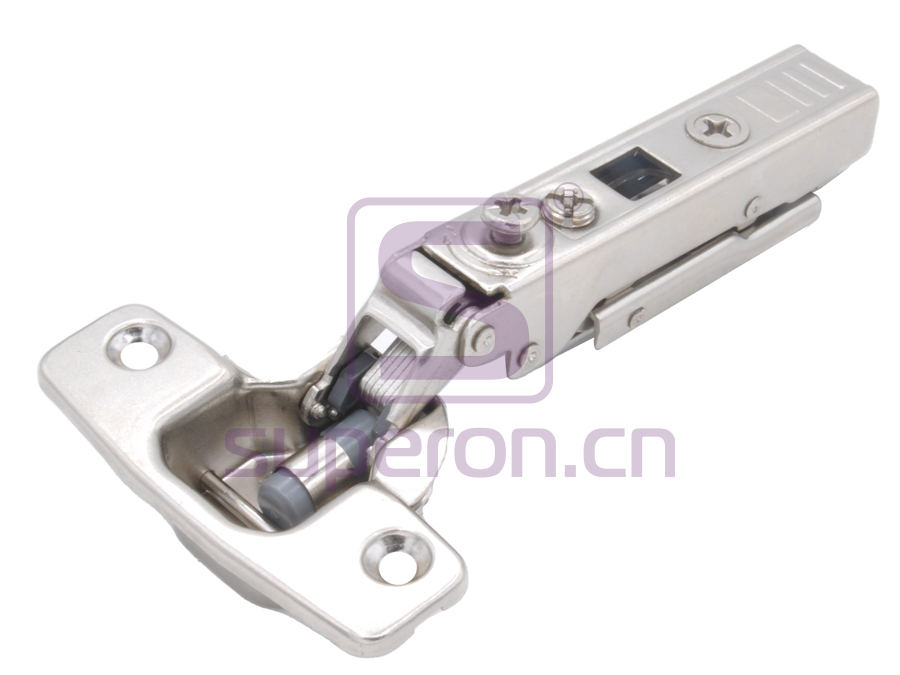

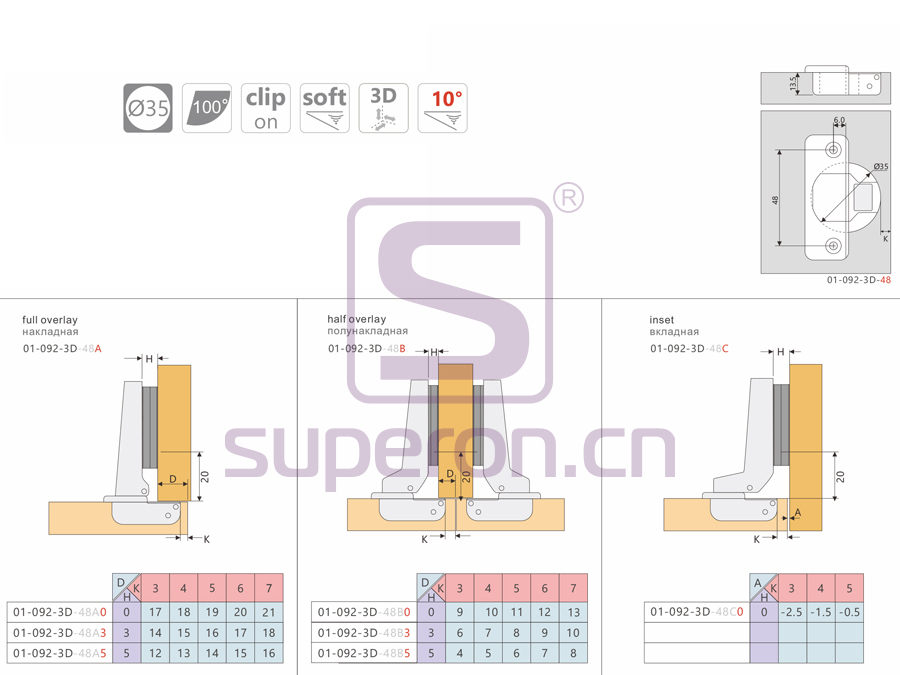

01-071-3D Soft-closing hinge, 4D

Cup diameter: 35mm
Opening angle: 100°
Cap depth: 13.5mm
Closing type: soft closing, adjustment in 3 dimensions
Installation: clip-on
Door thickness: 18-20mm
Overlay adjustment: ±2.5mm
Depth adjustment: ±2.5mm
Height adjustment: ±2.0mm

For activating the soft closing it is enough to open the door till 10° only
The speed of the door closing can be adjusted:
– tightening the adjustment screw will lead to increasing the speed of the door closing
– slightly unscrewing will slow down the door closing

SKU: 01-071-3D Categories: ,
Variations

01-071-3D-45A

c18752

01-071-3D-48A

full overlay/48/H0,one way
Crank: full overlay
Holes: 48
Weight: 101.8 gr

01-071-3D-48A-bc

full overlay/48/H0,one way, body and cup cover

01-071-3D-48A-TW

full overlay/48/H0,two way

01-071-3D-48A-TW-sbc

full overlay/48/H0,two way, screws+body+cup cover

01-071-3D-48B

half overlay/48, H=0
Crank: half overlay
Holes: 48

01-071-3D-48C

insert/48, H=0
Crank: inset
Holes: 48

01-071-3Dx-48A

full overlay/48/H0,one way
Crank: full overlay
Holes: 48
Weight: 108.6 gr
Cap depth: 13.5
Openning angle: 100 °

01-071-3Dx-48A-TW

full overlay/48/H0,two way

01-071-3Dx-48B

half overlay/48, H=0
Crank: half overlay
Holes: 48
Openning angle: 92 °

01-071-3Dx-48C

insert/48, H=0
Crank: inset
Holes: 48
