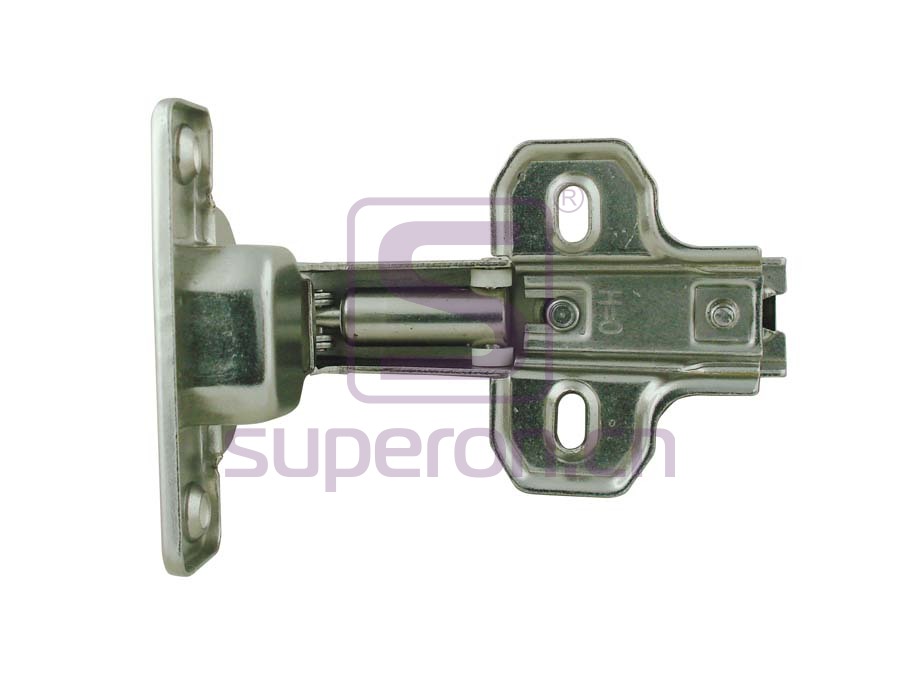

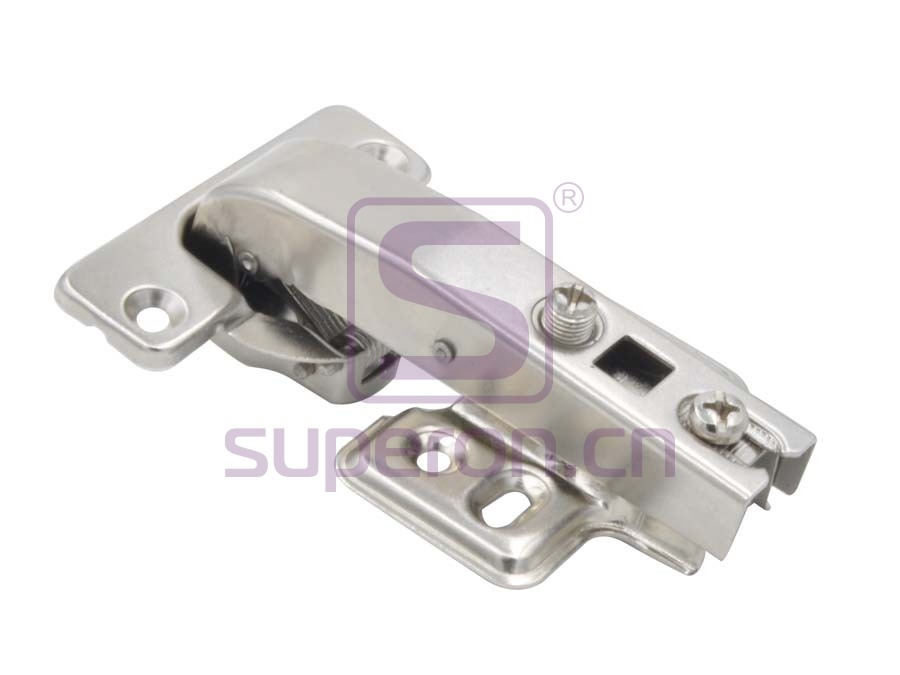

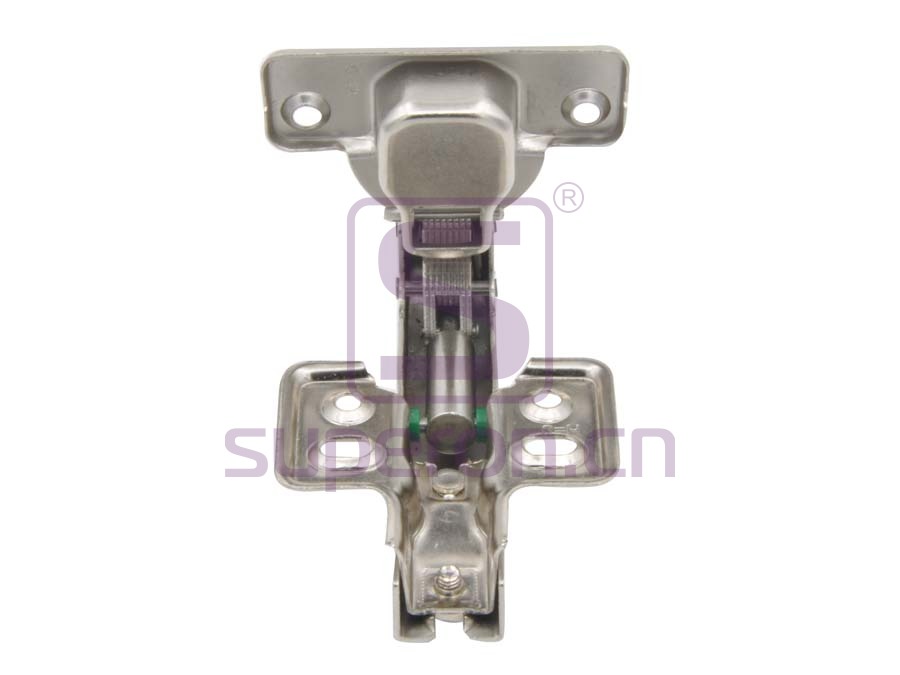

01-048 Soft-closing hinge, 90°,

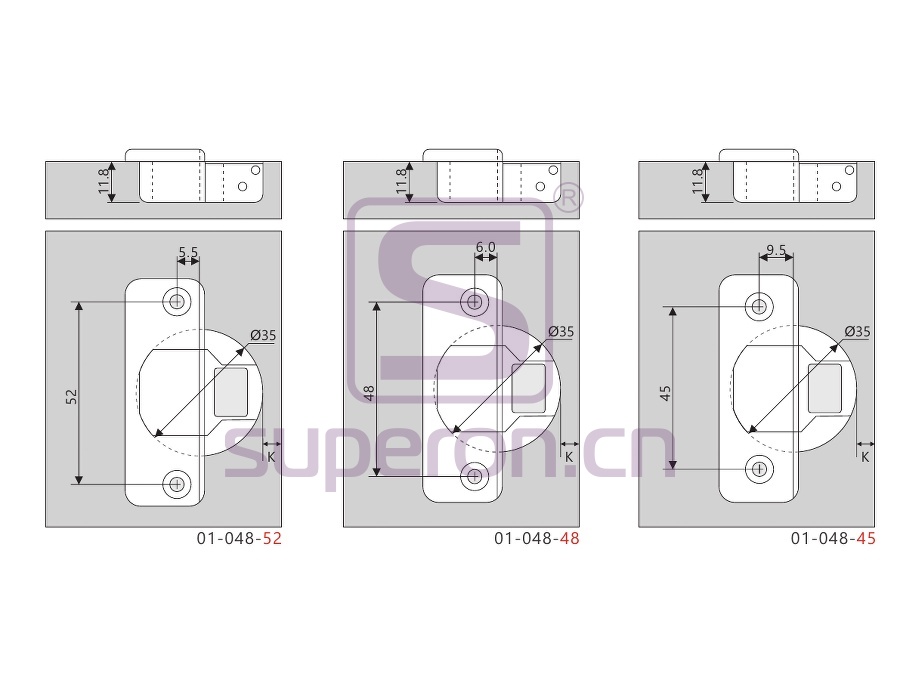

Cup diameter: 35mm

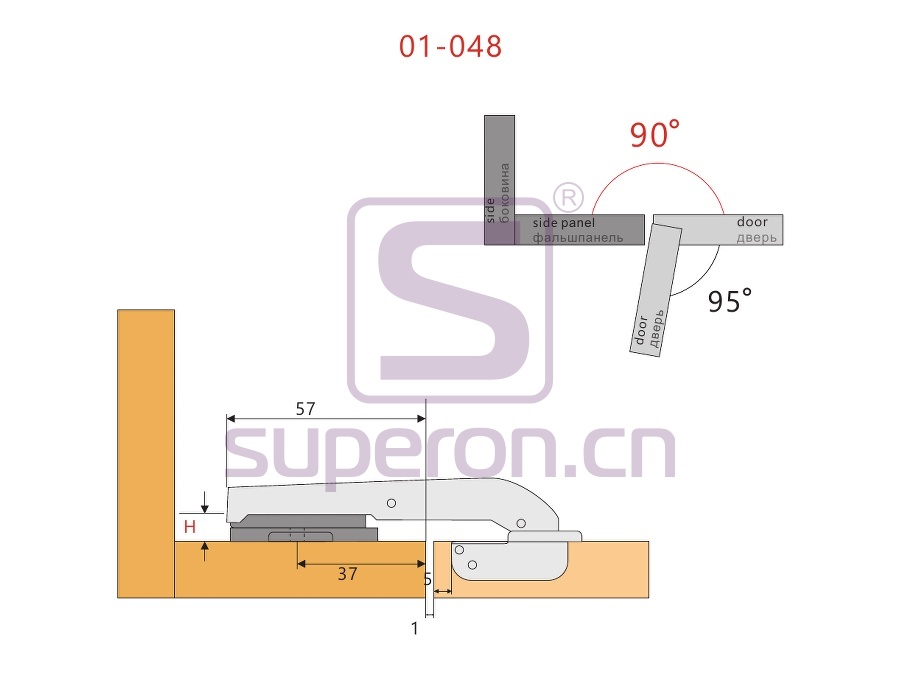

Opening angle: 95°
Cap depth: 11.8mm
Closing type: soft closing
Installation: slide-on
Door thickness: 14-22mm
Overlay adjustment: ±2.5mm
Depth adjustment: ±2.5mm
Height adjustment: ±2.0mm

SKU: 01-048 Categories: ,
Variations

01-048-48D0

48/H0

01-048-48D0-4

48/H0, 4holes

01-048-48D3

48/H3

01-048-L48D2

48/H2, long

01-048-L48X0

48, steel arml, long

01-048-L48X0-4

48, steel arml, long

01-048-L48X2

48, steel arml, long

01-048-S48D2

48/H2, short

01-048-S48X0-4

48/H0, short, 4 holes

01-048-S48X0-4-p

48/H0, short, 4 holes

01-048-S48X2

48/H2, short
