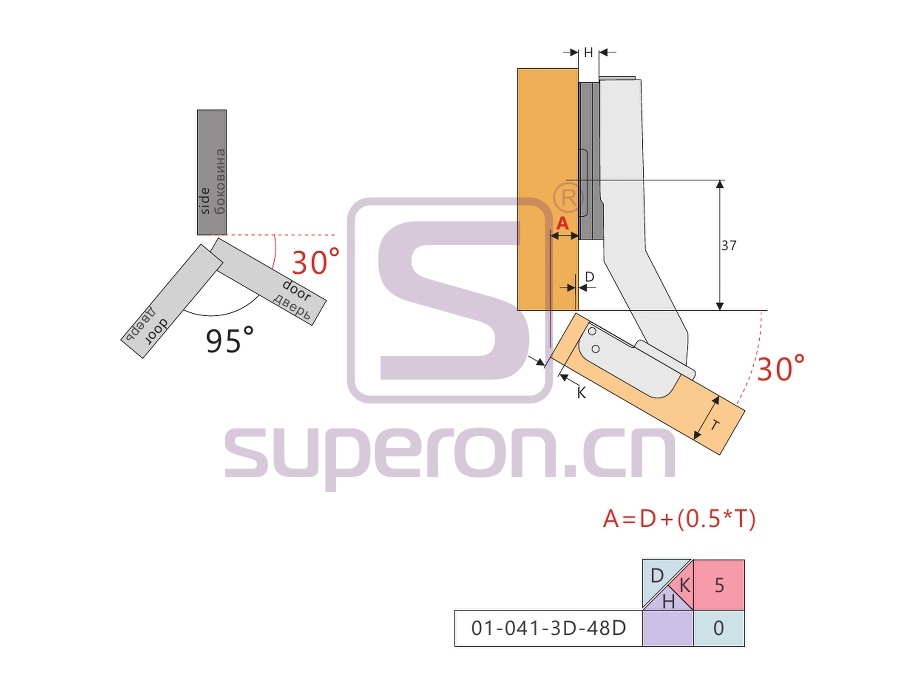

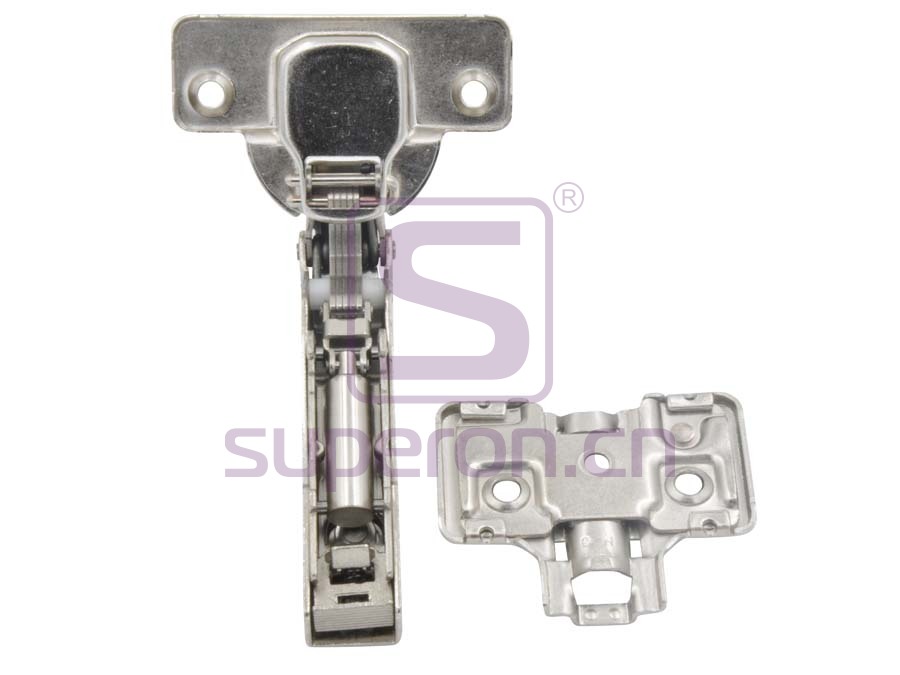

01-041-3D Soft-closing hinge, 30°, 3D

Cup diameter: 35mm

Opening angle: 95°

Cap depth: 11.3mm

Closing type: soft closing

Installation: clip-on, adjustment in 3 dimensions
Door thickness: 14-22mm

Overlay adjustment: ±2.5mm

Depth adjustment: ±2.5mm

Height adjustment: ±2.0mm

SKU: 01-041-3D Categories: ,
Variations

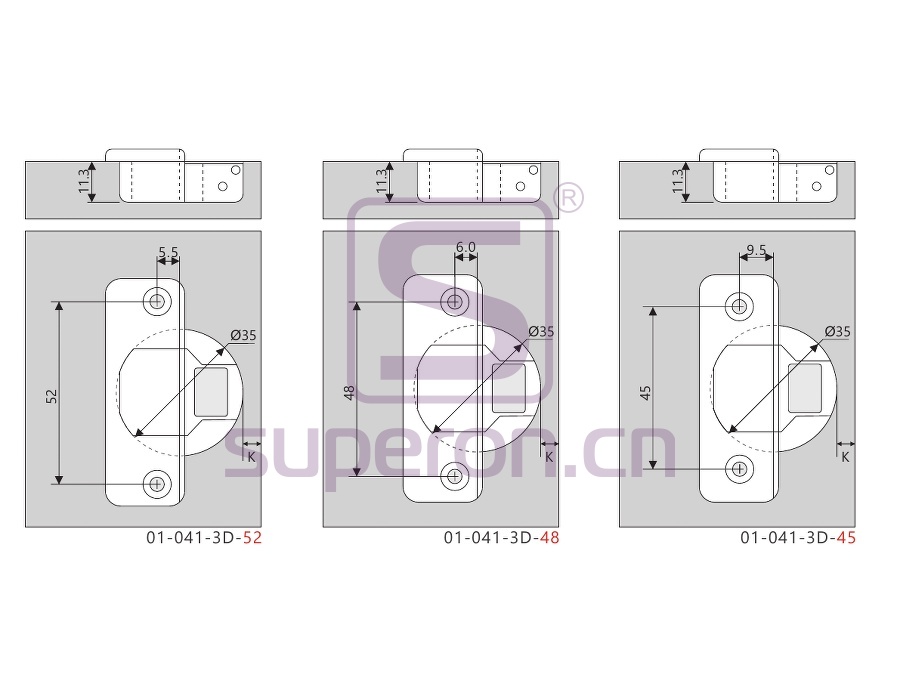

01-041-3D-48D0

48mm, H=0
Holes: 48
Openning angle: 95 °
Plate height: H=0

01-041-3D-48D0-x

48mm, H=0

01-041-3D-48D2

48mm, H=2
Plate height: H=2

01-041-3D-48D2-EU

48mm, H=2,euroscrew

01-041-3D-48D4

48mm, H=4
Plate height: H=4
