01-009-CL | Hinge without spring, clip-on 01-009-CL

01-009-CL Hinge without spring, clip-on

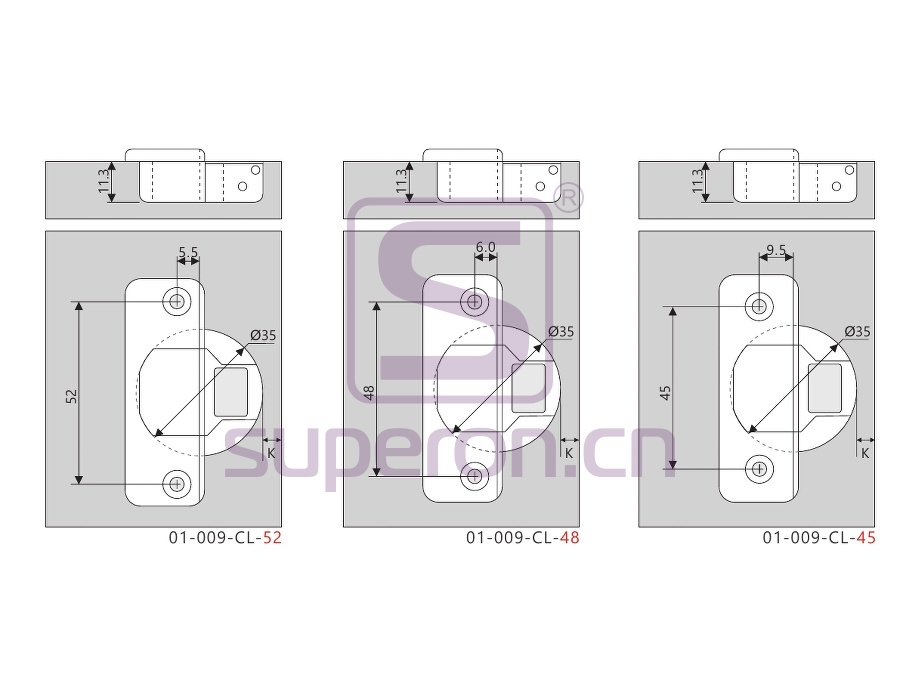

Cup diameter: 35mm
Opening angle: 110°
Cap depth: 11.3mm
Openning type: wihtout spring
Installation: clip-on
Door thickness: 14-22mm
Overlay adjustment: ±2.5mm
Depth adjustment: ±2.5mm
Height adjustment: ±2.0mm

SKU: 01-009-CL Categories: ,
Variations

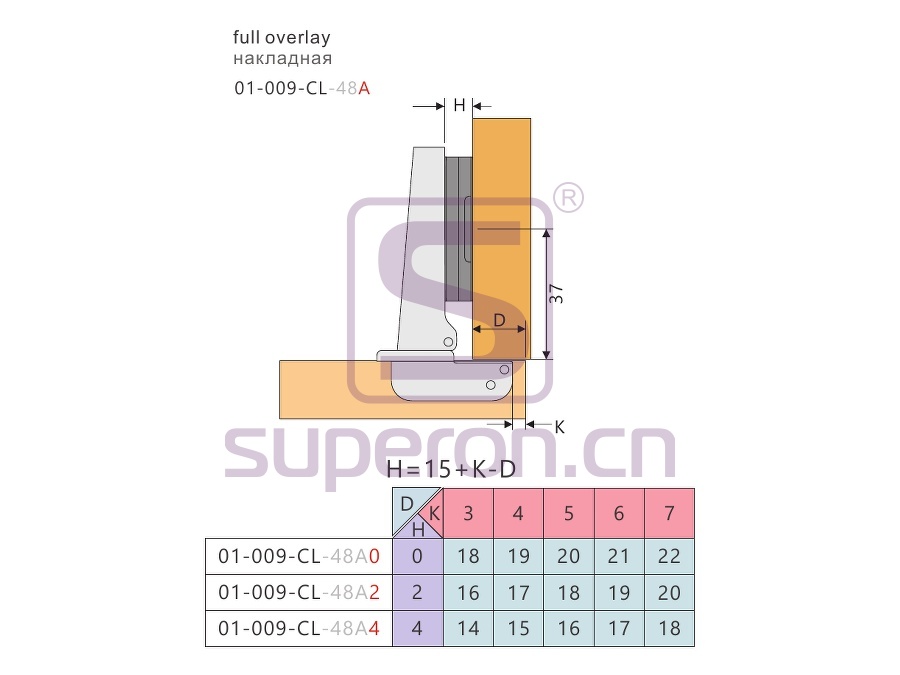

01-009-CL-48A0

full overlay/48/H0,no spring

01-009-CL-48A0-EU

full/48/H0,no spring,euroscrew

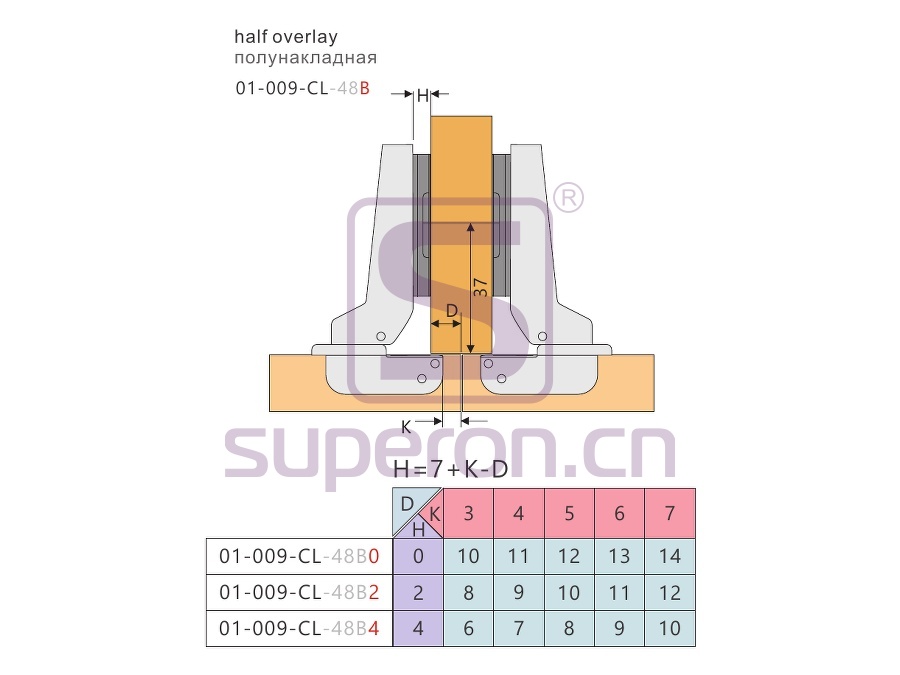

01-009-CL-48B0

half overlay/48/H0,no spring

01-009-CL-48B0-EU

half48/H0,no spring,euroscrew

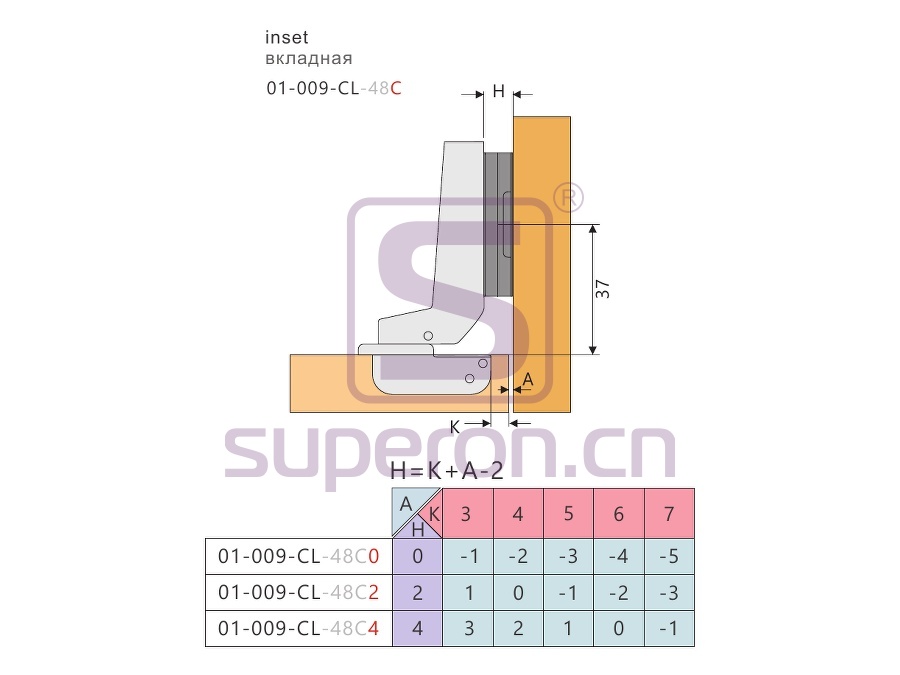

01-009-CL-48C0

insert/48/H0,no spring

01-009-CL-48C0-EU

inst48/H0,no spring,euroscrew
