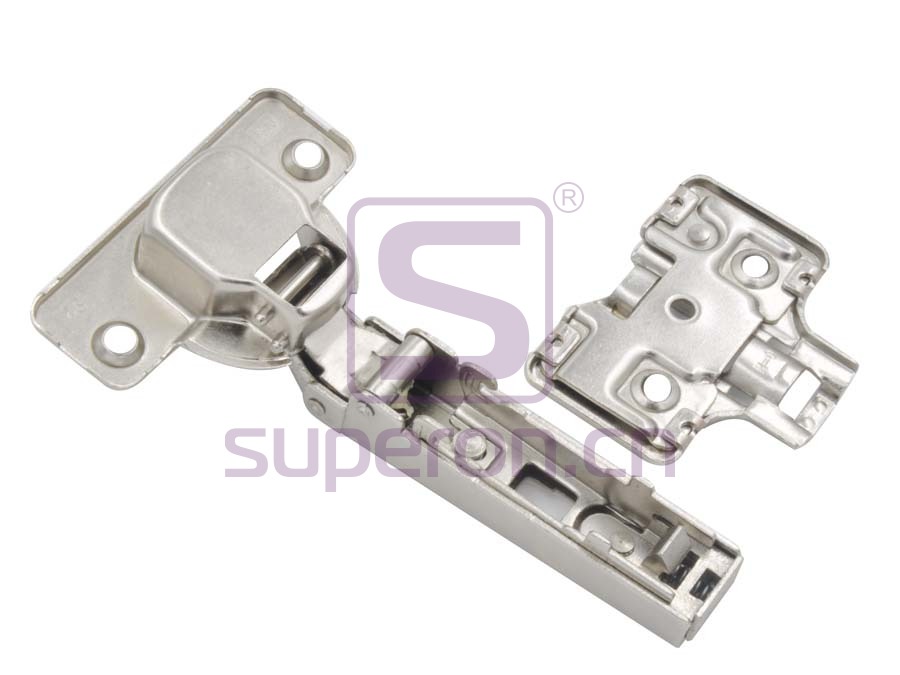

01-008-3D Concealed hinge, 3D adjuastable

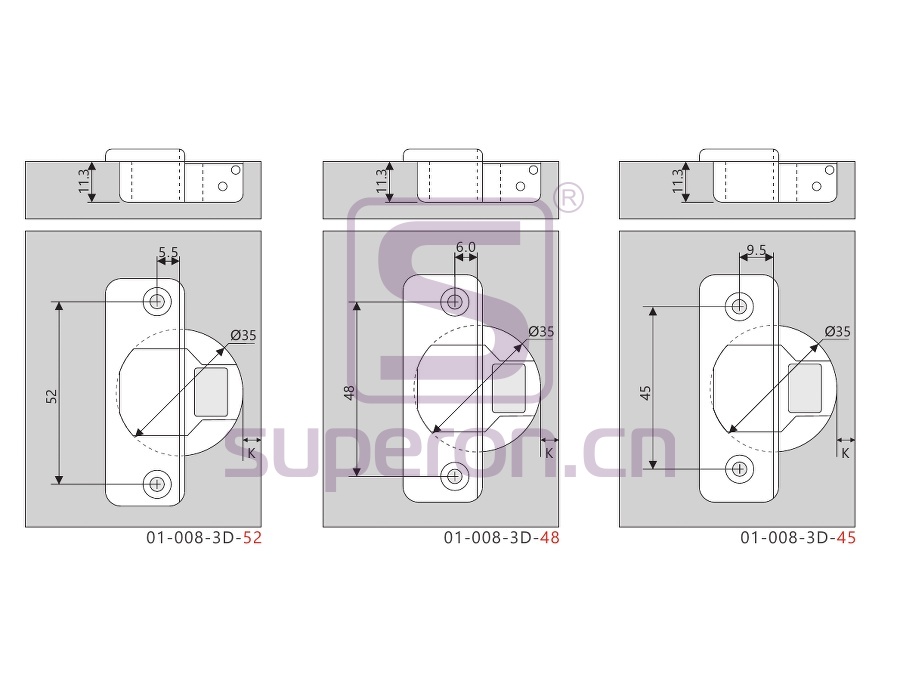

Cup diameter: 35mm
Opening angle: 110°
Cap depth: 11.3mm
Openning type: two ways
Installation: clip-on, adjustment in 3 dimensions
Door thickness: 14-23mm
Overlay adjustment: ±2.5mm
Depth adjustment: ±2.5mm
Height adjustment: ±2.0mm

SKU: 01-008-3D Categories: ,
Variations

01-008-3D-48A2

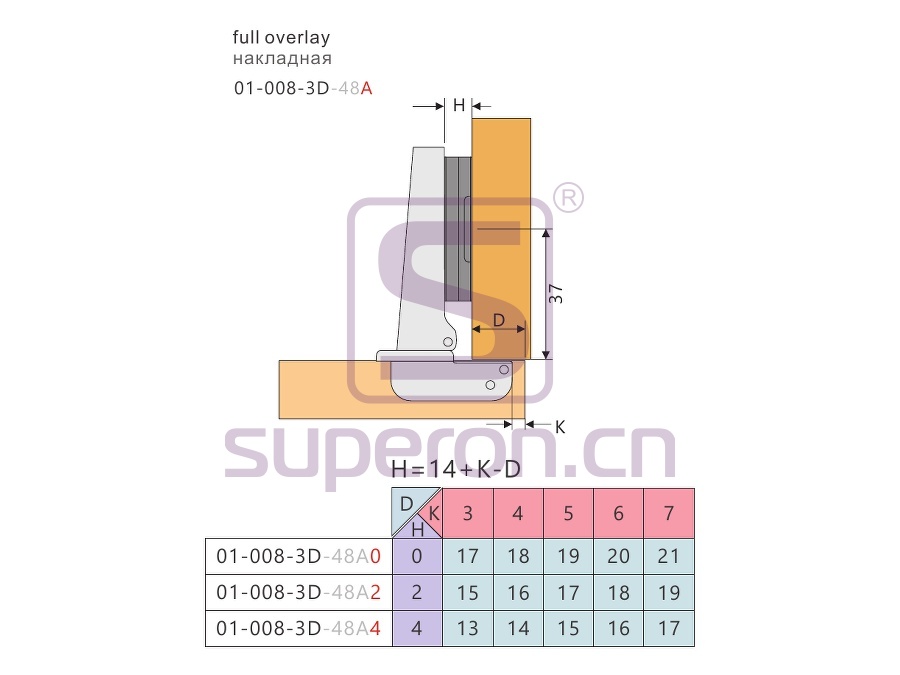

full overlay/48/H2
Crank: full overlay
Holes: 48
Plate height: H=2
Plate type: for chipboard screws

01-008-3D-48A2-body

full overlay/48/H2, hinge body

01-008-3D-48B2

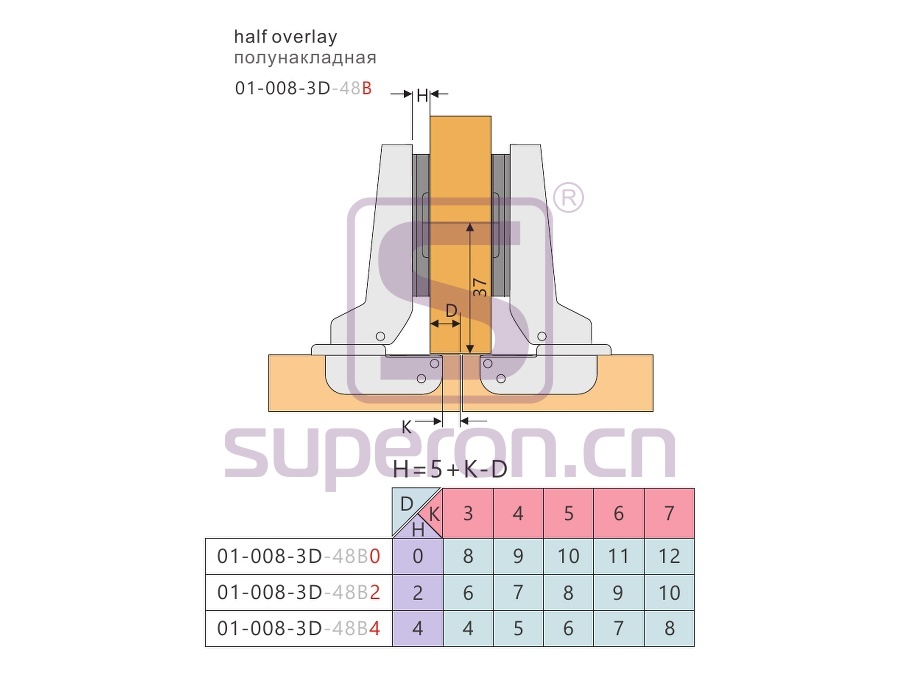

half overlay/48/H2

01-008-3D-48C2

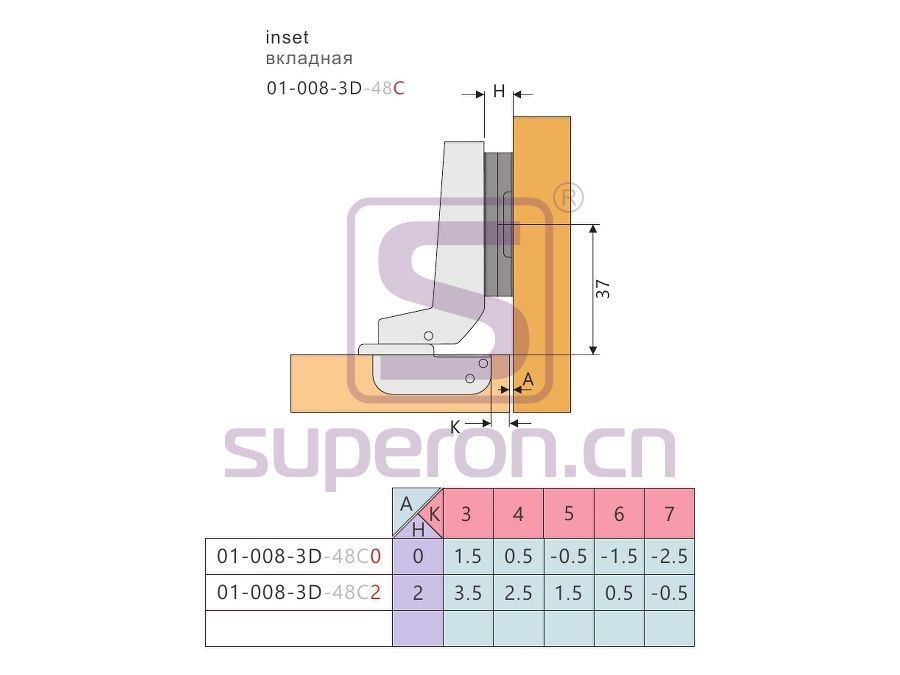

insert/48/H2
