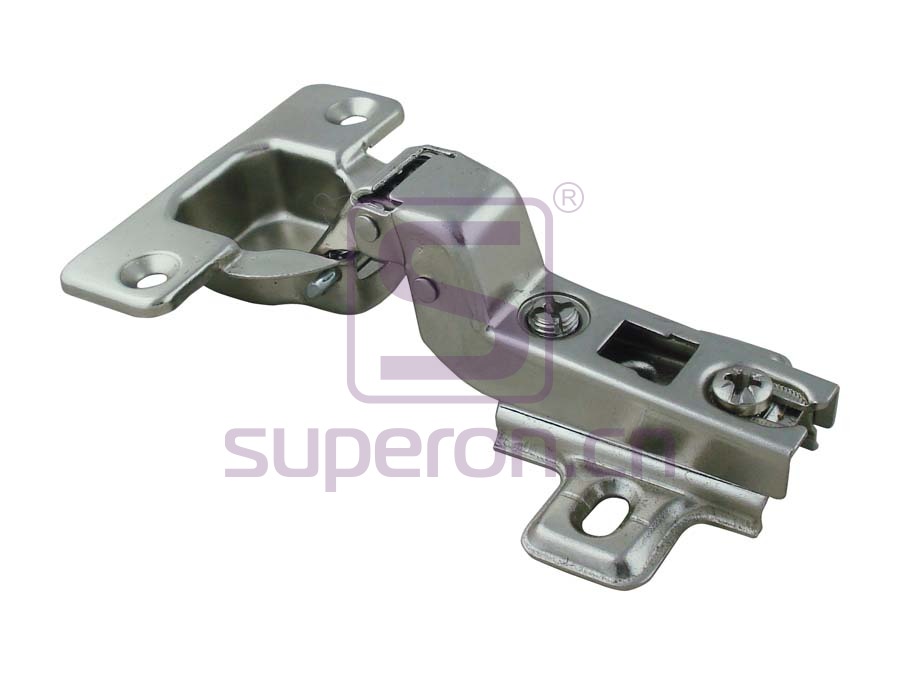

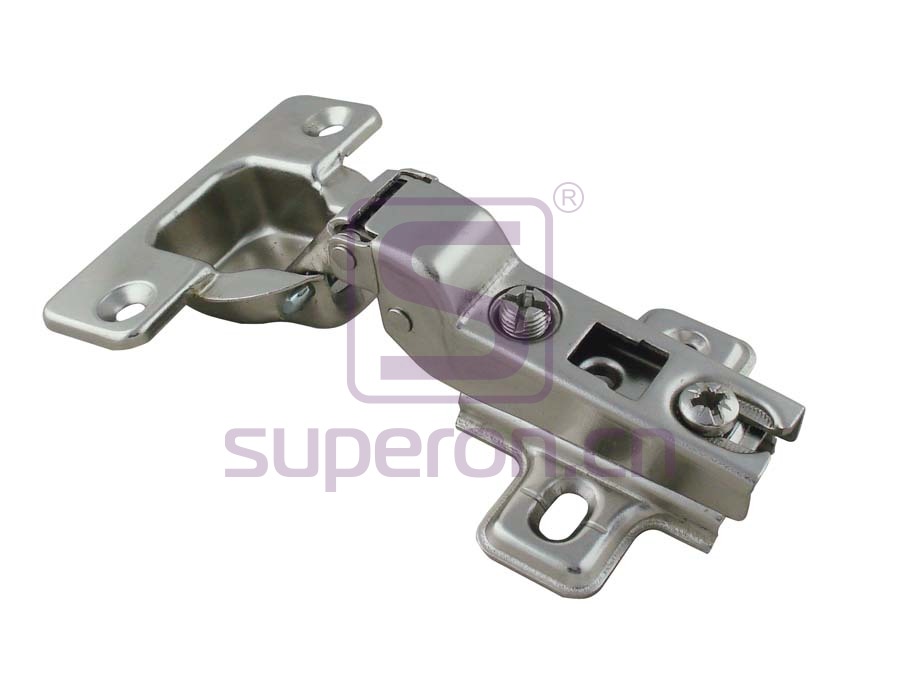

01-001 Concealed hinge , slide-on

Cup diameter: 35mm
Opening angle: 110°
Openning type: two ways
Installation: slide-on
Door thickness: 14-20mm
Overlay adjustment: ±2.5mm
Depth adjustment: ±2.5mm
Height adjustment: ±2.0mm

Product material: steel
Product finish: nickel plated
SKU: 01-001 Categories: ,

Featured

Variations

01-001-58-48A2

full/48/H2, 58+/-2g
Cap depth: 11.3

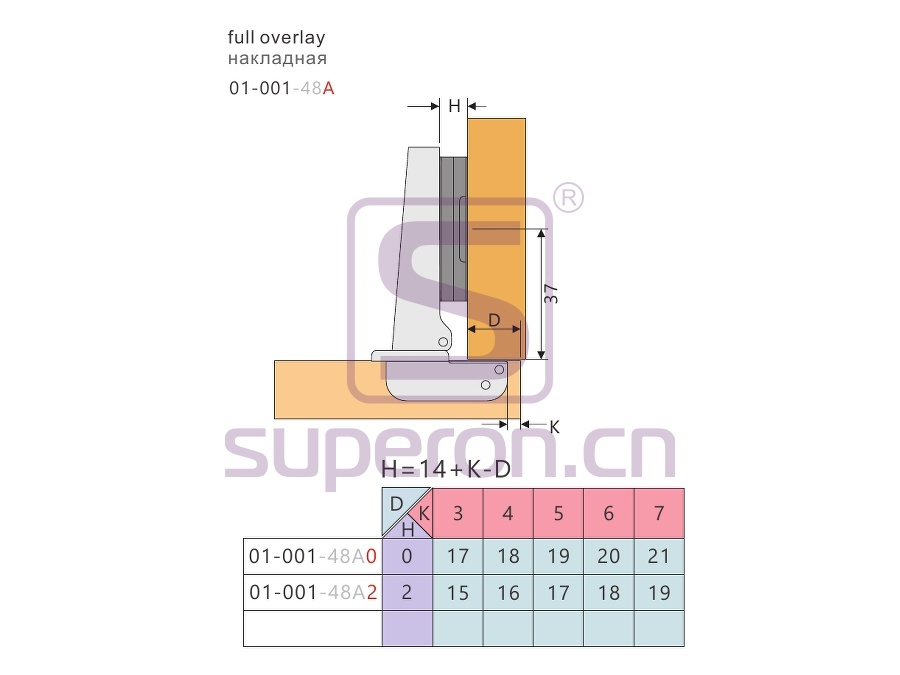

Crank: full overlay
Plate height: H=2

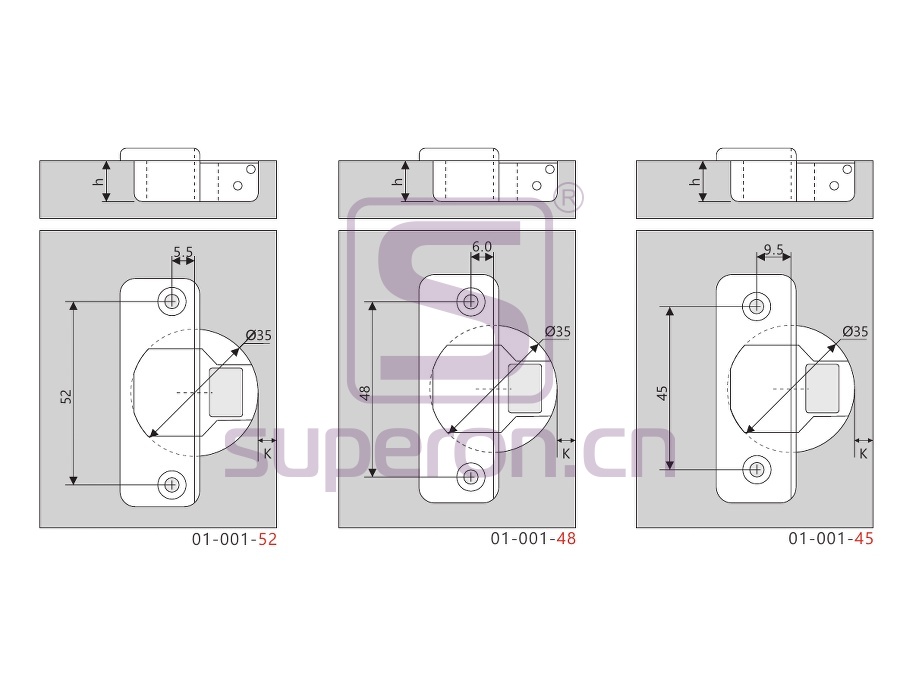

Plate type: for chipboard screws
Spring: yes
Weight: 57 gr-59

01-001-52-48A2

full/48/H2, 52+/-2g
Cap depth: 10.5
Crank: full overlay
Plate height: H=2
Plate type: for chipboard screws
Spring: yes
Weight: 52 gr± 2

01-001-50-48A2

full /48/H2, 50+/-2g
Cap depth: 10.5
Crank: full overlay
Plate height: H=2
Plate type: for chipboard screws
Spring: yes
Weight: 50 gr± 2

01-001-60-48A2-4

full/48/H2, 60+/-2g/4holes
Cap depth: 11.5
Crank: full overlay
Plate height: H=2
Plate type: for chipboard screws, 4 holesSpring
Weight: 60 gr± 2

01-001-58-48C0-W

insert/48/H0/no spring, 58+/-2
Cap depth: 11.5

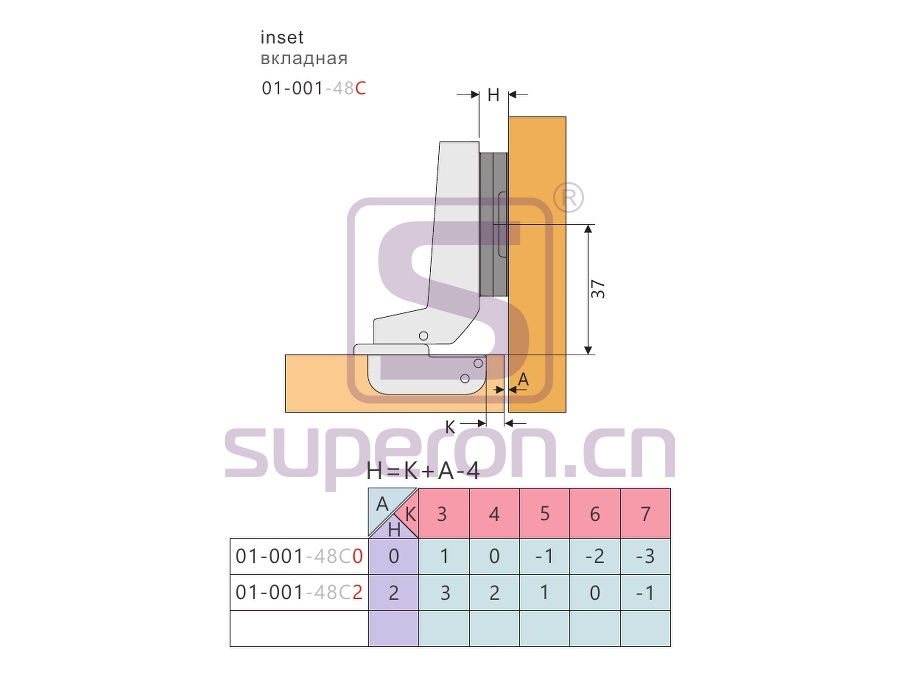

Crank: inset
Plate height: H=0
Plate type: for chipboard screws
Spring: w/o spring
Weight: 58 gr± 2

01-001-58-48C2-EU

insert/48/H2, 58+/-2
Cap depth: 11.5
Crank: inset
Plate height: H=2
Plate type: for euroscrews
Spring: yes
Weight: 58 gr± 2

01-001-60-48A0

full/52/H0, 60+/-2g
Cap depth: 11.5
Crank: full overlay
Plate height: H=0
Plate type: for chipboard screws
Spring: yes
Weight: 60 gr± 2

01-001-60-48A0-EU

full/48/H0, 60+/-2g
Cap depth: 11.5
Crank: full overlay
Plate height: H=0
Plate type: for euroscrews
Spring: yes
Weight: 60 gr± 2

01-001-60-48A0-EUW

full/48/H0, 60+/-2g/-screws

01-001-60-48A2

full/48/H2, 60+/-2g
Cap depth: 11.5
Crank: full overlay
Plate height: H=2
Plate type: for chipboard screws
Spring: yes
Weight: 59 gr-61

01-001-60-48A2-EU

full/48/H2, 60+/-2g
Cap depth: 11.5
Crank: full overlay
Plate height: H=2
Plate type: for euroscrews
Spring: yes
Weight: 60 gr± 2

01-001-60-48C2

insert/48/H2, 60+/-2
Cap depth: 11.5
Crank: inset
Plate height: H=2
Plate type: for chipboard screws
Spring: yes
Weight: 60 gr± 2

01-001-58-48A2-EU

full/48/H2, 58+/-2g
Cap depth: 11.5
Crank: full overlay
Plate height: H=2
Plate type: for euroscrews
Spring: yes
Weight: 58 gr± 2

01-001-60-48A2-W

full/48/H2/no spring, 60+/-2g

01-001-60-48B0

half/48/H0, 60+/-2g

01-001-60-48B2

half/48/H2, 60+/-2g
Cap depth: 11.5

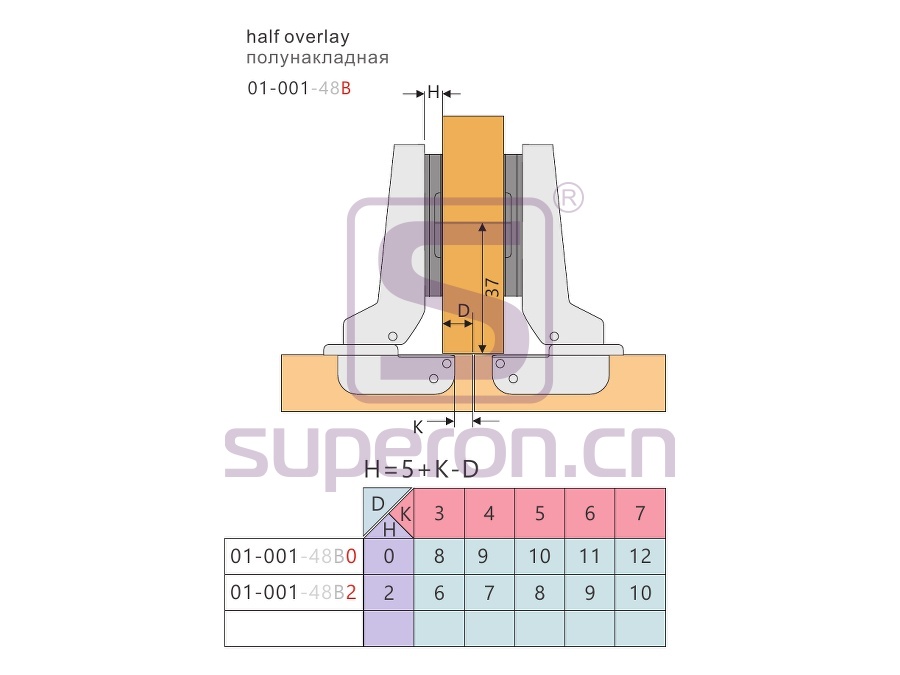

Crank: half overlay
Plate height: H=2
Plate type: for chipboard screws
Spring: yes
Weight: 60 gr± 2

01-001-60-48B2-EU

half/48/H2, 60+/-2g
Cap depth: 11.5
Crank: half overlay
Plate height: H=2
Plate type: for euroscrews
Spring: yes
Weight: 60 gr± 2

01-001-60-48C0

insert/48/H0, 60+/-2

01-001-58-48B0-W

half/48/H0/no spring, 58+/-2g
Cap depth: 11.5
Crank: half overlay
Plate height: H=0
Plate type: for chipboard screws
Spring: w/o spring
Weight: 58 gr± 2

01-001-50-48A0

full /48/H0, 50+/-2g
Cap depth: 10.5
Crank: full overlay
Plate height: H=0
Plate type: for chipboard screws
Spring: yes
Weight: 50 gr± 2

01-001-58-48A2-4

full/48/H2, 58+/-2g/4holes
Cap depth: 11.5
Crank: full overlay
Plate height: H=2
Plate type: for chipboard screws, 4 holesSpring
Weight: 58 gr± 2

01-001-52-48A2-4

full/48/H2, 52+/-2g,4 holes
Cap depth: 10.5
Crank: full overlay
Plate height: H=2
Plate type: for chipboard screws, 4 holesSpring
Weight: 52 gr± 2

01-001-50-48A2-EU

full /48/H2, 50+/-2g,+Euscrew

01-001-50-48B0

half/48/H0, 50+/-2g

01-001-50-48B2

half/48/H2, 50+/-2g
Cap depth: 10.5
Crank: half overlay
Plate height: H=2
Plate type: for chipboard screws
Spring: yes
Weight: 50 gr± 2

01-001-50-48C0

insert/48/H0, 50+/-2

01-001-50-48C2

insert/48/H2, 50+/-2
Cap depth: 10.5
Crank: inset
Plate height: H=2
Plate type: for chipboard screws
Spring: yes
Weight: 50 gr± 2

01-001-52-48A0

full/48/H0, 52+/-2g
Cap depth: 10.5
Crank: full overlay
Plate height: H=0
Plate type: for chipboard screws
Spring: yes
Weight: 52 gr± 2

01-001-52-48B2

half/48/H2, 52+/-2g
Cap depth: 10.5
Crank: half overlay
Plate height: H=2
Plate type: for chipboard screws
Spring: yes
Weight: 52 gr± 2

01-001-50-48A0-W

full /48/H0, 50+/-2g,no spring
Cap depth: 10.5
Crank: full overlay
Plate height: H=0
Plate type: for chipboard screws
Spring: w/o spring
Weight: 50 gr± 2

01-001-52-48B2-4

half/48/H2, 52+/-2g, 4holes

01-001-52-48C2

insert/48/H2, 52+/-2g
Cap depth: 10.5
Crank: inset
Plate height: H=2
Plate type: for chipboard screws
Spring: yes
Weight: 52 gr± 2

01-001-52-48C2-EUW

insert/48/H2, 52+/-2g

01-001-52-48C-EUW

insert/48/H0, 52+/-2g

01-001-58-48A0-EU

full/48/H0, 58+/-2g

01-001-58-48A0-W

full/48/H0/no spring, 58+/-2g
Cap depth: 11.3
Crank: full overlay
Plate height: H=0
Plate type: for chipboard screws
Spring: w/o spring
Weight: 58 gr± 2

01-001-60-48C2-EU

insert/48/H2, 60+/-2
Cap depth: 11.5
Crank: inset
Plate height: H=2
Plate type: for euroscrews
Spring: yes
Weight: 60 gr± 2
