10-409 Connecting corner

– The rib makes the corner more resistant to bending without increasing the thickness of steel.
– The specified thickness of steel is standard for this item. Upon customer’s request the item can be produced with thinner or thicker steel.
– Rounded corners make it safer when using the furniture.

Product material: steel
Product finish: zinc plated
Variations

10-409-1918-15

19x19x18mm, T=1,50mm

10-409-3015-15

30x30x15mm, T=1,50mm

10-409-5015-20

50x50x15mm, T=2,00mm

10-409-40xx-15

40*40, T=1.5

10-409-4015-20

40x40x15mm, T=2,00mm

10-409-30xx-15

30*30, T=1.5

10-409-3015-20

30x30x15mm, T=2,00mm

10-409-3015-18

30x30x15mm, T=1,80mm

10-409-2515-15

25x25x15mm, T=1,50mm

10-409-2015-08

20x20x15mm, T=0,8mm

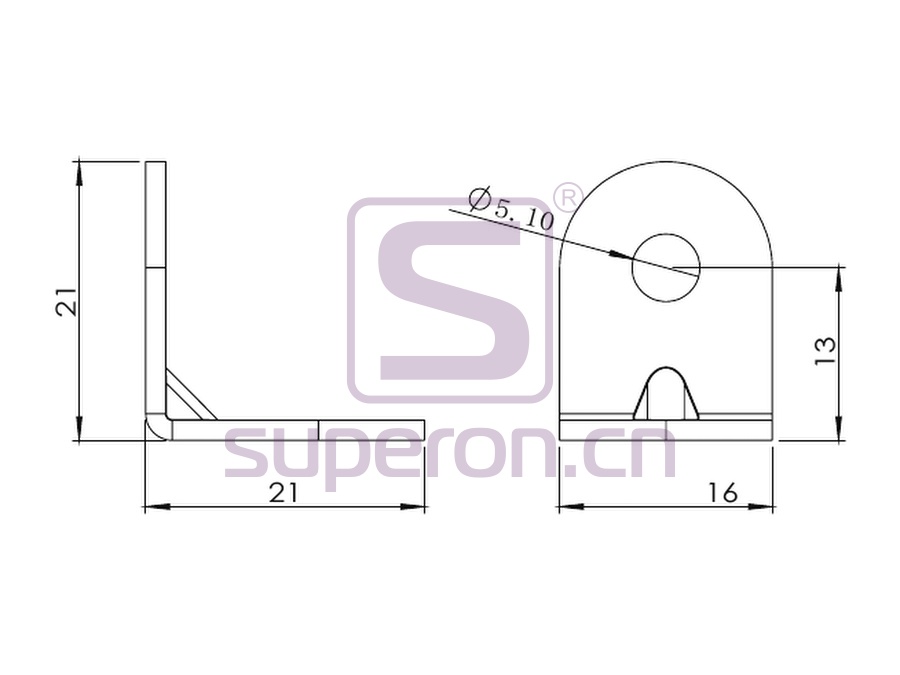

10-409-2118-15

21.5x21.5x18mm, T=1,50mm
Drilling: 13
Measurement: 21x21x16
Thickness: 1.5
Weight: 6.30 gr

10-409-2116-08

21x21x16mm, T=0.80mm
Drilling: 13
Measurement: 21x21x16
Thickness: 0.8
Weight: 3.50 gr

10-409-20xx-20

20*20, T=2.0

10-409-20xx-15

20*20, T=1.5

10-409-2015-20

20x20x15mm, T=2,00mm

10-409-2015-15

20x20x15mm, T=1,50mm

10-409-6015-20

60x60x15mm, T=2,00mm
