10-372 Plastic socket (open-ended)

– Hole diameter 10mm
– Sockets are not linked.
– The quality is mainly based on the
*thickness of the plastic,
*quality of plastic.
The weight of the recycled plastic can be higher than the primary plastic, so the weight cannot be the only factor of quality. The torque level should be taken into consideration.

Product material: nylon
SKU: 10-372 Categories: ,
Variations

10-372-N10-06105

M6*10.5, nylon

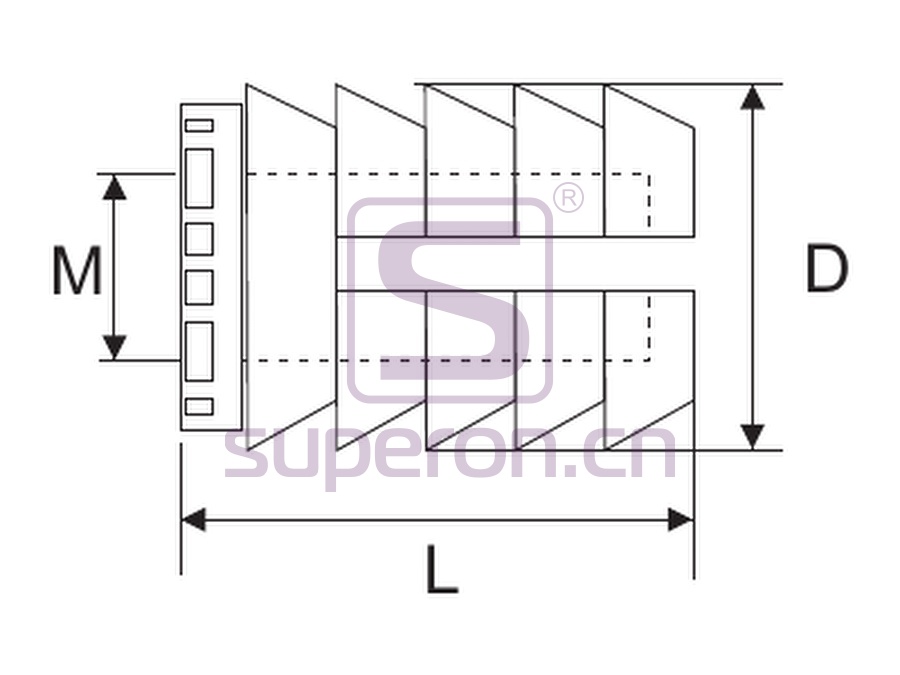

Diameter (D): 11
Hole diameter (D): 10
Length (L): 10.5
Thread: M6
Torque: 1.0 N/m
Weight: 0.48 gr

10-372-N10-08105

M8*10, nylon
Length (L): 10.5
Thread: M8
Torque: 1.0 N/m

10-372-N10-10105

M10*10,5 nylon
Length (L): 10.5
Thread: M10
Torque: 1.0 N/m

10-372-N15-06105

M6*10.5, nylon 100%
Diameter (D): 11
Hole diameter (D): 10
Length (L): 10.5
Thread: M10
Torque: 1.5 N/m
Weight: 0.48 gr

10-372-N15-08105

M8*10.5, nylon 100%
