10-278 Connector

– Hidden fitting with housing for connecting of shelves and side panels with the eccentric latching principle.

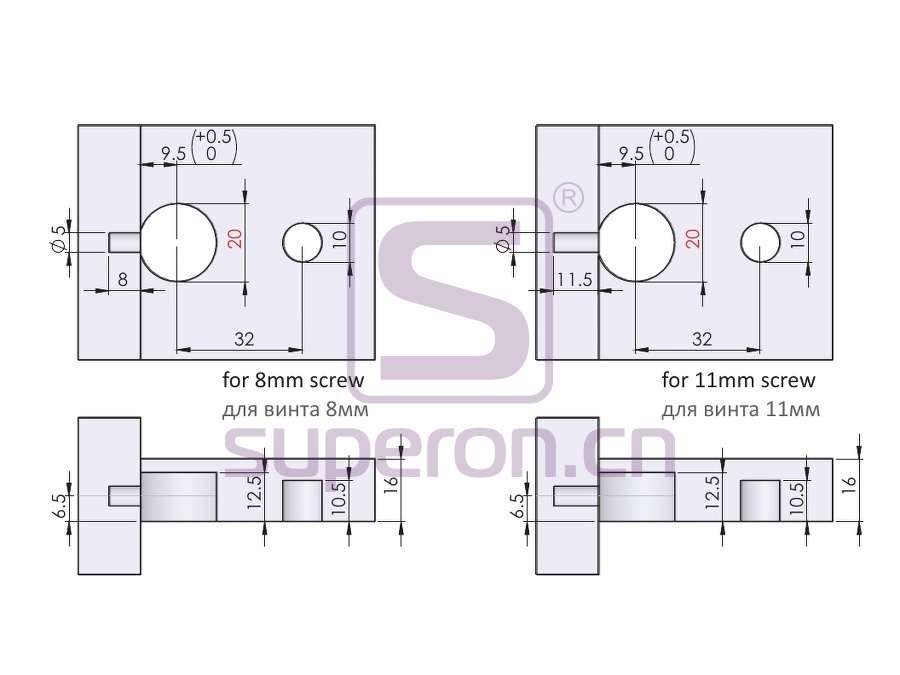

– The housing is placed into two holes with diameters 20 and 10 mm, the distance between holes is 32 mm.
– A shelf can be fastenned even into the assembled furniture.
– Type A can be tightened both from the bottom and the top (suitable for bottom panels, a through hole is required).

Product material: plastic
Variations

10-278-N-08

c8965
Center of dowel (x): 8
Diameter (D): 20/10
Drilling depth (h): 12.5/10.5
Material: nylon
Thread length: 8

10-278-N-11

c13544
Center of dowel (x): 8
Diameter (D): 20/10
Drilling depth (h): 12.5/10.5
Material: nylon
Thread length: 11

10-278-PA-08

c14370

10-278-PA-11

c14371

10-278-PP-08

c12113
Center of dowel (x): 8
Diameter (D): 20/10
Drilling depth (h): 12.5/10.5
Material: x
Thread length: 8

10-278-PP-11

c13545
Center of dowel (x): 8
Diameter (D): 20/10
Drilling depth (h): 12.5/10.5
Material: x
Thread length: 11

10-278-S

screw(螺丝)
