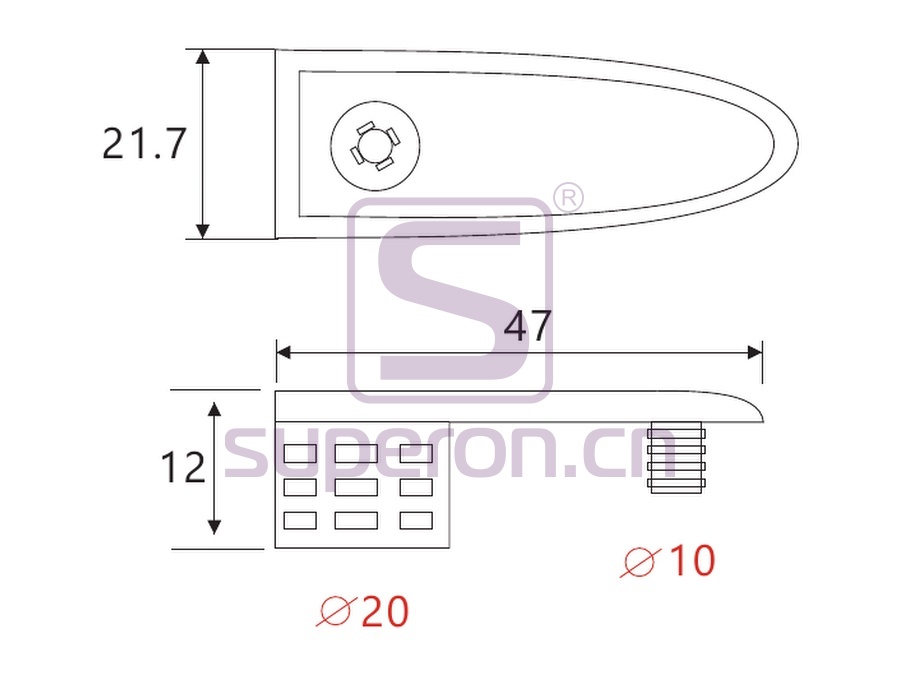

10-275 Shelf top d20

– Hidden fitting with housing for connecting of shelves and side panels with the eccentric latching principle.

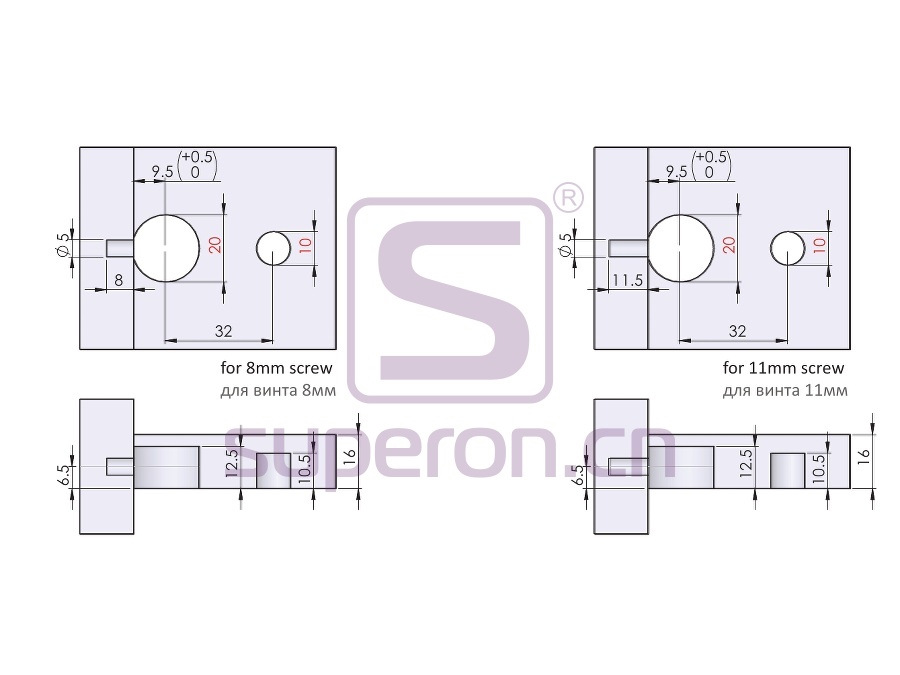

– The housing is placed into two holes with diameters 20 and 10 mm, the distance between holes is 32 mm.
– A shelf can be fastenned even into the assembled furniture.
– Type A can be tightened both from the bottom and the top (suitable for bottom panels, a through hole is required).

Product material: zinc alloy
Product finish: nickel plated
Variations

10-275-08

with short screw
Center of dowel (x): 8
Diameter (D): 20/10
Drilling depth (h): 12.5/10.5
Thread length: 8

10-275-11

with long screw
Center of dowel (x): 8
Diameter (D): 20/10
Drilling depth (h): 12.5/10.5
Thread length: 11

10-275-screw

screw
