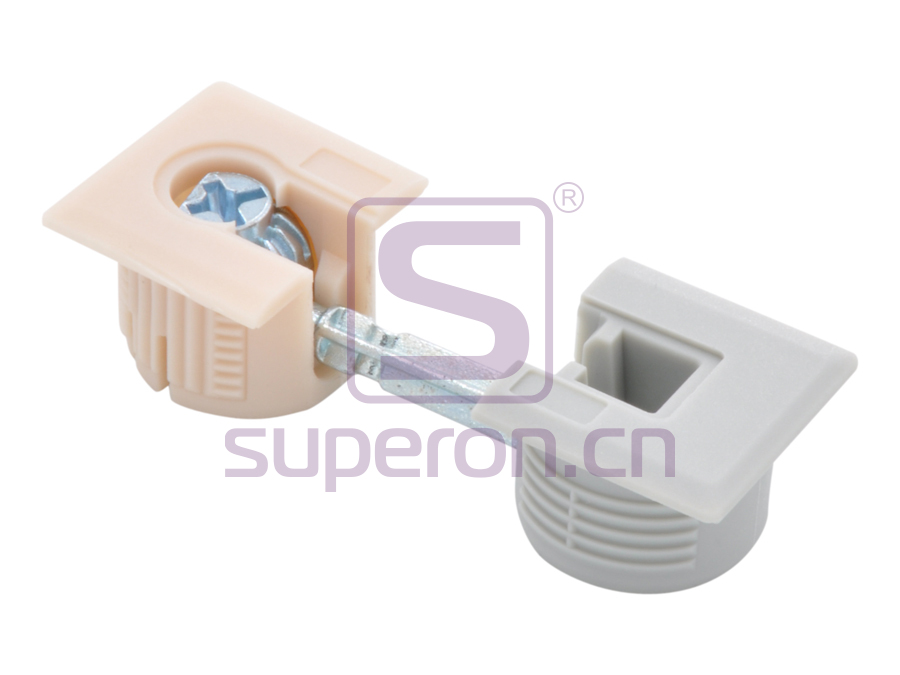

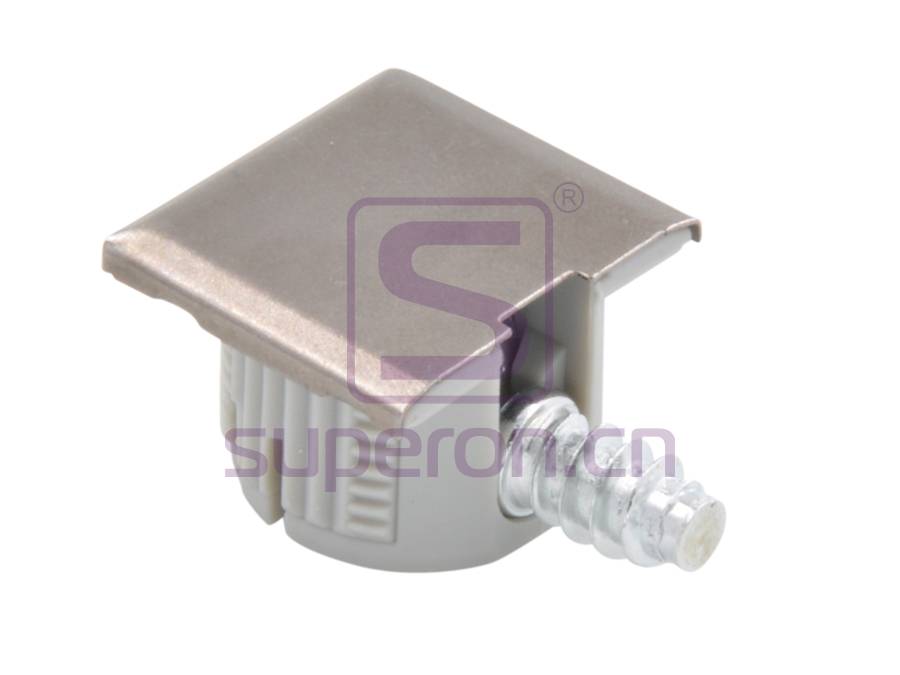

10-272 Shelf top d20

– The head of screw is pushed into the groove in the housing.
– The indentations on the groove pulls the side panel duringthe installation and keep it tightened.
– Two types: O-shaped and U-shaped.

Product material: plastic
Variations

10-272


Center of dowel: 8
Diameter: 20
Drilling depth: 12
Screw: 10
Type: O-shaped

10-272-N


Center of dowel: 8
Diameter: 20
Drilling depth: 12
Screw: 10
Type: U-shaped

10-272-N-08

with screw 6х8

10-272-N-10

with screw 6х10

10-272-PP-10

with screw 6х10

10-272-scr-08

6х8

10-272-scr-10

6х9.5

10-272-scr-11

6х11
