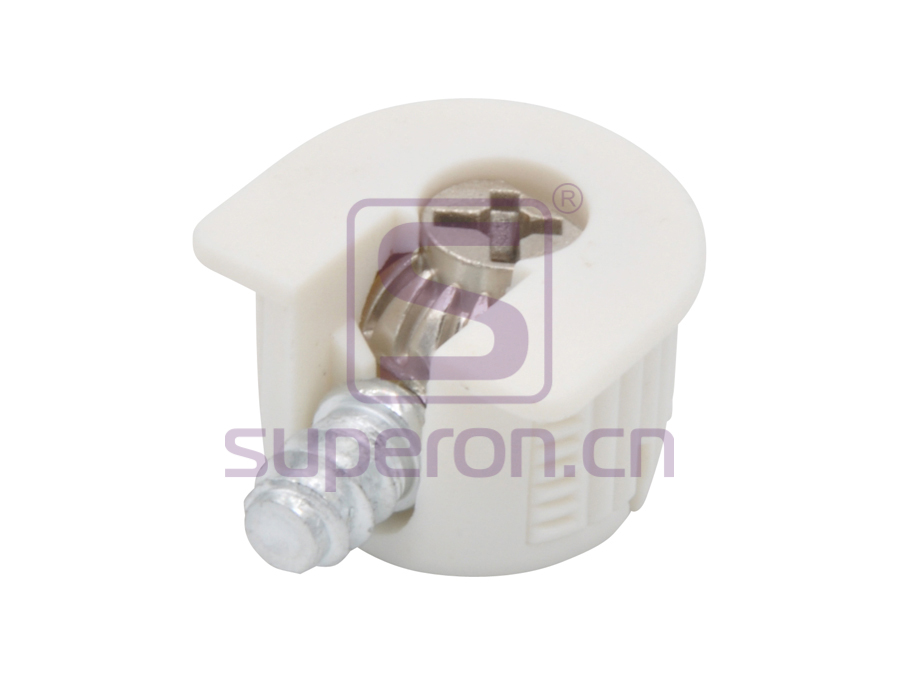

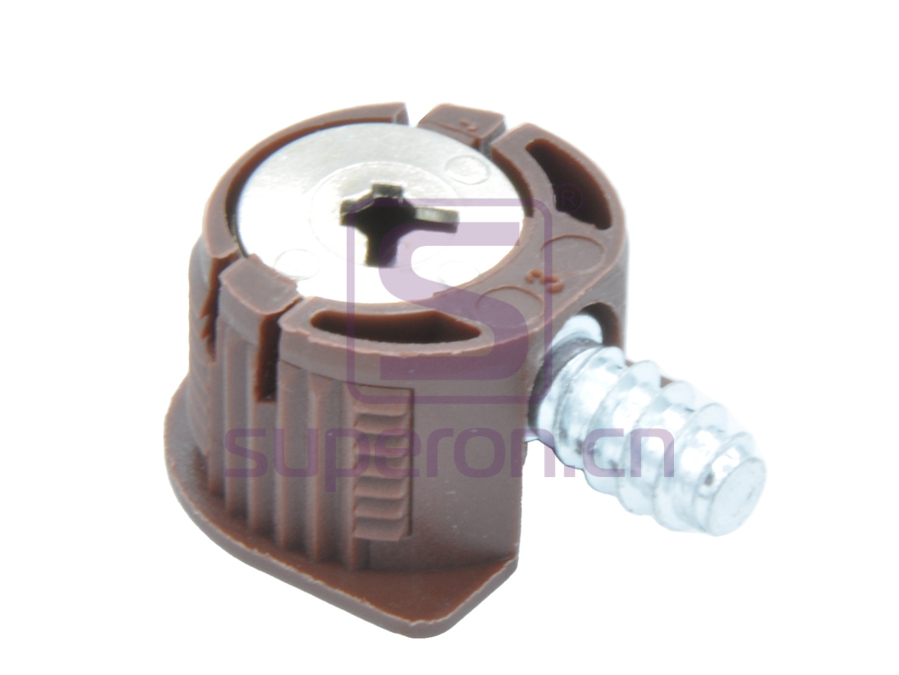

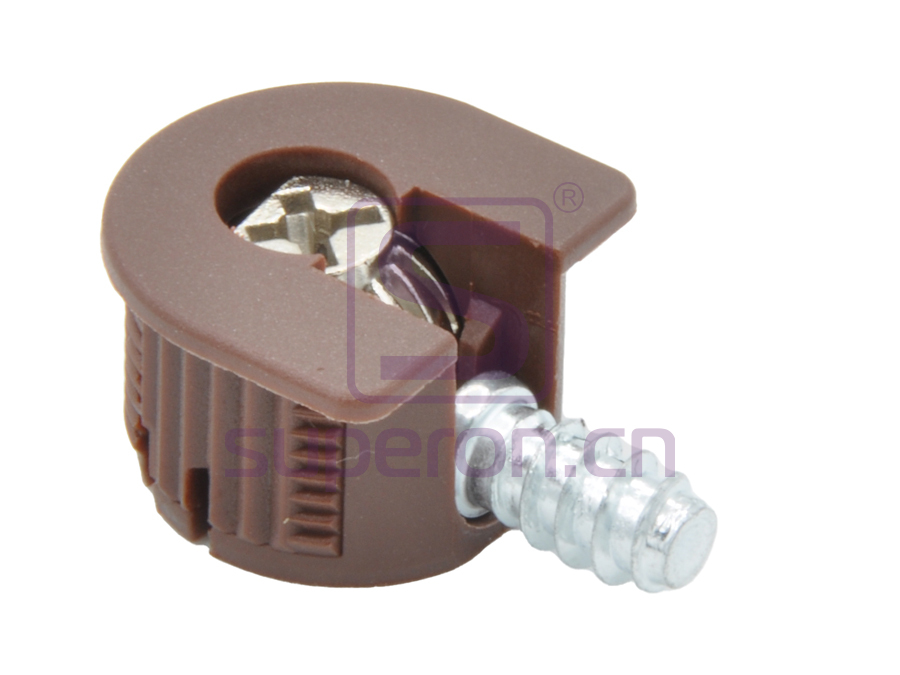

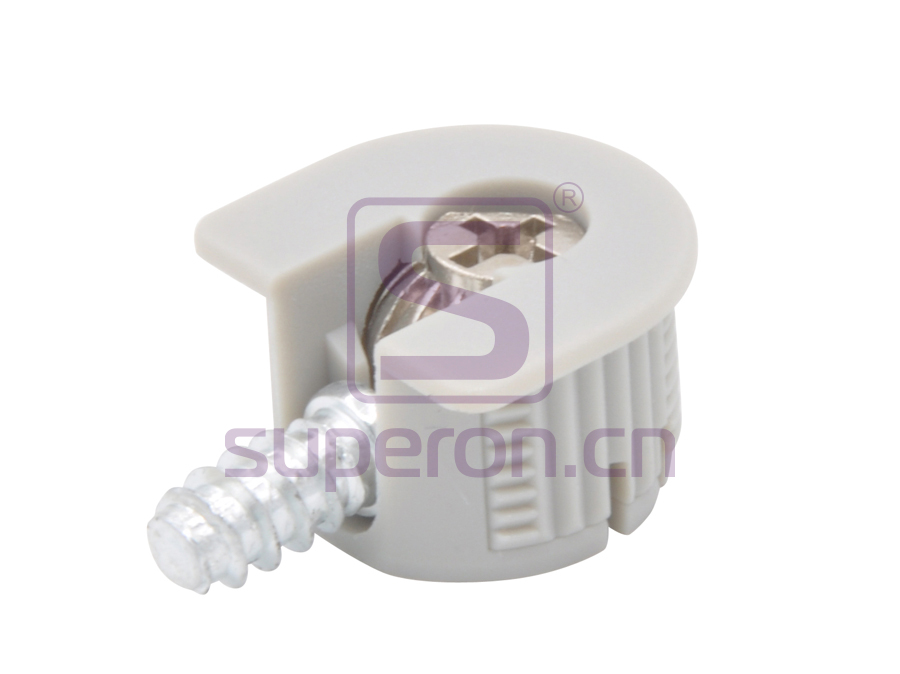

10-271 Shelf top d20

– Hidden fitting with housing for connecting of shelves and side panels with the eccentric latching principle.
– The housing is placed into a hole with diameter 20 mm
– A shelf can be fastenned even into the assembled furniture.
– Type A can be tightened both from the bottom and the top (suitable for bottom panels, a through hole is required).

Product material: zinc alloy, plastic
Product finish: nickel plated
Variations

10-271-N-08-A

L screw=8mm
Diameter: 20
Drilling depth: 12.5
Material: nylon
Screw: 7.5
Type: A

10-271-N-11-A

L screw=11mm
Diameter: 20
Drilling depth: 12.5
Material: nylon
Screw: 11
Type: A

10-271-PP-08-A

L screw=8mm
Diameter: 20
Drilling depth: 12.5
Material: plastic PP
Screw: 8
Type: A

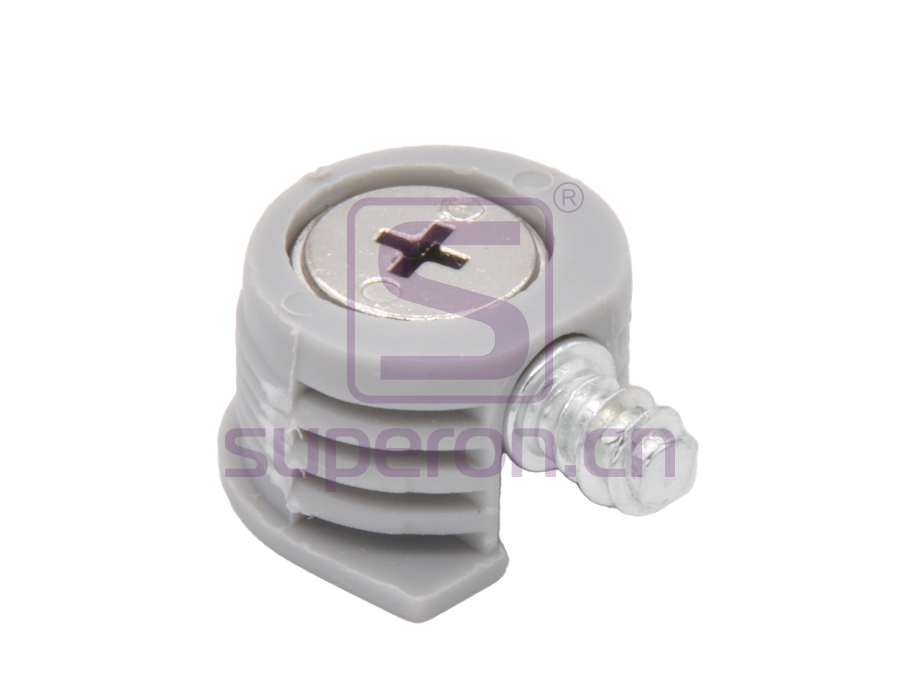

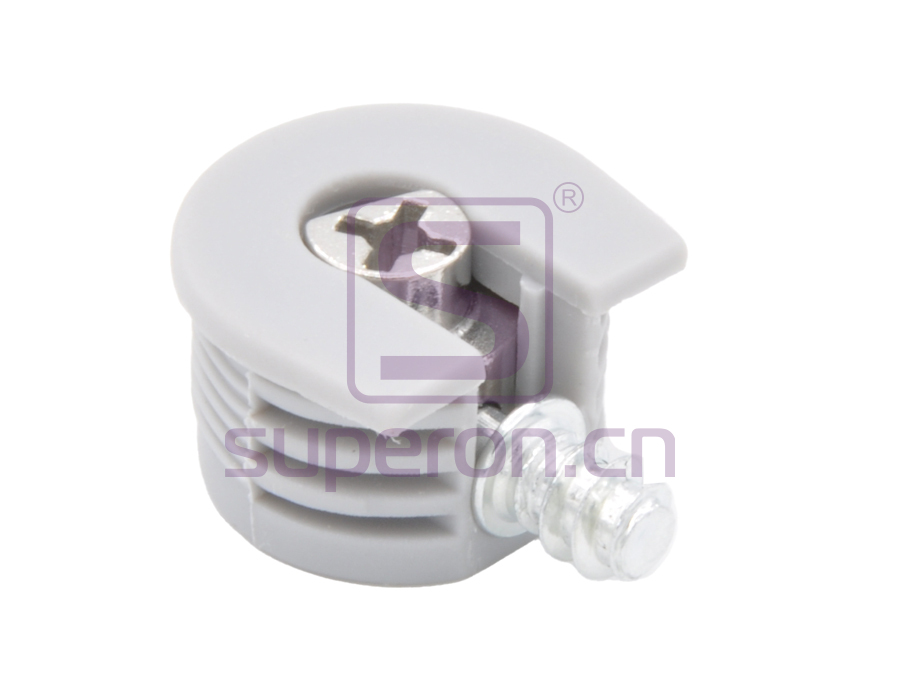

10-271-PP-08-B

L screw=8mm
Diameter: 20
Drilling depth: 12.5
Material: plastic PP
Screw: 7.20~7.50
Type: B

10-271-PP-11-A

L screw=11mm
Diameter: 20
Drilling depth: 12.5
Material: plastic PP
Screw: 11
Type: A

10-271-PP-11-B

L screw=11mm
Diameter: 20
Drilling depth: 12.5
Material: plastic PP
Screw: 10.0~10.5
Type: B
