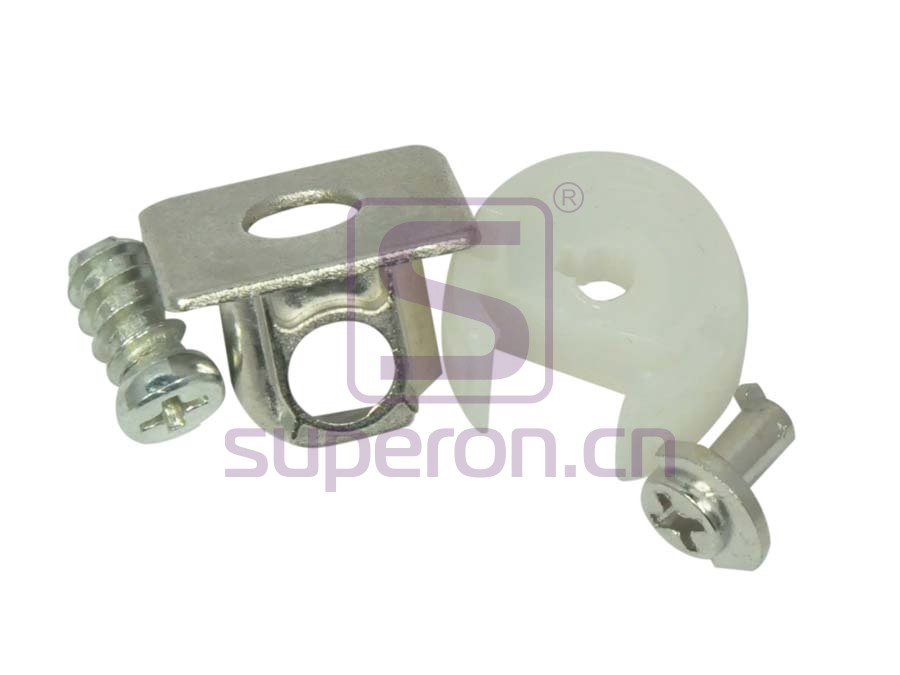

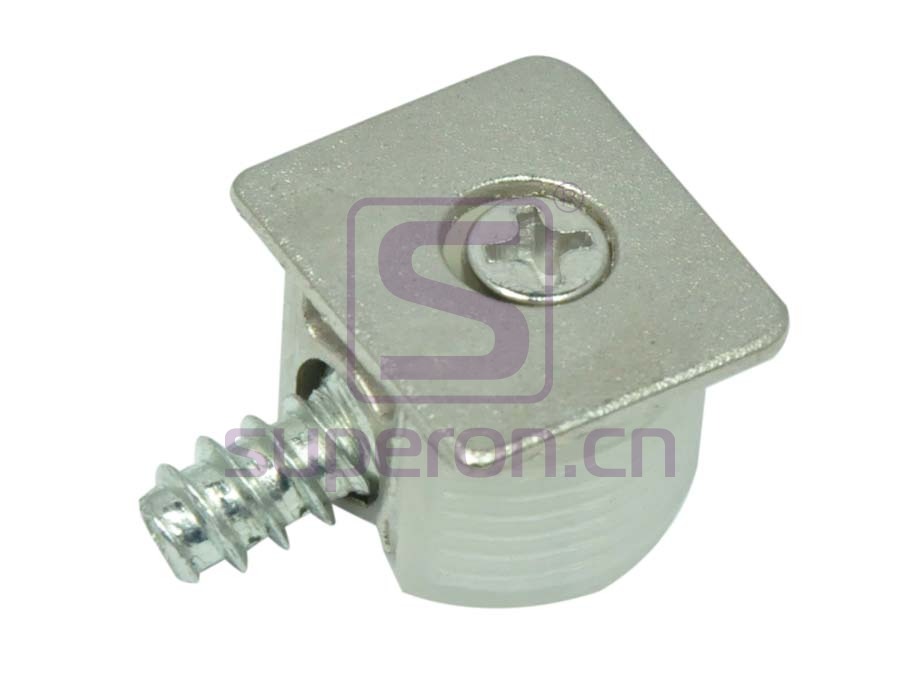

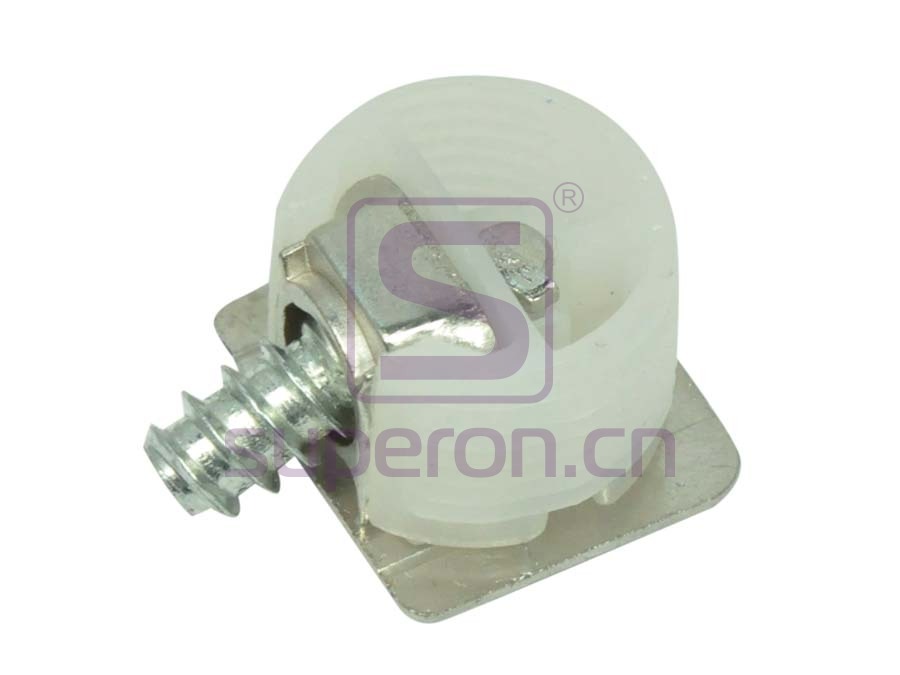

10-270 Shelf top

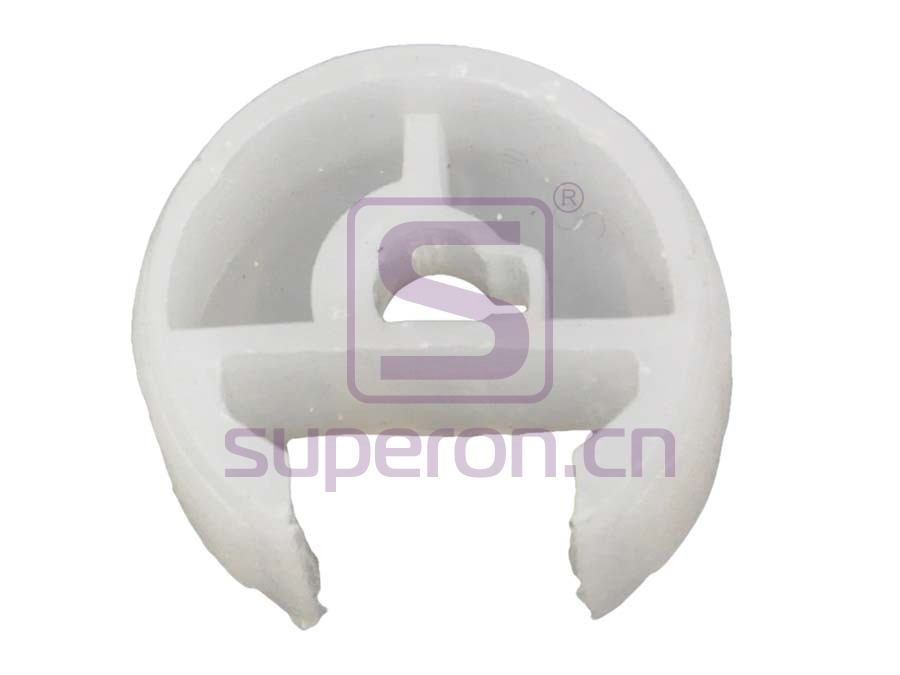

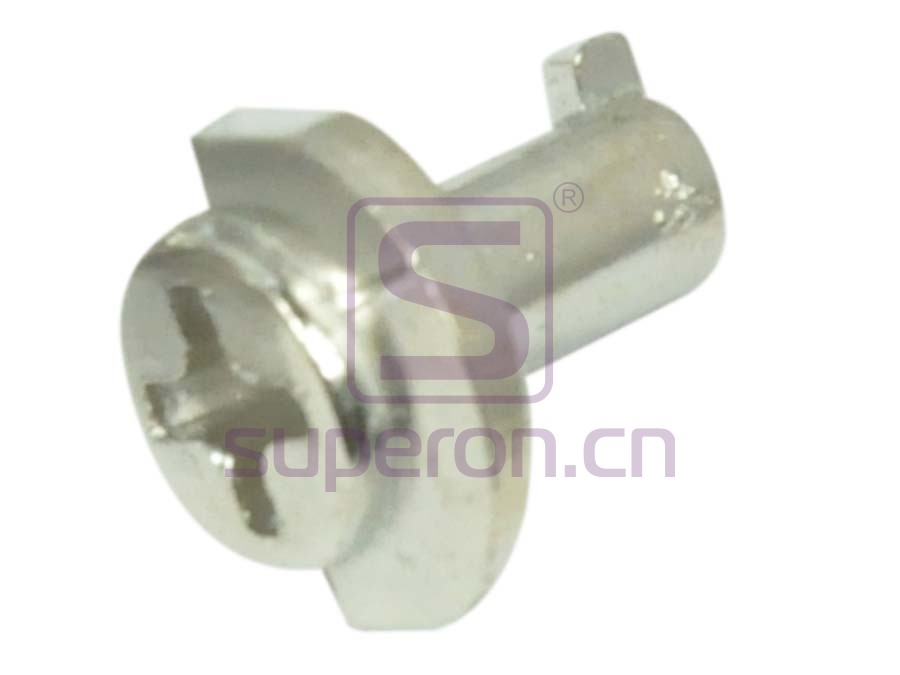

– Rotating pin is locking the cover on the plastic housing.
– The housing is placed into a hole with diameter 18 mm
– Doesn’t have expanding or eccentric effect.
– Euroscrew

Product material: zinc alloy, plastic
Product finish: nickel plated
Variations

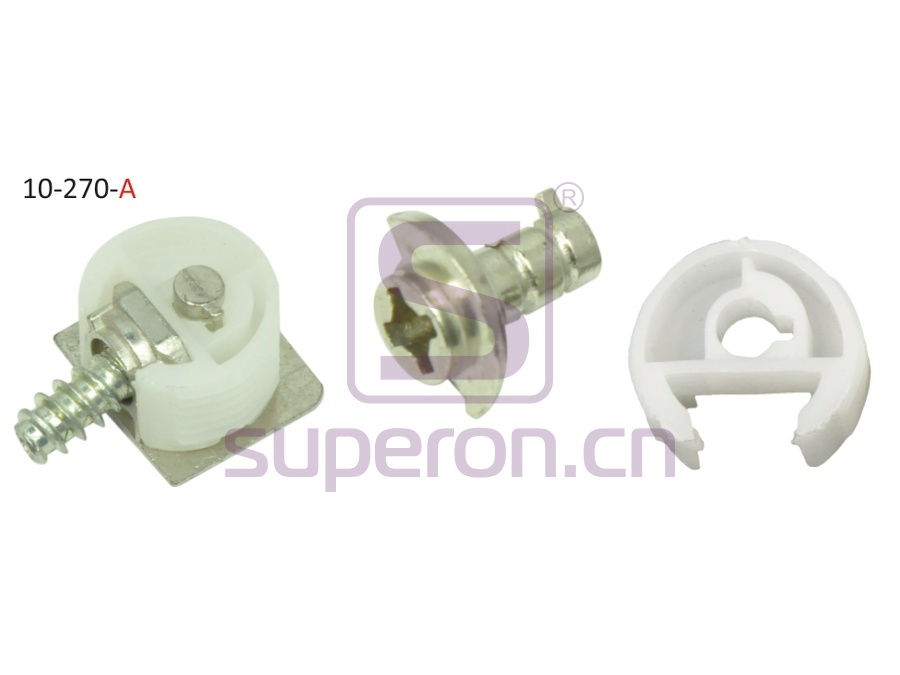

10-270-08-A

screw L=8mm
Type: A

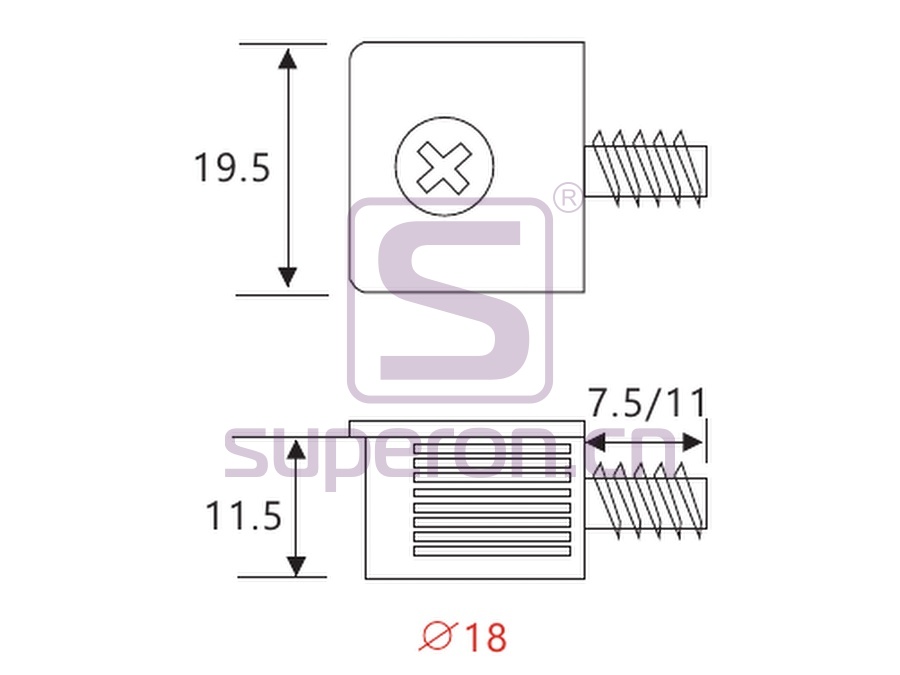

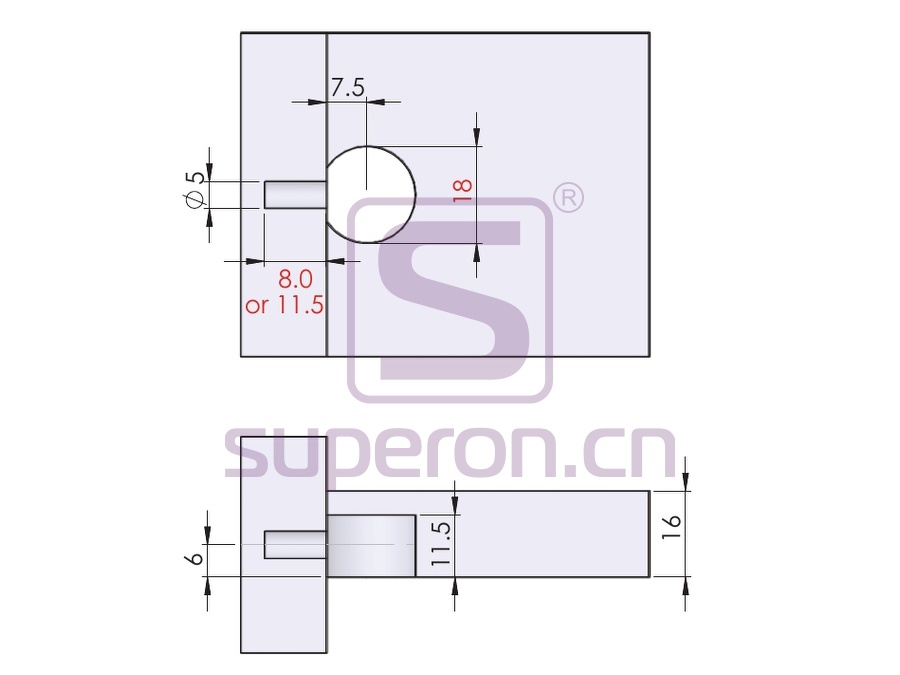

Center of dowel (x): 6
Diameter (D): 18
Drilling depth (h): 11.5
Thread: 6x8

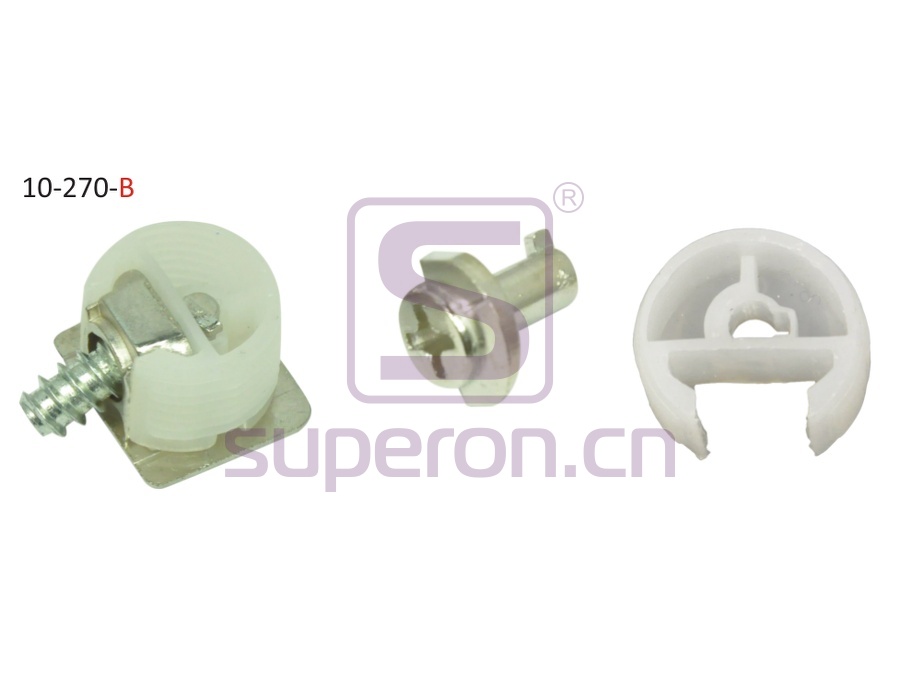

10-270-08-B

screw L=8mm
Type: B
Center of dowel (x): 6
Diameter (D): 18
Drilling depth (h): 11.5
Thread: 6x7

10-270-11-A

screw L=11mm
Type: A
Center of dowel (x): 6
Diameter (D): 18
Drilling depth (h): 11.5
Thread: 6x11

10-270-11-B

screw L=11mm
Type: B
Center of dowel (x): 6
Diameter (D): 18
Drilling depth (h): 11.5
Thread: 6x10
