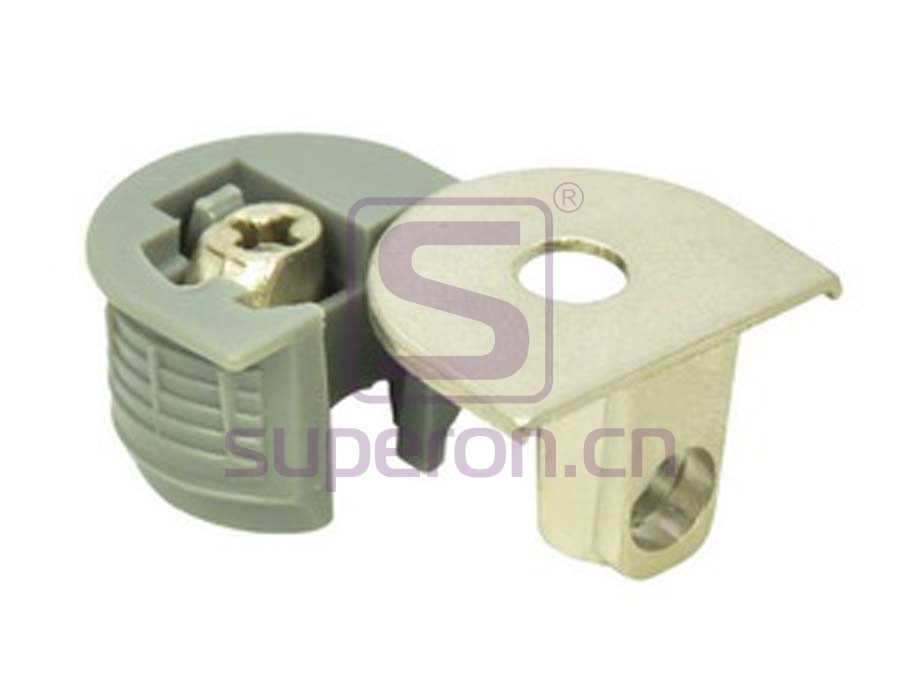

10-268 Eccentric shelf support

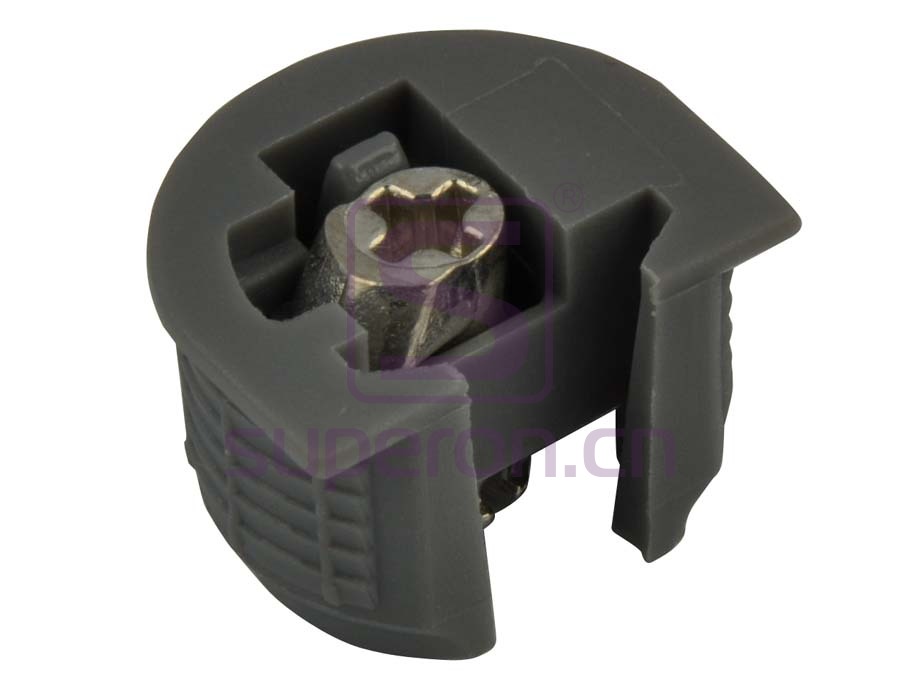

– Rotating pin is locking the cover on the plastic housing.

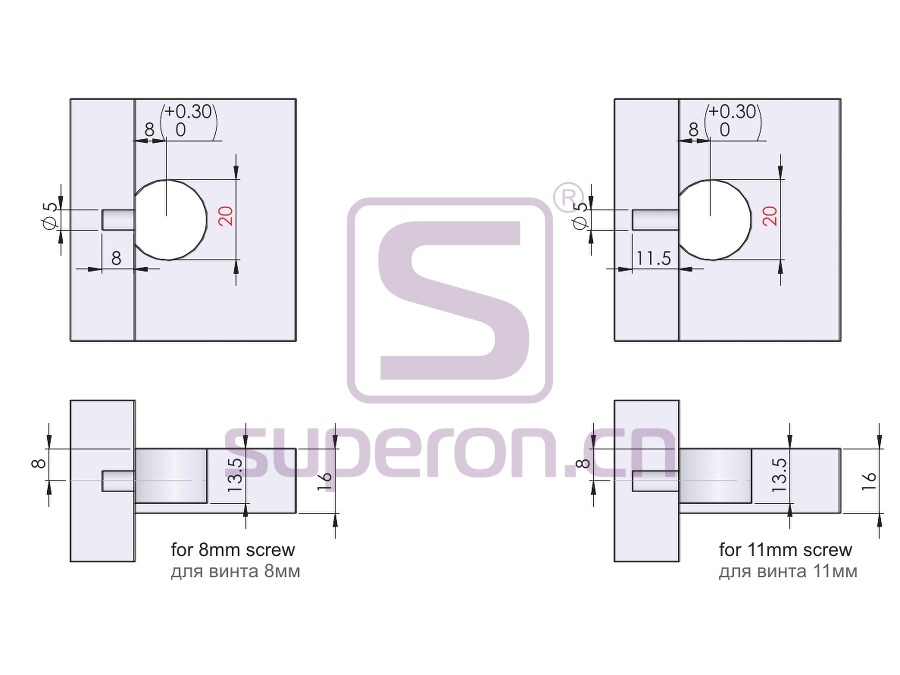

– The housing is placed into a hole with diameter 20 mm
– Doesn’t have expanding or eccentric effect.
– Can be fixed both from the top and bottom.

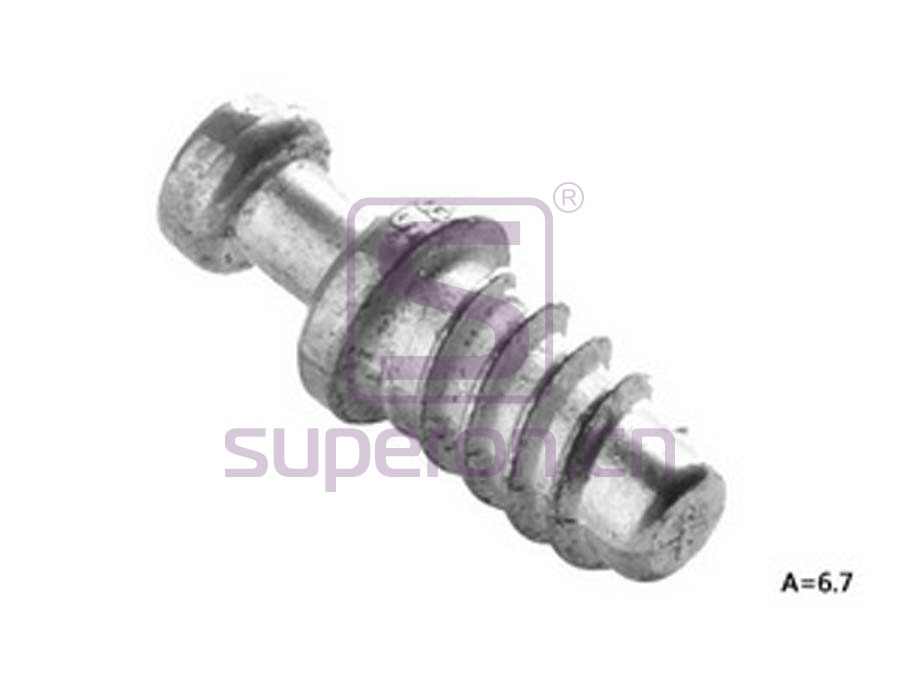

– Euroscrew 6.3x6mm (outter part), drill depth for euroscrew is 7 mm.

Product material: zinc alloy, plastic
Product finish: nickel plated
Variations

10-268-N

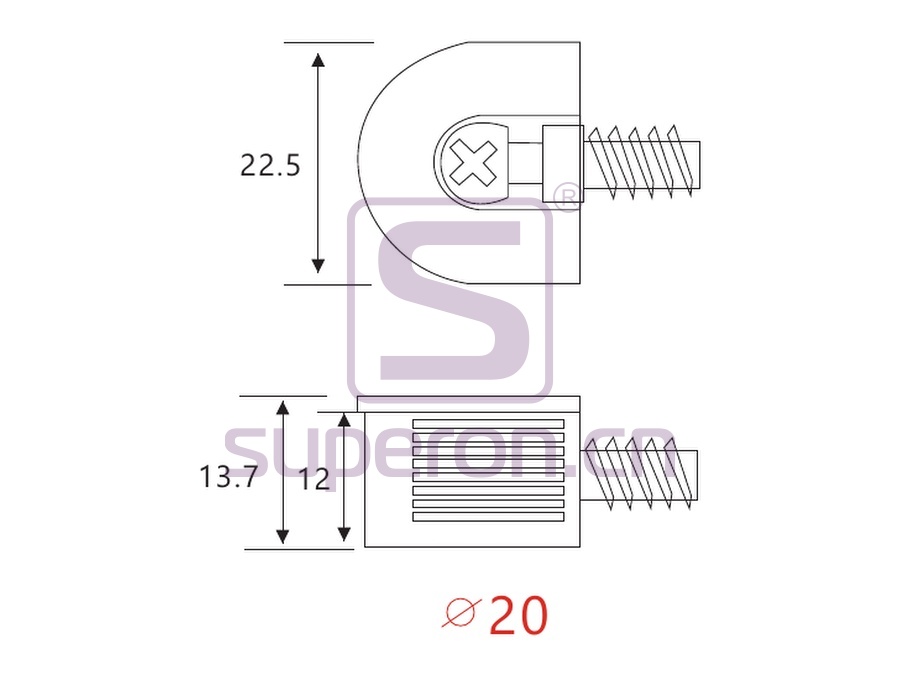

Center of dowel: 8
Diameter: 20
Drilling depth: 13.5
Material: nylon

10-268-PP


Center of dowel: 8
Diameter: 20
Drilling depth: 13.5
Material: plastic PP
