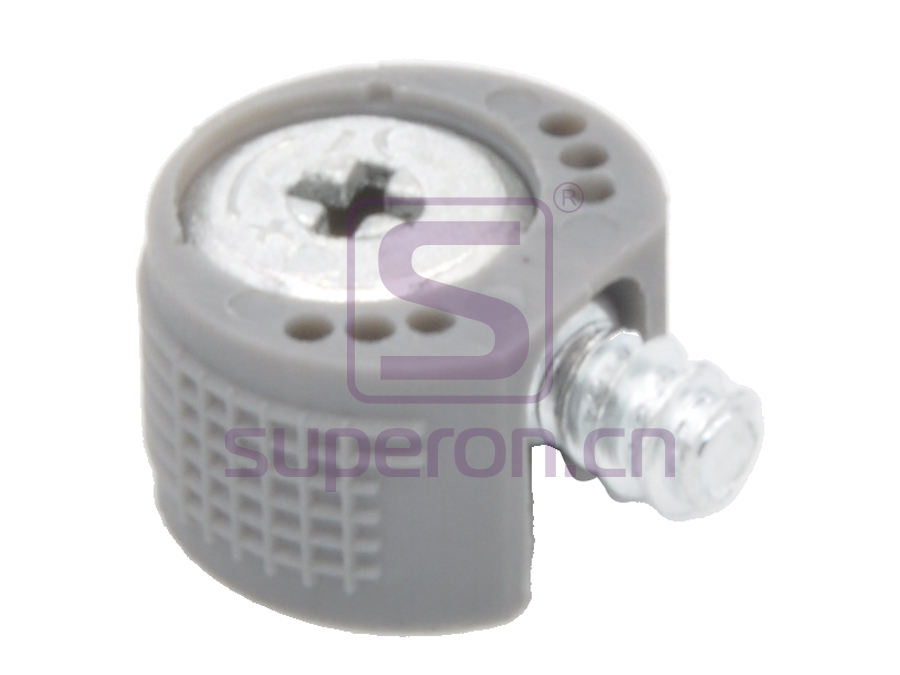

10-267 Connector

– Expanding housing and integrated dowel assembled in one piece to install quick.

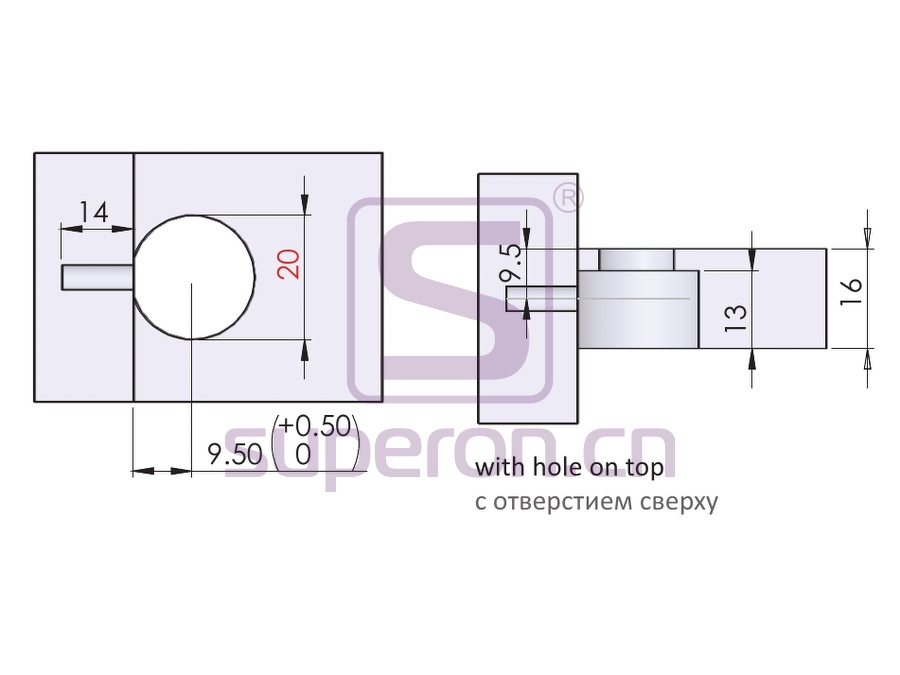

– The housing is placed into a hole with diameter 20 mm
– Screwdriver is hold at angle when fastening, for more comfortable and quick work.

Product material: plastic
Product finish: zinc plated
Variations

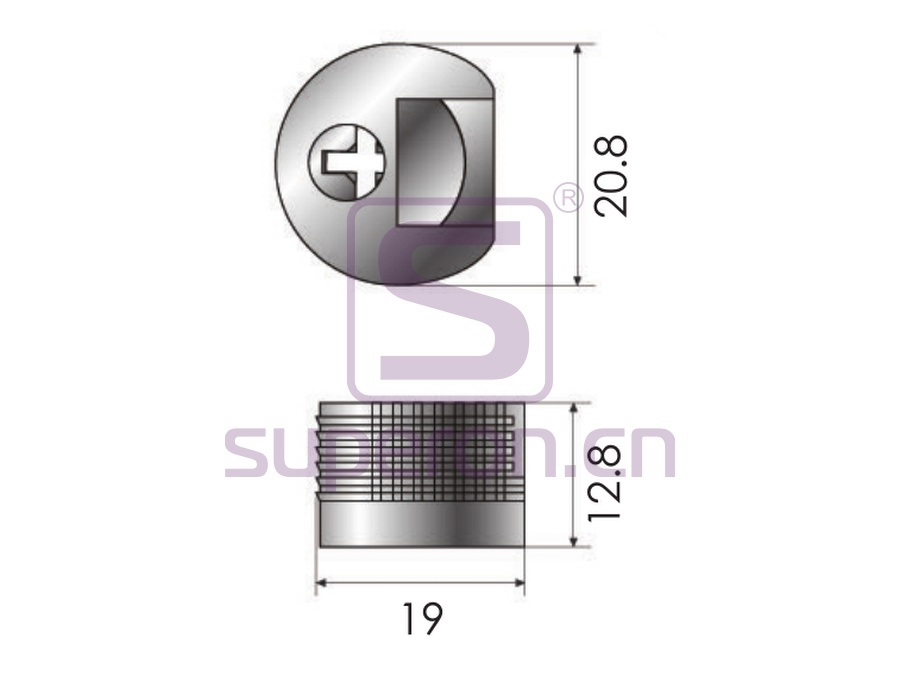

10-267-20

d=20mm
Center of dowel: 6.5
Diameter: 20mm
Drilling depth: 12
Socket: 8
