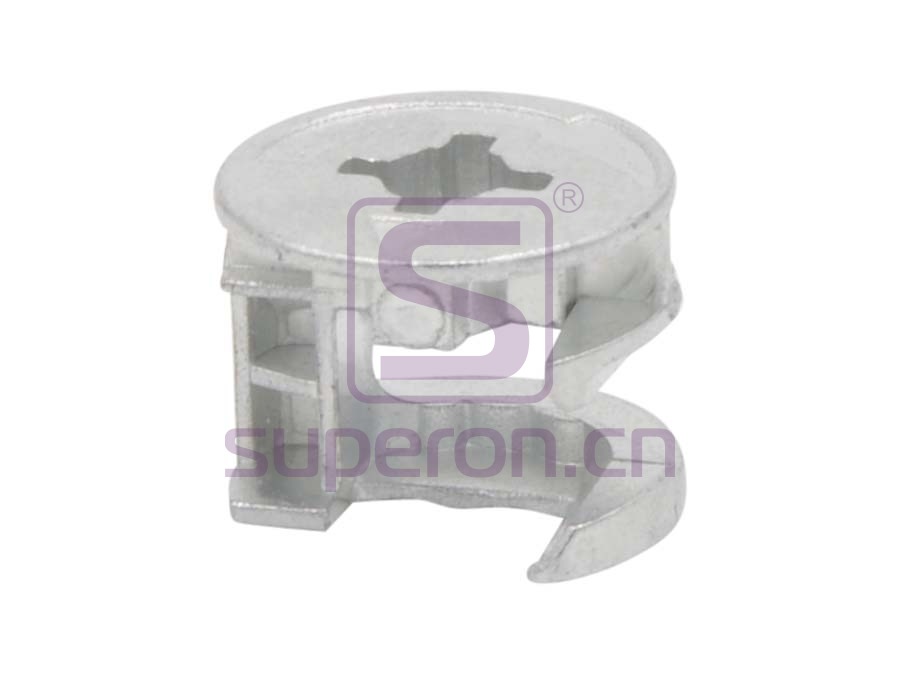

10-218 Eccentric cam, D15

This is the most common eccentric cam.
Mostly sold with: 10-109-34, 10-107-34, 10-145-34

– Ecentric cam pulls the furniture boards into place, from initial gap upto 4 mm.
– The diameter of the drilling is 15mm, the depth of the drilling should be done according to the board thickness.
– Internal and external indentations make the connection secure.
– The dowel is always pulled in to the centred position, providing an accurate assembly.
– Eccentric cam can be tightened with cross screwdriver PH2 (recommended) or PZ2 , flat-blade screwdriver or 4 mm allen key.
– Used for boards with thickness of 15, 16 mm.

One container can load 3.000.000 eccentric and 3.000.000 dowel for eccentric.

SKU: 10-218 Categories: ,
Variations

10-218-115

h=11.5

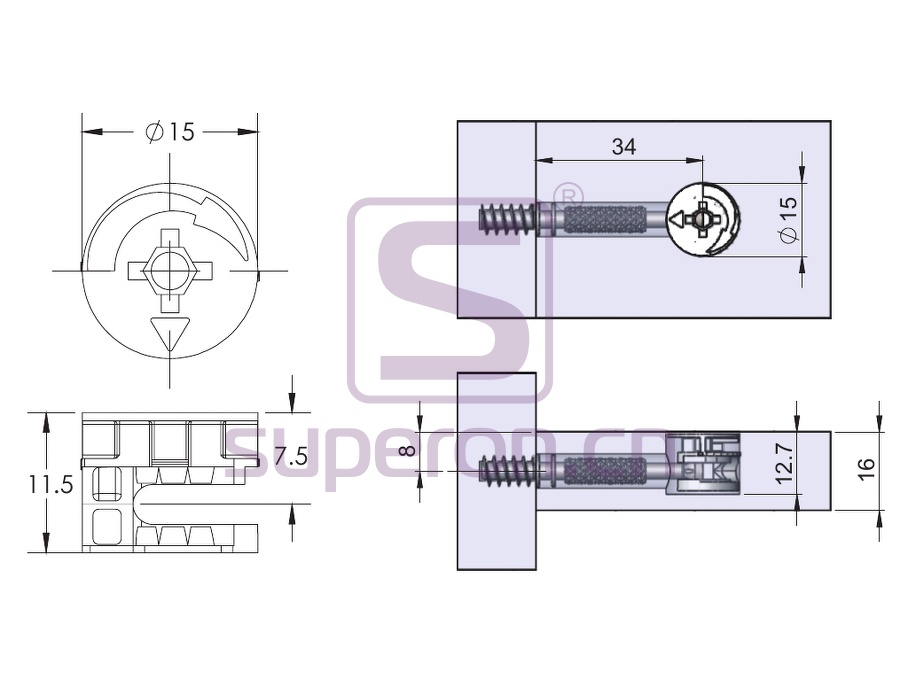

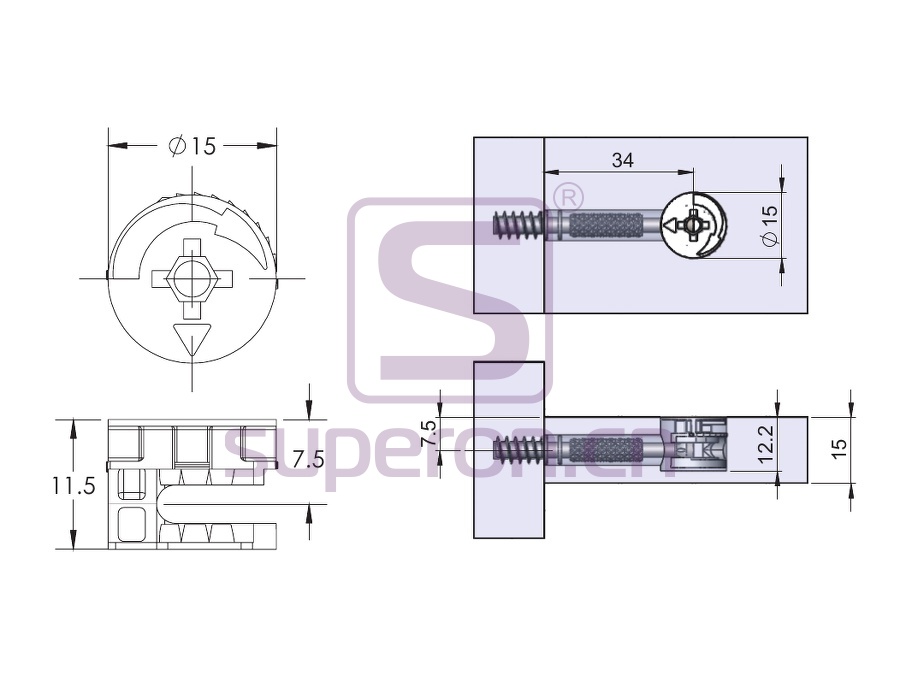

Board: 15 / 16
Center of dowel: 7.5 / 8
Diameter: 15
Drilling depth: 12.2 / 12.7
Height: 11.5
Torque: 8.0~9.0 N/m
Weight: 3.6 gr
