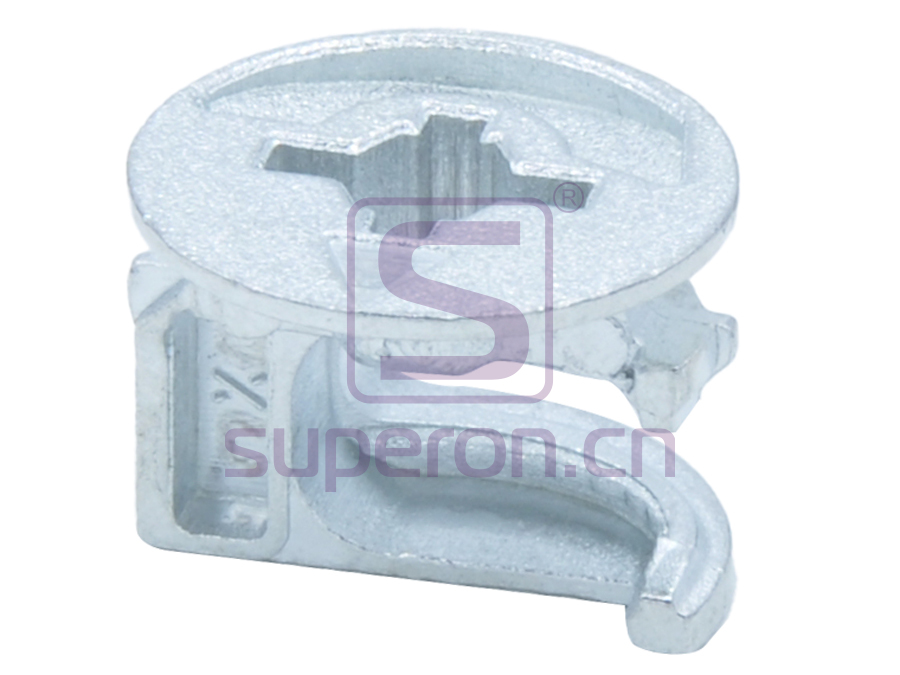

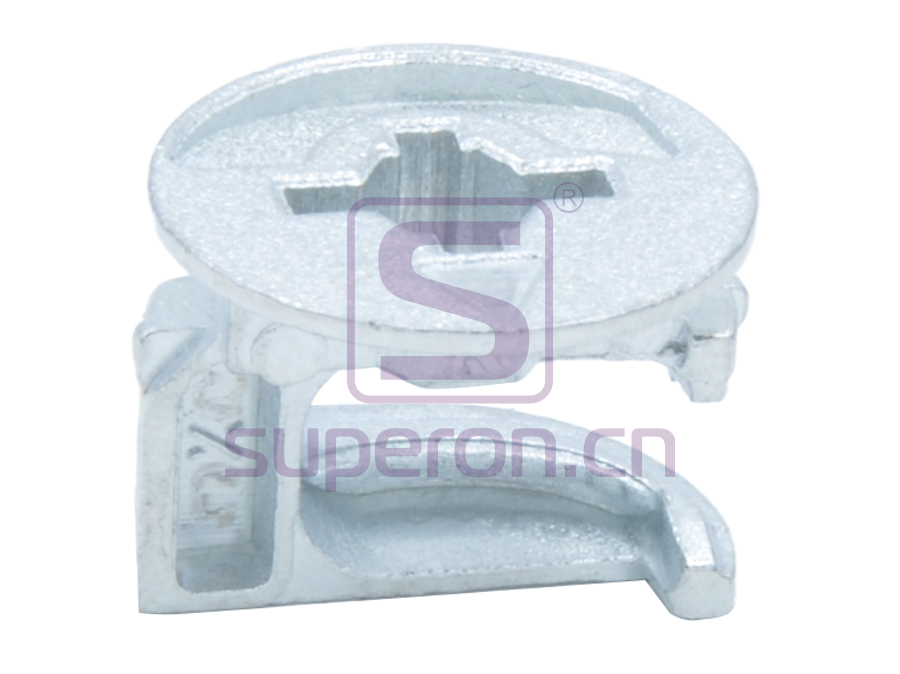

10-217 Eccentric cam, D15

SKU: 10-217 Categories: 10 - Connecting fittings, eccentric cams

Variations	Board	Center of dowel (x)	Diameter (D)	Drilling depth (h)	Height (h)	Torque	Weight
10-217-115-29	-	-	-	-	-	-	-	Inquiry In Inquirylist In Inquirylist
10-217-115-30	-	-	-	-	-	-	-	Inquiry In Inquirylist In Inquirylist

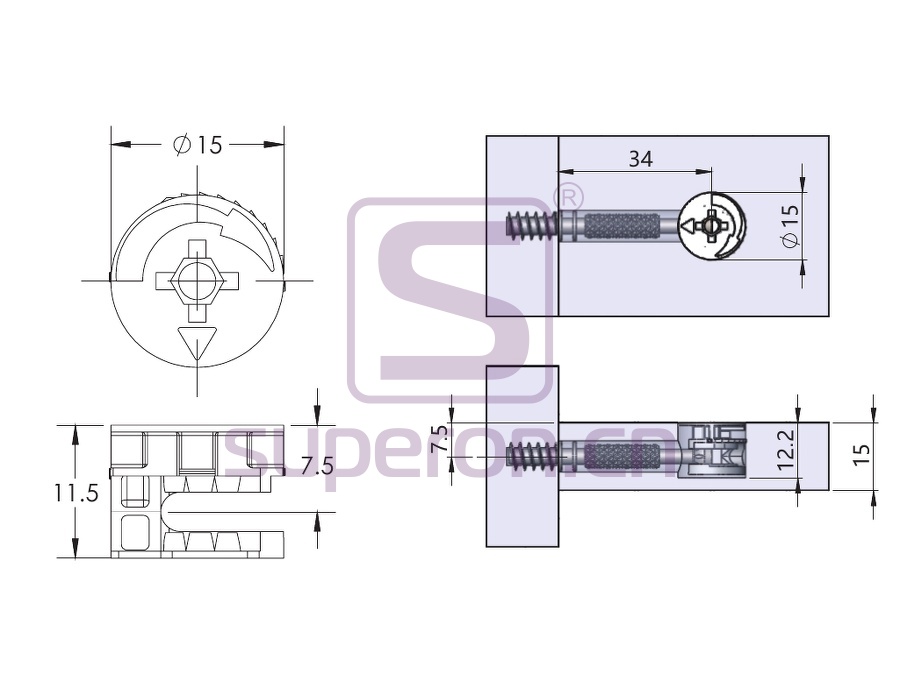

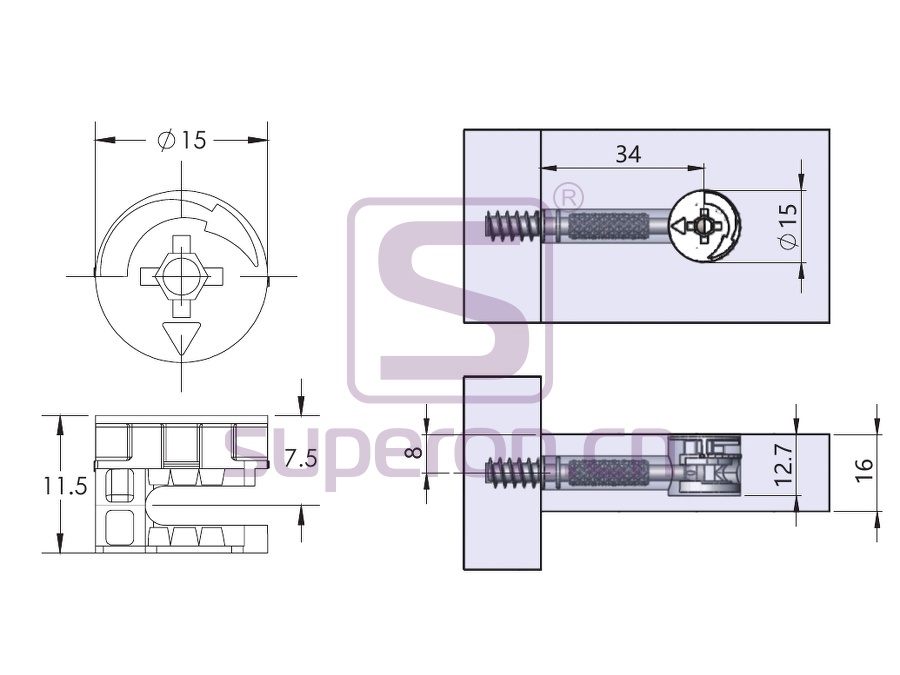

10-217-115-32 Board: 15 / 16 Center of dowel (x): 7.5 / 8 Diameter (D): 15 Drilling depth (h): 12.2 / 12.7 Height (h): 11.5 Torque: 10~11 N/m Weight: 3.15~3.2 gr	15 / 16	7.5 / 8	15	12.2 / 12.7	11.5	10~11 N/m	3.15~3.2 gr	Inquiry In Inquirylist In Inquirylist
10-217-115-33	-	-	-	-	-	-	-	Inquiry In Inquirylist In Inquirylist
10-217-135	-	-	-	-	-	-	-	Inquiry In Inquirylist In Inquirylist
