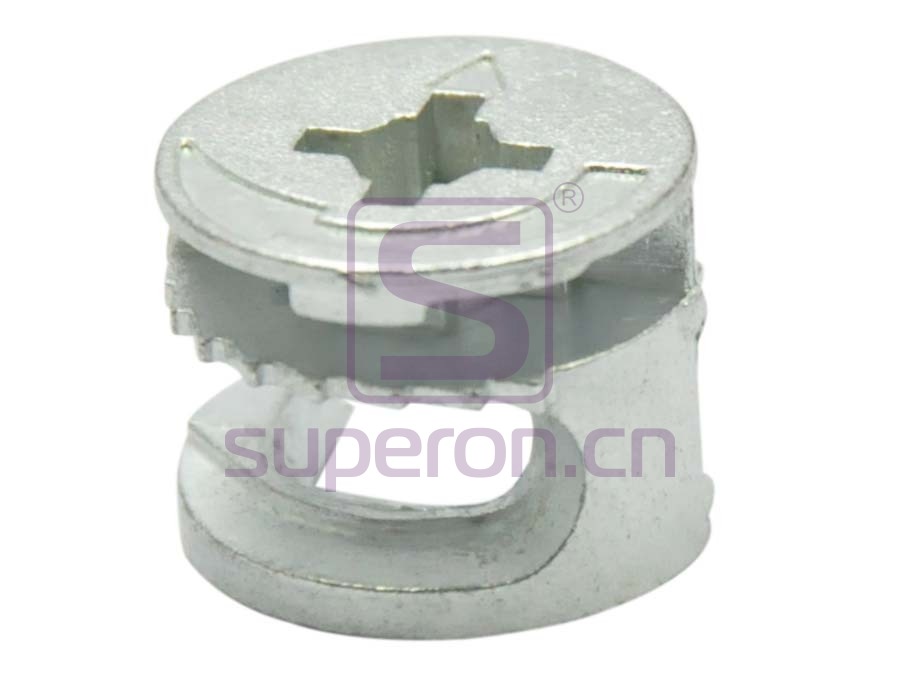

10-201 Eccentric cam, D15

This is the most common eccentric cam.
Mostly sold with: 10-107-34, 10-109-34, 10-145-34, 10-147-34.

– Ecentric cam pulls the furniture boards into place, from initial gap upto 4 mm.
– The diameter of the drilling is 15mm, the depth of the drilling should be done according to the board thickness.
– Internal and external indentations make the connection secure.
– The dowel is always pulled in to the centred position, providing an accurate assembly.
– Eccentric cam can be tightened with cross screwdriver PH2 (recommended) or PZ2 , flat-blade screwdriver or 4 mm allen key.
– Used for boards with thickness of 15, 16, 18, 19, 25 mm.

Product material: zinc alloy
Product finish: zinc plated
SKU: 10-201 Categories: ,
Variations

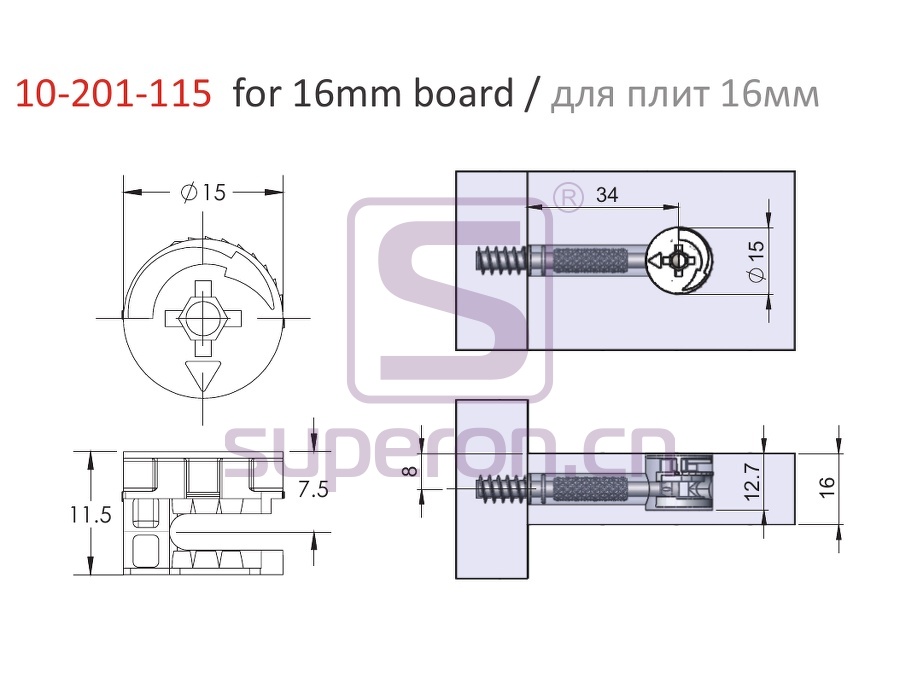

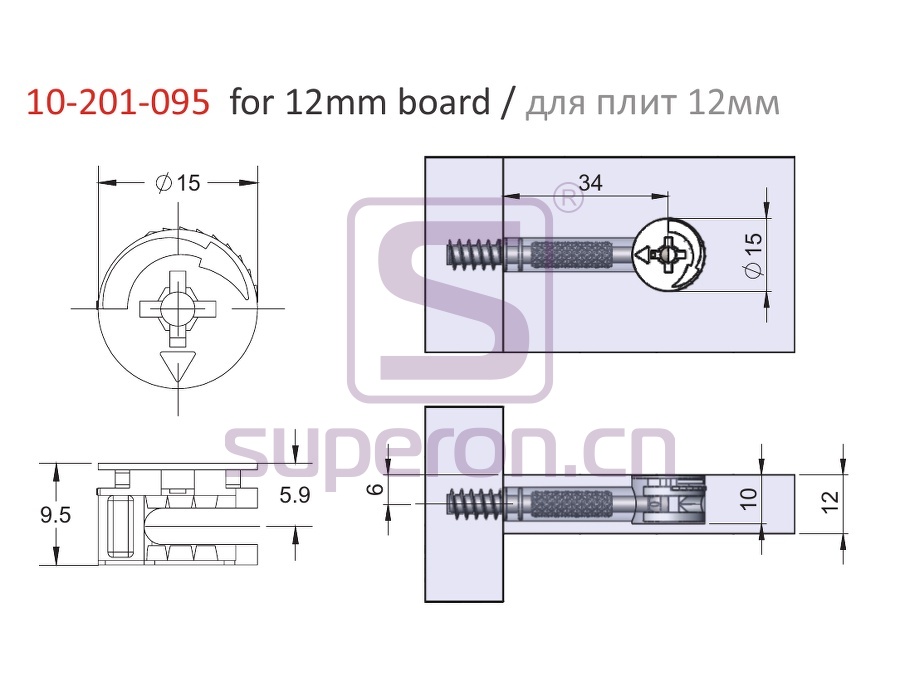

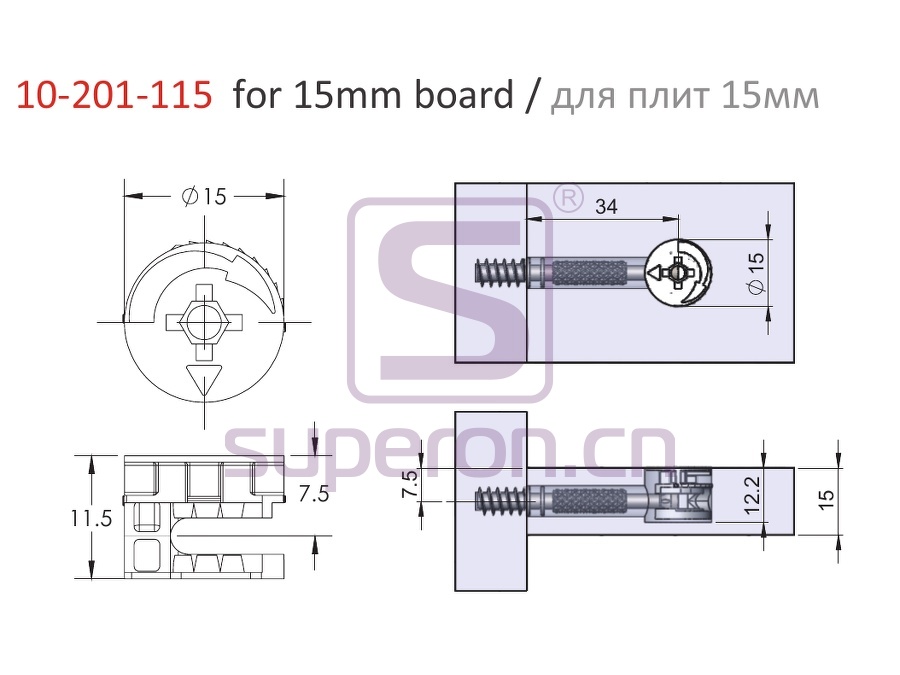

10-201-095

h=9.5

10-201-115

h=11.5
Board: 15 / 16
Center of dowel (x): 7.5 / 8
Diameter (D): 15
Drilling depth (h): 12.2 / 12.7
Height (h): 11.5
Torque: 7.5-8.0 N/m
Weight: 3.65 gr~3.65

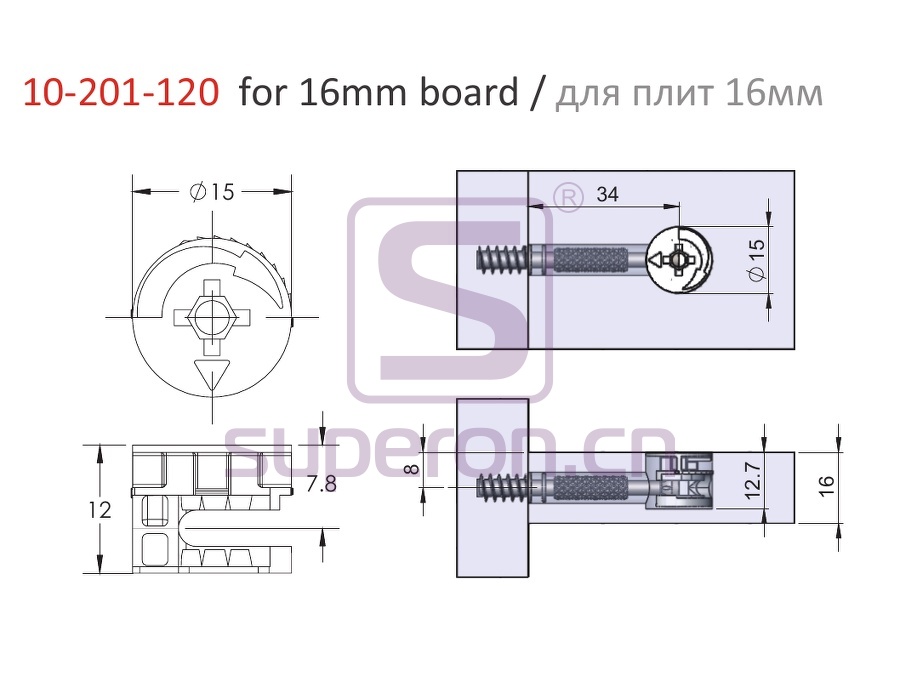

10-201-120

h=12.0
Board: 16/18
Center of dowel (x): 8/9
Diameter (D): 15
Drilling depth (h): 12.7/13.4
Height (h): 12
Torque: 7.5-8.5 N/m
Weight: 3.7 gr~3.9

10-201-125

h=12.5
Board: 18
Center of dowel (x): 8
Diameter (D): 15
Drilling depth (h): 13.7
Height (h): 12.5
Weight: 4.5 gr~4.7

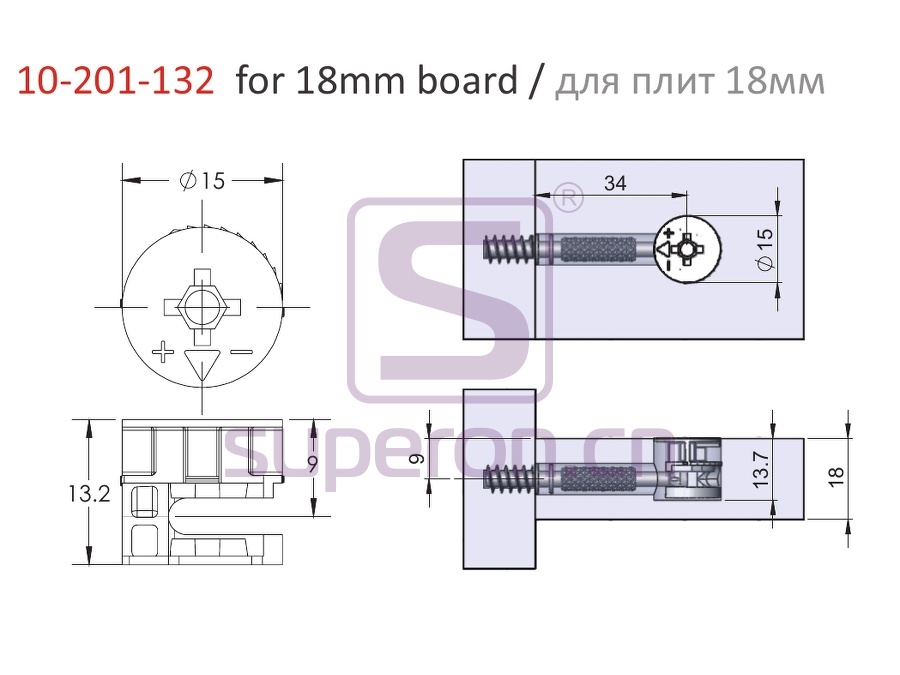

10-201-132

h=13.2
Board: 18/19
Center of dowel (x): 9/9.5
Diameter (D): 15
Drilling depth (h): 13.7/14.2
Height (h): 13.2
Torque: 9.0~10 N/m
Weight: 4.15 gr

10-201-135

h=13.5
Board: 18/19
Center of dowel (x): 9/9.5
Diameter (D): 15
Drilling depth (h): 13.7/14.2
Height (h): 13.5

10-201-135-C

h=13.5, with cap

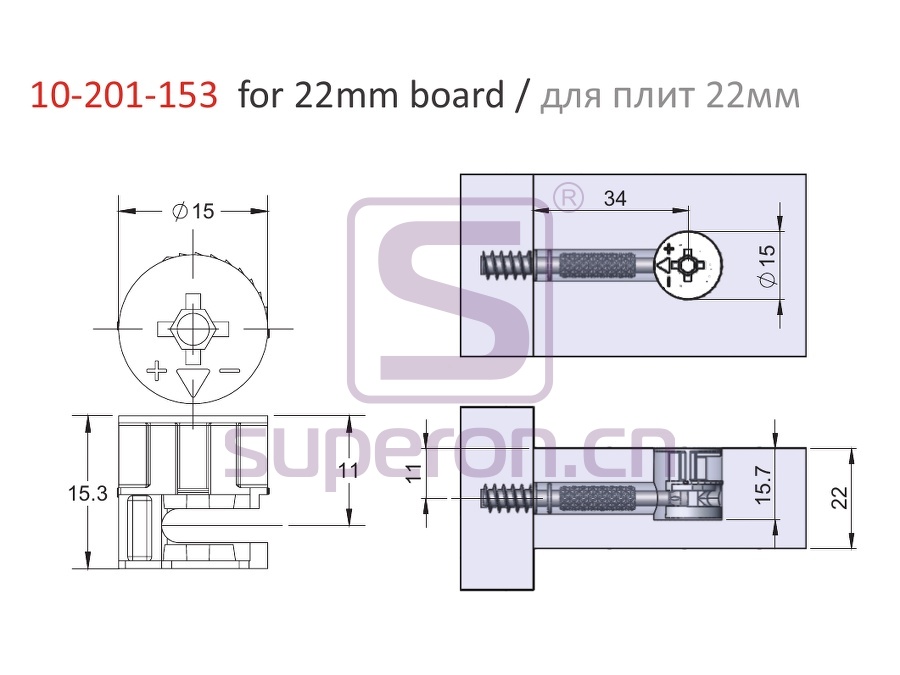

10-201-153

h=15.3

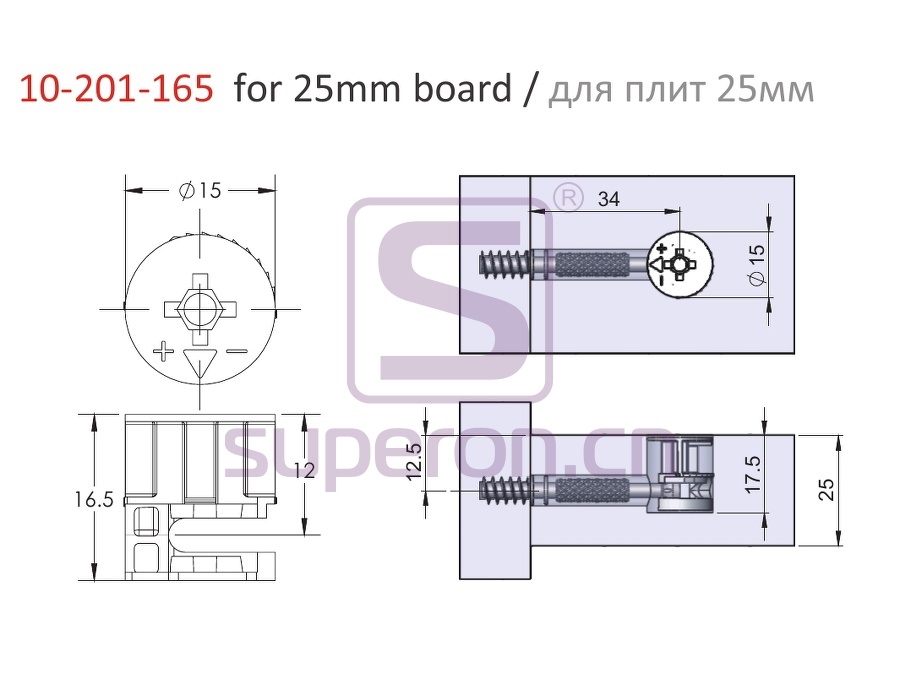

10-201-165

h=16.5
Board: 22
Center of dowel (x): 12
Diameter (D): 15
Drilling depth (h): 17
Height (h): 16.5
Weight: 5.2 gr~5.4
