10-189-48L=48мм, 24+0+24
Board: 16
Cam distance: 24
Dowel length: 48
| 16 | 24 | 48
| |
10-189-64L=64mm, 24+16+24
Board: 16
Cam distance: 24
Dowel length: 64
| 16 | 24 | 64
| |
10-189-68L=68mm, 34+0+34
Board: 16
Cam distance: 34
Dowel length: 68
| 16 | 34 | 68
| |
10-189-74L=74mm, 34+16+24
Board: 16
Cam distance: 34/24
Dowel length: 74
| 16 | 34/24 | 74
| |

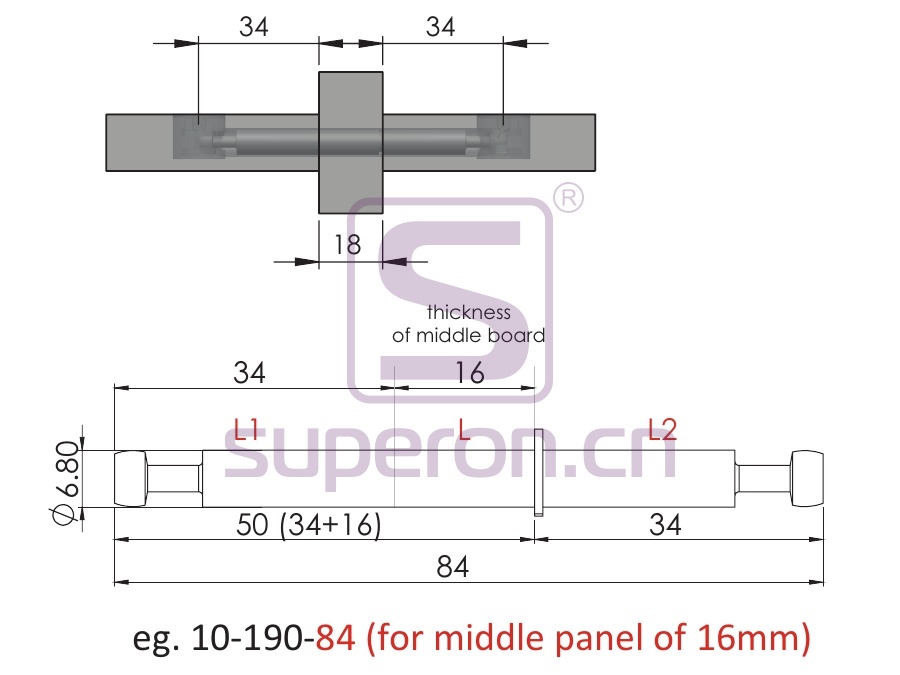

10-189-84L=84mm, 34+16+34
Board: 16
Cam distance: 34
Dowel length: 84
| 16 | 34 | 84
| |
10-189-86L=86мм, 34+18+34 | - | - | - | |
