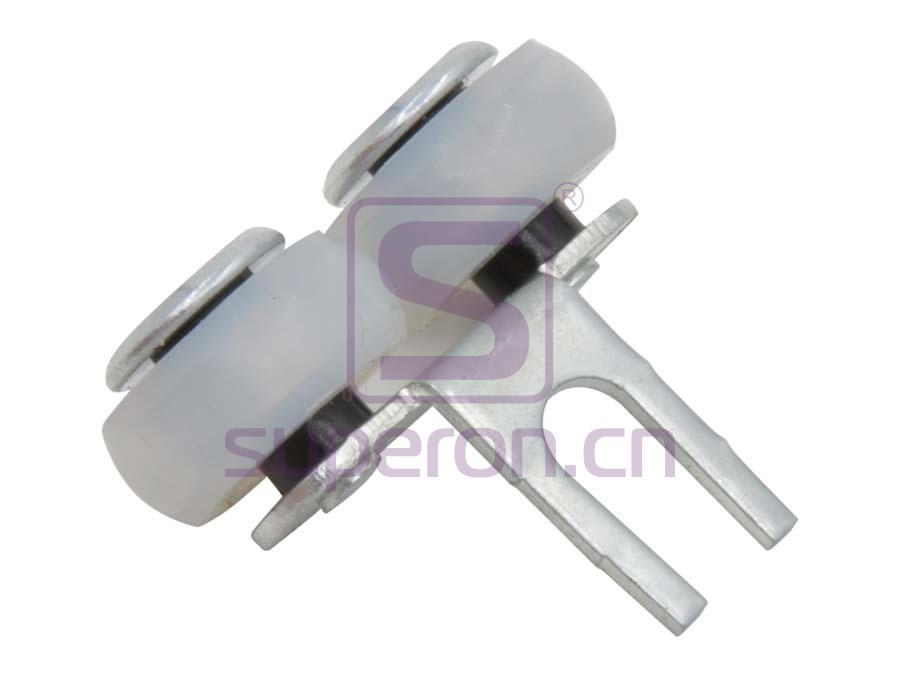

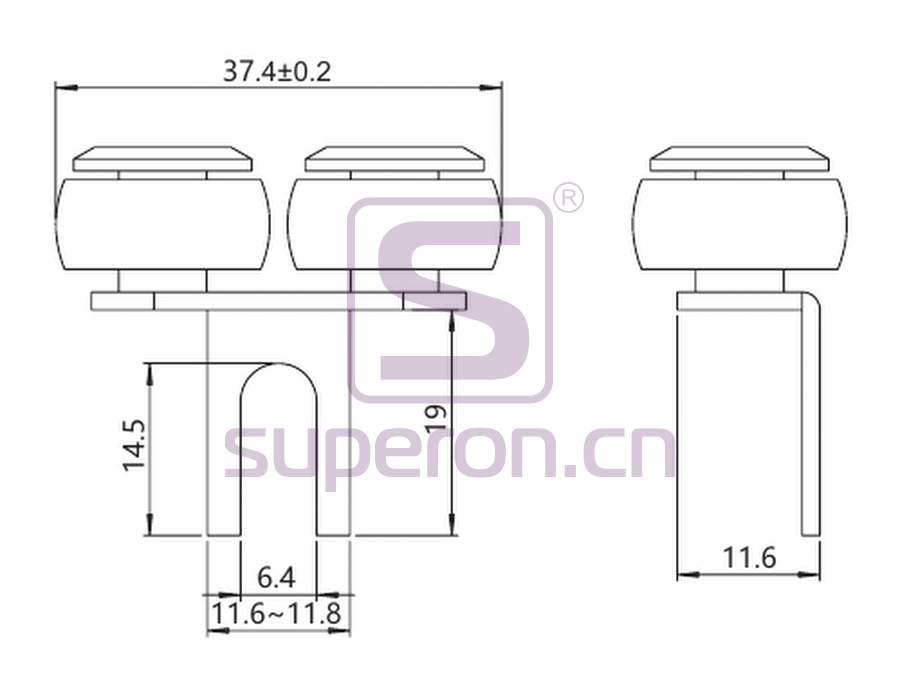

09-404 Upper roller (symmetric)

Types of roller with removable silicone:
A: big head of roller, sealed bearing with steel balls
B: big head of roller, unsealed bearing with iron balls
C: sealed bearing with steel balls
D: unsealed bearing with iton balls

Types of roller with nonremovable silicone:
E: big head of roller, sealed bearing with steel balls
F: big head of roller, unsealed bearing with iron balls
G: sealed bearing with steel balls
H: unsealed bearing with iton balls

Variations

09-404-A-375-118

cap/cover/removable, width:37.5~37.9/11.6 11.8

09-404-B-375-118

cap/ /removable width:37.5~37.9/11.6 11.8

09-404-C-375-118

/cover/removable width:37.5~37.9/11.6 11.8

09-404-D-375-118

/ /removable width:37.5~37.9/11.6 11.8

09-404-E-375-118

cap/cover/nonremovable, width:37.5~37.9/11.6 11.8

09-404-F-375-118

cap/ /nonremovable, width:37.5~37.9/11.6 11.8

09-404-G-375-118

/cover/nonremove width:37.5~37.9/11.6 11.8

09-404-H-375-118

/ /nonremove width:37.5~37.9/11.6 11.8
