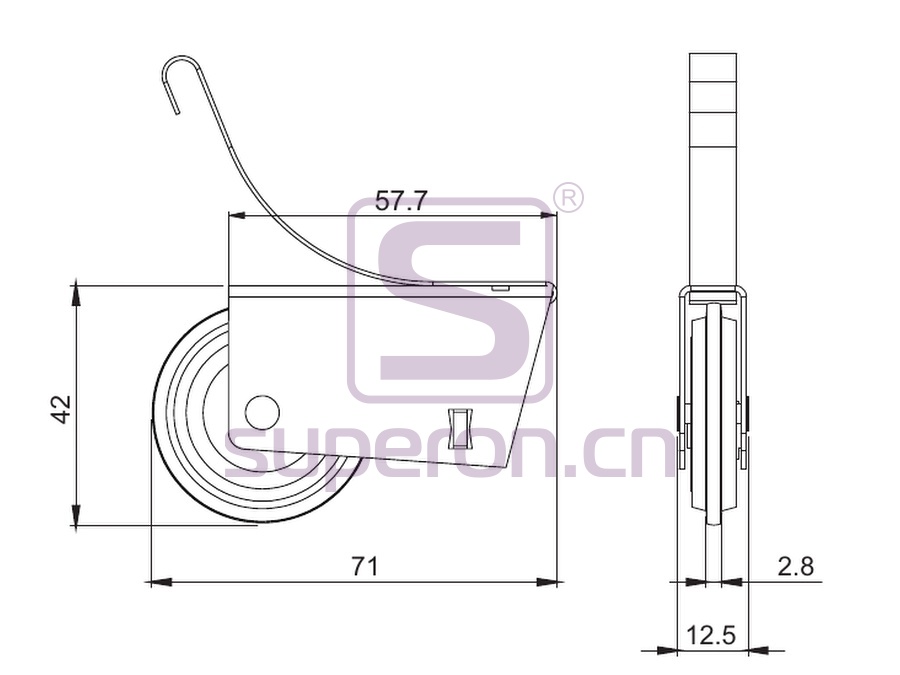

09-121 Roller system

Material:
upper roller – PVC
lower roller – POM

Load = 75kg
Rollers have been tested on one door of 75kg and successfully covered thу distance of 10.000 meters with continuous rolling. Passed successfully.

According to customer’s request , mounting screws can be made with the same hexagon size , 4mm or 5mm. If there are no requirements, the standard hexagon sizes are the following:
down screw М5 – 4mm
upper screw D=5mm – 4mm
upper screw D=6mm – 5mm

Variations

09-121-06375

1.0/1.4/6/37.5
Down roller: thickness: 1.0
Screw (M): 6
Screw type: standard
Upper roller: width: 37.5 ±0,2

09-121-05375

1.0/1.4/5/37.5
Down roller: thickness: 1.0
Screw (M): 5
Screw type: standard
Upper roller: width: 37.5 ±0,2

09-121-05385

1.0/1.4/5/38.5
Down roller: thickness: 1.0
Screw (M): 5
Screw type: standard
Upper roller: width: 38.5 ±0,2

09-121-06385

1.0/1.4/6/38.5
Down roller: thickness: 1.0
Screw (M): 6
Screw type: standard
Upper roller: width: 38.5 ±0,2

09-121-25375

1.2/1.4/5/37.5
Down roller: thickness: 1.2
Screw (M): 5
Screw type: standard
Upper roller: width: 37.5 ±0,2

09-121-25385

1.2/1.4/5/38.5
Down roller: thickness: 1.2
Screw (M): 5
Screw type: standard
Upper roller: width: 38.5 ±0,2

09-121-26375

1.2/1.4/6/37.5
Down roller: thickness: 1.2
Screw (M): 6
Screw type: standard
Upper roller: width: 37.5 ±0,2

09-121-26385

1.2/1.4/6/38.5
Down roller: thickness: 1.2
Screw (M): 6
Screw type: standard
Upper roller: width: 38.5 ±0,2
