09-102 Roller system (L shaped)

Material:
upper roller – PVC
lower roller:
A: standard bearing + POM plastic
B: budget friendly bearing + PP plastic

According to customer’s request , mounting screws can be made with the same hexagon size , 4mm or 5mm. If there are no requirements, the standard hexagon sizes are the following:
down screw М5 – 4mm
upper screw D=5mm – 4mm
upper screw D=6mm – 5mm

SKU: 09-102 Categories: ,
Variations

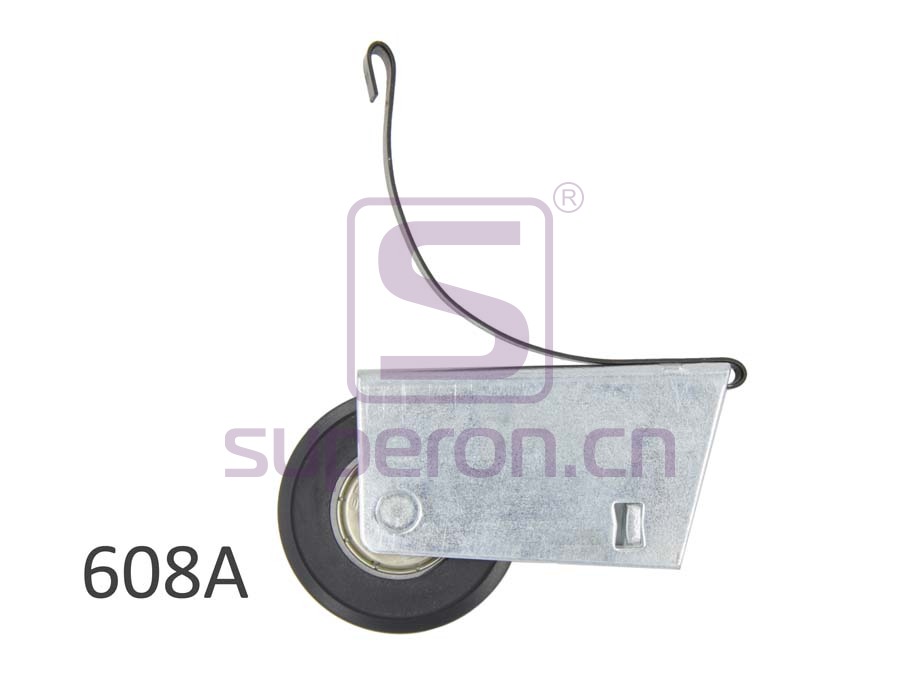

09-102-608A06375

608A/1.0/1.4/6/37.5
Down roller: thickness: 1.0
Screw (M): 6
Screw type: standard
Upper roller: width: 37.5 ±0,2

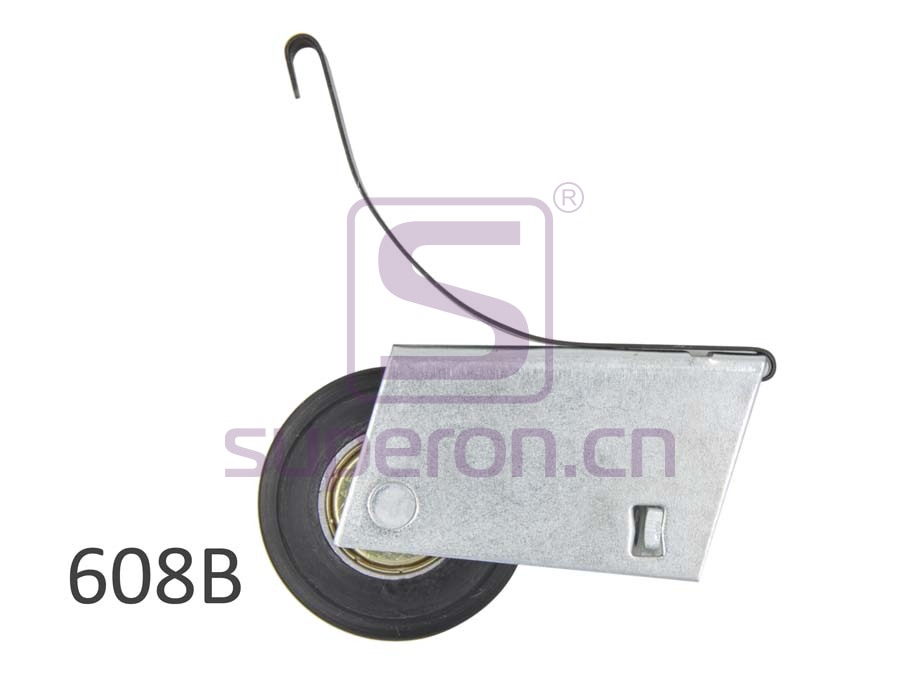

09-102-608B06375

608B/1.0/1.4/6/37.5
Down roller: thickness: 1.0
Screw (M): 6
Screw type: standard
Upper roller: width: 37.5 ±0,2
