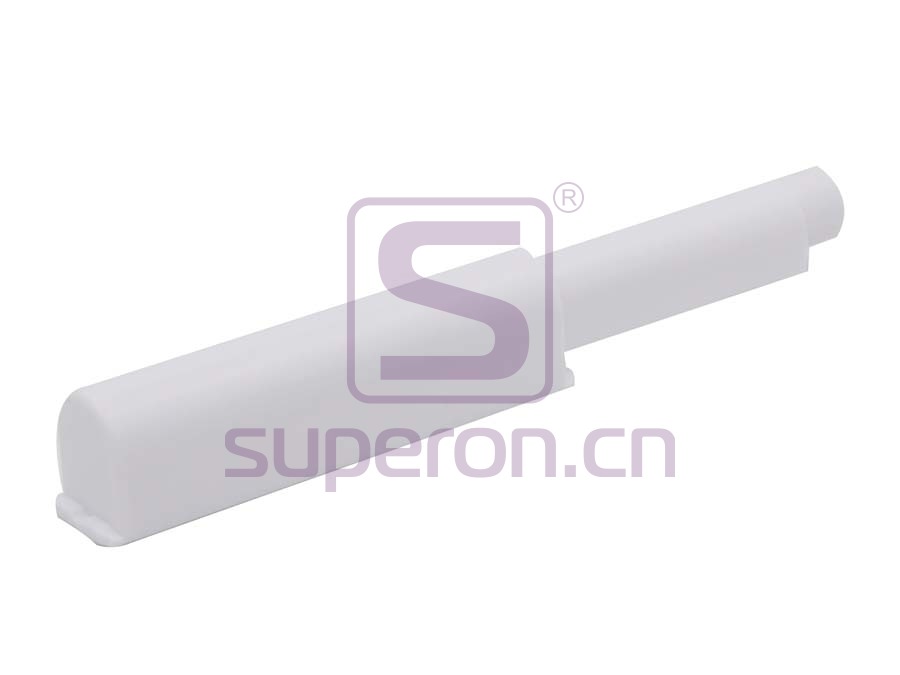

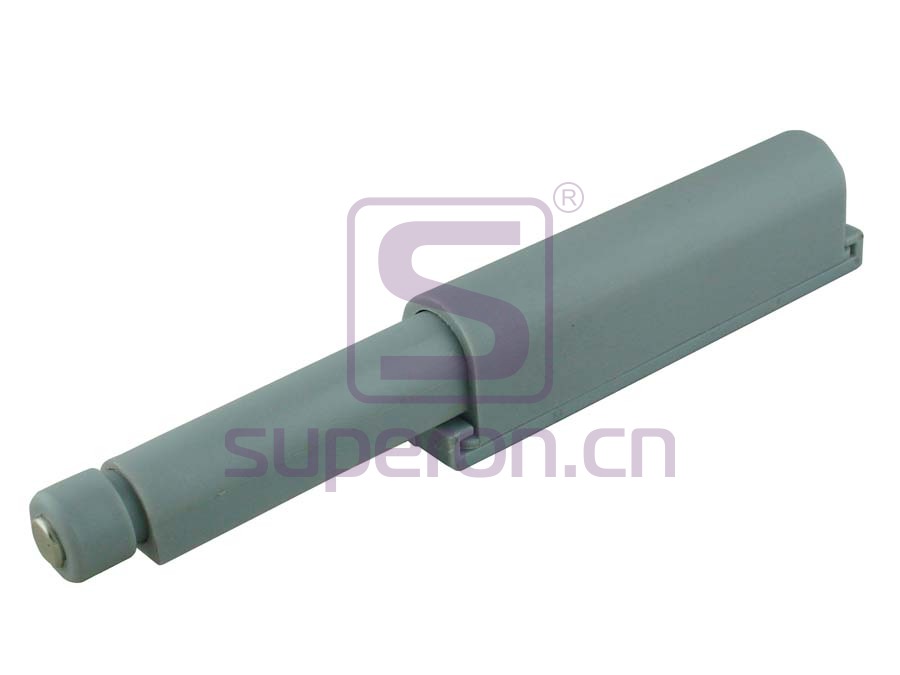

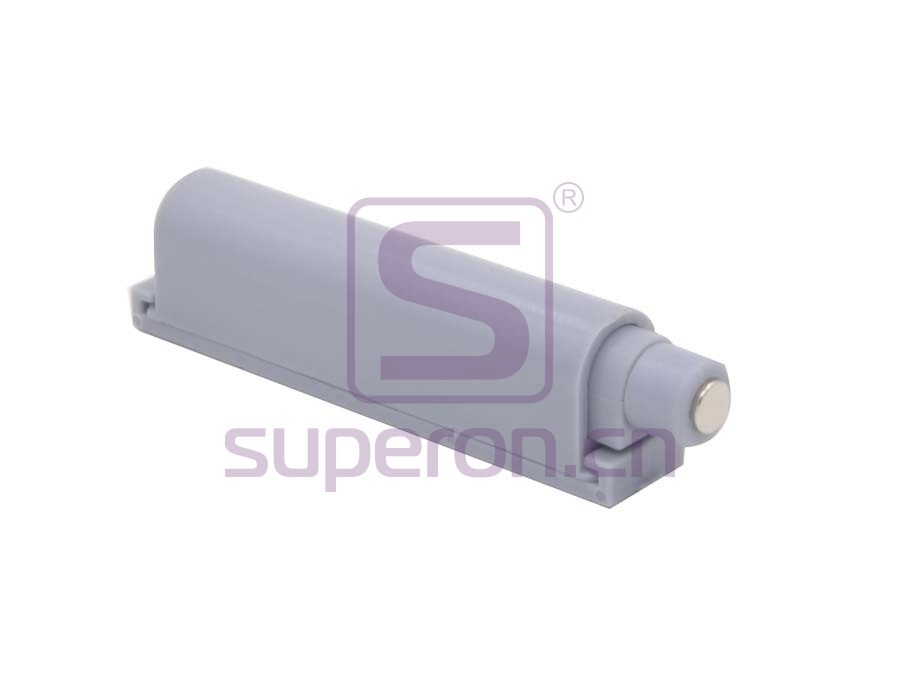

07-122 Push-to-open pusher

How to choose good quality:
– Pushing force is important. We keep the force near 15N, so the product can open the door.
– Magnetic force must be good. Otherwise, the product cannot keep the door closed. As attracting force of a magnet is directly related to its cost, cheap items would have insufficient force of magnet.

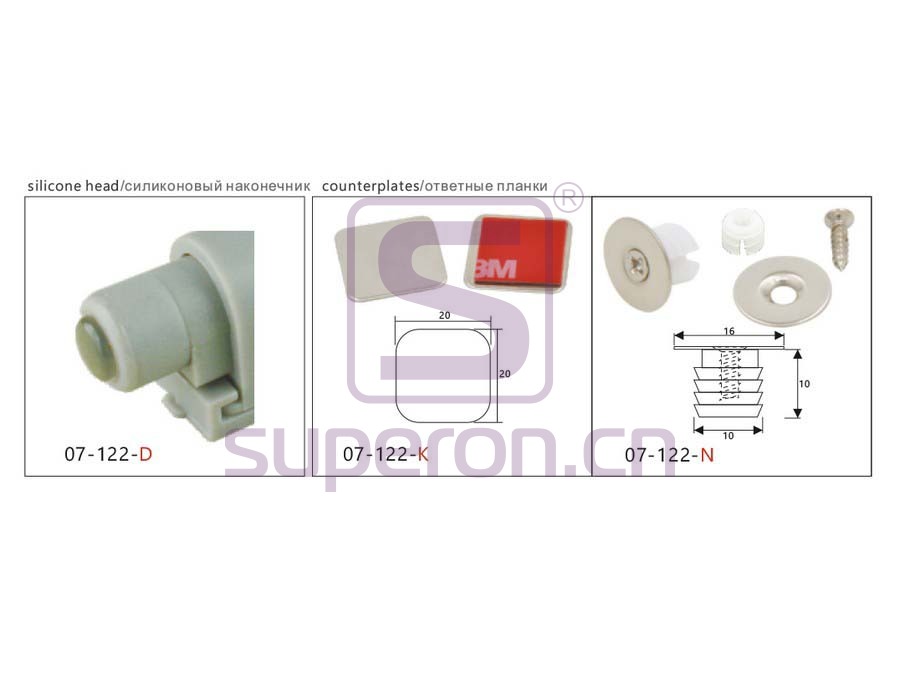

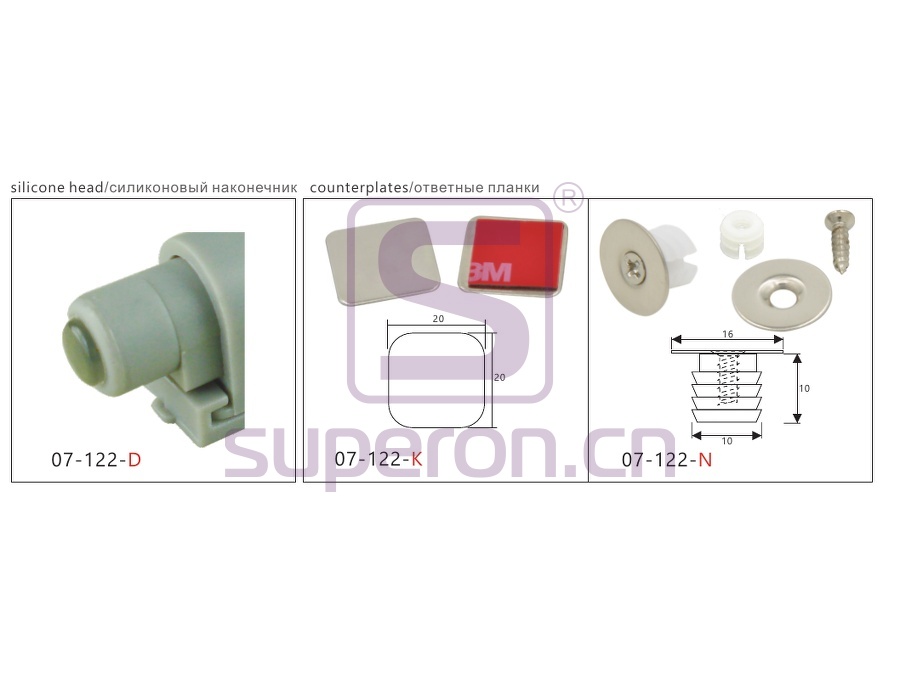

Specification of counterplate:
D -silicone head
K – self-adhesive plate
N – socket and screw
KN – self-adhesive+socket and screw

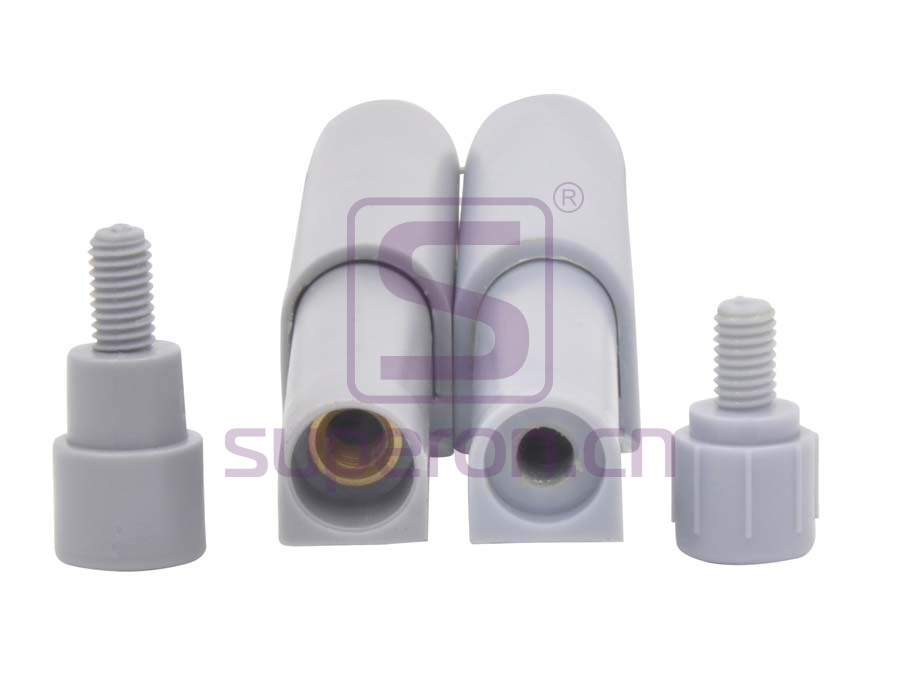

– Magnetic of soft head with adjustable length.
– Counterplate: self-adhesive, with socket or with screw.
– Installed with screws.

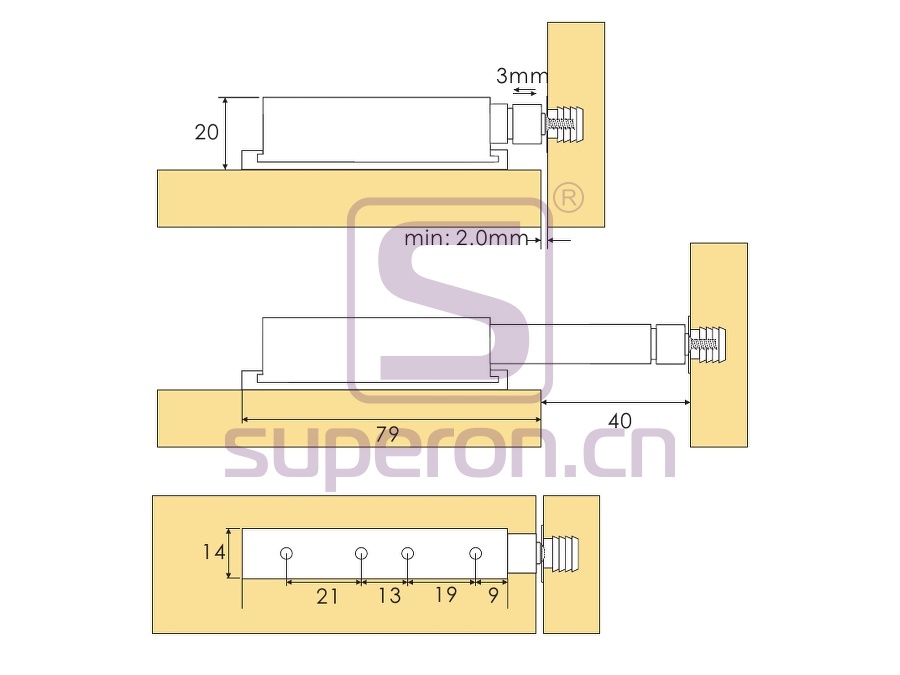

– Opening distance: 40 mm.
– Adapter: without nail, for overlay, inset or angled doors.

Product material: plastic
SKU: 07-122 Category:
Variations

07-122-K-4

K plate
Pushing force: 23-24 N
Magnetic force: 3.5-4 N

07-122-K-7

K plate, stronger magnet
Pushing force: 23-24 N
Magnetic force: 6-7 N

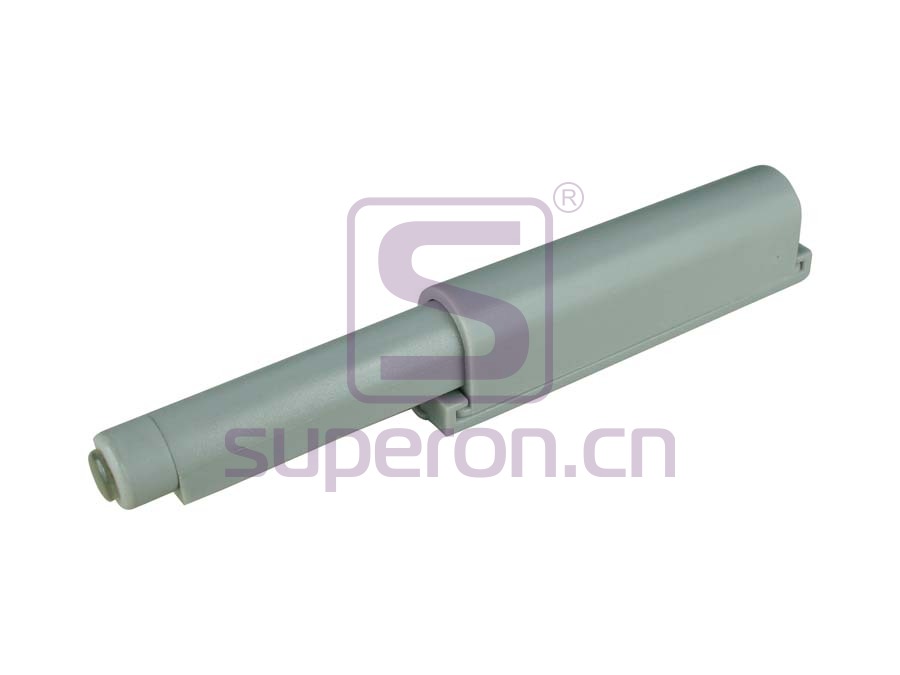

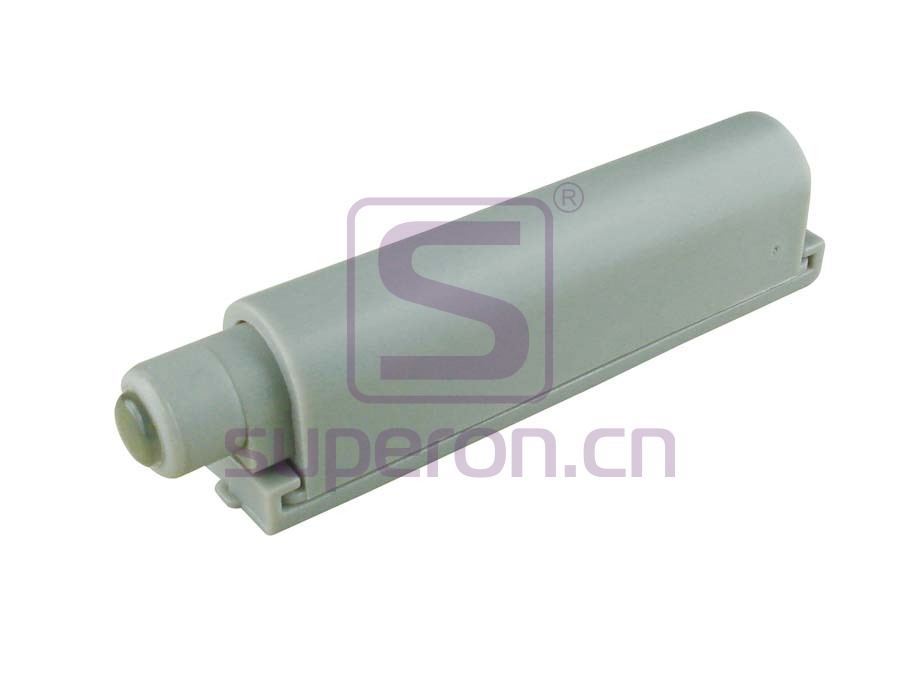

07-122-D


Pushing force: 23-24 N

07-122-KN-4

KN plate
Pushing force: 23-24 N
Magnetic force: 3.5-4 N

07-122-KN-7

KN plate
Pushing force: 23-24 N
Magnetic force: 6-7 N

07-122-N-4

N plate
Pushing force: 23-24 N
Magnetic force: 3.5-4 N

07-122-N-7

N plate, stronger magnet
Pushing force: 23-24 N
Magnetic force: 6-7 N
