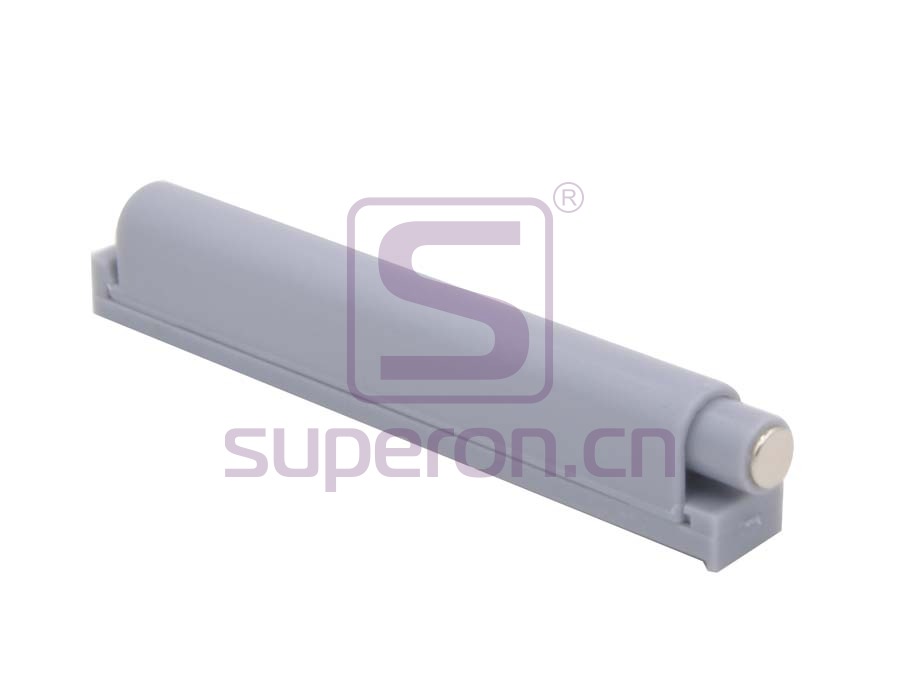

07-120 Push-to-open pusher

How to choose good quality:
– Pushing force is important. We keep the force near 15N, so the product can open the door.
– Magnetic force must be good. Otherwise, the product cannot keep the door closed. As attracting force of the magnet is directly related to its cost, cheap items would have insufficient force of magnet.

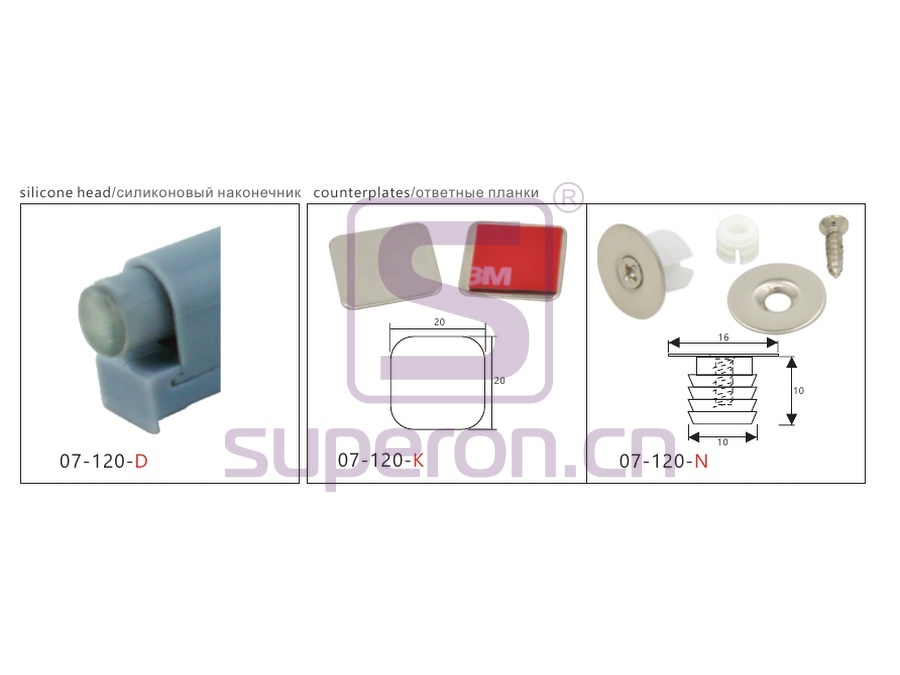

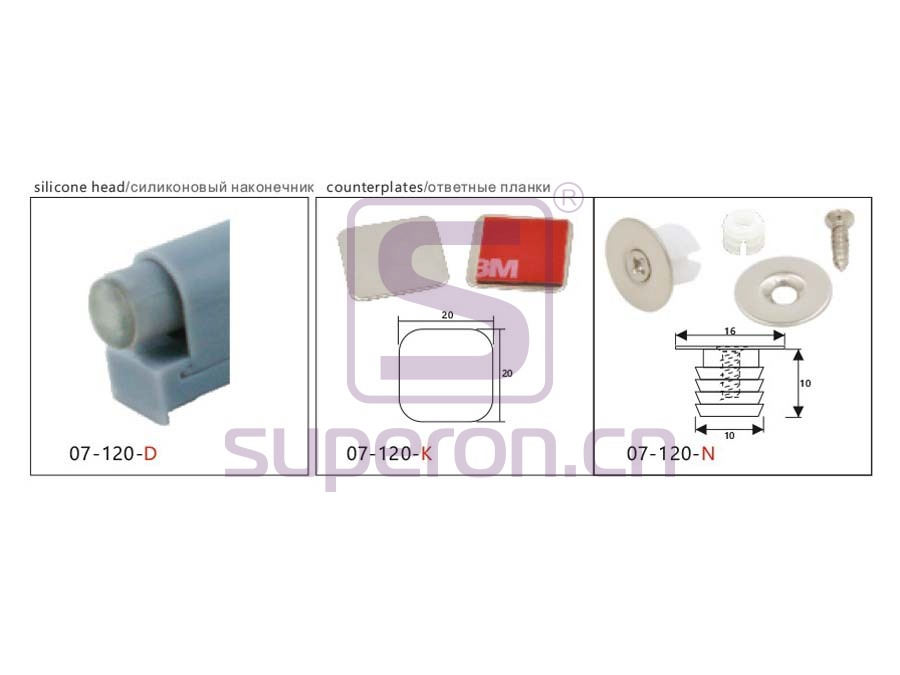

Specification of counterplate:

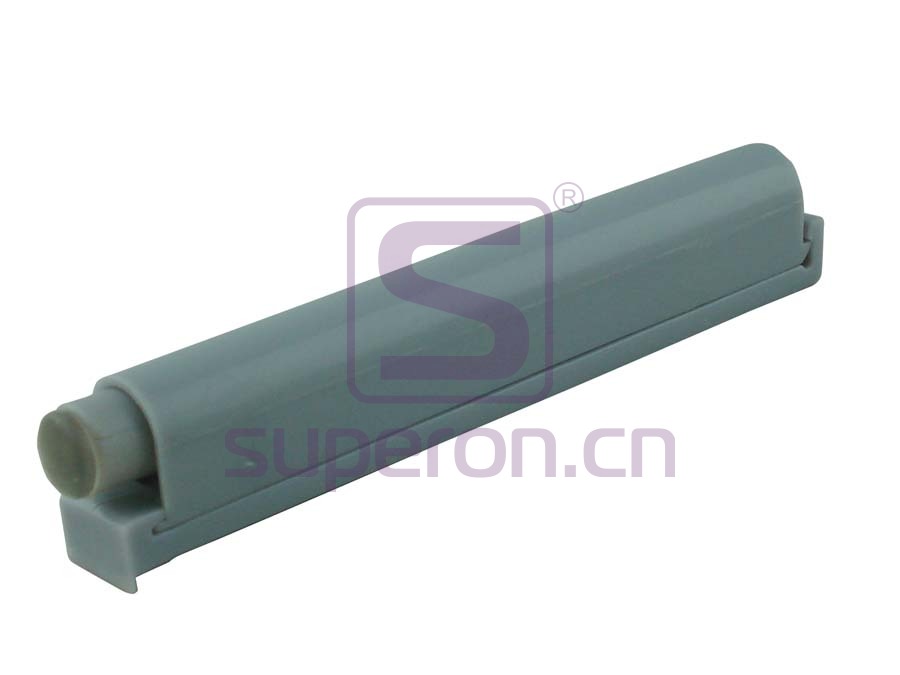

D -silicone head
K – self-adhesive plate
N – socket and screw
KN – self-adhesive+socket and screw

Specifications:
– Magnetic or soft head (adjustable).

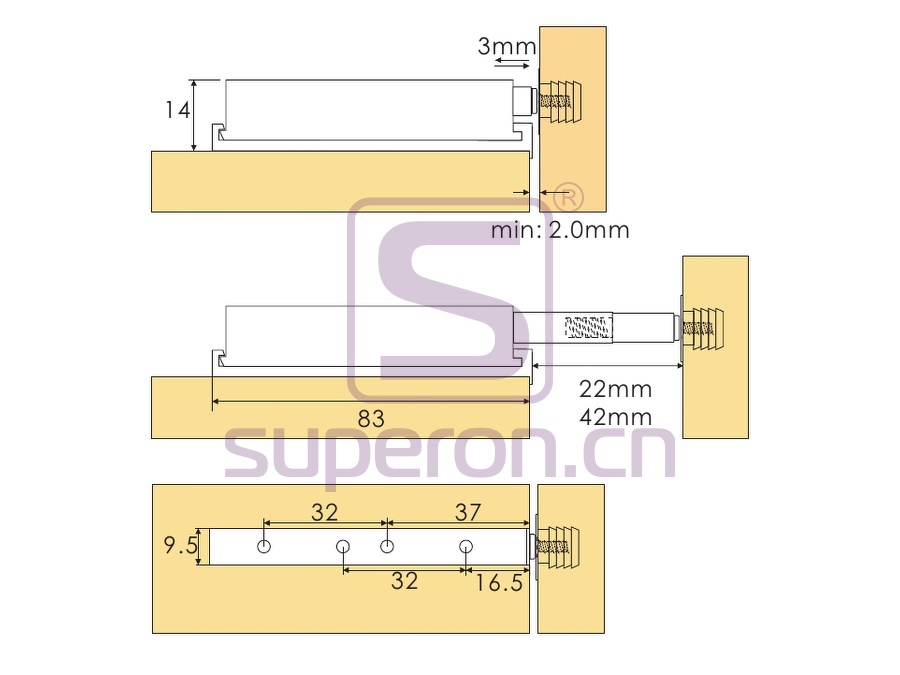

– Adjustable pushing distance:
20mm – for smaller doors (appr. Height <1300mm) 40mm - for inset doors and higher doors (appr. Height >1300mm)
– Pushing distance can be adjusted (in items without “-x”) with screw driver from 20mm to 40mm.

Product material: plastic
SKU: 07-120 Categories: ,
Variations

07-120-K-7

with nail, stronger magnet
Openning distance: 20 / 40
Pushing force: 14.5-15.5 N
Screws: not incl
Magnetic force: 6-7 N

07-120-K

with nail, magnet
Openning distance: 20 / 40
Pushing force: 14.5-15.5 N
Screws: not incl
Magnetic force: 3.5-4.0 N

07-120-D

with nail, silicone
Openning distance: 20 / 40
Pushing force: 14.5-15.5 N
Screws: not incl

07-120-Ks-7

with nail,stronger magnet,4scr
Openning distance: 20 / 40
Pushing force: 14.5-15.5 N
Screws: included
Magnetic force: 6-7 N

07-120-Nx-7

with nail, stronger magnet

07-120-Nx

with nail, magnet
Openning distance: 40
Pushing force: 14.5-15.5 N
Screws: not incl
Magnetic force: 3.0-3.5 N

07-120-Ns-7

with nail,stronger magnet,4scr
Openning distance: 20 / 40
Pushing force: 14.5-15.5 N
Screws: included
Magnetic force: 6-7 N

07-120-N-7

with nail, stronger magnet
Openning distance: 20 / 40
Pushing force: 14.5-15.5 N
Screws: not incl
Magnetic force: 6-7 N

07-120-N

with nail, magnet
Openning distance: 20 / 40
Pushing force: 14.5-15.5 N
Screws: not incl
Magnetic force: 3.5-4.0 N

07-120-Kxs-7

with nail,stronger magnet,4scr

07-120-Kxs

with nail, magnet, 4 screws
Pushing force: 20 N
Screws: included
Magnetic force: 4.2-4.5 N

07-120-Kx-7

with nail, stronger magnet

07-120-Kx

with nail, magnet
Openning distance: 40
Pushing force: 14.5-15.5 N
Screws: not incl
Magnetic force: 3.0-3.5 N

07-120-KNxs

with nail, magnet, 4 screws

07-120-Ks

with nail, magnet, 4 screws
Openning distance: 20 / 40
Pushing force: 14.5-15.5 N
Screws: included
Magnetic force: 3.5-4.0 N

07-120-Dx

with nail, silicone
Openning distance: 40
Pushing force: 14.5-15.5 N
Screws: not incl

07-120-KNx-7

with nail, magnet

07-120-KNx

with nail, magnet
Openning distance: 40
Pushing force: 14.5-15.5 N
Screws: not incl
Magnetic force: 3.0-3.5 N

07-120-KNs

with nail, magnet, 4 screws

07-120-KN-7

with nail, stronger magnet
Openning distance: 20 / 40
Pushing force: 14.5-15.5 N
Screws: not incl
Magnetic force: 6-7 N

07-120-KN

with nail, magnet
Openning distance: 20 / 40
Pushing force: 14.5-15.5 N
Screws: not incl
Magnetic force: 3.5-4.0 N

07-120-Jxs

with nail, magnet, 3 screws

07-120-Js

with nail, magnet, 3 screws

07-120-J

with nail, magnet

07-120-plate-KN

KN plates only
