01-510-2D | Short soft-closing hinge, 2D 01-510-2D
01-510-2D-q | Short soft-closing hinge, 2D 01-510-2D-q
01-510-2D-x1 | Short soft-closing hinge, 2D 01-510-2D-x1

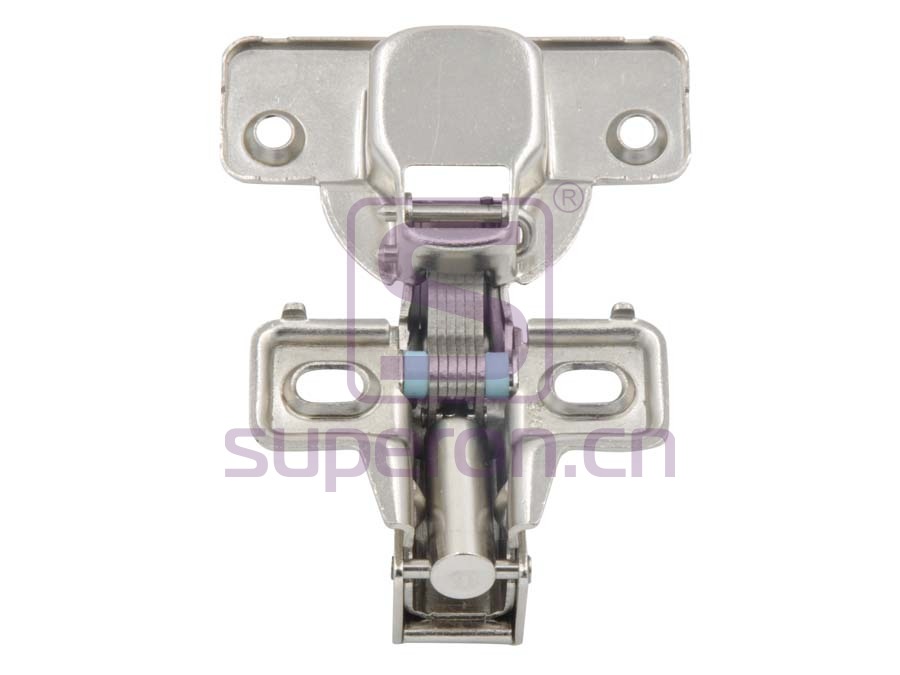

01-510-2D Short soft-closing hinge, 2D

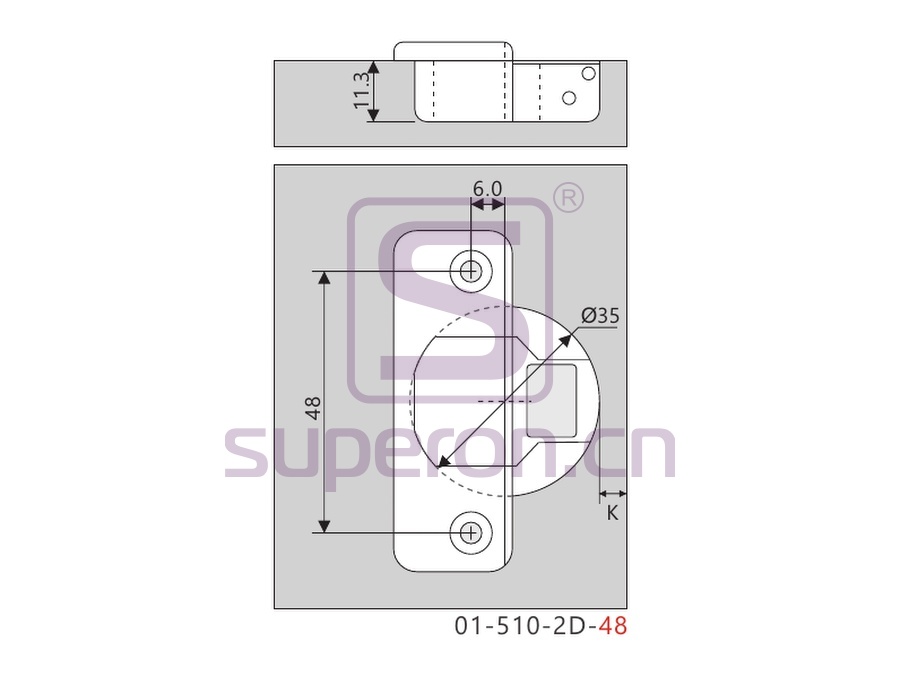

Cup diameter: 35mm

Opening angle: 100°
Cap depth: 11.3mm

Closing type: soft closing

Installation: adjustment in 2 dimensions
Door thickness: 14-22mm

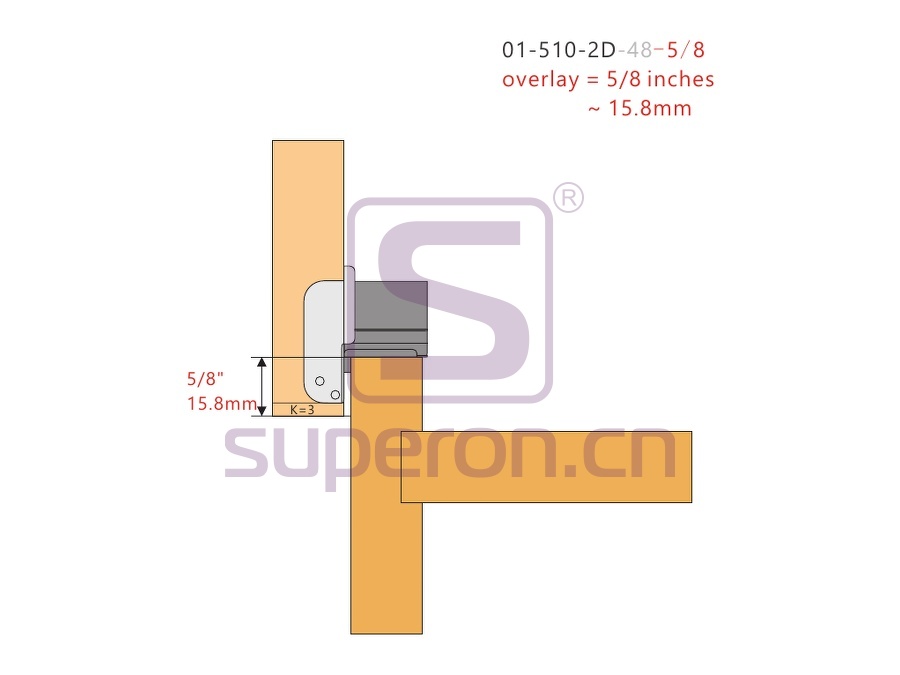

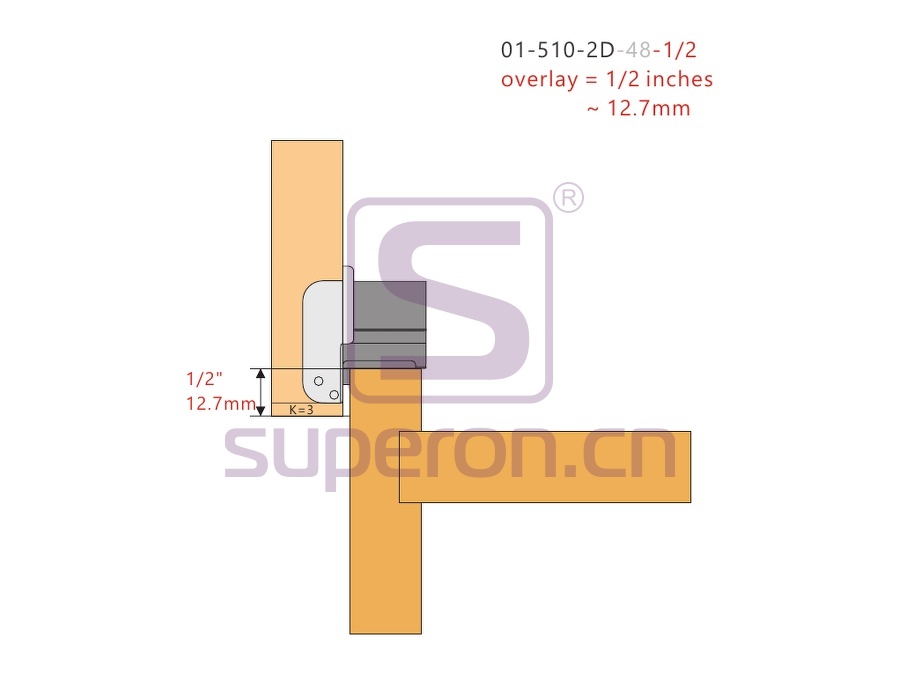

Overlay adjustment: ±2.5mm

Depth adjustment: ±2.5mm

Height adjustment: ±2.0mm

SKU: 01-510-2D Categories: ,
