01-053-3DZ | Soft-closing hinge 3D 01-053-3DZ
01-053-3DZ-x | Soft-closing hinge 3D 01-053-3DZ-x
  1. 01-053-3DZ | Soft-closing hinge 3D
  2. 01-053-3DZ-x | Soft-closing hinge 3D

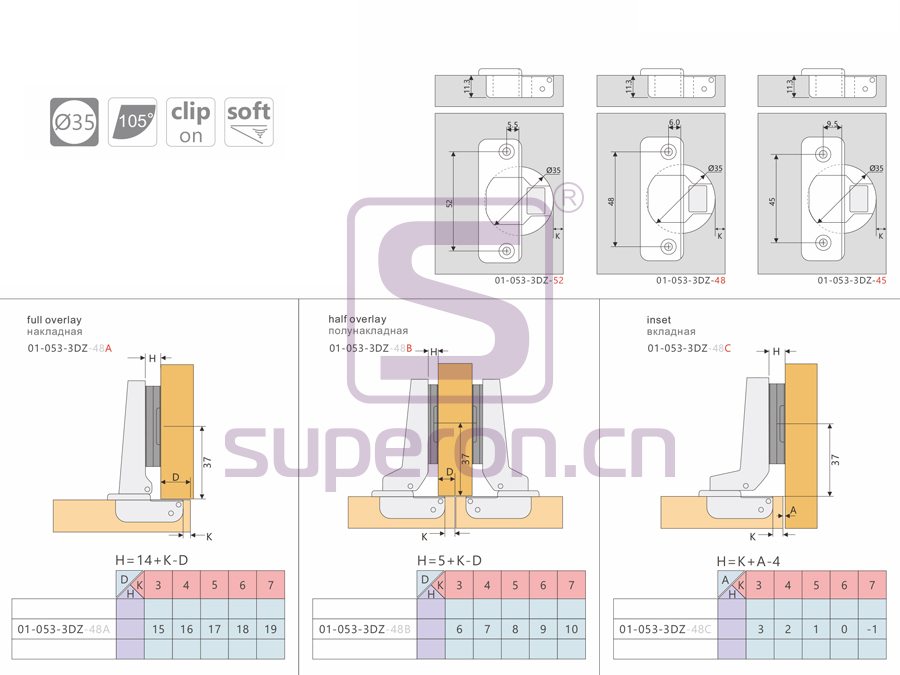

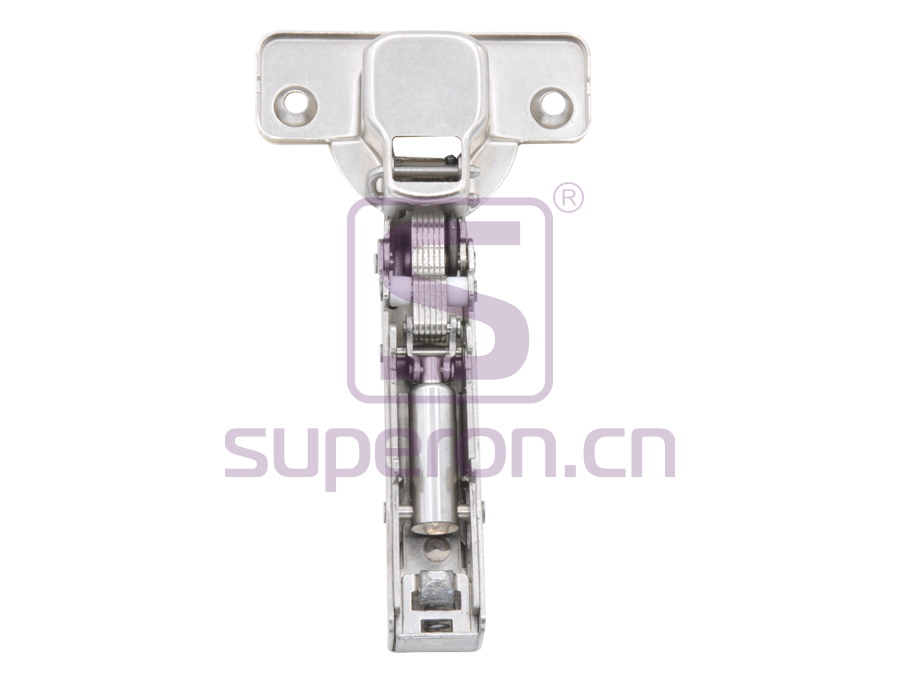

01-053-3DZ Soft-closing hinge 3D

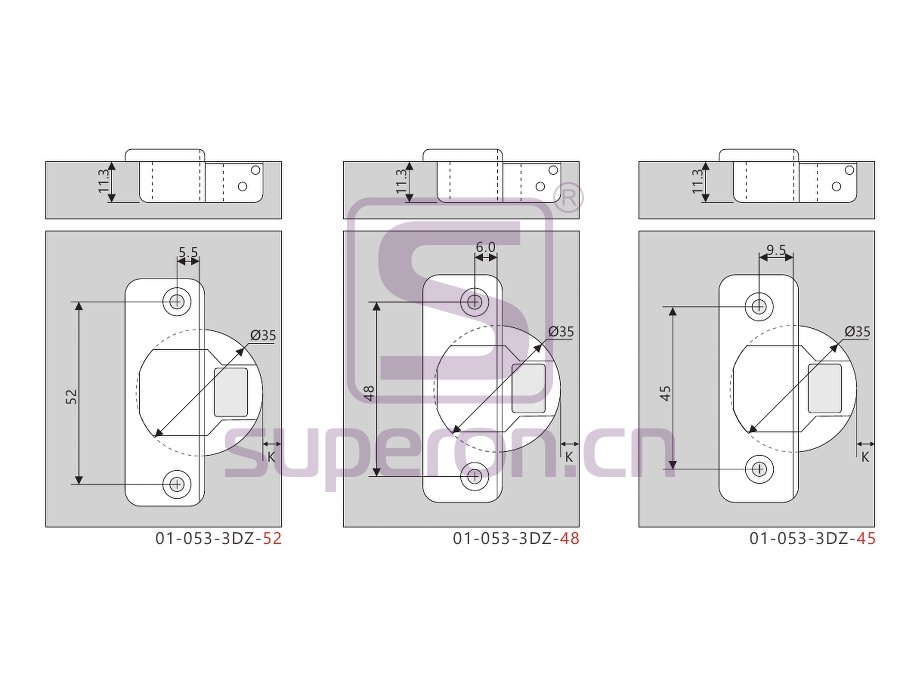

Cup diameter: 35mm
Opening angle: 105°
Cap depth: 11.3mm
Closing type: soft closing
Installation: clip-on
Door thickness: 14-21mm
Overlay adjustment: ±2.5mm
Depth adjustment: ±2.5mm
Height adjustment: ±2.0mm

SKU: 01-053-3DZ Categories: ,
Variations

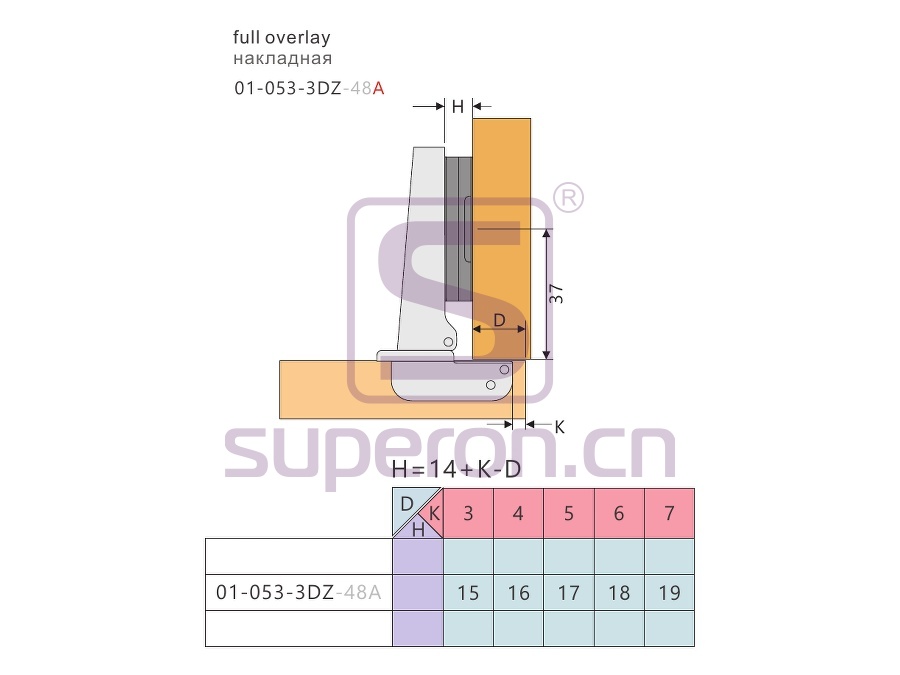

01-053-3DZ-48A0-110

full overlay/48/H0/zinc clip/long piston

01-053-3DZ-48A-106

full overlay/48/zinc clip/long piston

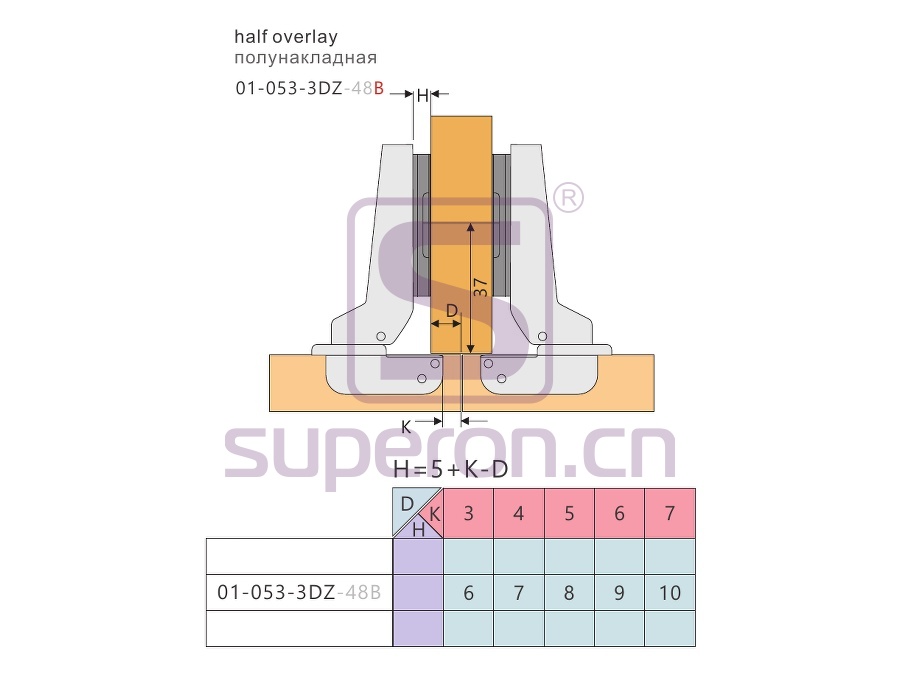

01-053-3DZ-48B0-110

half overlay/48/H0

01-053-3DZ-48B-106

half overlay/48

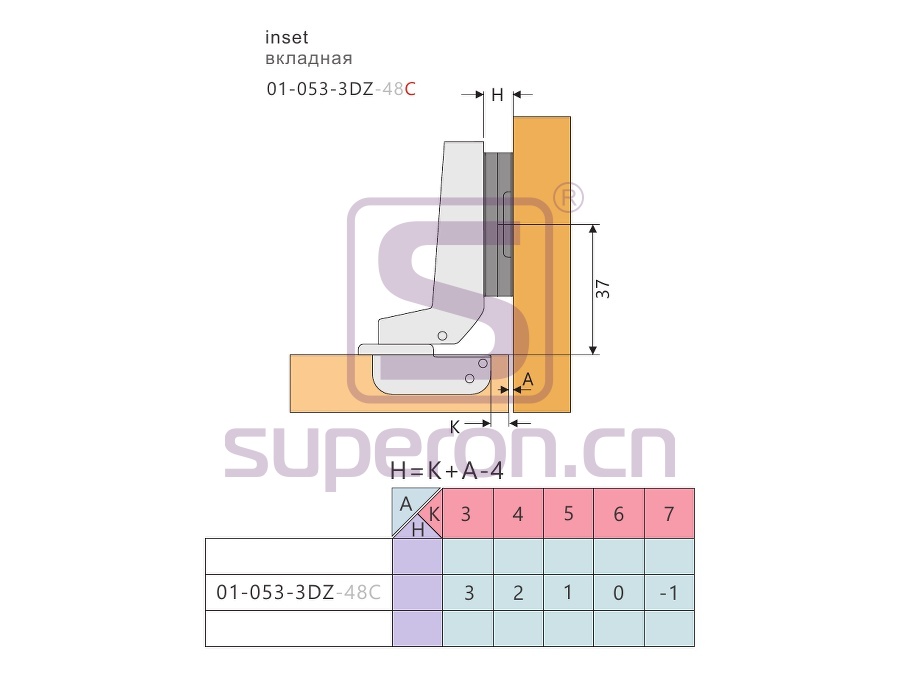

01-053-3DZ-48C0-110

insert/48/H0

01-053-3DZ-48C-106

insert/48
