01-036-CL | Soft-closing hinge, clip-on 01-036-CL
01-036-CL-q | Soft-closing hinge, clip-on 01-036-CL-q
01-036-CL-x | Soft-closing hinge, clip-on 01-036-CL-x

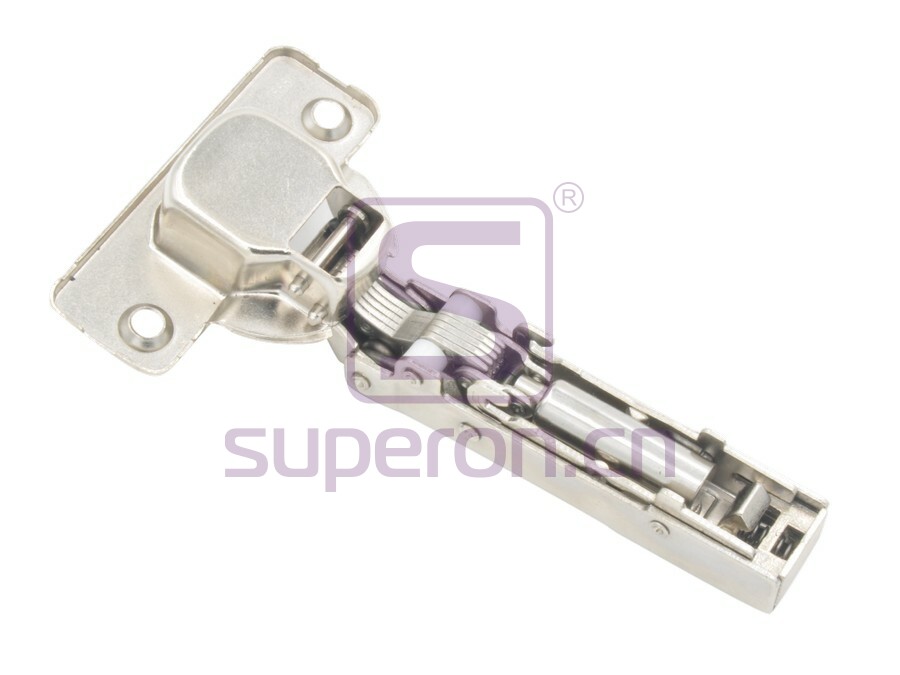

01-036-CL Soft-closing hinge, clip-on

Cup diameter: 35mm
Opening angle: 105°
Cap depth: 11.3mm
Closing type: soft closing
Installation: clip-on
Door thickness: 14-22mm
Overlay adjustment: ±2.5mm
Depth adjustment: ±2.5mm
Height adjustment: ±2.0mm

Passed 24 hours salt spray test
Type of soft-closing cylinder: long

SKU: 01-036-CL Categories: ,

Featured

Variations

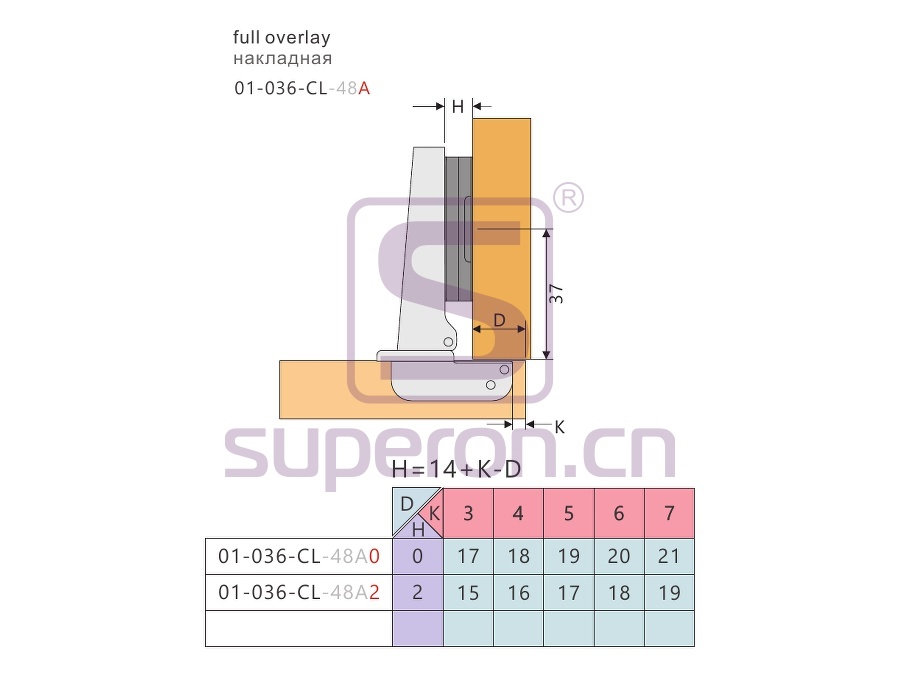

01-036-CL-48A0

full overlay/48/H0
Crank: full

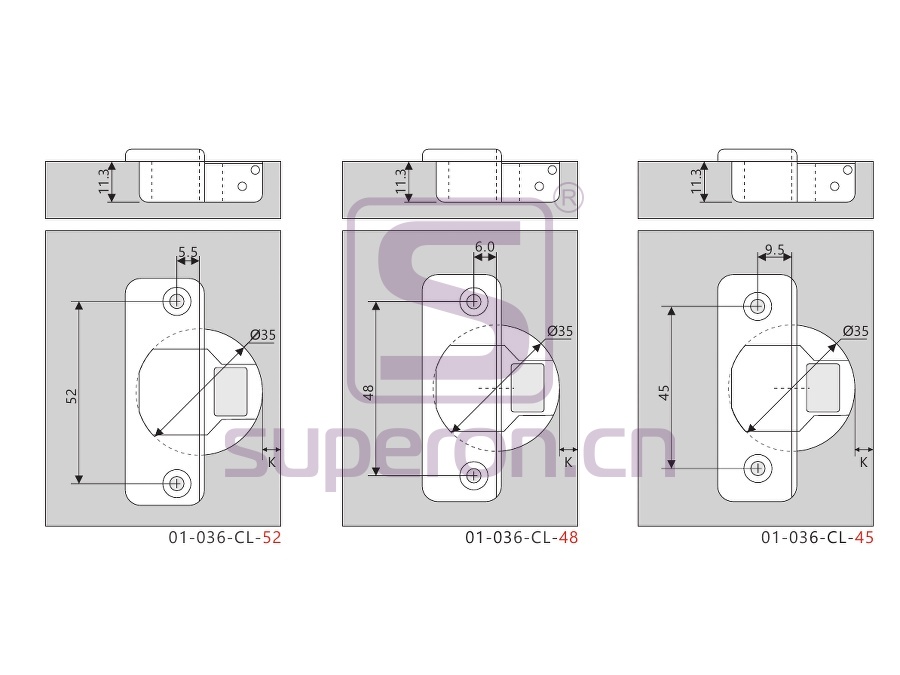

Plate height: H=2
Plate type: 2 holes

01-036-CL-48A4

full overlay/48/H4
Plate height: H=4

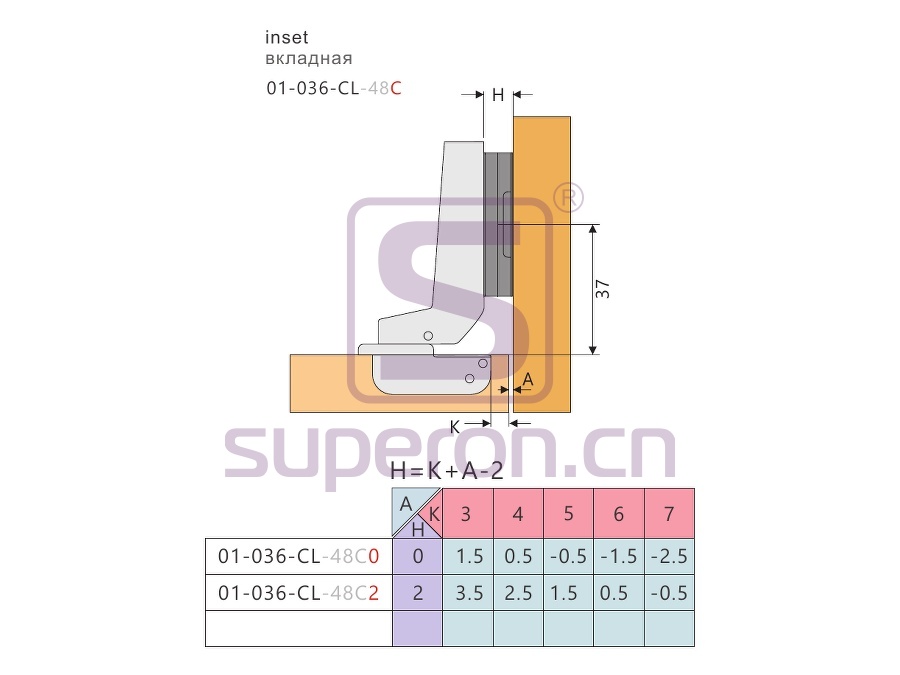

01-036-CL-48C0

insert/48/H0
Crank: inset
Plate height: H=0
Plate type: 2 holes

01-036-CL-48B2-EU

half overlay/48/H2,euroscrew

01-036-CL-48B2-4

half overlay/48/H2/4 hol

01-036-CL-48B2

half overlay/48/H2

01-036-CL-48B0-4

half overlay/48/H0/4 hol

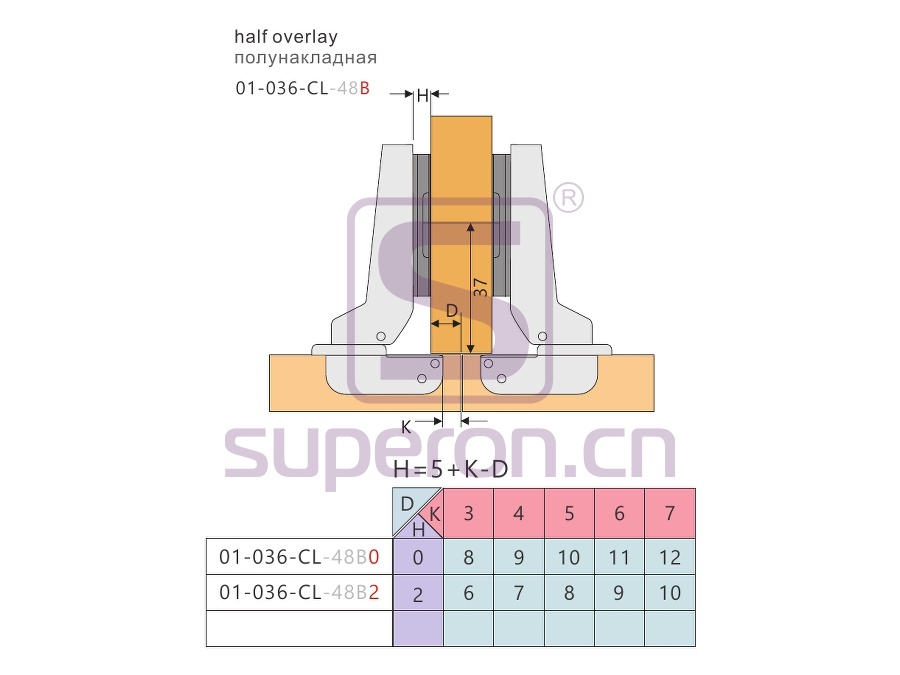

01-036-CL-48B0

half overlay/48/H0
Crank: half overlay
Plate height: H=0
Plate type: 2 holes

01-036-CL-48A2-sbc

full overlay/48/H2, screw+body+cup covers

01-036-CL-48A0-4

full overlay/48/H0/4 hol
Crank: full overlay
Plate height: H=0
Plate type: 4 holes

01-036-CL-48A2-plate

H2 plate

01-036-CL-48A2-EU

full overlay/48/H2,euroscrew

01-036-CL-48A2-body

H2 plate

01-036-CL-48A2-4

full overlay/48/H2/4 hol

01-036-CL-48A2

full overlay/48/H2
Crank: full overlay
Plate height: H=2
Plate type: 2 holes

01-036-CL-48A0-TW

full overlay/48/H0,two way
Crank: full overlay
Plate height: H=0
Plate type: 2 holes

01-036-CL-48C2-EU

insert/48/H2,euroscrew
