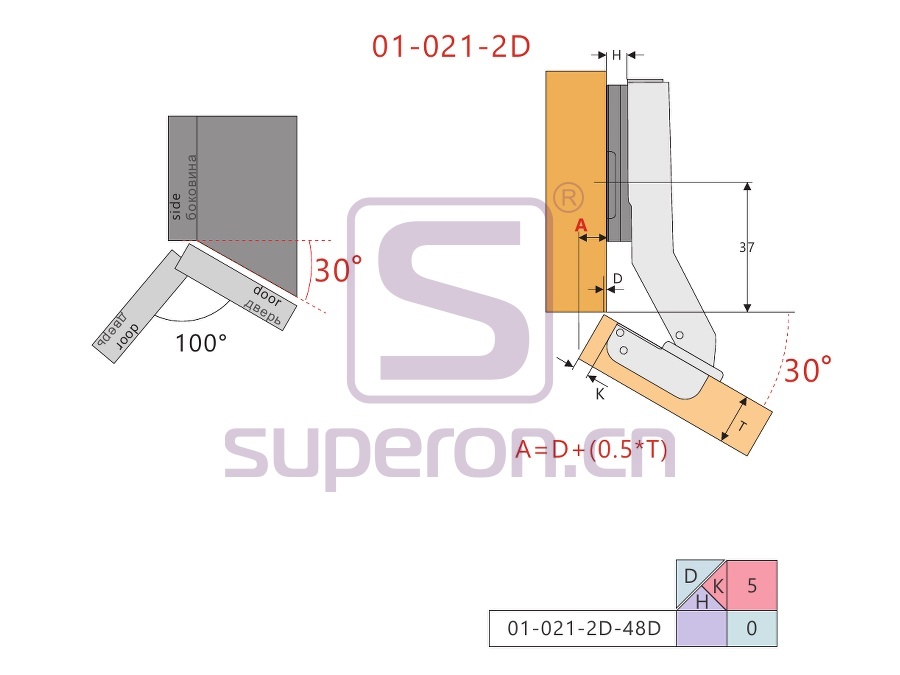

01-021-2D 30° hinge, clip-on, 2D

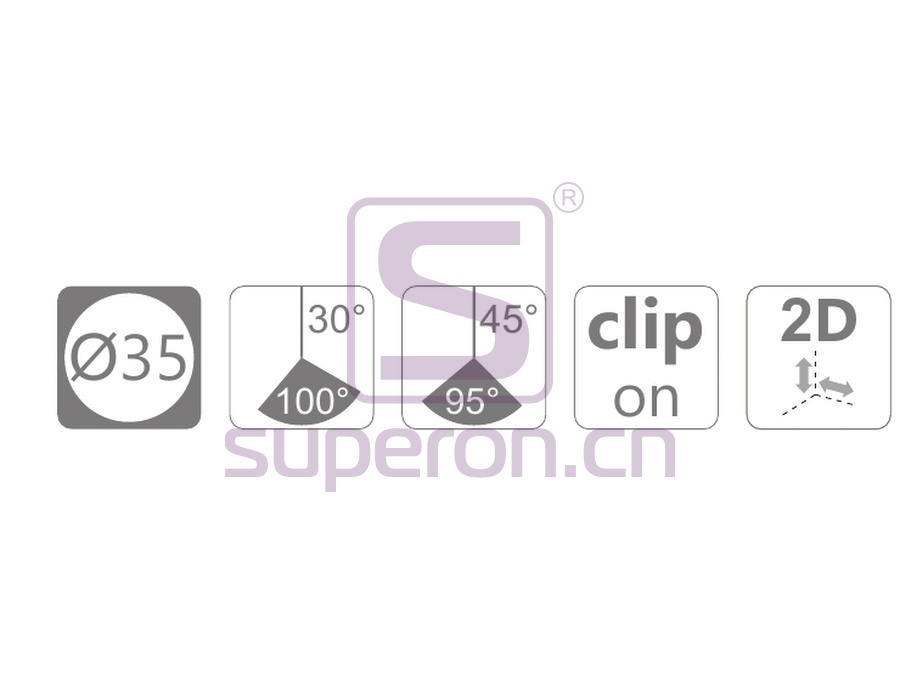

Cup diameter: 35mm
Opening angle: 100°

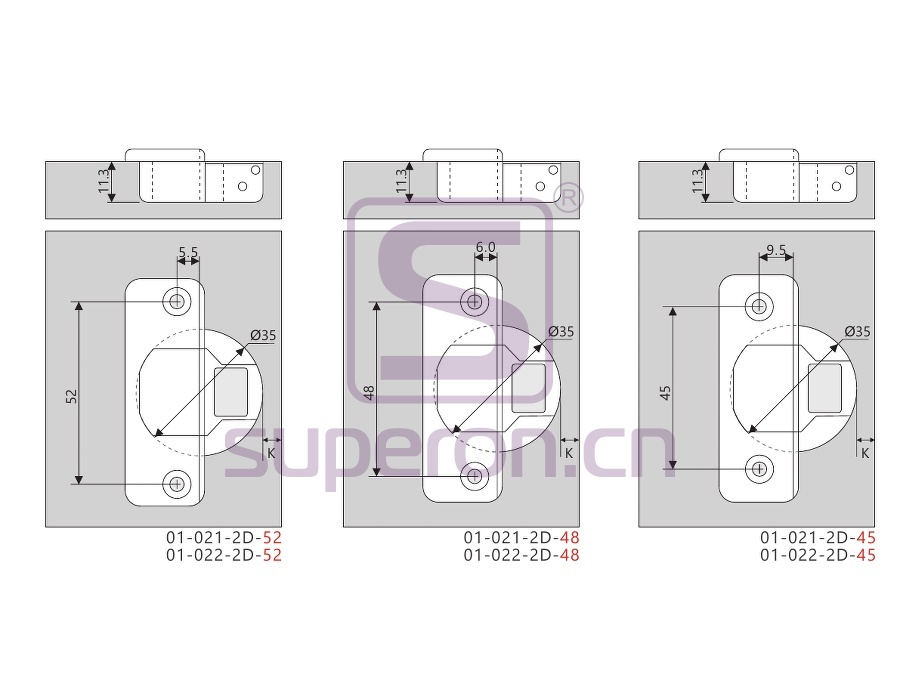

Cap depth: 11.3mm
Openning type: one way
Installation: clip-on
Door thickness: 14-22mm
Overlay adjustment: ±2.5mm
Depth adjustment: ±2.5mm
Height adjustment: ±2.0mm
