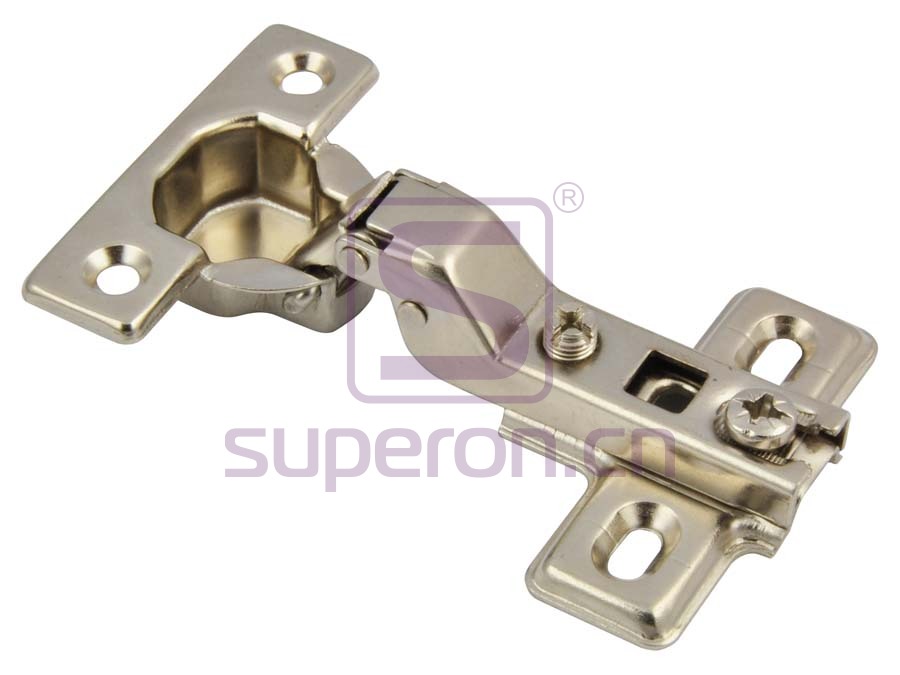

01-104 26mm hinge for glass doors

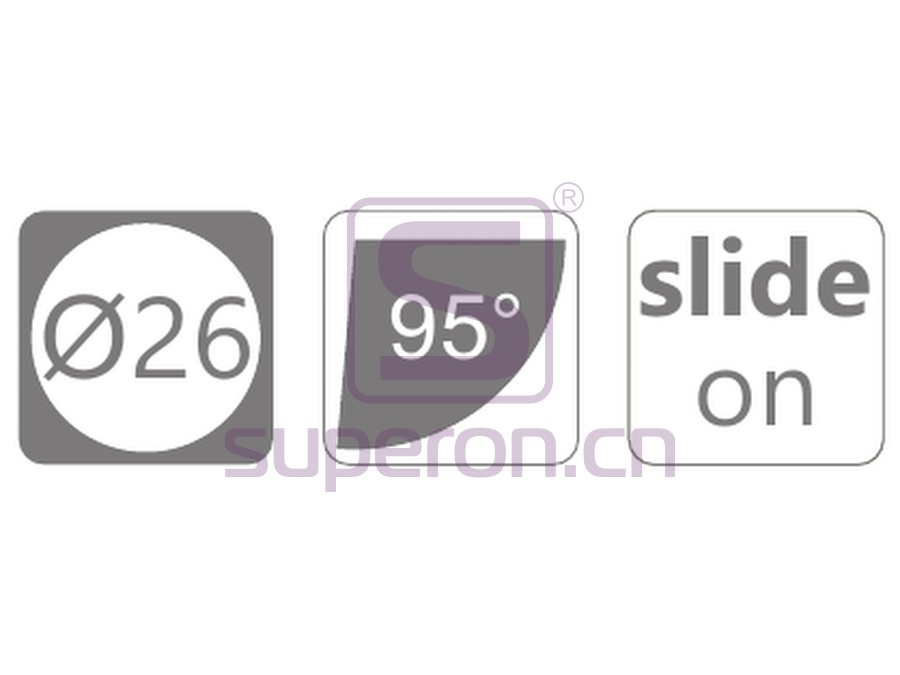

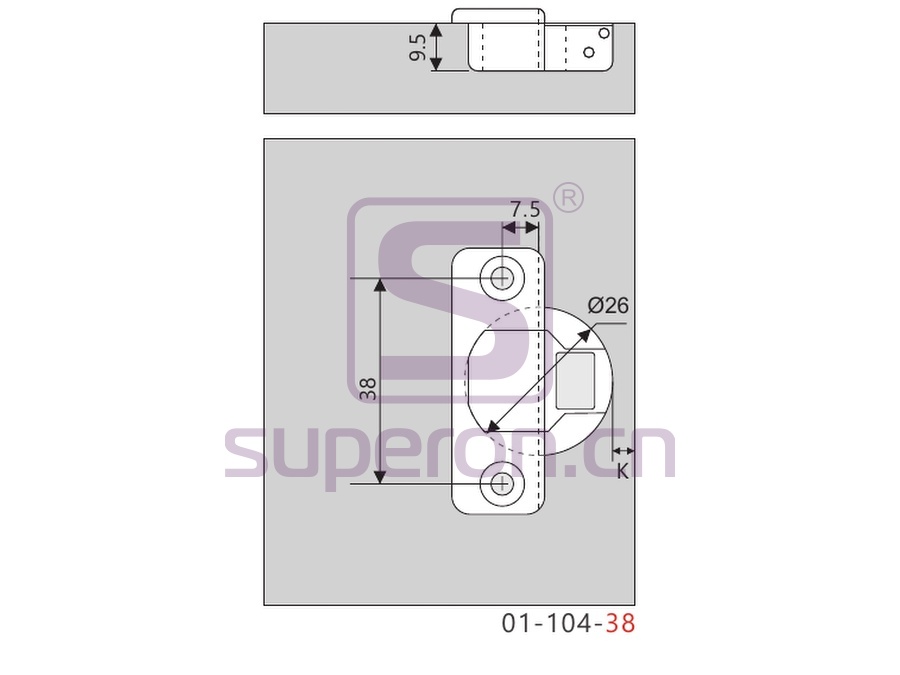

Cup diameter: 26mm
Opening angle: 95°
Cap depth: 9.5mm
Openning type: one way
Installation: slide-on
Door thickness: 14-22mm
Overlay adjustment: ±2.5mm
Depth adjustment: ±2.5mm
Height adjustment: ±2.0mm

SKU: 01-104 Categories: ,
Variations

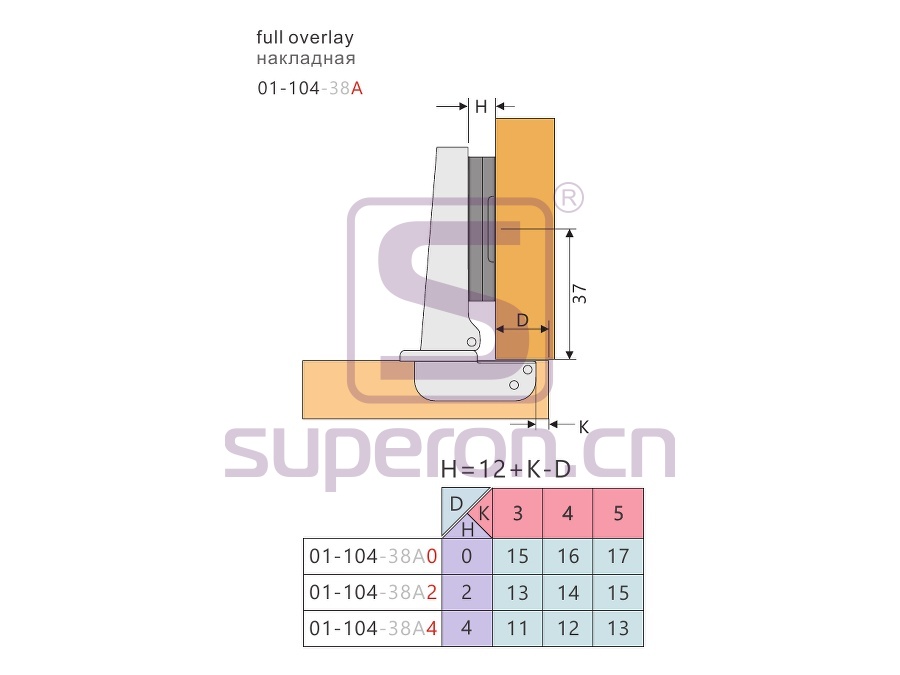

01-104-A0

full overlay/H0
Crank: full overlay
Plate height: H=0

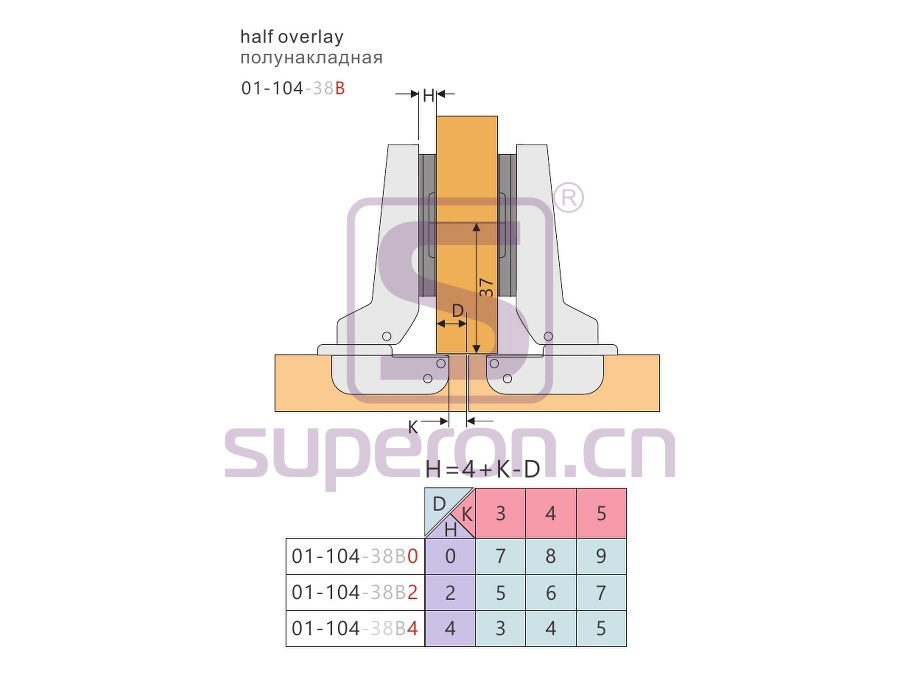

01-104-B0

half overlay/H0
Crank: half overlay
Plate height: H=0

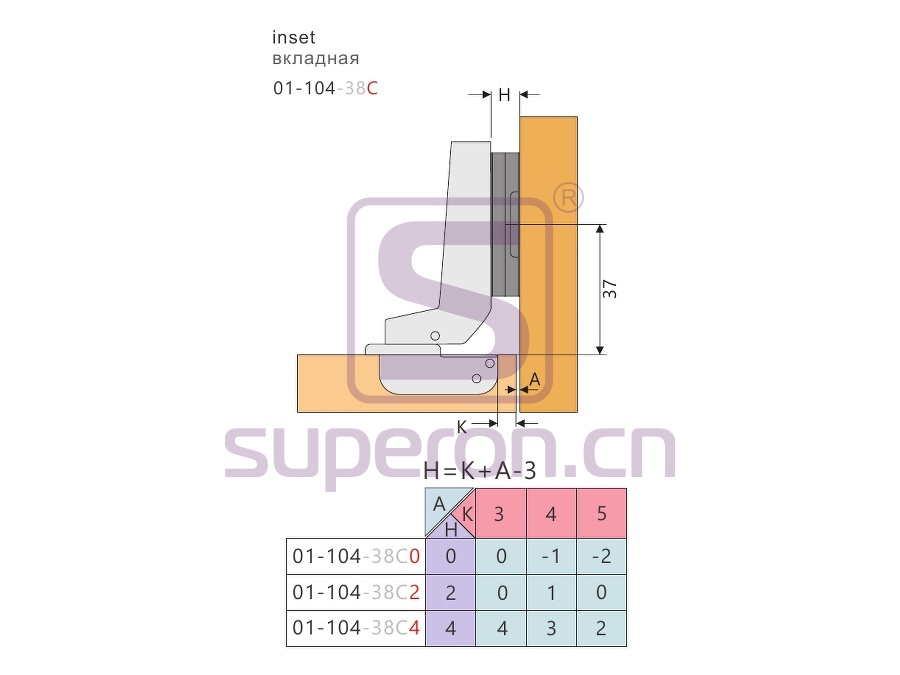

01-104-C0

insert/H0
Crank: inset
Plate height: H=0
