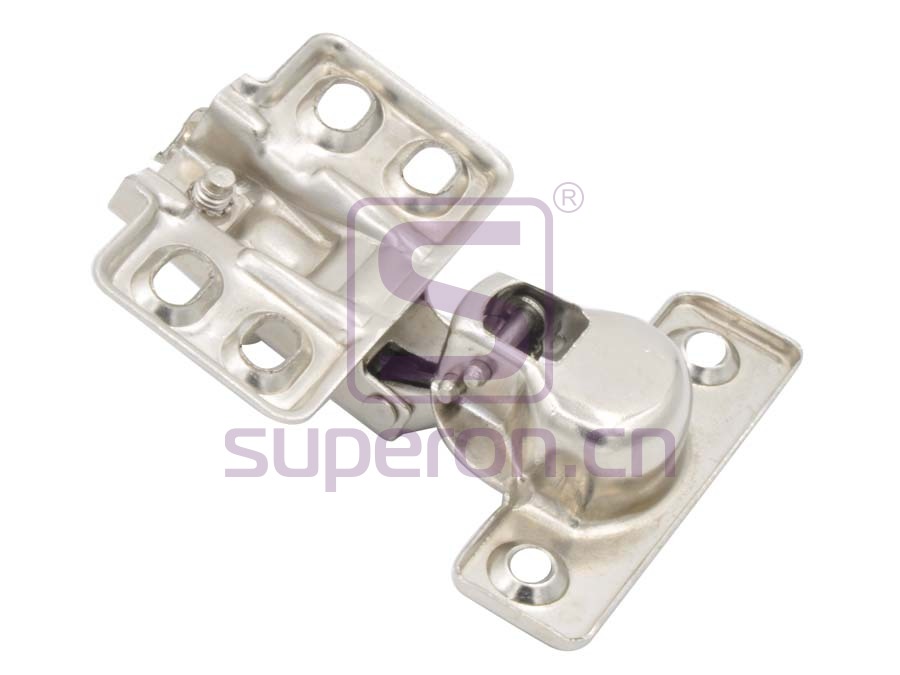

01-109 Short hinge, slide-on, d26

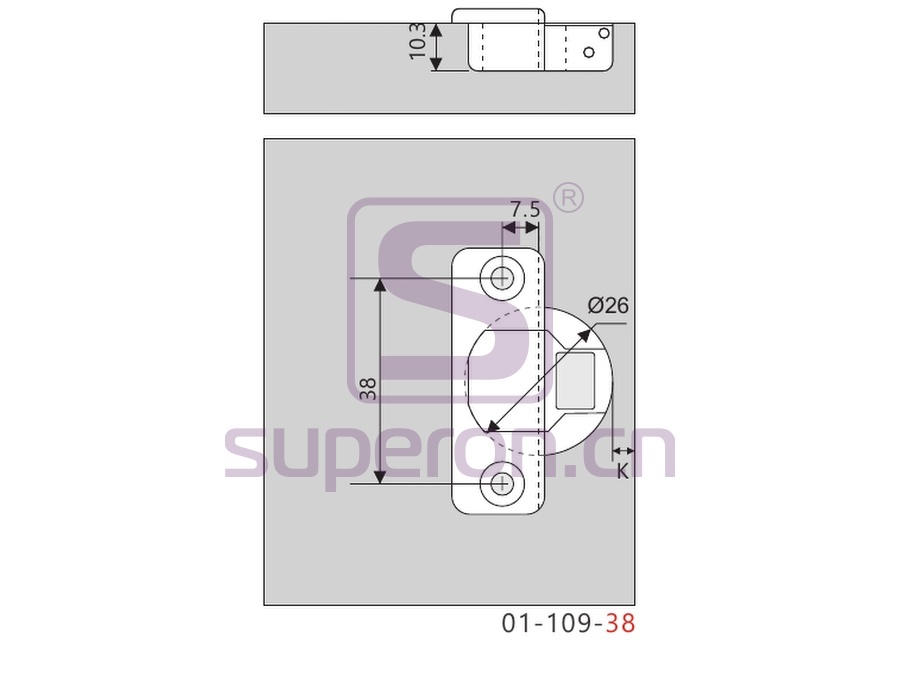

Cup diameter: 26mm
Opening angle: 95°
Cap depth: 10.3mm
Openning type: one way
Installation: slide-on
Door thickness: 12-22mm
Overlay adjustment: ±2.5mm
Depth adjustment: ±2.5mm
Height adjustment: ±2.0mm

SKU: 01-109 Categories: ,
Variations

01-109-38A-4

c17557

01-109-38B-4

c17558
