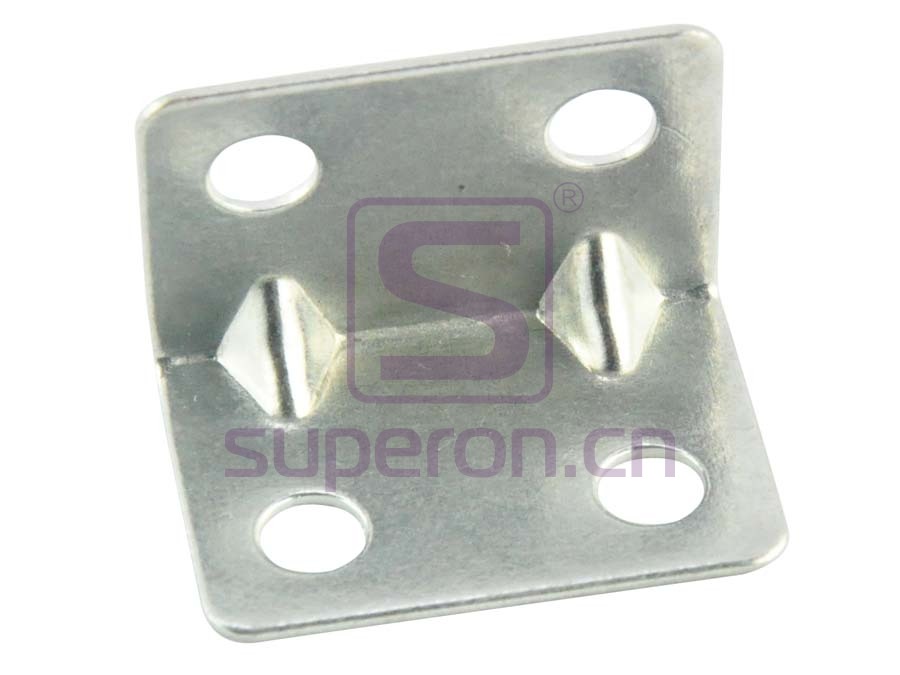

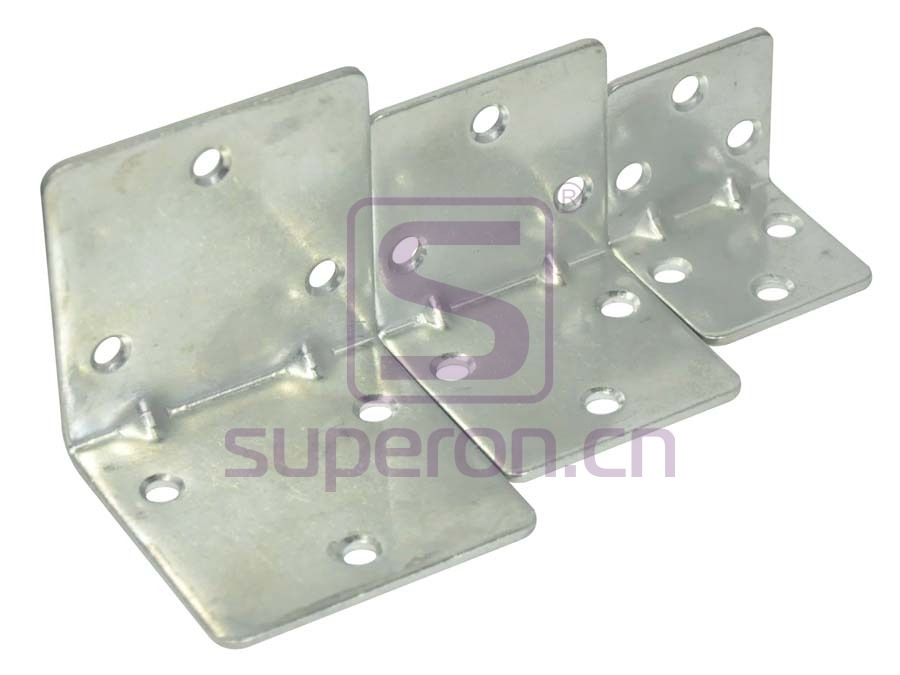

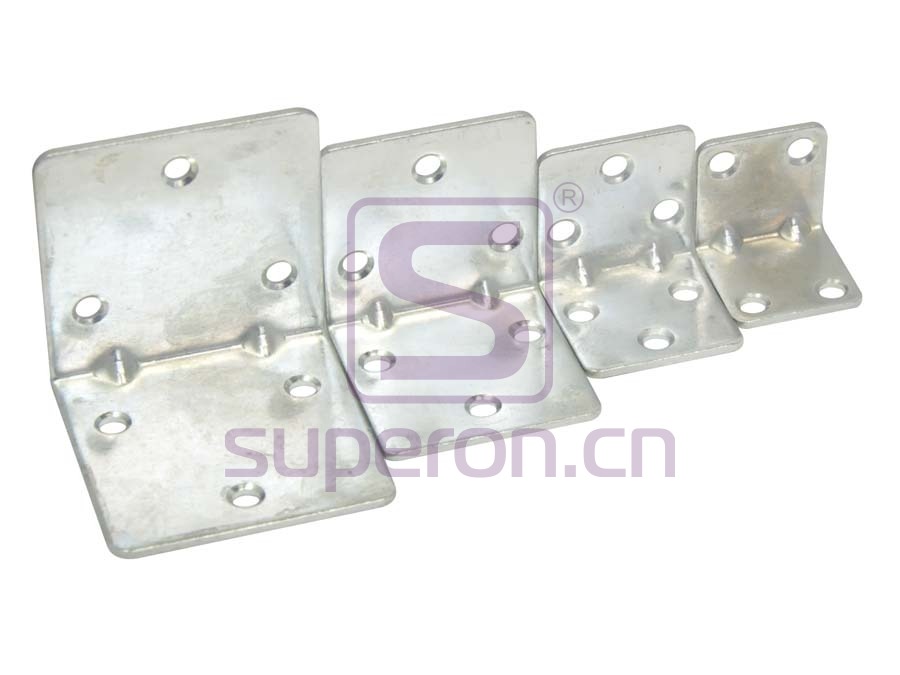

10-425 Corner for furniture

Name: Corner for furniture - Superon Furniture Fittings
SKU: 10-425
Availability: InStock

– The rib makes the corner more resistant to bending without increasing the thickness of steel.
– Rounded corners make it safer when using the furniture.
– Countersink on holes hides a part of the screw head.
– The thickness of steel is 1.80 mm

Product material: steel
Product finish: zinc plated

SKU: 10-425 Categories: 10 - Connecting fittings, steel corners and plates

Variations	Drilling	Measurement	Thickness	Weight
10-425-c8957 c8957	-	-	-	-	Inquiry In Inquirylist In Inquirylist
10-425-2525-15 25x25x25mm, T=1.5mm Drilling: 20 Measurement: 25x25x25 Thickness: 1.5	20	25x25x25	1.5	-	Inquiry In Inquirylist In Inquirylist
10-425-2525-17 25x25x25mm, T=1.7mm	-	-	-	-	Inquiry In Inquirylist In Inquirylist

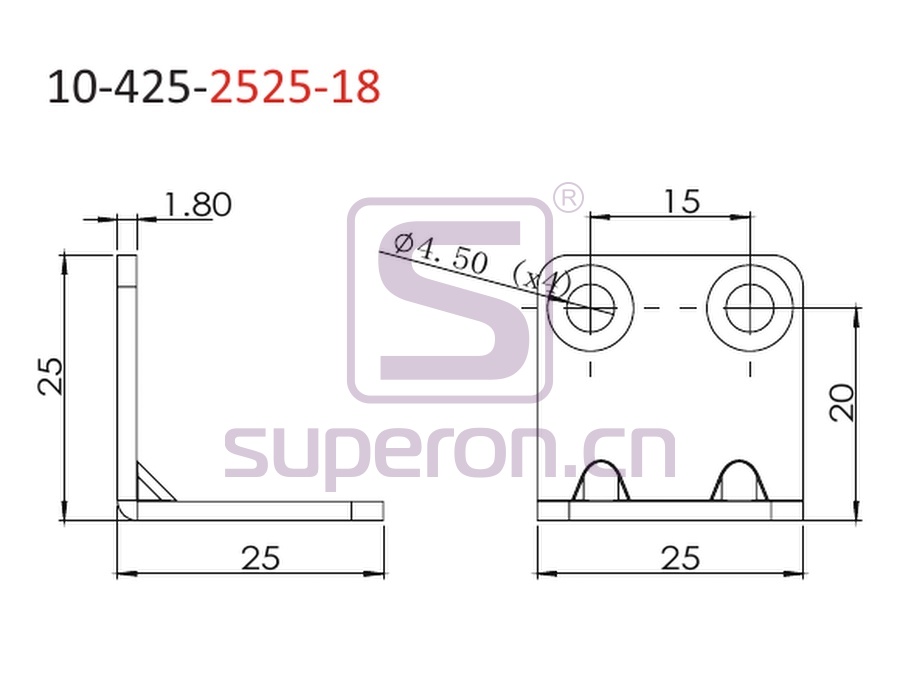

10-425-2525-18 25x25x25mm, T=1.8mm Drilling: 20 Measurement: 25x25x25 Thickness: 1.8 Weight: 14.8 gr	20	25x25x25	1.8	14.8 gr	Inquiry In Inquirylist In Inquirylist
10-425-2525-20 25x25x25mm, T=2.0mm	-	-	-	-	Inquiry In Inquirylist In Inquirylist
10-425-3030-15 30x30x30mm, T=1,5mm Drilling: 12-24 Measurement: 30x30x30 Thickness: 1.5	12-24	30x30x30	1.5	-	Inquiry In Inquirylist In Inquirylist

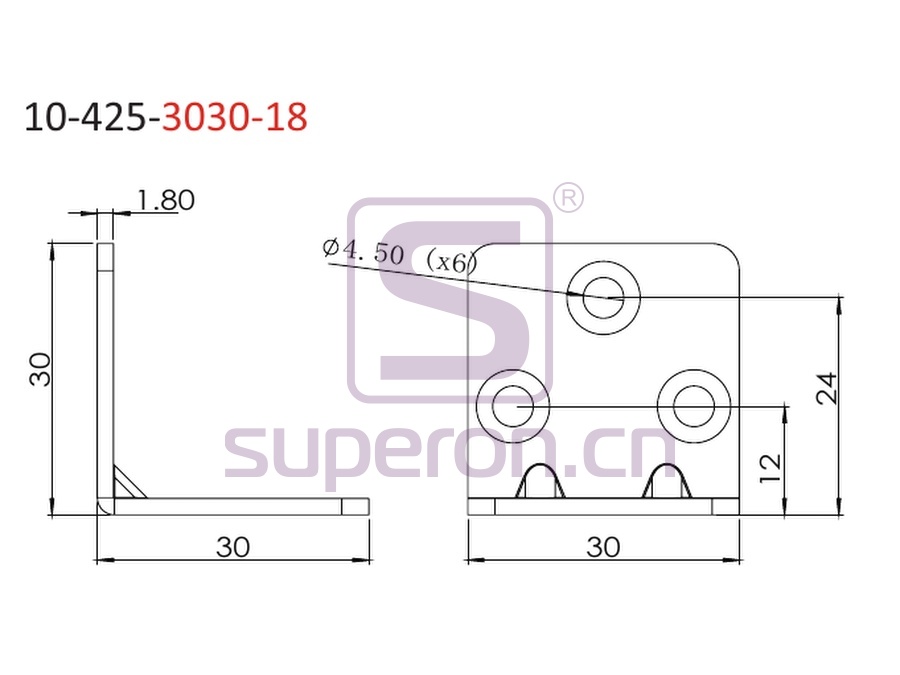

10-425-3030-18 30x30x30mm, T=1,8mm Drilling: 12-24 Measurement: 30x30x30 Thickness: 1.8 Weight: 21.9 gr	12-24	30x30x30	1.8	21.9 gr	Inquiry In Inquirylist In Inquirylist
10-425-3030-20 30x30x30mm, T=2,0mm	-	-	-	-	Inquiry In Inquirylist In Inquirylist
10-425-4040-15 40x40x40mm, T=1.5mm	-	-	-	-	Inquiry In Inquirylist In Inquirylist

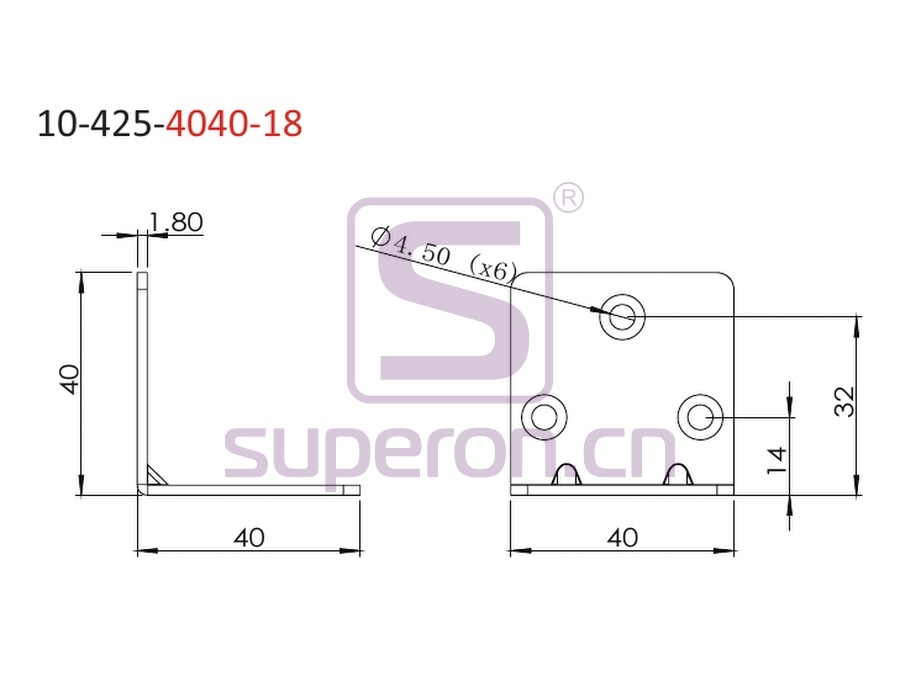

10-425-4040-18 40x40x40mm, T=1.8mm Drilling: 14-32 Measurement: 40x40x40 Thickness: 1.8 Weight: 40.3 gr	14-32	40x40x40	1.8	40.3 gr	Inquiry In Inquirylist In Inquirylist
10-425-4040-20 40x40x40mm, T=2.0mm	-	-	-	-	Inquiry In Inquirylist In Inquirylist
10-425-5050-15 50x50x50mm, T=1,5mm	-	-	-	-	Inquiry In Inquirylist In Inquirylist

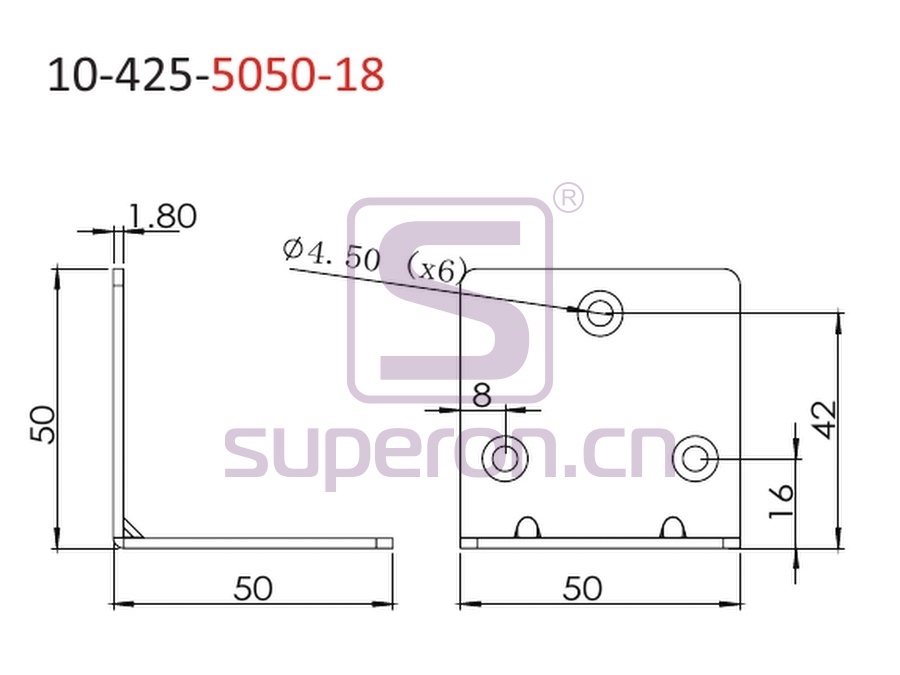

10-425-5050-18 50x50x50mm, T=1,8mm Drilling: 16-42 Measurement: 50x50x50 Thickness: 1.8 Weight: 67 gr	16-42	50x50x50	1.8	67 gr	Inquiry In Inquirylist In Inquirylist
10-425-5050-20 50x50x50mm, T=2,0mm	-	-	-	-	Inquiry In Inquirylist In Inquirylist
