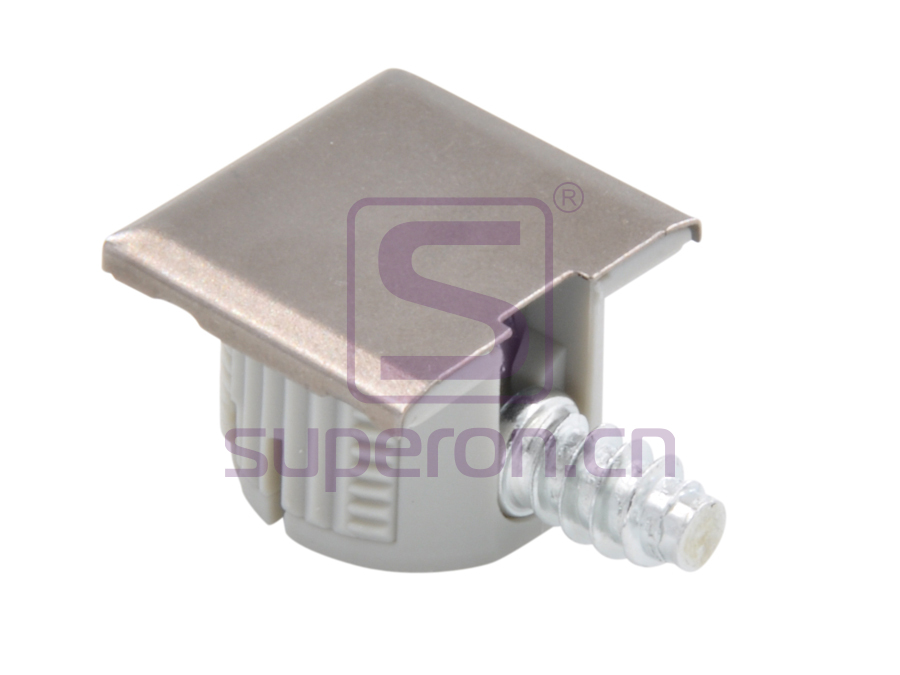

10-269 Eccentric shelf support

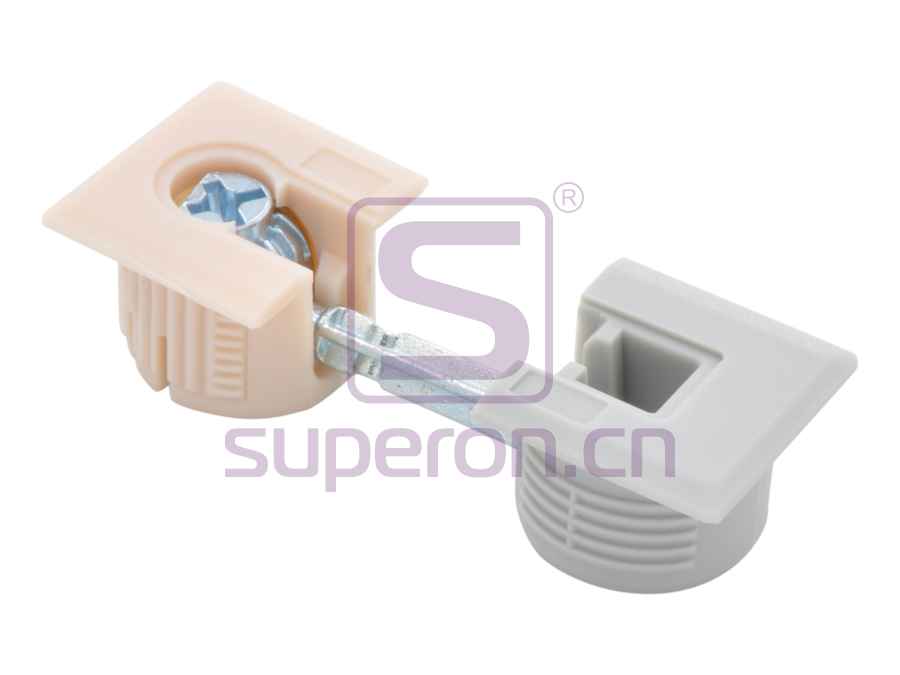

– Inner eccentric cam is placed in the outter housing.

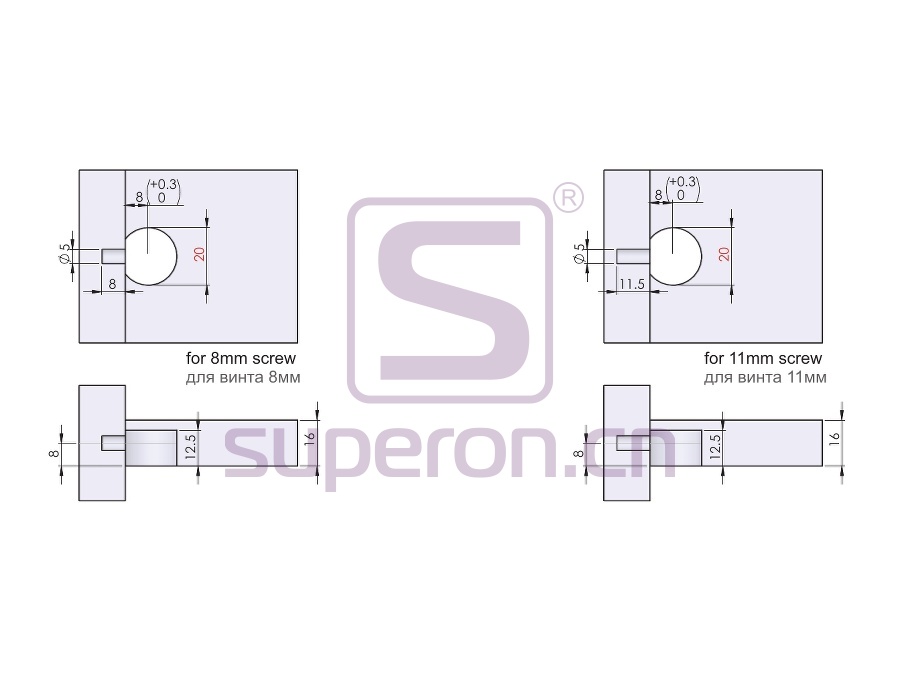

– The housing is placed into a hole with diameter 20 mm
– Euroscrew 6.3x7mm (outter part), drill depth for euroscrew is 7.5 mm.

Product material: plastic
SKU: 10-269 Categories: ,
Variations

10-269-N-08

c11920
Center of dowel (x): 8
Diameter (D): 20
Drilling depth (h): 12.5
Material: nylon

10-269-PP-08

c12108
Center of dowel (x): 8
Diameter (D): 20
Drilling depth (h): 12.5
Material: x
