10-208 Eccentric cam, D12

– The dowel is always pulled in to the centred position, providing an accurate assembly.
– Eccentric cam can be tightened with cross or flat-blade screwdriver.
– Used for boards with thickness of 13 mm

SKU: 10-208 Categories: ,
Variations

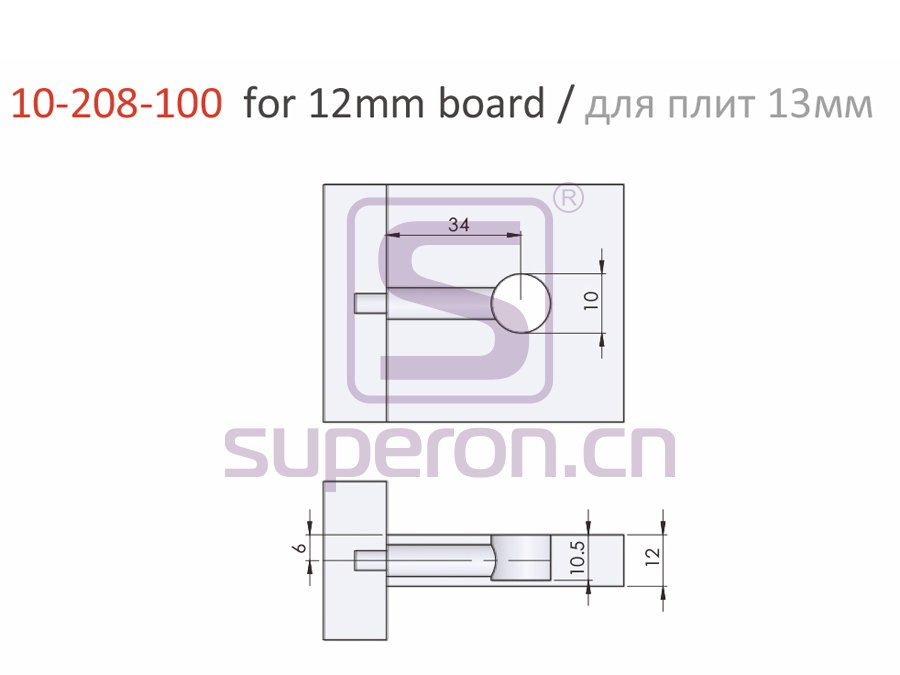

10-208-100

D12,h=10

10-208-110

D12,h=11
Board: 13
Center of dowel (x): 6.5
Diameter (D): 15
Drilling depth (h): 11.5
Height (h): 11

10-208-120

D12,h=12

10-208-120-a

D12,h=12
