09-104 Roller system (symmetric)

Material:

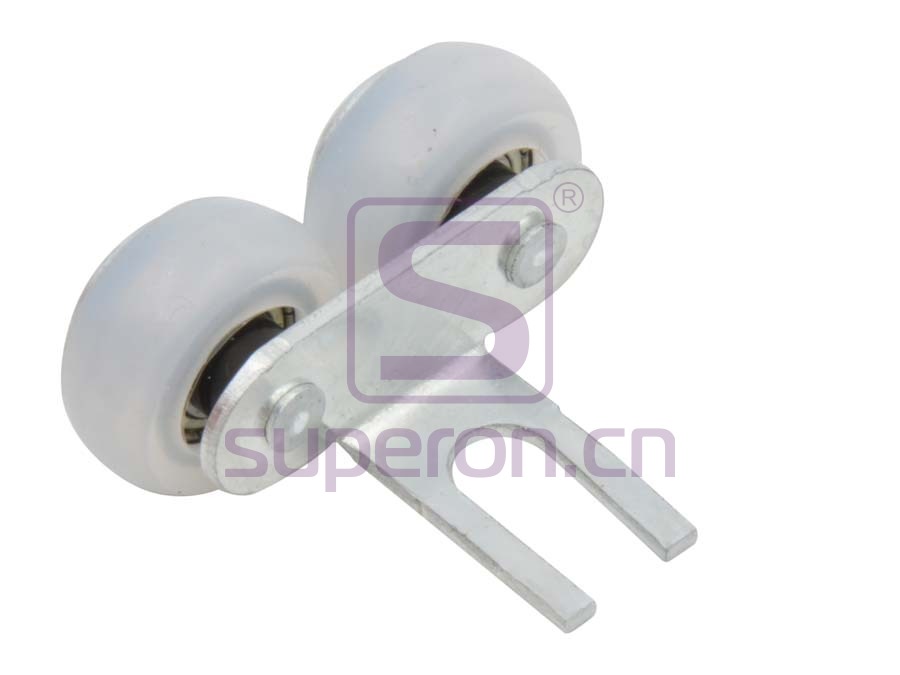

upper roller – silicone
lower roller:

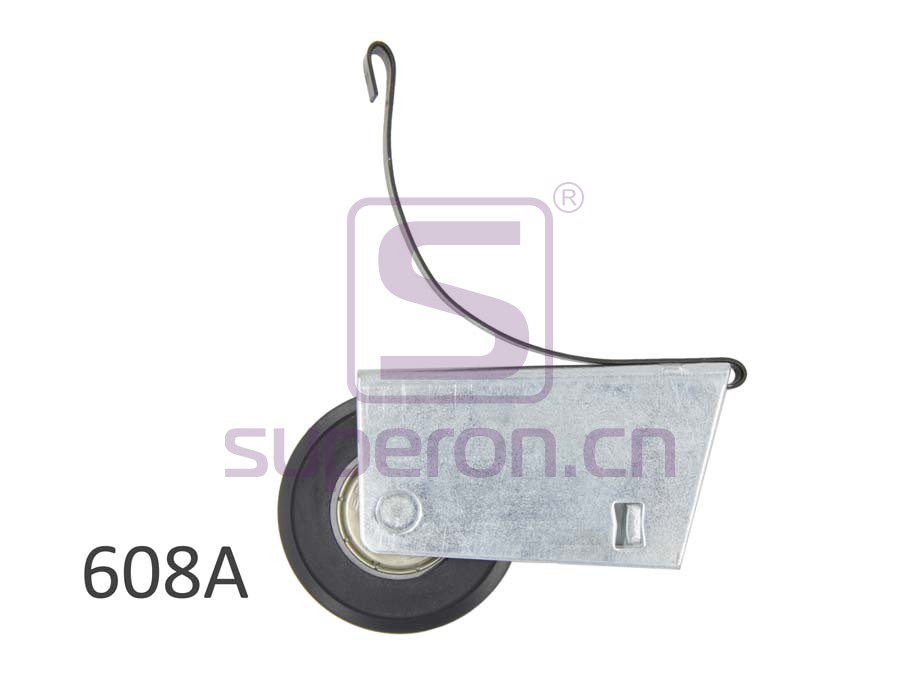

A: standard bearing + POM plastic

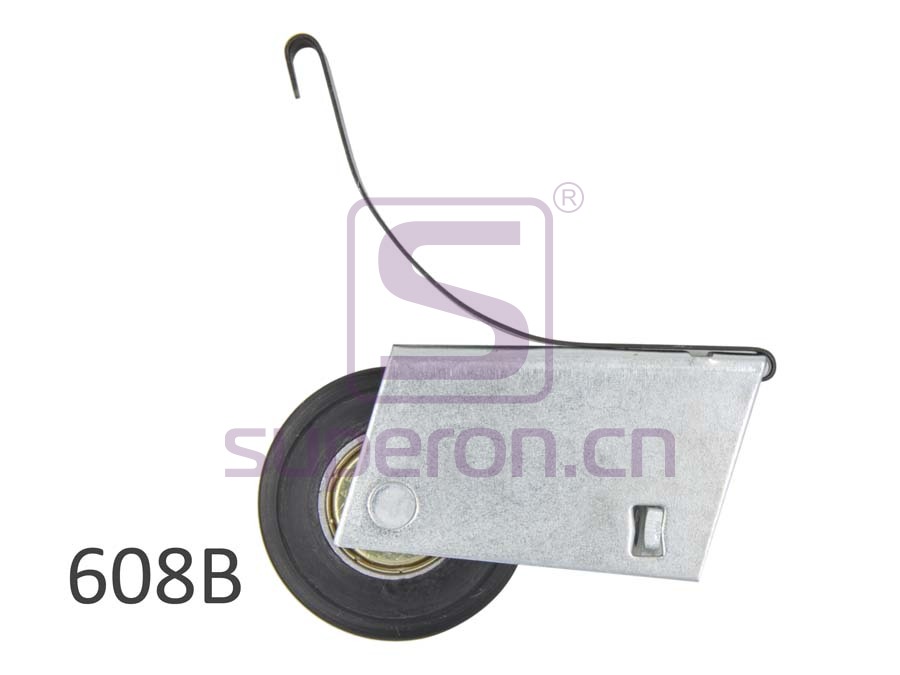

B: budget friendly bearing + PP plastic

According to customer’s request , mounting screws can be made with the same hexagon size , 4mm or 5mm. If there are no requirements, the standard hexagon sizes are the following:
down screw М5 – 4mm
upper screw D=5mm – 4mm
upper screw D=6mm – 5mm

SKU: 09-104 Categories: ,
Variations

09-104-608A

c15384

09-104-608A0539G-118

608A/1.0/1.4/5/39G/11.8mm
Down roller: thickness: 1.0
Screw (M): 5
Screw type: standard
Upper roller: width: 39 ±0,2

09-104-608A06375B-118

608A/1.0/1.4/6/37.5B/11.8mm
Down roller: thickness: 1.0
Screw (M): 6
Screw type: standard
Upper roller: width: 37.5 ±0,2

09-104-608A06375G-118

608A/1.0/1.4/6/37.5G/11.8mm
Down roller: thickness: 1.0
Screw (M): 6
Screw type: standard
Upper roller: width: 37.5 ±0,2

09-104-608A0639G-118

608A/1.0/1.4/6/39G/11.8mm
Down roller: thickness: 1.0
Screw (M): 6
Screw type: standard
Upper roller: width: 39 ±0,2

09-104-608A06H375A-4-118

608A/1.0/1.4/6/37.5A/11.8mm, harder

09-104-608A2539G-118

608A/1.2/1.4/6/39G/11.8mm

09-104-608B06H375B-4-118

608B/1.0/1.4/6/37.5B/11.8mm, harder

09-104-608G039C-118

608G/1.0/1.4/38.9C/11.8mm

09-104-608G0539C-118

608G/1.0/1.4/5/38.9C/11.8mm
Down roller: thickness: 1.0
Screw (M): 5
Screw type: standard
Upper roller: width: 38.9 ±0,2
