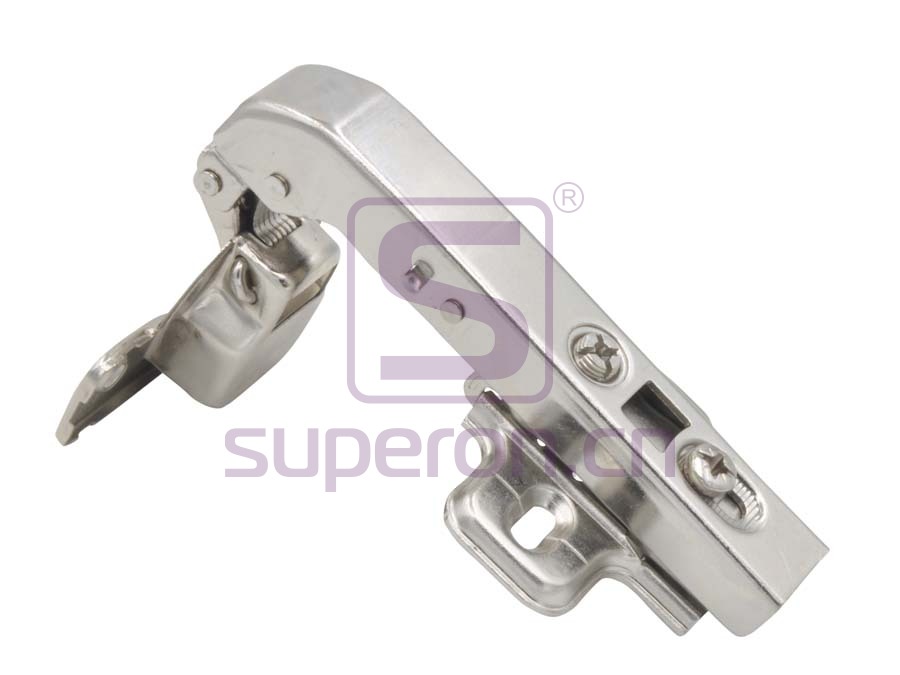

01-043-CL-L | Soft-closing hinge, 90°, clip-on 01-043-CL-L

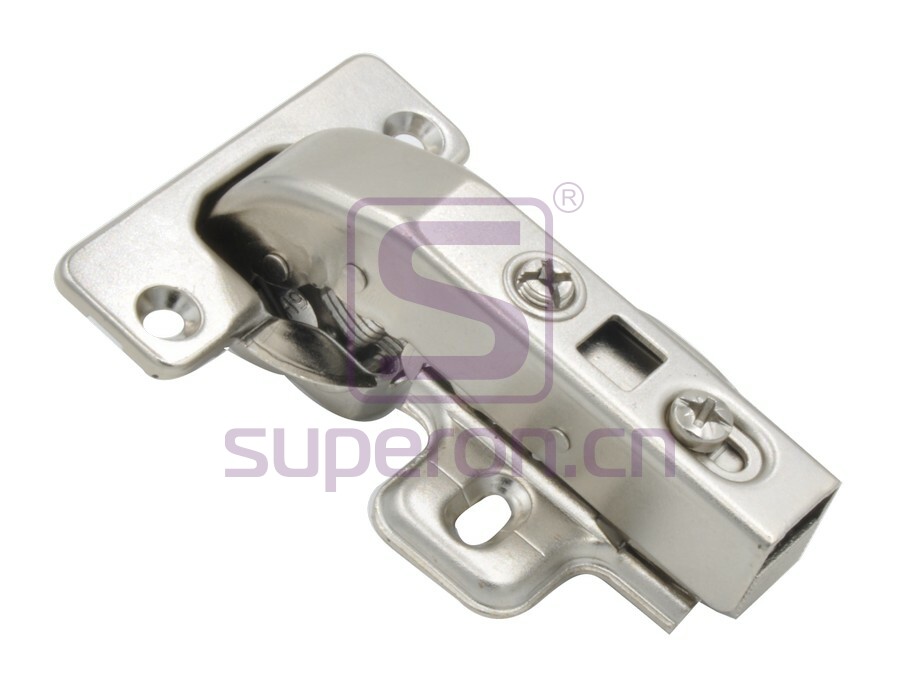

01-043-CL-S | Soft-closing hinge, 90°, clip-on 01-043-CL-S

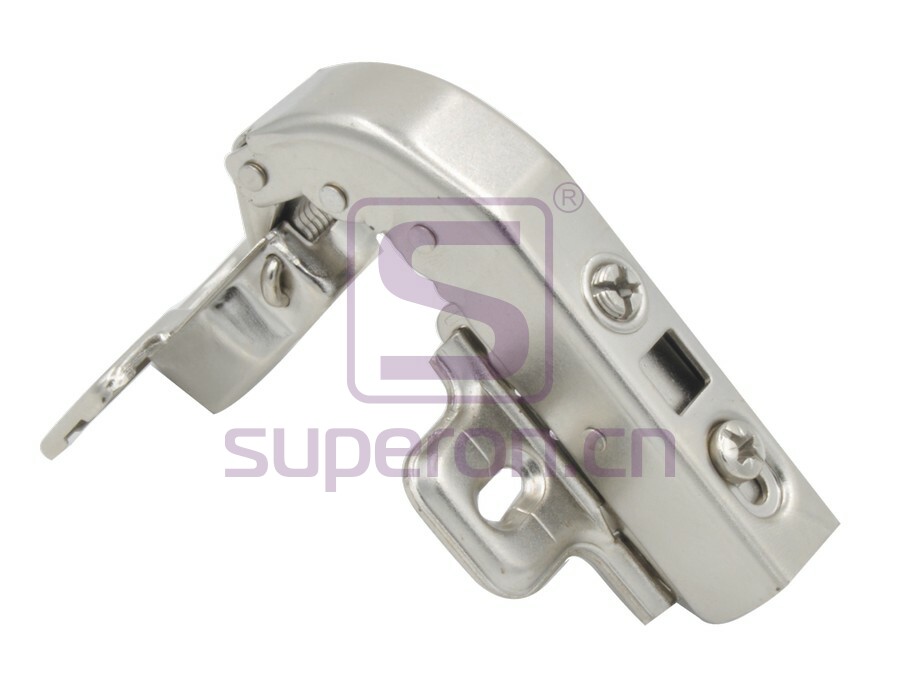

01-043-CL-S1 | Soft-closing hinge, 90°, clip-on 01-043-CL-S1

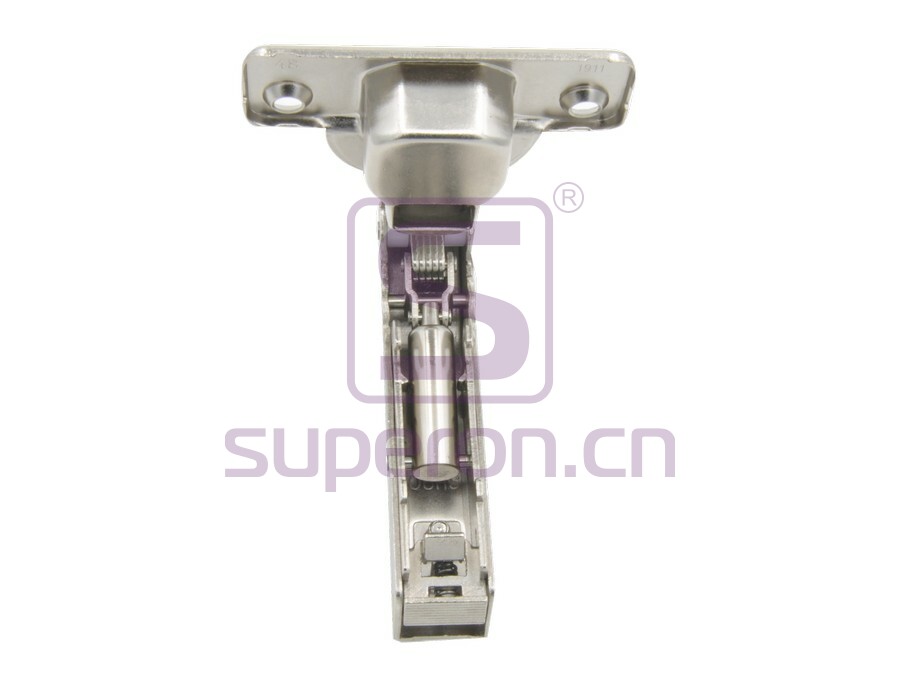

01-043-CL-S2 | Soft-closing hinge, 90°, clip-on 01-043-CL-S2
01-043-CL-q | Soft-closing hinge, 90°, clip-on 01-043-CL-q

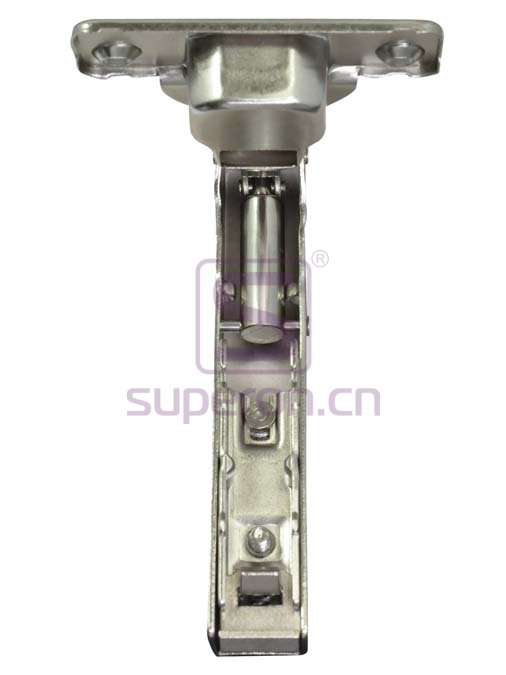

01-043-CL-x | Soft-closing hinge, 90°, clip-on 01-043-CL-x

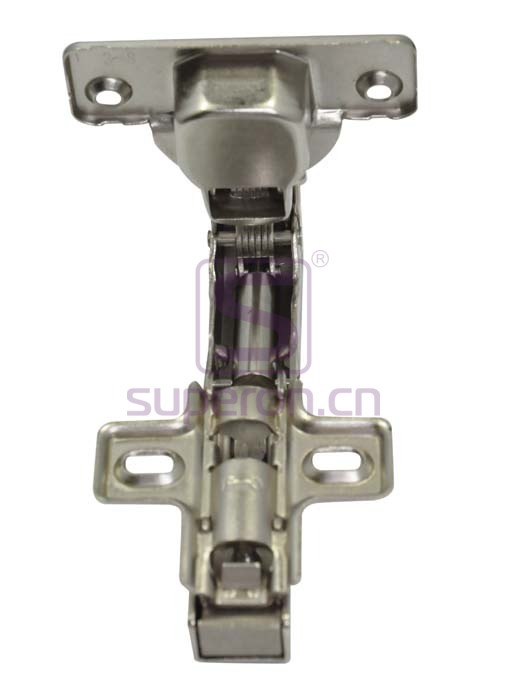

01-043-CL-x2 | Soft-closing hinge, 90°, clip-on 01-043-CL-x2

01-043-CL Soft-closing hinge, 90°, clip-on

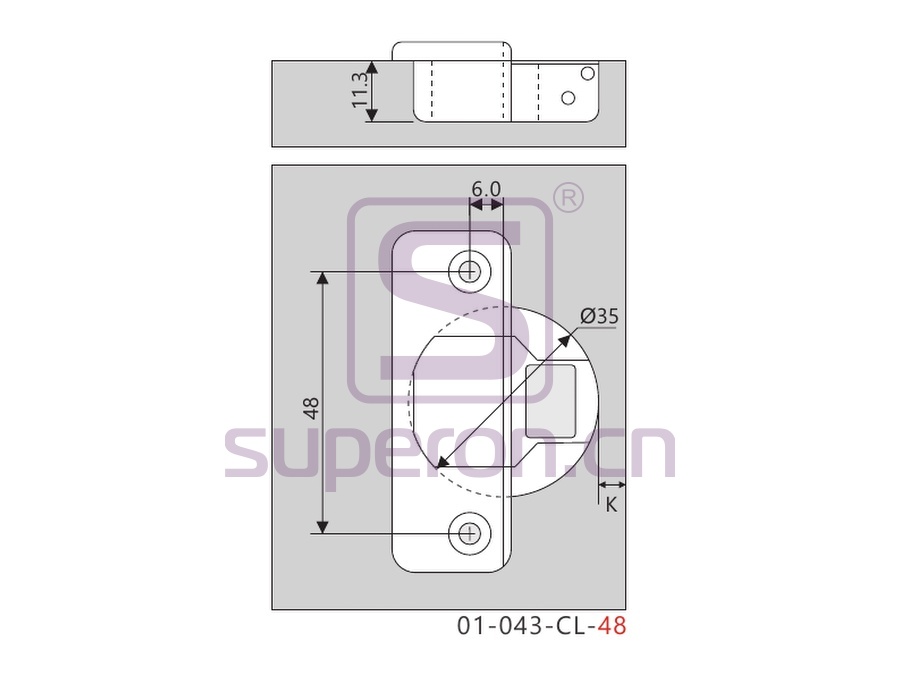

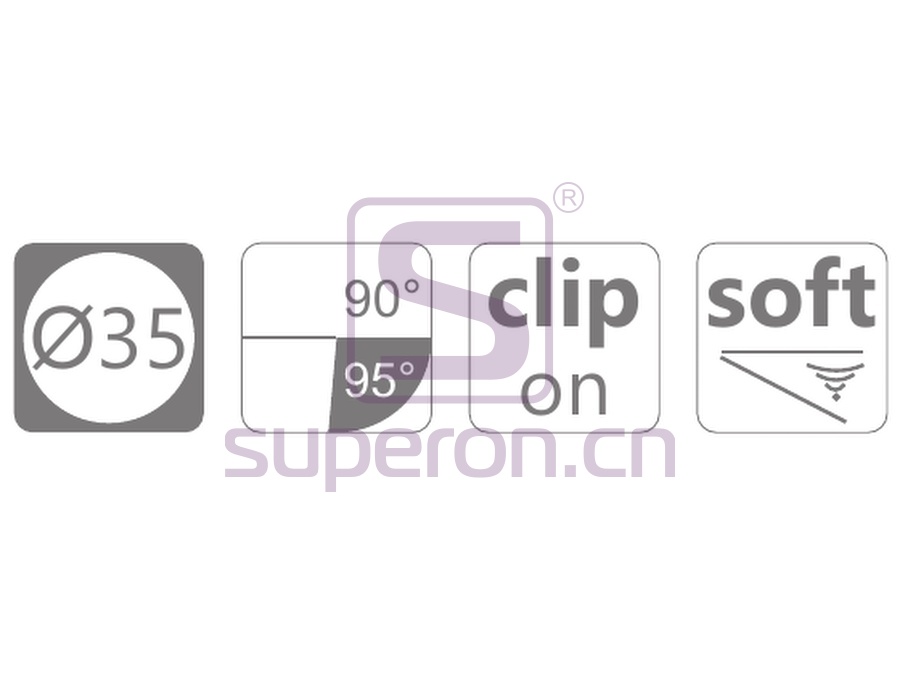

Cup diameter: 35mm
Opening angle: 95°
Cap depth: 11.3mm
Closing type: soft closing
Installation: clip-on
Door thickness: 14-22mm
Overlay adjustment: ±2.5mm
Depth adjustment: ±2.5mm
Height adjustment: ±2.0mm

Product material: steel,
Product finish: nickel plated
SKU: 01-043-CL Categories: ,

Featured

Variations

01-043-CL-L45D

45, long

01-043-CL-L48X-EU

48, long/Euroscrew

01-043-CL-S48X0

48, H=0, short

01-043-CL-S48D4

48, H=4, short
Plate height: H=4

01-043-CL-S48D2

48, H=2, short

01-043-CL-S48D0-p

48, H=0, short, with pls stabilizers

01-043-CL-S48D0-4T

48, H=0, short, 4holes trapez

01-043-CL-S48D0-4

48, H=0, short, 4holes

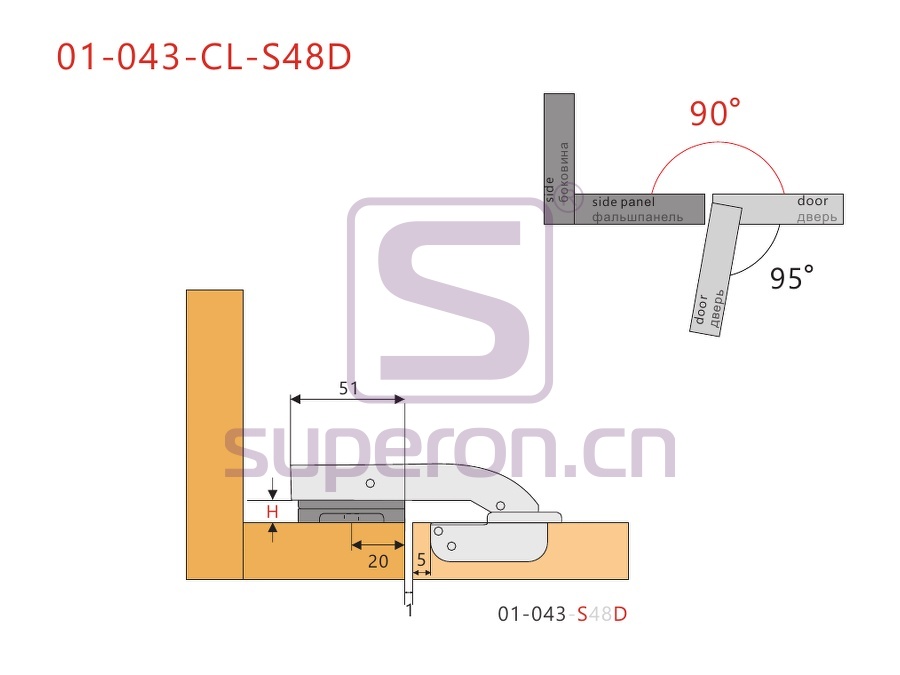

01-043-CL-S48D0

48, H=0, short
Openning angle: 95 °
Required space: 51
Weight: 111.4 gr

01-043-CL-S45D

45, short

01-043-CL-L48X-p-4

48, long, 4 holes, with pls stabilizers

01-043-CL-L48X-p

48, long, with pls stabilizers

01-043-CL-L48X-EU-W

48, long, europlate, screws

01-043-CL-L48X-4

48, long, 4 holes

01-043-CL-L45X

45, long

01-043-CL-L48X

48, long

01-043-CL-L48D-body

48, long

01-043-CL-L48D4

48, H=4, long
Plate height: H=4

01-043-CL-L48D2-sbc

48, H=2, long, screws+body+cup cover

01-043-CL-L48D2-EU-W

full/48/ Euroscrew, H=2

01-043-CL-L48D2-EU

48, H=2, long, euroscrew

01-043-CL-L48D2

48, H=2, long

01-043-CL-L48D0-EU-W

full/48/ Euroscrew, H=0

01-043-CL-L48D0-EU

full/48/Euroscrew, H=0
Weight: 110.78 gr

01-043-CL-L48D0-4

48, H=0, long, 4holes

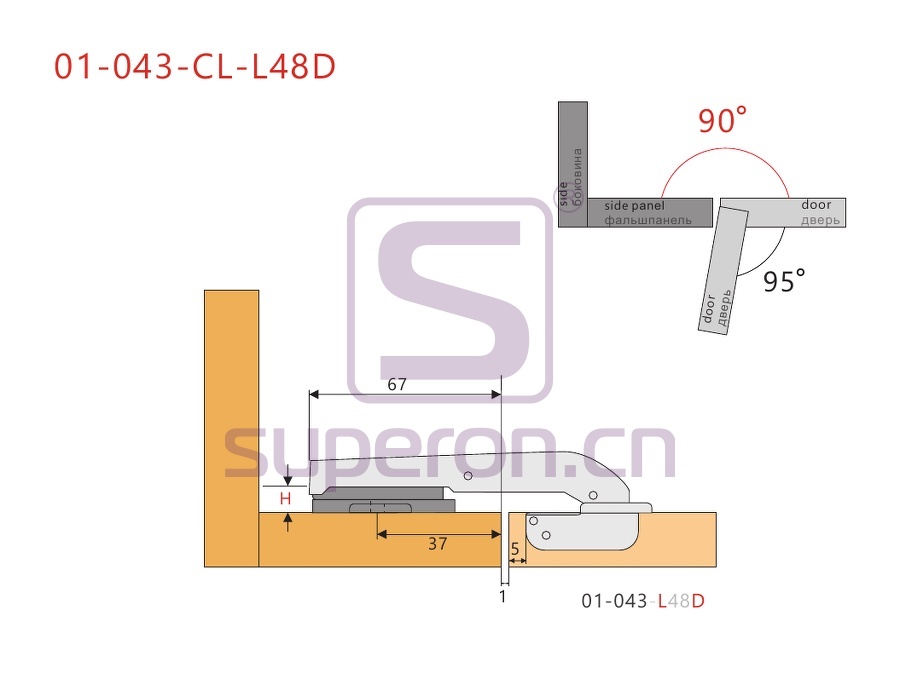

01-043-CL-L48D0

48, H=0, long
Holes: 48
Openning angle: 95 °
Plate height: H=0
Required space: 67
Weight: 110 gr~109

01-043-CL-S48X0-EU-W

48, short, europlate, screws
