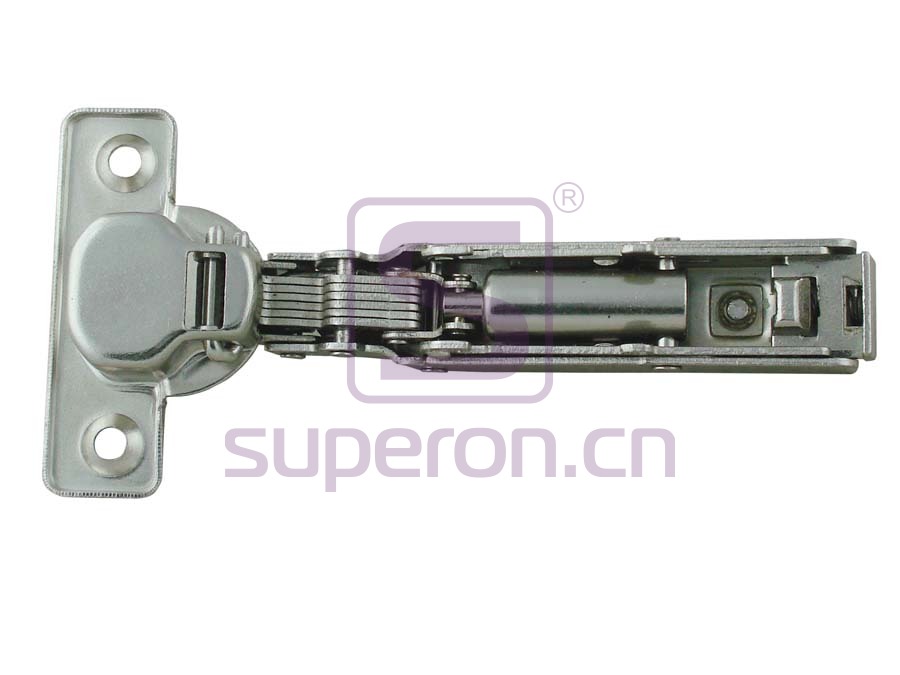

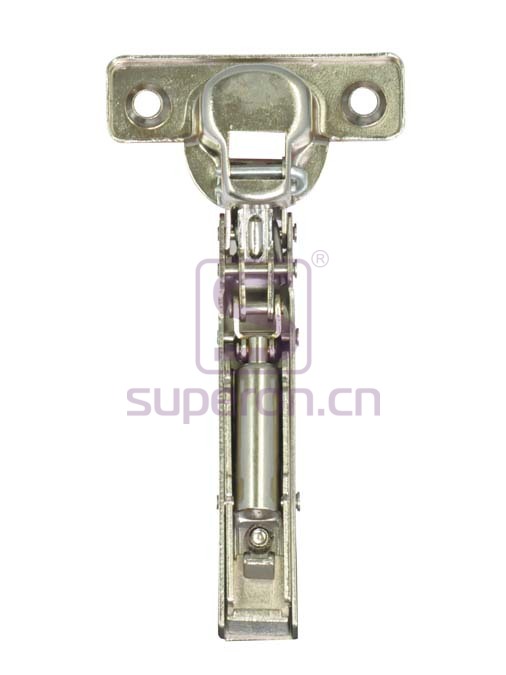

01-133-CL Hinge 26mm, soft-closing, clip-on

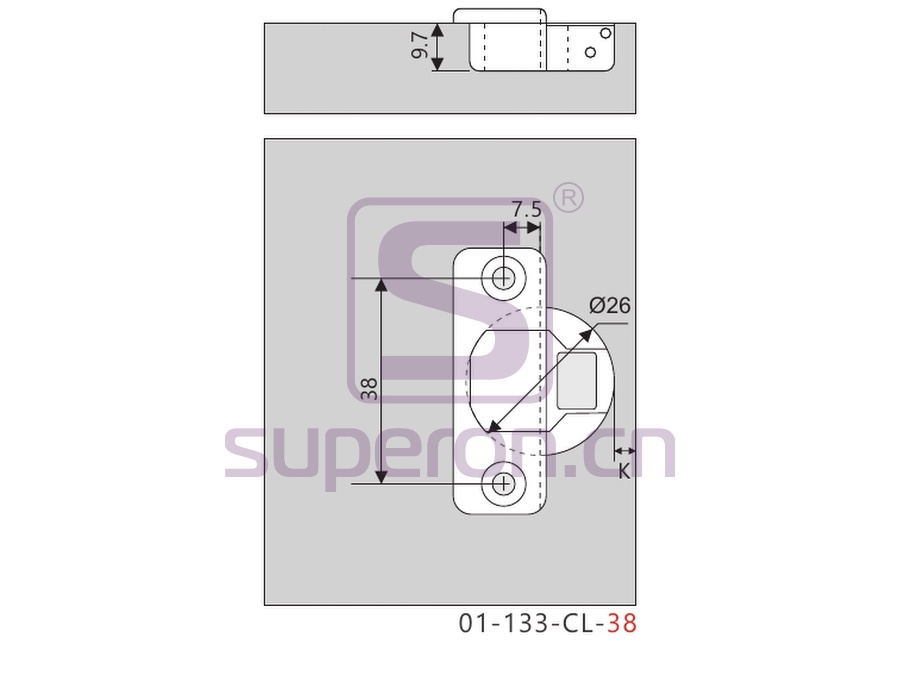

Cup diameter: 26mm
Opening angle: 95°
Cap depth: 9.7mm
Closing type: soft closing
Installation: clip-on
Door thickness: 14-22mm
Overlay adjustment: ±2.5mm
Depth adjustment: ±2.5mm
Height adjustment: ±2.0mm

Product material: steel
Product finish: nickel plated
SKU: 01-133-CL Categories: ,

Featured

Variations

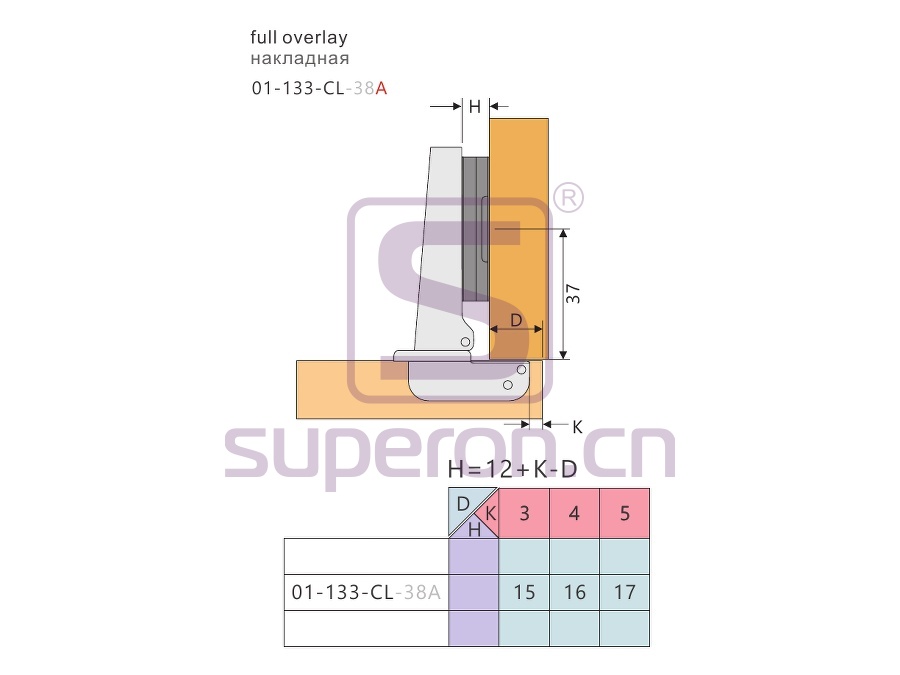

01-133-CL-38A

full overlay
Crank: full overlay
Holes: 38
Plate type: 2 holes
Weight: 70 gr

01-133-CL-38A0-4

full overlay/H0/4holes

01-133-CL-38A2

full overlay/H2

01-133-CL-38A-4

full overlay/4holes
Crank: full overlay
Holes: 38
Plate type: 4 holes

01-133-CL-38A-EU

full overlay, eur
Holes: 38
Plate type: for euroscrews
Weight: 73 gr

01-133-CL-38A-h

ответная планка Н0

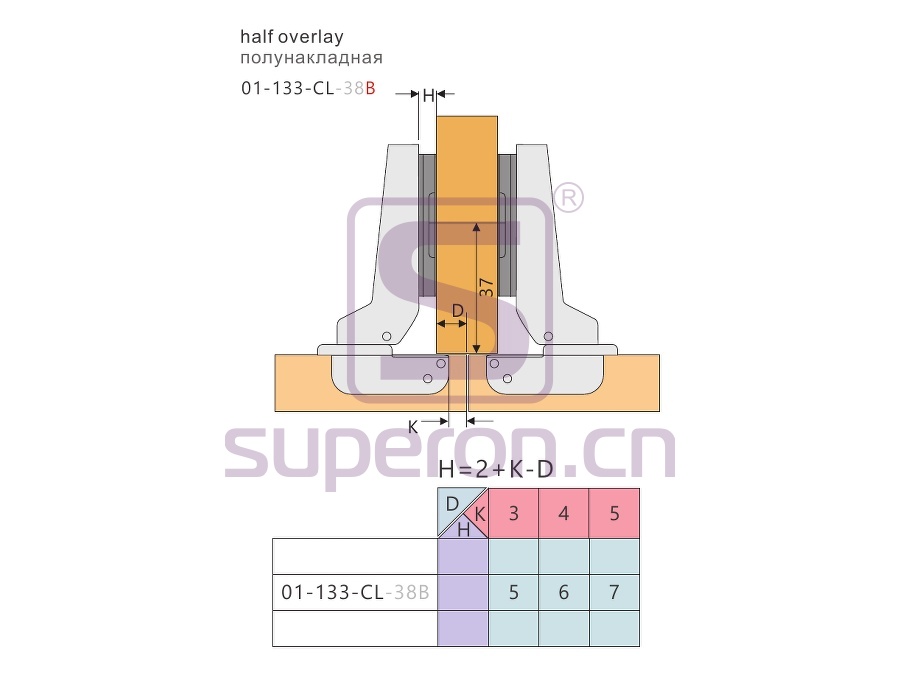

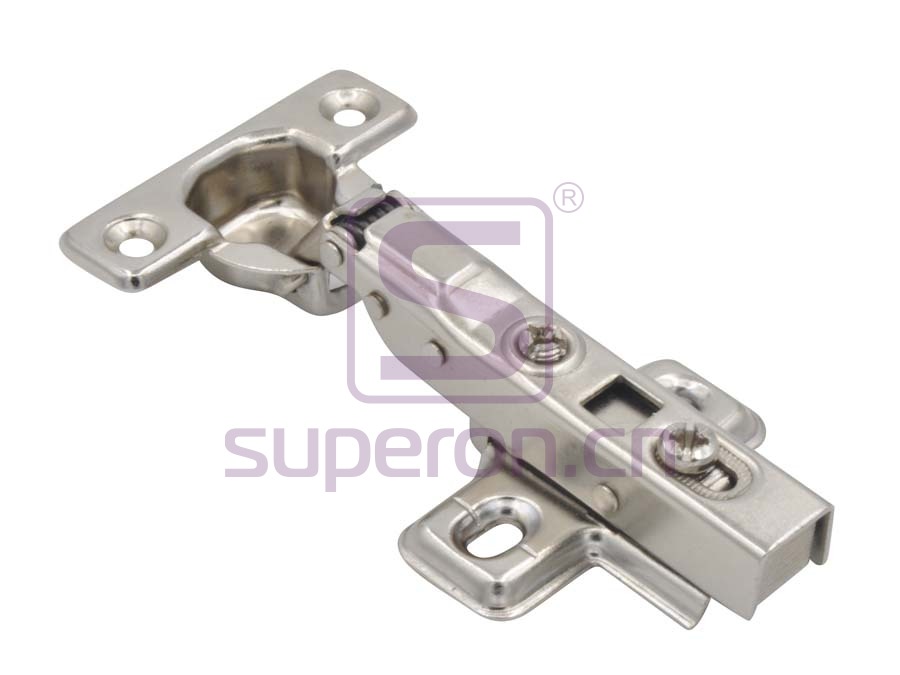

01-133-CL-38B

half overlay
Crank: half overlay
Holes: 38
Plate type: 2 holes
Weight: 70.1 gr

01-133-CL-38B2

half overlay/H2

01-133-CL-38B2-4

half overlay/4holes
Crank: half overlay
Holes: 38
Plate type: 4 holes

01-133-CL-38B-EU

half overlay, eur
Holes: 38
Plate type: for euroscrews
Weight: 74 gr

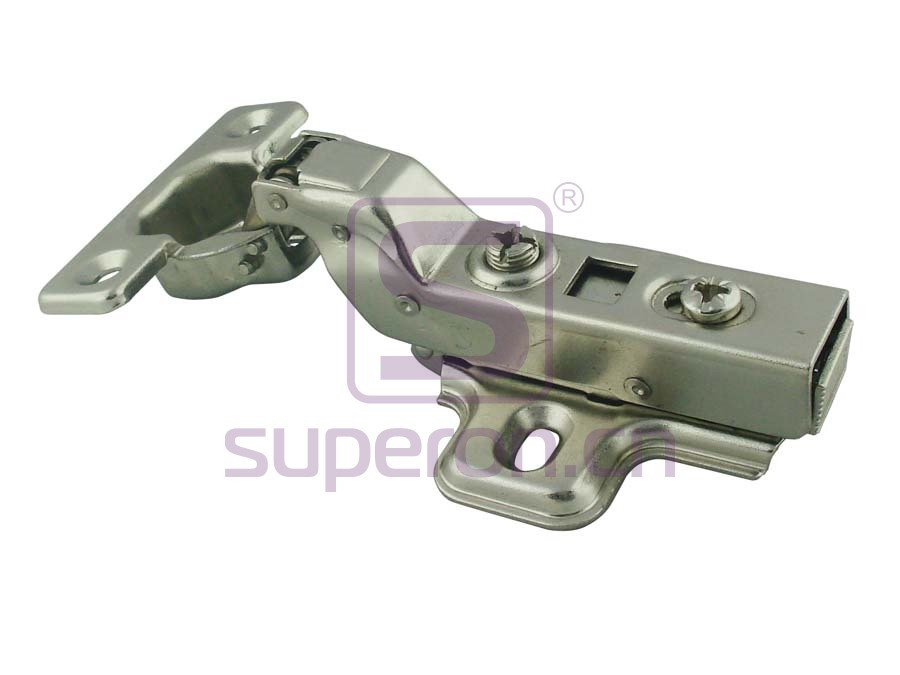

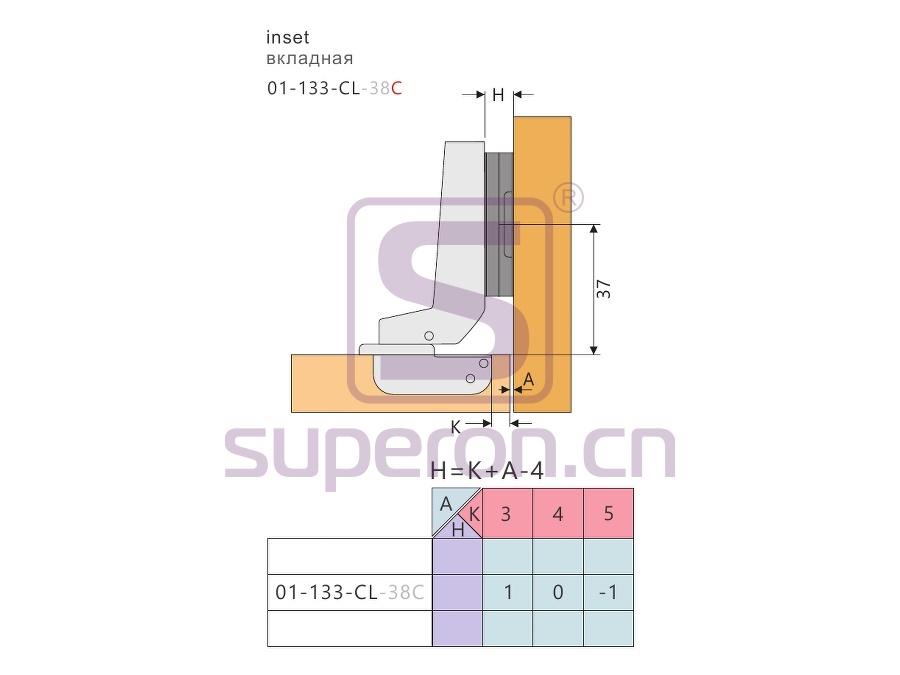

01-133-CL-38C

insert
Crank: inset
Holes: 38
Plate type: 2 holes

01-133-CL-38C2-4

insert/H2/4holes

01-133-CL-38C-EU

insert, eur
Weight: 76 gr
