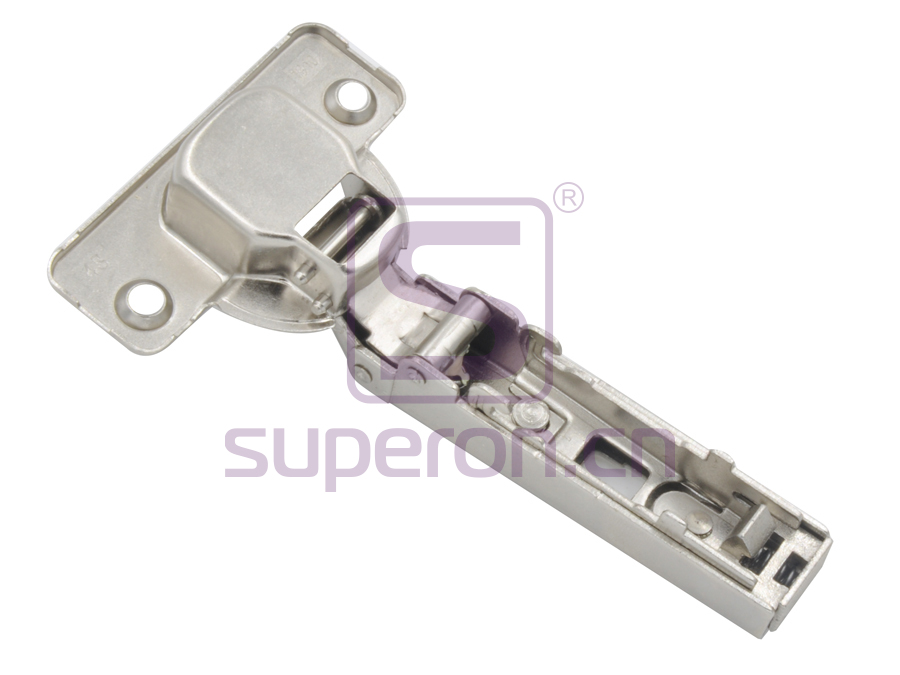

01-009-2D Hinge without spring,2D adjuastable

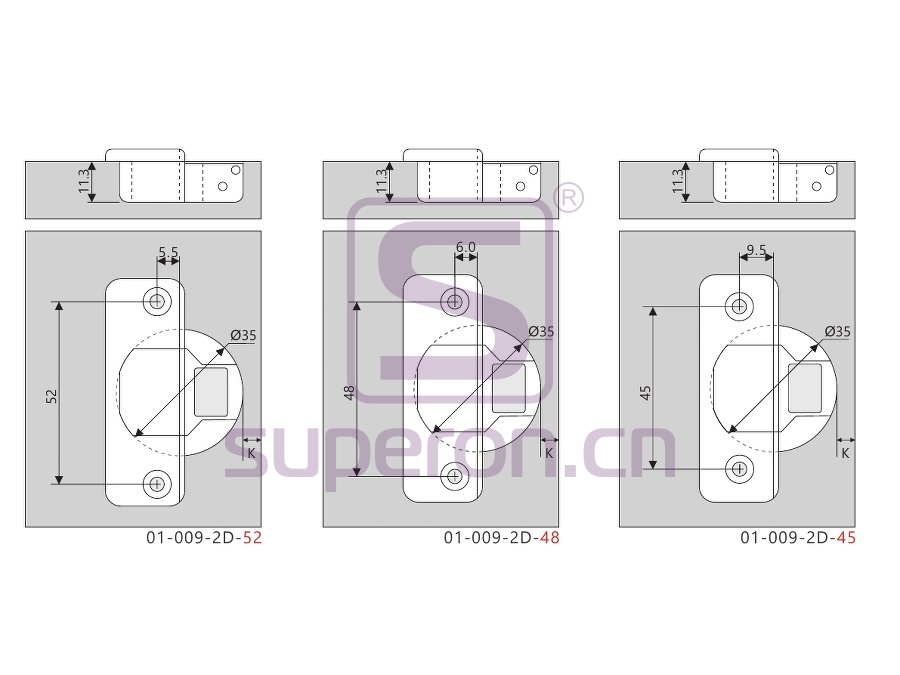

Cup diameter: 35mm
Opening angle: 110°
Cap depth: 11.3mm
Openning type: wihtout spring
Installation: clip-on, adjustment in 2 dimensions
Door thickness: 14-23mm
Overlay adjustment: ±2.5mm
Depth adjustment: ±2.5mm
Height adjustment: ±2.0mm

SKU: 01-009-2D Categories: ,
Variations

01-009-2D-45A0

full overlay/45/H0,no spring

01-009-2D-45B0

half overlay/45/H0,no spring

01-009-2D-45C0

insert/45/H0,no spring

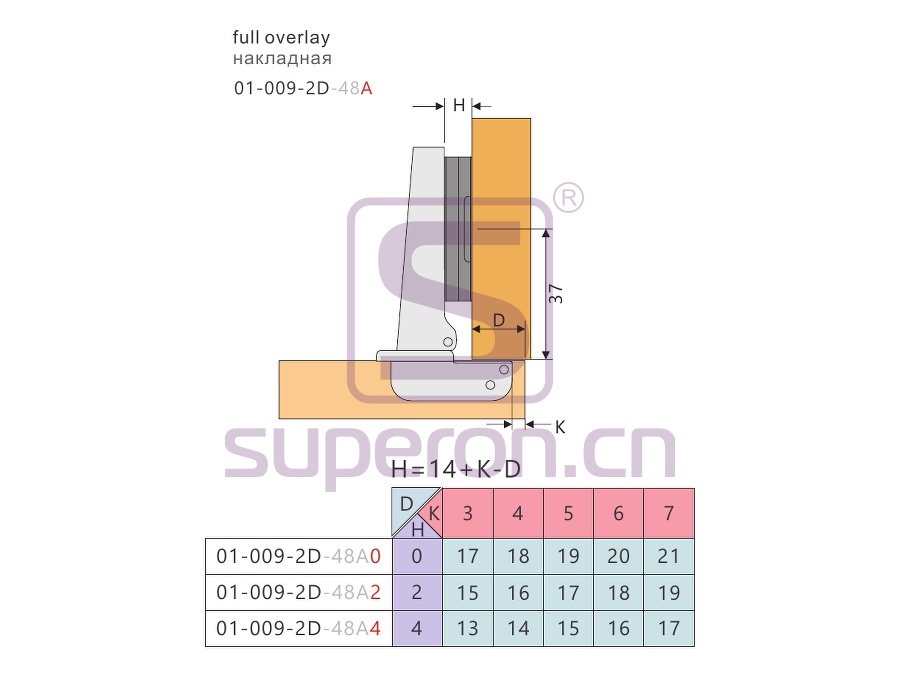

01-009-2D-48A0

full overlay/48/H0,no spring

01-009-2D-48A0-EU

full/48/H0,no spring,euroscrew

01-009-2D-48A2

full overlay/48/H2,no spring

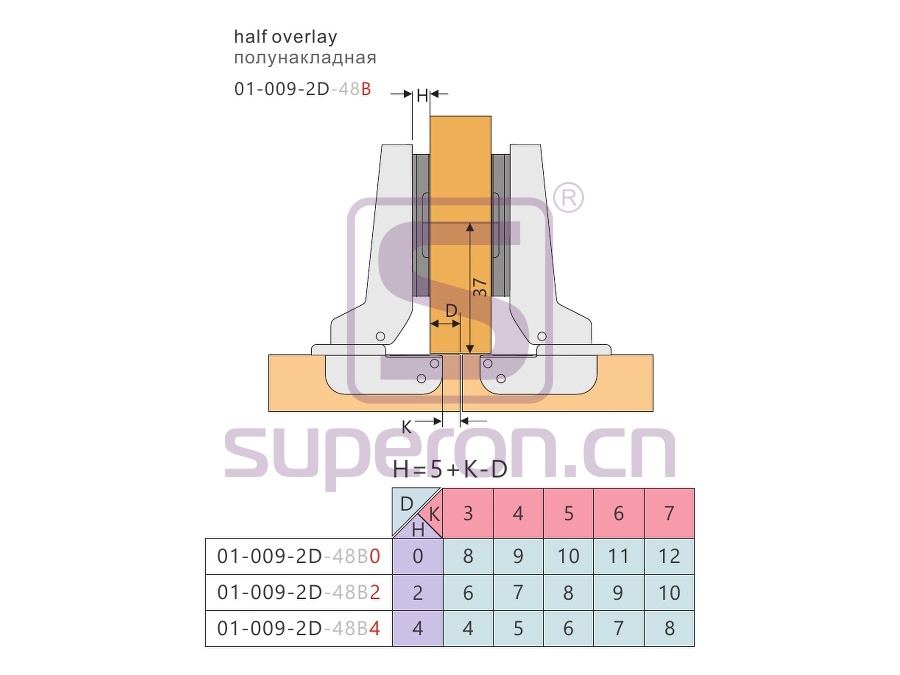

01-009-2D-48B0

half overlay/48/H0,no spring

01-009-2D-48B0-EU

half 48/H0,no spring,euroscrew

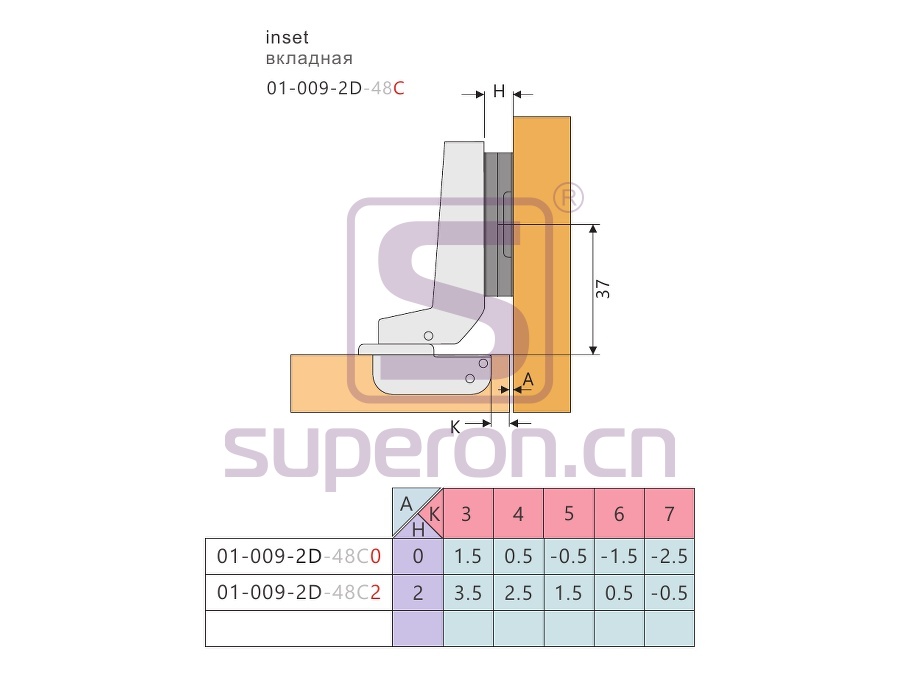

01-009-2D-48C0

insert/48/H0,no spring
