01-044-CL | Frenli 165° menteşe, klipsli 01-044-CL
01-044-CL-1 | Frenli 165° menteşe, klipsli 01-044-CL-1
01-044-CL-B | Frenli 165° menteşe, klipsli 01-044-CL-B
01-044-CL-C | Frenli 165° menteşe, klipsli 01-044-CL-C
01-044-CL-q | Frenli 165° menteşe, klipsli 01-044-CL-q
01-044-CL-x | Frenli 165° menteşe, klipsli 01-044-CL-x
01-044-CL-x2 | Frenli 165° menteşe, klipsli 01-044-CL-x2
01-044-CL-xx | Frenli 165° menteşe, klipsli 01-044-CL-xx

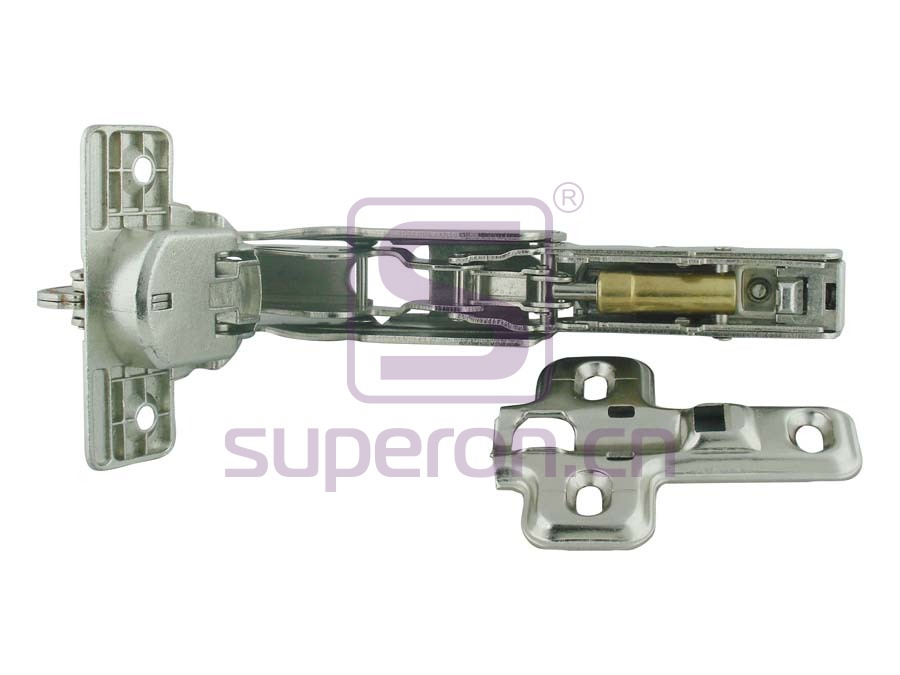

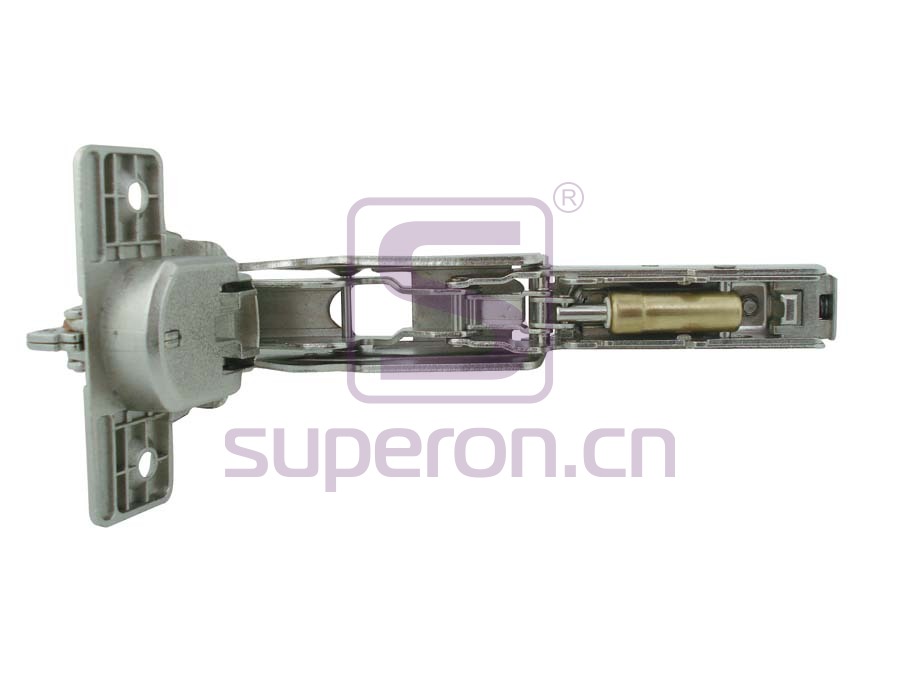

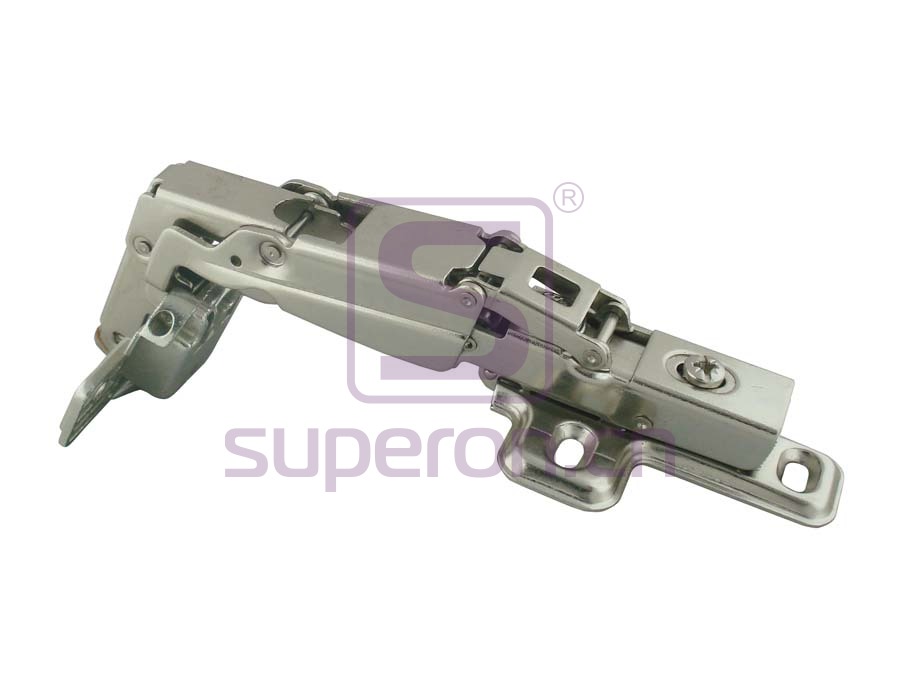

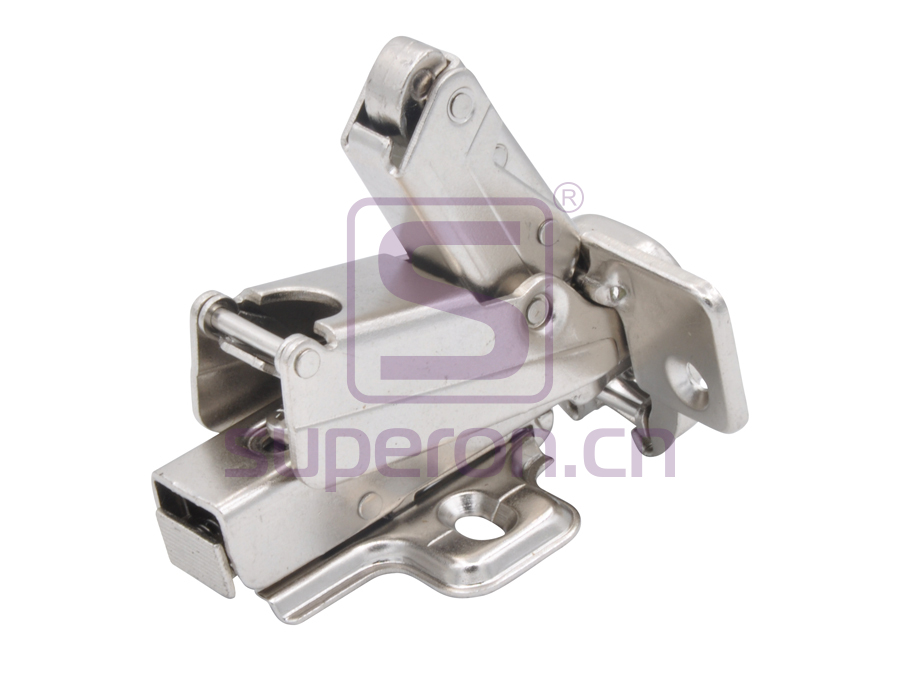

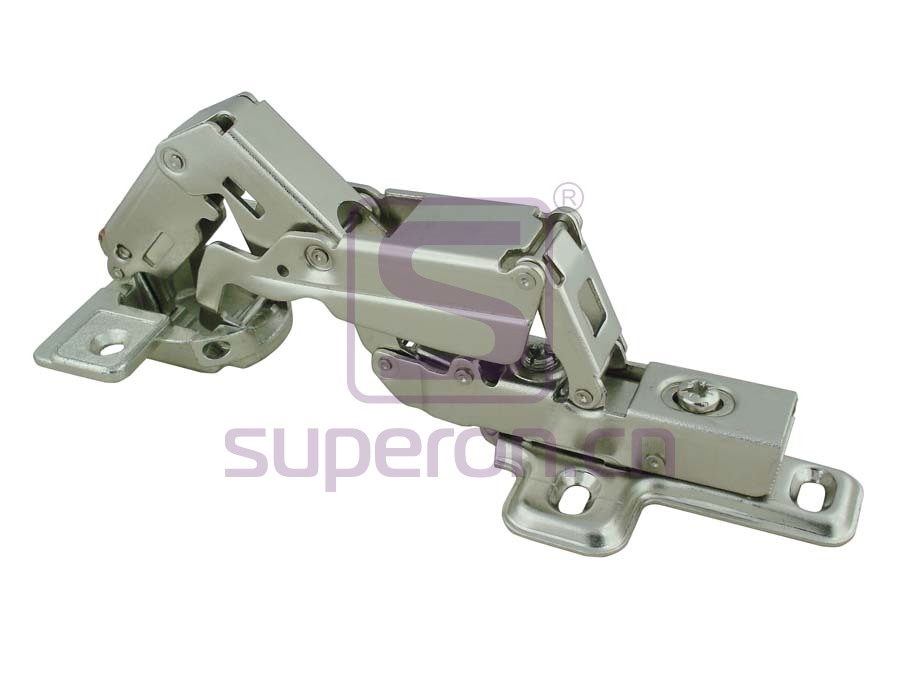

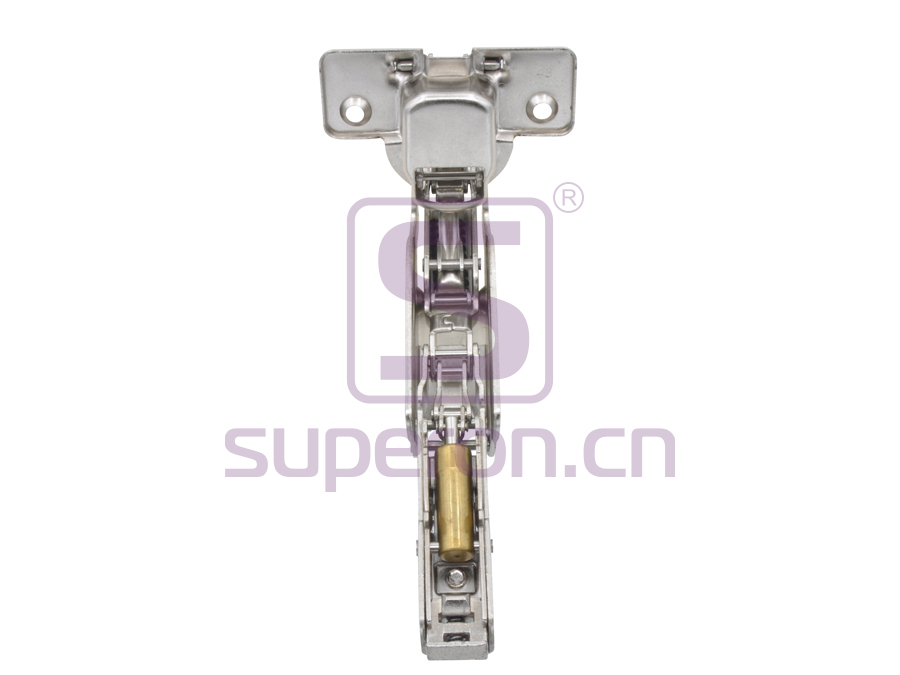

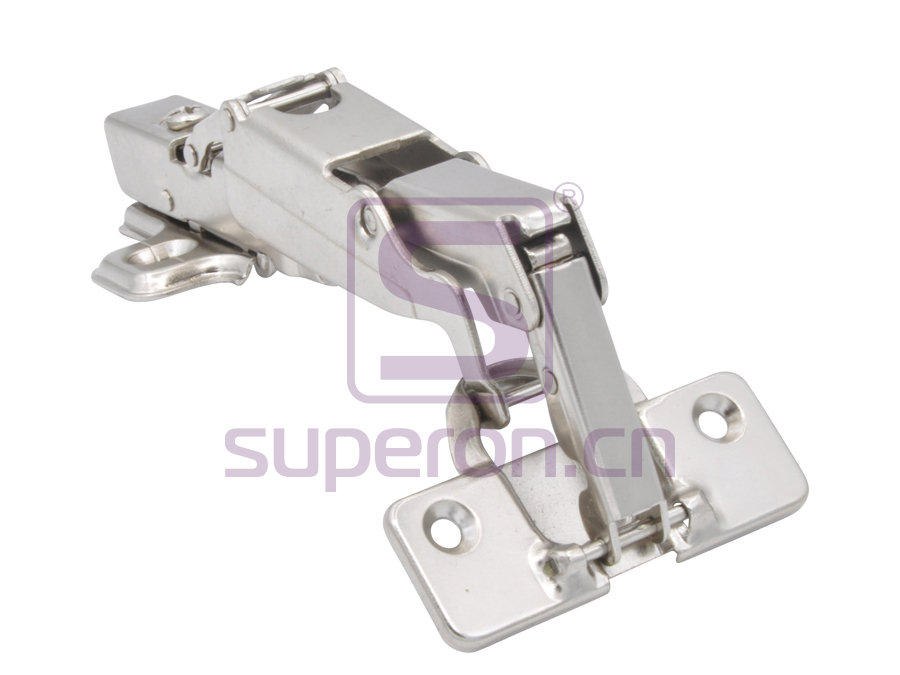

01-044-CL Frenli 165° menteşe, klipsli

Tas çapı: 35mm
Açılma açısı: 165°
Tas derinliği: 11.5mm(Z), 10mm®
Closing type: frenli
Installation: klipsli
Kapak kalınlığı: 14-21mm
Bindirme ayarı: ±2.5mm
Derinlik ayarı: ±2.5mm
Yükseklik ayarı: ±2.0mm

Ürün malzemesi: saç,
Product finish: nikel kaplama
Stok kodu: 01-044-CL Kategoriler: ,

Featured

Çeşitler

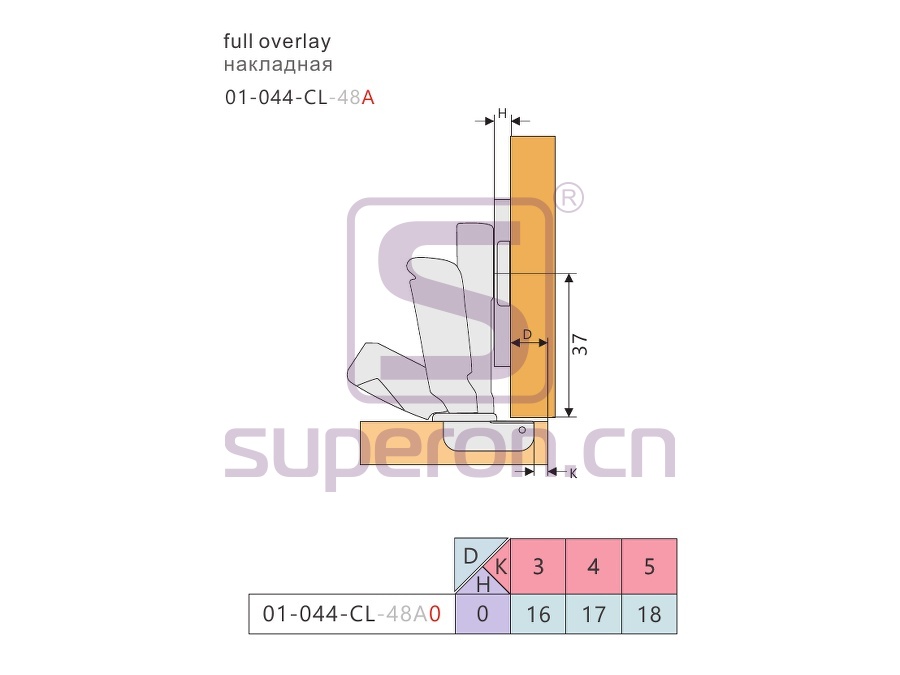

01-044-CL-R48A0

full overlay/48/H0
Delik: 48
Kapak malzemesi: saç
Taban yüksekliği: H=0

01-044-CL-R48A0-4

full overlay/48/H0,4 holes

01-044-CL-R48A0-s

full overlay/48/H0,screws

01-044-CL-R48A0-x

full overlay/48/H0

01-044-CL-R48A2

full overlay/48/H2

01-044-CL-R48A2-x

full overlay/48/H2

01-044-CL-R48A-body

full overlay/48

01-044-CL-R48B0

half overlay/48/H0

01-044-CL-R48B0-x

half overlay/48/H0

01-044-CL-R48C0

insert/48/H0

01-044-CL-R48C0-x

insert/48/H0

01-044-CL-Z48A0

full overlay/48/H0
Delik: 48
Kapak malzemesi: zamak
Taban yüksekliği: H=0
Açılma açısı: 165 °
Ağırlık: 192 gram

01-044-CL-Z48B0

half overlay/48/H0

01-044-CL-Z48C0

insert/48/H0
