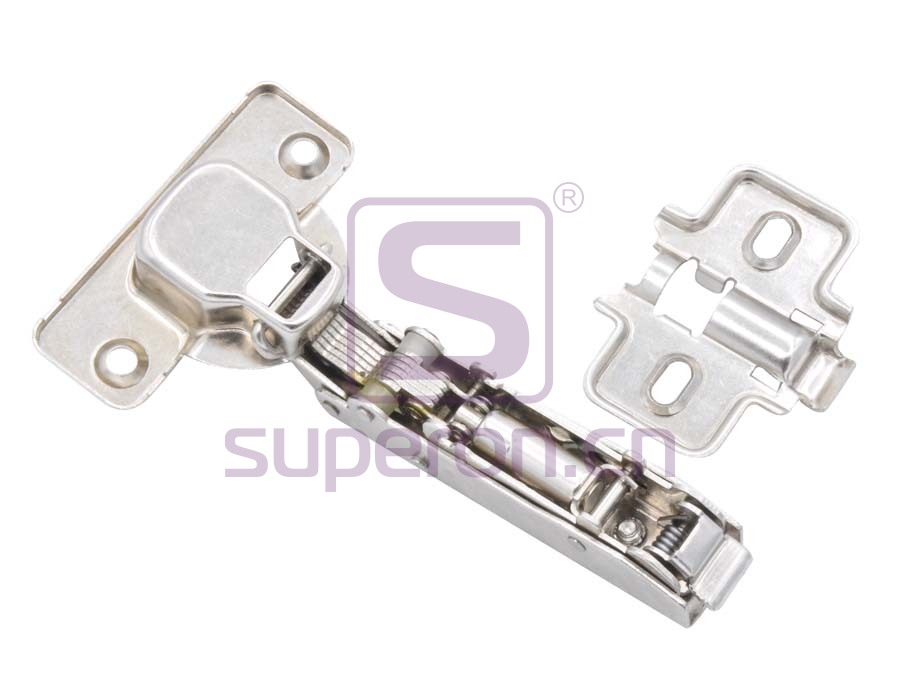

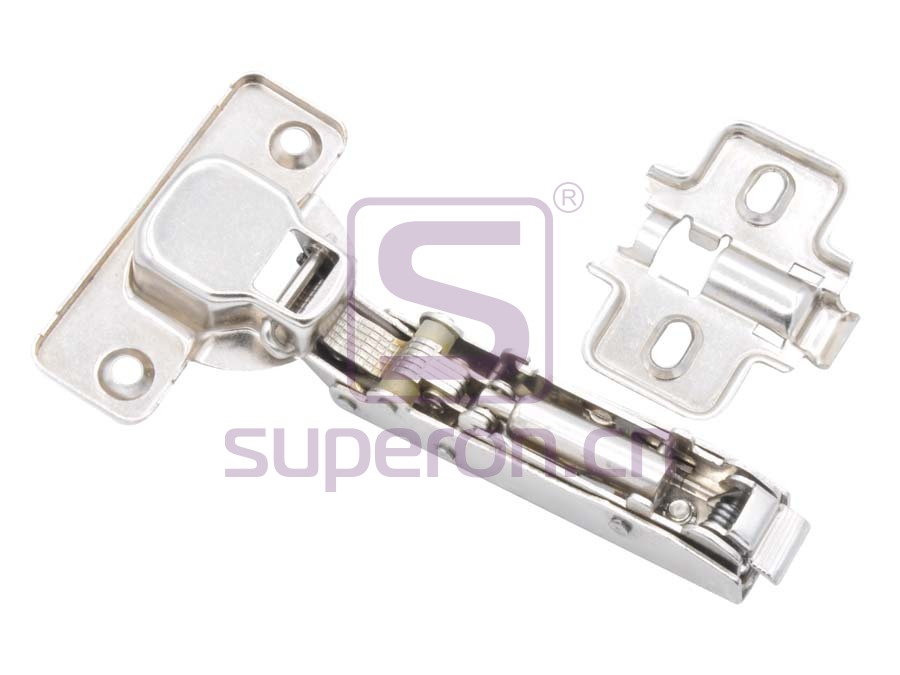

01-063-R-q | Bisagra con amortiguación, acero clip-on

01-063-R Bisagra con amortiguación, acero clip-on

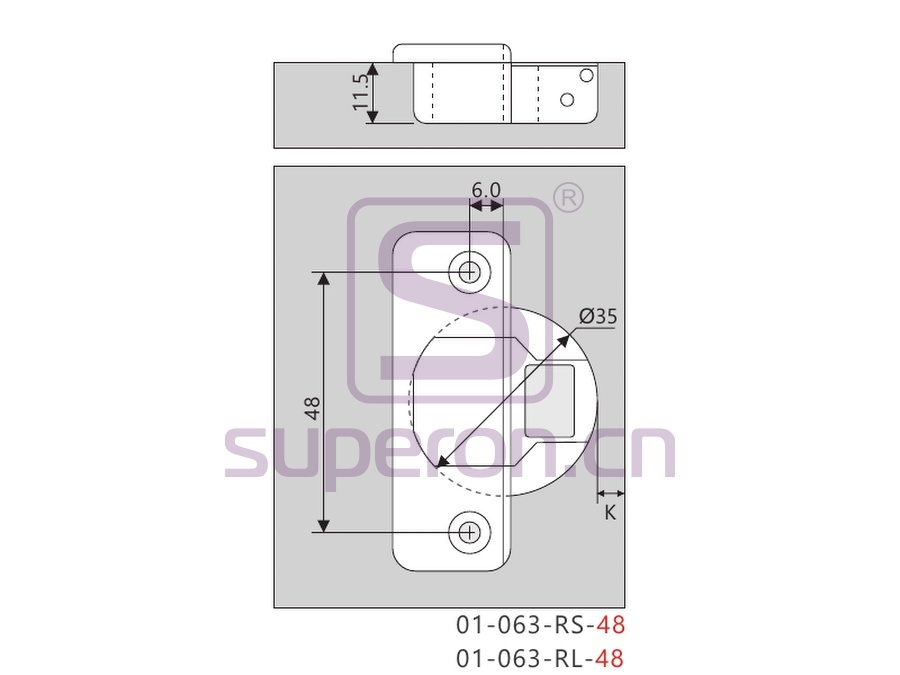

Diámetro de cazoleta: 35mm
Ángulo de apertura: 105
Cap depth: 11.5mm
Closing type: con amortiguación
Instalación: montaje por deslizamiento
Para grosor de puerta: 16-20mm
Ajuste de solapadura: ±2.5mm
Ajuste de profundidad: ±2.5mm
Ajuste de altura: ±2.0mm

SKU: 01-063-R Categorías: 01 - Bisagras, con amortiguación, para puertas de madera

Variations	Montaje	Altura de placa		Peso	Altura de placa

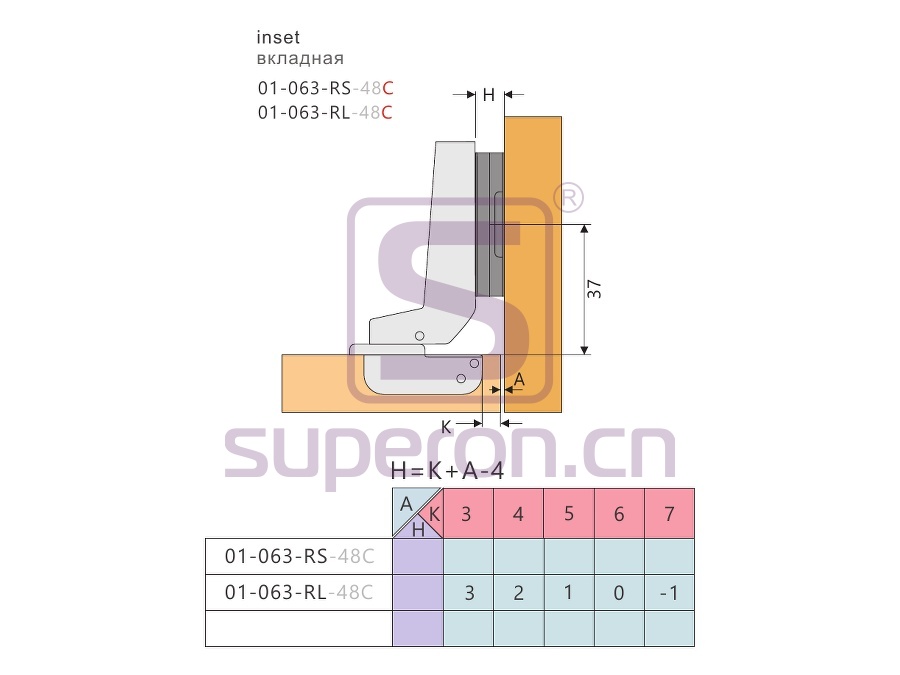

01-063-RL-90-48C2-4 insert/48/H2/4holes Montaje: inserción Altura de placa: H=2	inserción	H=2		-	-	Inquiry In Inquirylist In Inquirylist
01-063-RY-90-48C2-4 insert/48/H2/4holes	-	-	-	-	-	Inquiry In Inquirylist In Inquirylist

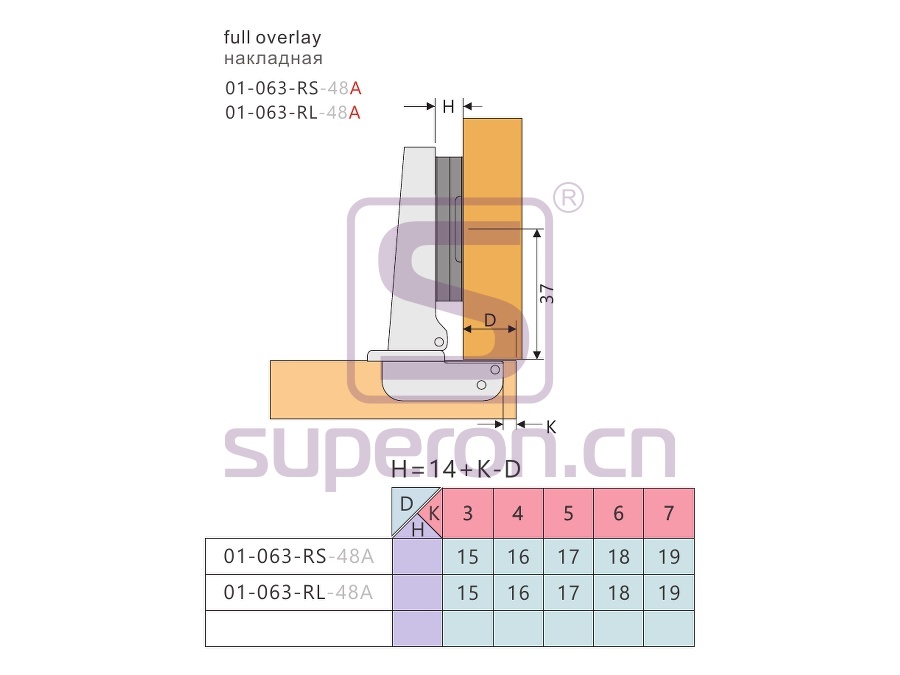

01-063-RL-90-48A2-4 full/48/H2/4holes Montaje: superposición completa Altura de placa: H=2	superposición completa	H=2	-	-	-	Inquiry In Inquirylist In Inquirylist
01-063-RL-88-48C2-4 insert/48/H2/4holes	-	-	-	-	-	Inquiry In Inquirylist In Inquirylist

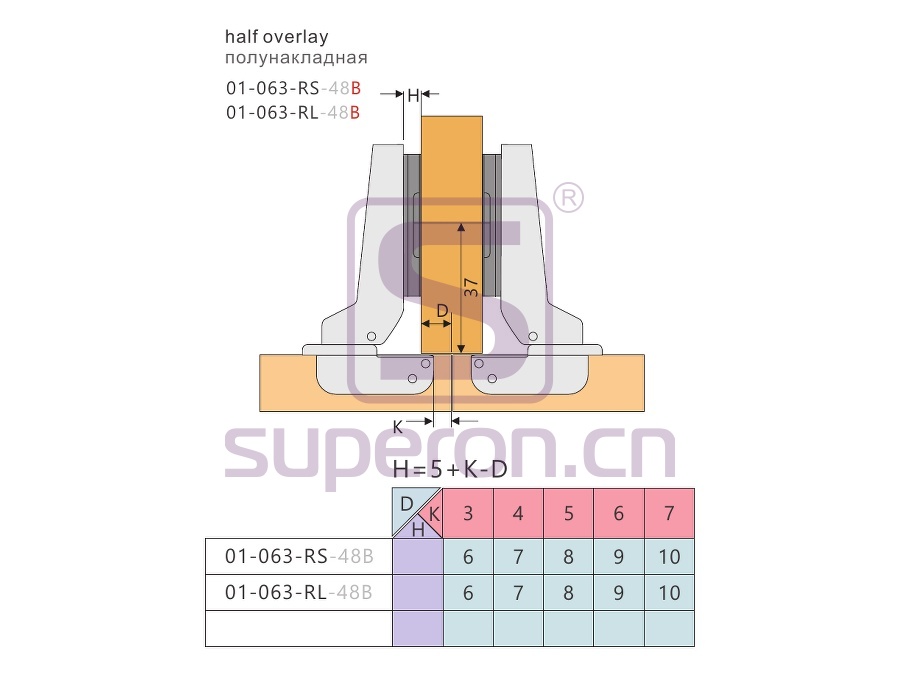

01-063-RL-88-48B2-4 half/48/H2/4holes	-	-	-	-	-	Inquiry In Inquirylist In Inquirylist
01-063-RL-88-48A2-4 full/48/H2/4holes	-	-	-	-	-	Inquiry In Inquirylist In Inquirylist
01-063-RL-85-48C2-4 insert/48/H2/4holes	-	-	-	-	-	Inquiry In Inquirylist In Inquirylist
01-063-RL-85-48B2-4 half /48/H2/4holes	-	-	-	-	-	Inquiry In Inquirylist In Inquirylist
01-063-RL-85-48A2-4 full/48/H2/4holes	-	-	-	-	-	Inquiry In Inquirylist In Inquirylist
01-063-RL-85-48A2-2 full/48/H2/2holes	-	-	-	-	-	Inquiry In Inquirylist In Inquirylist
01-063-RY-90-48B2-4 half/48/H2/4holes	-	-	-	-	-	Inquiry In Inquirylist In Inquirylist
01-063-RS-85-48A2-2 full/48/H2/2holes	-	-	-	-	-	Inquiry In Inquirylist In Inquirylist
01-063-RY-90-48A2-4 full/48/H2/4holes	-	-	-	-	-	Inquiry In Inquirylist In Inquirylist
01-063-RY-88-48C2-4 full/48/H2/4holes	-	-	-	-	-	Inquiry In Inquirylist In Inquirylist
01-063-RY-88-48B2-4 half/48/H2/4holes	-	-	-	-	-	Inquiry In Inquirylist In Inquirylist
01-063-RY-88-48A2-4 full/48/H2/4holes	-	-	-	-	-	Inquiry In Inquirylist In Inquirylist
01-063-RS-90-48C2-4 half overlay/48/H2	-	-	-	-	-	Inquiry In Inquirylist In Inquirylist
01-063-RS-90-48B2-4 full overlay/48/H2	-	-	-	-	-	Inquiry In Inquirylist In Inquirylist
01-063-RS-90-48A2-4 insert/48/H2 Peso: 93 gr	-	-	-	93 gr	-	Inquiry In Inquirylist In Inquirylist
01-063-RS-85-48B2-4 half/48/H2/4holes	-	-	-	-	-	Inquiry In Inquirylist In Inquirylist
01-063-RS-85-48A2-4 full/48/H2/4holes	-	-	-	-	-	Inquiry In Inquirylist In Inquirylist
01-063-RL-90-48B2-4 half/48/H2/4holes Montaje: media superposición	media superposición	-	-	-		Inquiry In Inquirylist In Inquirylist

01-063-R Bisagra con amortiguación, acero clip-on

01-063-RL-90-48C2-4

01-063-RY-90-48C2-4

01-063-RL-90-48A2-4

01-063-RL-88-48C2-4

01-063-RL-88-48B2-4

01-063-RL-88-48A2-4

01-063-RL-85-48C2-4

01-063-RL-85-48B2-4

01-063-RL-85-48A2-4

01-063-RL-85-48A2-2

01-063-RY-90-48B2-4

01-063-RS-85-48A2-2

01-063-RY-90-48A2-4

01-063-RY-88-48C2-4

01-063-RY-88-48B2-4

01-063-RY-88-48A2-4

01-063-RS-90-48C2-4

01-063-RS-90-48B2-4

01-063-RS-90-48A2-4

01-063-RS-85-48B2-4

01-063-RS-85-48A2-4

01-063-RL-90-48B2-4
