    01-001 Concealed hinge , slide-on

    Cup diameter: 35mm
    Opening angle: 110°
    Cap depth: 11.3mm
    Openning type: two ways
    Installation: slide-on
    Door thickness: 14-20mm
    Overlay adjustment: ±2.5mm
    Depth adjustment: ±2.5mm
    Height adjustment: ±2.0mm

  • Placeholder

    01-034 Soft-closing hinge, clip-on

    SGS tested: passed 100.000 openning cycles
    Cup diameter: 35mm
    Opening angle: 105°
    Cap depth: 11.3mm
    Closing type: soft closing
    Installation: clip-on
    Door thickness: 16-20mm
    Overlay adjustment: ±2.5mm
    Depth adjustment: ±2.5mm
    Height adjustment: ±2.0mm

  • Placeholder

    01-036 Soft-closing hinge 3D

    SGS tested: passed 80.000 openning cycles
    Cup diameter: 35mm
    Opening angle: 105°
    Cap depth: 11.3mm
    Closing type: soft closing
    Installation: clip-on, adjustment in 3 dimensions
    Door thickness: 14-22mm
    Overlay adjustment: ±2.5mm
    Depth adjustment: ±2.5mm
    Height adjustment: ±2.0mm

  • Placeholder

    01-042 Soft-closing hinge, 45°, clip-on

    SGS tested: passed 85.000 openning cycles
    Cup diameter: 35mm
    Opening angle: 95°
    Cap depth: 11.3mm
    Closing type: soft closing
    Installation: clip-on
    Door thickness: 14-22mm
    Overlay adjustment: ±2.5mm
    Depth adjustment: ±2.5mm
    Height adjustment: ±2.0mm

  • Placeholder

    01-045 Soft-closing hinge, 165°, clip-on

    Cup diameter: 35mm
    Opening angle: 165°
    Cap depth: 11.5mm
    Closing type: soft closing
    Installation: clip-on
    Door thickness: 14-21mm
    Overlay adjustment: ±2.5mm
    Depth adjustment: ±2.5mm
    Height adjustment: ±2.0mm

  • Placeholder

    01-064 Soft-closing hinge (zinc clip-on)

    Cup diameter: 35mm
    Opening angle: 105°
    Cap depth: 11.5mm
    Closing type: soft closing
    Installation: clip-on
    Door thickness: 16-20mm
    Overlay adjustment: ±2.5mm
    Depth adjustment: ±2.5mm
    Height adjustment: ±2.0mm

  • Placeholder

    01-100 Hinge 26mm, slide-on

    Cup diameter: 26mm
    Opening angle: 95°
    Cap depth: 8.5mm
    Openning type: one way
    Installation: slide-on
    Door thickness: 12-22mm
    Overlay adjustment: ±2.5mm
    Depth adjustment: ±2.5mm
    Height adjustment: ±2.0mm

  • Placeholder

    01-101 26mm hinge for glass doors

    Cup diameter: 26mm
    Opening angle: 98°
    glass thickness: 4-6mm
    Openning type: one way
    Installation: slide-on
    Door thickness: 14-22mm
    Overlay adjustment: ±2.5mm
    Depth adjustment: ±2.5mm
    Height adjustment: ±2.0mm

  • Placeholder

    01-133 Hinge 26mm, soft-closing, clip-on

    Cup diameter: 26mm
    Opening angle: 95°
    Cap depth: 9.7mm
    Closing type: soft closing
    Installation: clip-on
    Door thickness: 14-22mm
    Overlay adjustment: ±2.5mm
    Depth adjustment: ±2.5mm
    Height adjustment: ±2.0mm

  • Placeholder
  • Placeholder
  • Placeholder

    03-103 Lock, #103

    "x" letter added to some item numbers means more budget-friendly item.

  • Placeholder
  • Placeholder

    03-138 Drawer lock #138

    - The weight of the locks are given without the key and withoyut the L-plate.

    Indcating material of the lock in item number:
    Z: zinc alloy body and barrel
    S: zinc alloy body with stainless steel, zinc alloy barrel
    R: steel body, zinc alloy barrel
    P: steel body, plastic barrel

    keys:
    without letter: steel key with plastik head
    -F: steel key with foldable head
    -C: wholly steel key

  • Placeholder
  • Placeholder

    03-407 Glass Lock, #407

    "x" letter added to some item numbers means more budget-friendly item.

  • Placeholder

    03-409 Glass Lock, #409

    "x" letter added to some item numbers means more budget-friendly item.

  • Placeholder

    04-100 Furniture foot, d=30mm

    - One of the most popular foot with leveller.
    - Hexagon part on leveller provides easy adjustment even when loaded.
    - The plastic socket at the bottom is cleaned to remove plastic burrs.
    - The leveller is plated in bright nickel. (not zinc plated).
    - Individual polybag packaging.

  • Placeholder

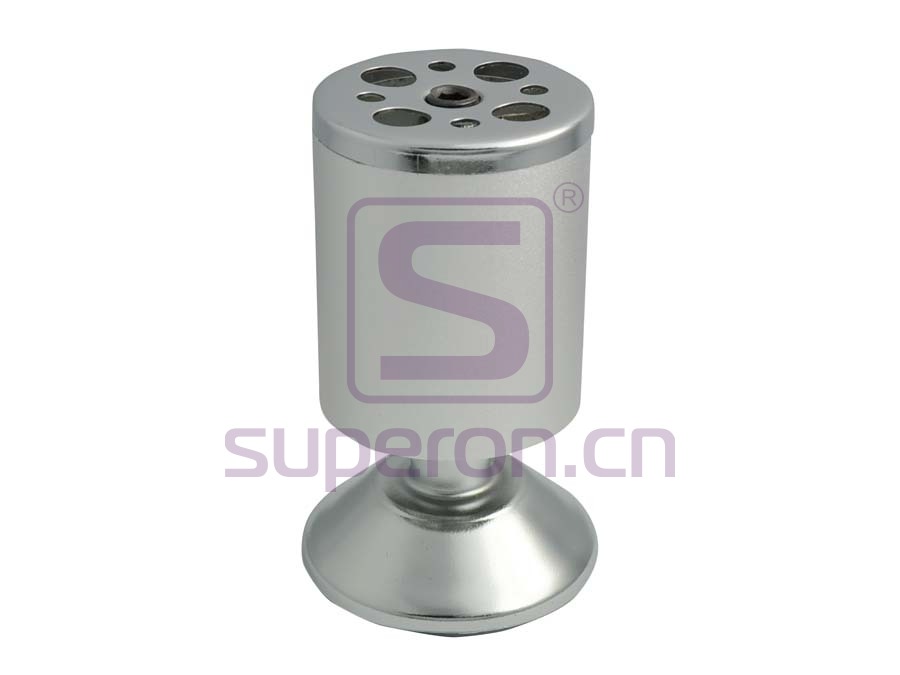

    04-150 Aluminium foot

    Item numbers contain:
    32, 38 or 50: diameter of the foot

    Rb = steel stamped top and steel stamped leveller with plastic base
    R = steel solid top (thickness is 3.2mm) and steel stamped leveller with plastic base
    ZR = steel solid top (thickness is 3.2mm) and die-cast zinc leveller with plastic base
    Z = die-cast zinc top and die-cast zinc leveller with plastic base

    080/100/120/150: height of the foot

  • Placeholder
  • Placeholder

    04-600 Castor, wıth plate

    - Castors are made of good quality plastic material.
    - Castors don't have odour, don't smell.
    - Castors don't leave "black lines' on floor when used.
    - Castors don't deformed under the standard load.
    Standard load tested:
    D=50mm > 100kg
    D=40mm > 80kg
    D=30mm > 30kg
    - Packed 4 pcs in a polybag, in line or in square.

  • Placeholder

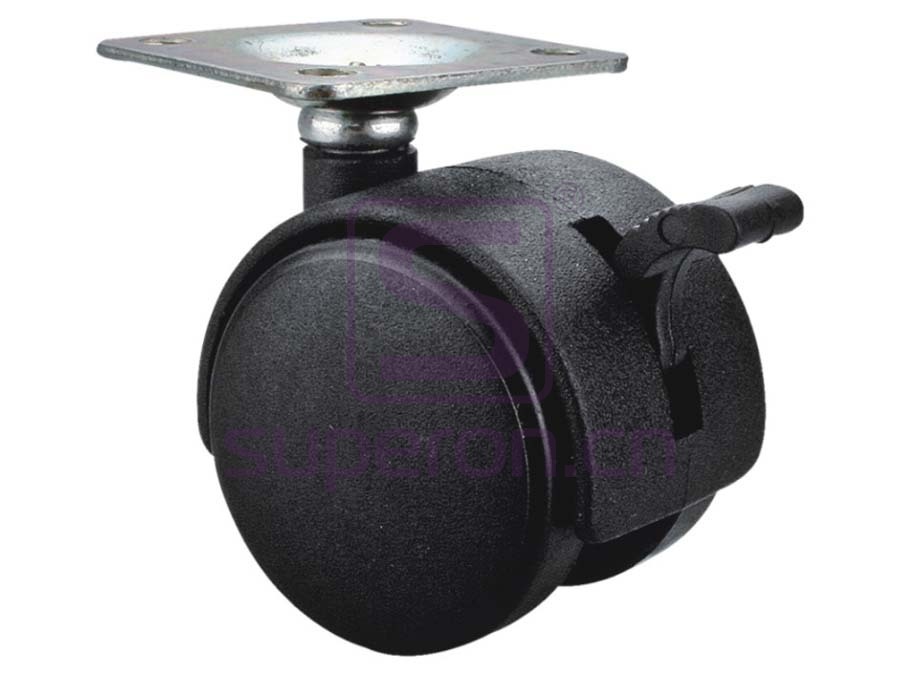

    04-601 Castor, w/ plate, with brake

    - Castors are made of good quality plastic material.
    - Castors don't have odour, don't smell.
    - Castors don't leave "black lines' on floor when used.
    - Castors don't deformed under the standard load.
    Standard load tested (heavier loads were not tested):
    D=50mm > 80kg
    D=40mm > 60kg
    D=30mm > 30kg
    - Packed 4 pcs in a polybag, in line or in square.

  • Placeholder

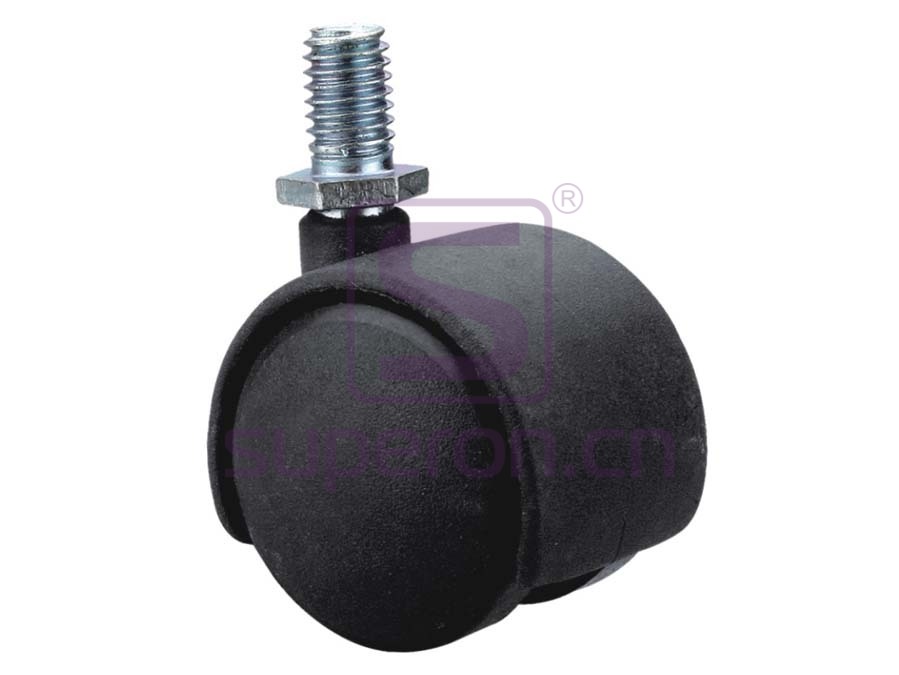

    04-602 Castor, w/ thread, without brake

    - Castors are made of good quality plastic material.
    - Castors don't have odour, don't smell.
    - Castors don't leave "black lines' on floor when used.
    - Castors don't deformed under the standard load.
    Standard load tested (heavier loads were not tested):
    D=50mm > 80kg
    D=40mm > 60kg
    D=30mm > 30kg
    - Packed 4 pcs in a polybag, in line or in square.

  • Placeholder

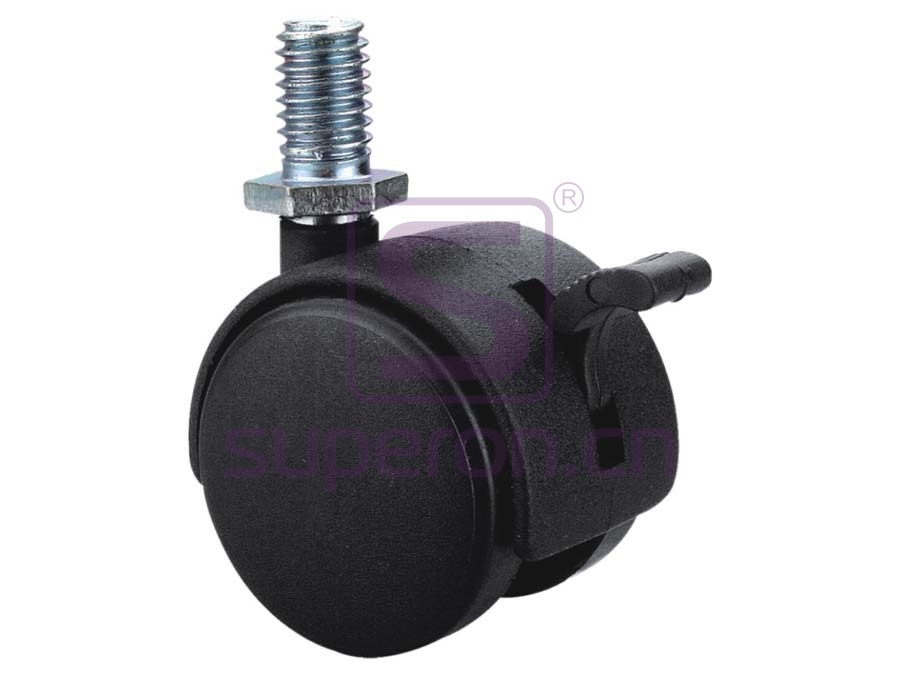

    04-603 Castor, w/ thread, with brake

    - Castors are made of good quality plastic material.
    - Castors don't have odour, don't smell.
    - Castors don't leave "black lines' on floor when used.
    - Castors don't deformed under the standard load.
    Standard load tested (heavier loads were not tested):
    D=50mm > 80kg
    D=40mm > 60kg
    D=30mm > 30kg
    - Packed 4 pcs in a polybag, in line or in square.

  • Placeholder

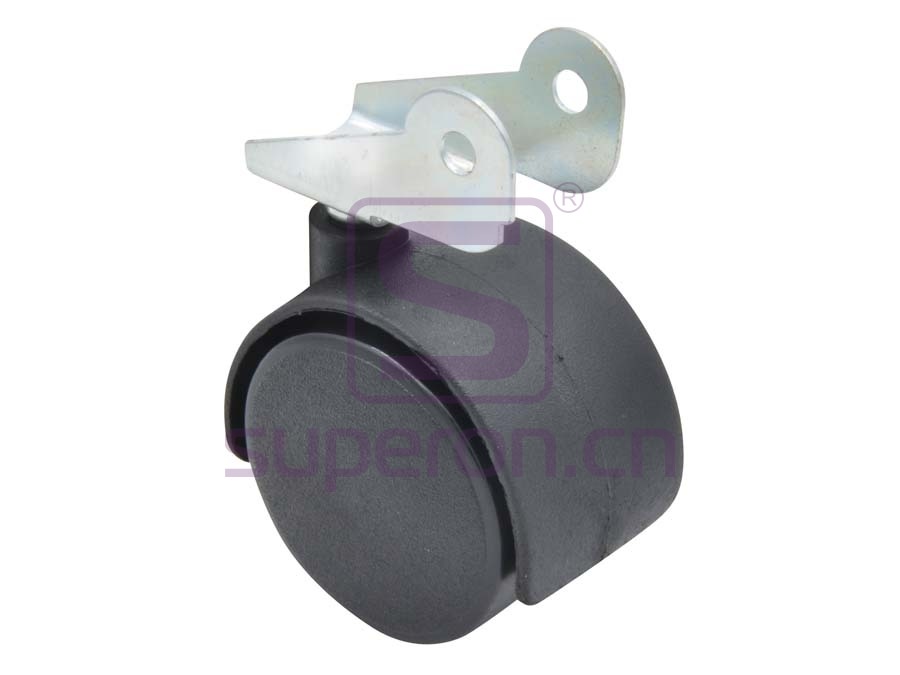

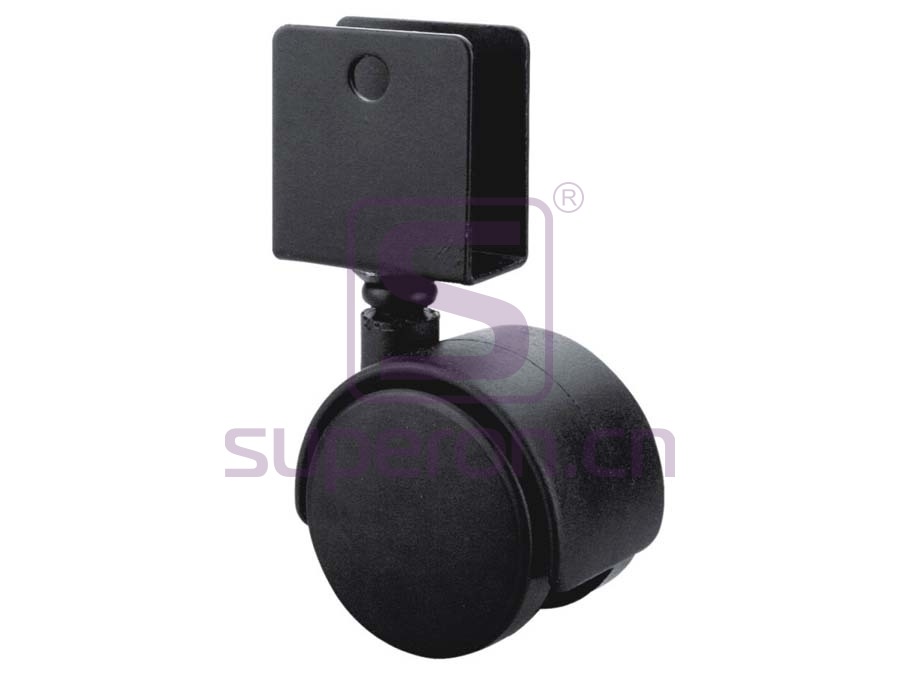

    04-606 Castor, w/ U-canal, without brake

    - Castors are made of good quality plastic material.
    - Castors don't have odour, don't smell.
    - Castors don't leave "black lines' on floor when used.
    - Castors don't deformed under the standard load.
    Standard load tested (heavier loads were not tested):
    D=50mm > 80kg
    D=40mm > 60kg
    D=30mm > 30kg
    - Packed 4 pcs in a polybag, in line or in square.

  • Placeholder

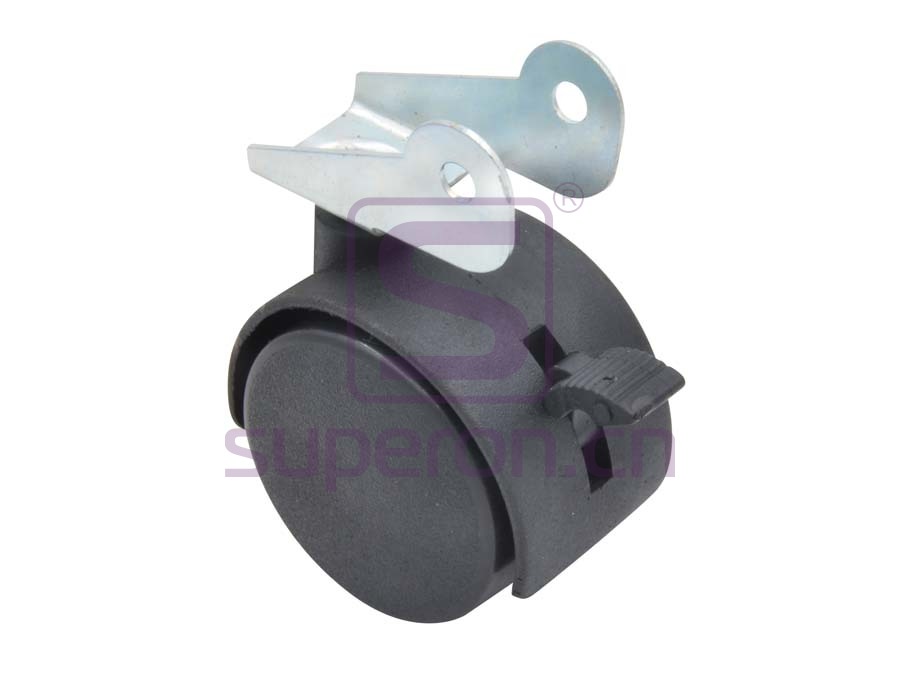

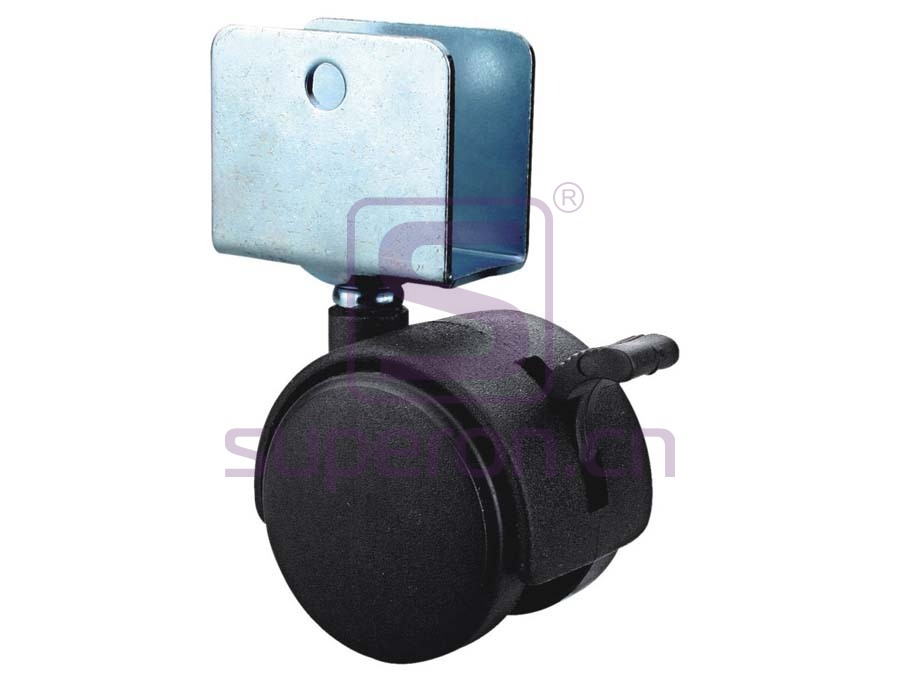

    04-607 Castor, w/ U-canal, with brake

    - Castors are made of good quality plastic material.
    - Castors don't have odour, don't smell.
    - Castors don't leave "black lines' on floor when used.
    - Castors don't deformed under the standard load.
    Standard load tested (heavier loads were not tested):
    D=50mm > 80kg
    D=40mm > 60kg
    D=30mm > 30kg
    - Packed 4 pcs in a polybag, in line or in square.

  • Placeholder

    04-620 Castor PU, w/ plate, without brake

    - Soft noiseless motion, outer layer is made of high quality PU or budget-friendly PVC.
    - Castors are made of good quality plastic material.
    - Castors don't have odour.
    - Castors don't leave "black lines' on floor when used.
    - Castors don't deformed under the standard load.
    - Packed 4 pcs in a polybag.

    PU - is bright, with smooth surface and good resistance, more expensive, better quality.
    PVC - softer material, surface is matte, price is lower.

    Buffer layer must not be very soft, it must resist the pressure. In fact, if it looks like a rubber and is very soft, this quality is low, it doesn't have enough resist and will wear out very quick.

  • Placeholder

    04-640 Castor, w/ plate, without brake

    - Castor body is made of zinc alloy, bright center of the wheel is made of stainless steel.
    - There are different types of quality, it depends on quality of zinc alloy, thickness (or weight) of material, width of the front cover.
    - The appearance depends on the quality of polish and plating.

  • Placeholder

    04-641 Castor, w/ plate, with brake

    - Castor body is made of zinc alloy, bright center of the wheel is made of stainless steel.
    - There are different types of quality, it depends on quality of zinc alloy, thickness (or weight) of material, width of the front cover.
    - The appearance depends on the quality of polish and plating.

  • Placeholder
  • Placeholder
  • Placeholder
  • Placeholder
  • Placeholder

    07-001 Gas (nitrogen) support, upward

    - The product passed SGS test for 100.000 opennig cycles.
    - The pressure in the product remains the same after freezing/unfreezing.
    - Different sizes can be produced according to the order.
    - Different colours are available.
    - Proper piston and quality rubber seal prevent from gas leaking.

  • Placeholder
  • Placeholder
  • Placeholder

    07-034 Hydraulic soft bracket, steel arm

    on drawing pay attention to the L and R.

  • Placeholder

    07-120 Push-to-open pusher

    - Magnetic or soft head with adjustable length
    - Installed with screws
    - Opening distance:

    20mm - for smaller doors (appr. height <1300mm)
    40mm - for inset doors and higher doors (appr. height >1300mm)
    - Adapter:
    with nail, for overlay doors
    without nail, for overay, inset or angled doors

  • Placeholder

    07-122 Push-to-open pusher

    - Magnetic of soft head with adjustable length
    - Counterplate: self-adhesive, with socket or with screw
    - Installed with screws
    - Opening distance:
40mm
    - Adapter: without nail, for overay, inset or angled doors

  • Placeholder
  • Placeholder

    07-312 Pushing catch

    - Double spring, reliable construction
    - Stable locking
    - Improved counter plate with movable die-casted zinc part prevent a product from breaking in case of pulling the door.

  • Placeholder
  • Placeholder
  • Placeholder
  • Placeholder
  • Placeholder
  • Placeholder
  • Placeholder
  • Placeholder
  • Placeholder

    10-107 Dowel for eccentric, self tapping

    - Euroscrew thread for hole 5mm.
    - Deep thread provides better fixaton.
    - Dowel length 24 or 34mm
    - Dowel can be mounted with cross screwdriver PH2 or PZ2.
    - Chamfer on thread tip (on some types) for more comfortable installation.

  • Placeholder

    10-108 Dowel for eccentric, metric

    - Metric thread M6x7.8
    - Dowel length 20 or 30mm
    - Dowel can be mounted with cross screwdriver PH2 or PZ2.

  • Placeholder

    10-201 Eccentric cam, D15

    - Ecentric cam pulls the furniture boards into place, from initial gap upto 4 mm.
    - Internal and external indentations make the connection secure.
    – The dowel is always pulled in to the centred position, providing an accurate assembly.
    - Eccentric cam can be tightened with cross screwdriver PH2 (recommended) or PZ2 , flat-blade screwdriver or 4 mm allen key.
    - Used for boards with thickness of 15, 16, 18, 19, 25 mm

  • Placeholder

    10-202 Eccentric cam, D15

    - Ecentric cam pulls the furniture boards into place, from initial gap upto 4 mm.
    - Internal and external indentations make the connection secure.
    – The dowel is always pulled in to the centred position, providing an accurate assembly.
    - Eccentric cam can be tightened with cross screwdriver PH2 (recommended) or PZ2 , flat-blade screwdriver or 4 mm allen key.
    - Used for boards with thickness of 13, 15, 16 and 18mm

  • Placeholder

    10-271 Shelf top d20

    - Hidden fitting with housing for connecting of shelves and side panels with the eccentric latching principle.
    - The housing is placed into a hole with diameter 20 mm
    - A shelf can be fastenned even into the assembled furniture.
    - Type A can be tightened both from the bottom and the top (suitable for bottom panels, a through hole is required).

  • Placeholder

    10-273 Shelf top d20

    - Hidden fitting with housing for connecting of shelves and side panels with the eccentric latching principle.
    - The housing is placed into a hole with diameter 20 mm.
    - A shelf can be fastenned even into the assembled furniture.
    - Can be tightened both from the bottom and the top (suitable for bottom panels, a through hole is required).

  • Placeholder

    10-300 Knock-in socket

    - Knock-in socket is produced in two different ways: forged (A) and stamped (B).
    Forged:
    *thick steel is used (1.5 mm and over),
    *thread is more reliable,
    *product is more accurate.

    Stamped:
    *thin steel is used (usually 1.0 or 1.2 mm),
    *sligh deformation may occur,
    *product is more budget-friendly.

  • Placeholder
  • Placeholder
  • Placeholder

    10-371 Plastic socket strip (open-ended)

    - For thread M6.
    - Hole diameter 10mm
    - Sockets are linked in a strip
    - The quality is mainly based on the
    *thickness of the plastic,
    *quality of plastic.
    The weight of the recycled plastic can be higher than the primary plastic, so the weight cannot be the only factor of quality. The torque level should be taken into consideration.

  • Placeholder

    10-408 Connecting corner

    - The rib makes the corner more resistant to bending without increasing the thickness of steel.
    - The specified thickness of steel is standard for this item. Upon customer's request the item can be produced with thinner or thicker steel.
    - Rounded corners make it safer when using the furniture.

  • Placeholder

    10-413 Connecting corner with cover

    - Steel corner with decorative plastic cover.
    - Accurate combination of slots provides smooth installation and prevent the cover from moving out.
    - Notches around the screw hole prevent displacement of the corner.
    - Straight slot for screw allows to adjust the corner before fixing.
    - Nice apperance and low height of the plastic cover makes the furniture good-looking.

  • Placeholder

    10-541 Adjustable cabinet hanger

    - For rail suspension.
    - Enforced hook that have U-section.
    - Load capacity also depends on plastic material (see table)
    - Adjustment possibilities: Height: ± 7 mm
    Depth: max. 20 mm
    - Lift-off height: 7,5 mm

  • Placeholder

    10-543 Adjustable cabinet hanger

    - For rail suspension.
    - Solid body cab bear more loading.
    - Load capacity also depends on plastic material (see table)
    - Adjustment possibilities: Height: ± 10mm
    Depth: max. 12 mm
    - Lift-off height: 6 mm

  • Placeholder
  • Placeholder
  • Placeholder
  • Placeholder
  • Placeholder

    10-219 Eccentric cam, D15

    - Ecentric cam pulls the furniture boards into place, from initial gap upto 4mm.
    - Internal indentations make the connection secure.
    – The dowel is always pulled in to the centred position, providing an accurate assembly.
    - Eccentric cam can be tightened with cross screwdriver PH2 (recommended) or PZ2 , flat-blade screwdriver or 4mm allen key.
    - Used for boards with thickness of 16, 18mm

  • Placeholder

    10-372 Plastic socket (open-ended)

    - Hole diameter 10mm
    - Sockets are not linked.
    - The quality is mainly based on the
    *thickness of the plastic,
    *quality of plastic.
    The weight of the recycled plastic can be higher than the primary plastic, so the weight cannot be the only factor of quality. The torque level should be taken into consideration.

  • Placeholder
  • Placeholder

    09-100 Roller system (symmetric)

    Material:
    upper roller - PVC
    lower roller -
    type A: standard bearing + POM plastic
    type B: budget friendly bearing + PP plastic

  • Placeholder

    09-101 Roller system (asymmetric)

    Material:
    upper roller - PVC
    lower roller - POM

  • Placeholder
  • Placeholder
  • Placeholder

    01-043 Soft-closing hinge, 90°, clip-on

    Cup diameter: 35mm
    Opening angle: 95°
    Cap depth: 11.3mm
    Closing type: soft closing
    Installation: clip-on
    Door thickness: 14-22mm
    Overlay adjustment: ±2.5mm
    Depth adjustment: ±2.5mm
    Height adjustment: ±2.0mm

  • Placeholder
  • Placeholder
  • Placeholder
  • Placeholder
  • Placeholder

    01-035 Soft-closing hinge, clip-on

    SGS tested: passed 100.000 openning cycles
    Cup diameter: 35mm
    Opening angle: 105°
    Cap depth: 11.3mm
    Closing type: soft closing
    Installation: clip-on
    Door thickness: 16-20mm
    Overlay adjustment: ±2.5mm
    Depth adjustment: ±2.5mm
    Height adjustment: ±2.0mm"

  • Placeholder
  • Placeholder
  • Placeholder
  • Placeholder
  • Placeholder

    01-052 Soft-closing hinge, 45°, 3D

    Cup diameter: 35mm

    Opening angle: 95°

    Cap depth: 11.3mm

    Closing type: soft closing

    Installation: clip-on, adjustment in 3 dimensions
    Door thickness: 14-22mm

    Overlay adjustment: ±2.5mm

    Depth adjustment: ±2.5mm

    Height adjustment: ±2.0mm

  • Placeholder

    01-053 Soft-closing hinge, 90°, 3D

    Cup diameter: 35mm

    Opening angle: 95°

    Cap depth: 11.3mm

    Closing type: soft closing

    Installation: clip-on, adjustment in 3 dimensions
    Door thickness: 14-22mm

    Overlay adjustment: ±2.5mm

    Depth adjustment: ±2.5mm

    Height adjustment: ±2.0mm

  • Placeholder
  • Placeholder
  • Placeholder

    01-070 Soft-closing hinge, clip-on

    Cup diameter: 35mm
    Opening angle: 105°
    Cap depth: 12.6mm
    Closing type: soft closing, adjustment in 3 dimensions
    Installation: clip-on
    Door thickness: 16-20mm
    Overlay adjustment: ±2.5mm
    Depth adjustment: ±2.5mm
    Height adjustment: ±2.0mm

  • Placeholder

    01-071 Soft-closing hinge, 3D

    Cup diameter: 35mm
    Opening angle: 105°
    Cap depth: 12.6mm
    Closing type: soft closing, adjustment in 3 dimensions
    Installation: clip-on
    Door thickness: 16-20mm
    Overlay adjustment: ±2.5mm
    Depth adjustment: ±2.5mm
    Height adjustment: ±2.0mm

  • Placeholder

    01-072 Soft-closing hinge, clip-on

    Cup diameter: 35mm
    Opening angle: 100°
    Cap depth: 11.3mm
    Closing type: soft closing
    Installation: clip-on
    Door thickness: 16-20mm
    Overlay adjustment: ±2.5mm
    Depth adjustment: ±2.5mm
    Height adjustment: ±2.0mm

  • Placeholder

    01-073 Soft-closing hinge, 3D

    Cup diameter: 35mm
    Opening angle: 100°
    Cap depth: 11.3mm
    Closing type: soft closing, adjustment in 3 dimensions
    Installation: clip-on
    Door thickness: 16-20mm
    Overlay adjustment: ±2.5mm
    Depth adjustment: ±2.5mm
    Height adjustment: ±2.0mm

  • Placeholder
  • Placeholder
